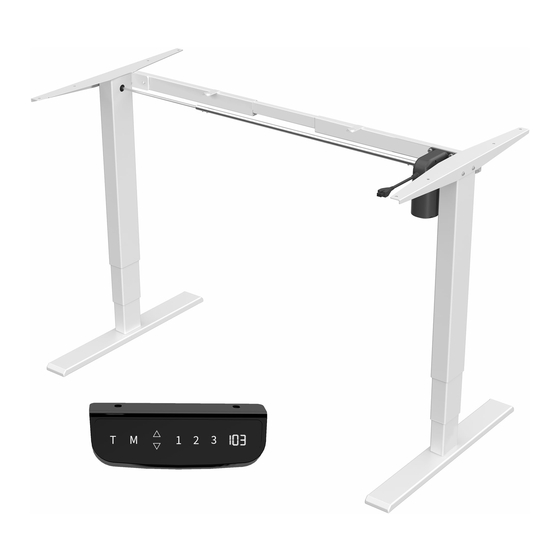

White electric single motor desk frame
Hide thumbs Also See for DESK-V102EW:

Advertisement

White Electric Single Motor Desk Frame
Instruction Manual
SKU: DESK-V102EW
Scan the QR code with your mobile device or follow the link
for helpful videos and specifications related to this product.
https://vivo-us.com/products/desk-v102ew
GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST
help@vivo-us.com
www.vivo-us.com
Chat live with an agent!
309-278-5303

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DESK-V102EW and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Vivo DESK-V102EW

  • Page 1 White Electric Single Motor Desk Frame Instruction Manual SKU: DESK-V102EW Scan the QR code with your mobile device or follow the link for helpful videos and specifications related to this product. https://vivo-us.com/products/desk-v102ew GET IN TOUCH | Monday-Friday from 7:00am-7:00pm CST help@vivo-us.com...
  • Page 2: Electrical Safety Instructions

    WARNING! If you do not understand these directions, or if you have any doubts about the safety of the installation, please call a qualified technician. Check carefully to make sure there are no missing or defective parts. Improper installation may cause damage or serious injury. Do not use this product for any purpose that is not explicitly specified in this manual and do not exceed weight capacity.
  • Page 3: Tools Needed

    TOOLS NEEDED Phillips Screwdriver DO NOT EXCEED WEIGHT CAPACITY. 176lbs Failure to do so may result in serious injury. (79.83kg) Level ASSEMBLY STEPS STEP 1 Loosen the two screws using the allen key (S-D). Adjust the frame length to suit the desktop. Retighten all screws.
  • Page 4 STEP 3 With the frame upside down, place the feet (F) on the legs as shown. Insert the bolts (S-A) in the desk legs using an Allen Key (S-D). STEP 4 Position the frame upright. Loosen the knobs on the sync rod (B) and extend the hex shaft. Insert hex shaft into the leg (I), making sure the red bumper makes contact with the leg.
  • Page 5 STEP 5 (continued) Hang the shelf onto the center part of the telescopic crossbar. Tighten the screws. STEP 6 Connect the AC adapter (C) and motorized leg to the controller (K). Connect the power cord (J) to the AC adapter.
  • Page 6 STEP 8 If you are using a VIVO desktop, Refer to the manual that came with your desktop. If you are not using a VIVO desktop, place the desktop on the frame, and secure the desktop using the ⅞” screws (S-B).
  • Page 7 STEP 9 Attach the controller to the underside of the desktop using 3/4"screws (S-C) as shown. Tighten all screws. Once controller is installed, cable clips (S-E) can be attached to the desk for cable management. Refer to Controller User Guide for operational instructions. CAUTION! Do not exceed desk weight limit.
  • Page 8 - 92% within < 3hr www.vivo-us.com AVG. RESOLUTION TIME : < 15 M (within office hrs) Chat live with an agent! 309-278-5303 AVG. RESOLUTION TIME : 5M 4S (within office hrs) FOR MORE VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: www.vivo-us.com...
