Vivo DESK-V102E Series Assembly Manual
Electric single motor desk frame
Hide thumbs
Also See for DESK-V102E Series:
- Instruction manual (17 pages) ,
- Installation instructions & user manual (2 pages) ,
- Installation manual (4 pages)
Related Manuals for Vivo DESK-V102E Series
Summary of Contents for Vivo DESK-V102E Series

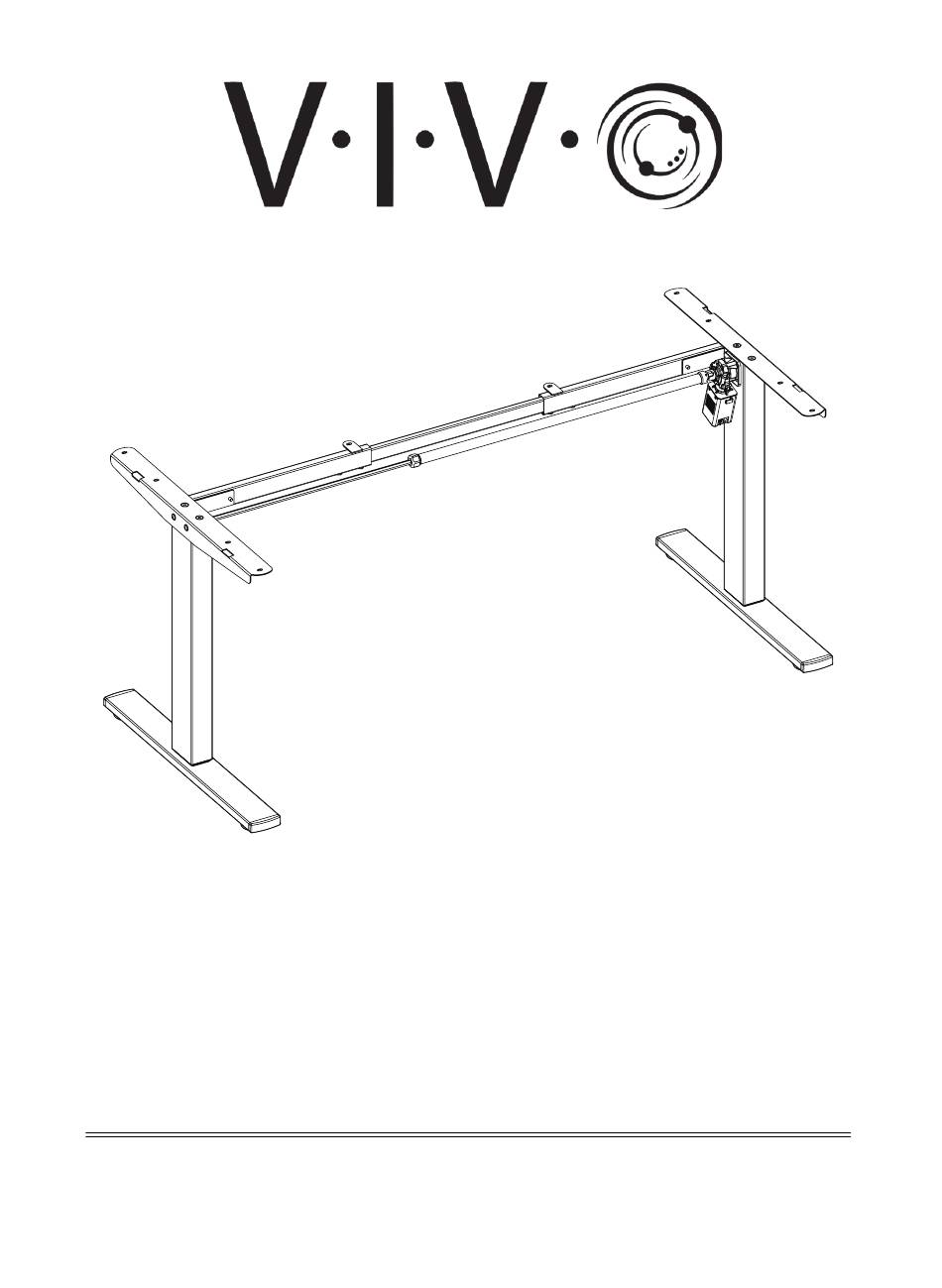

- Page 1 Electric Single Motor Desk Frame DESK-V102E Series Assembly Manual Individual Product SKUs DESK-V102E DESK-V102EW...
-
Page 2: We're Here For You
Saturday 8am-4pm CST US-Based Customer Support from Trained Professionals Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 Assembly Video Available Navigate to the middle of the product page to watch as our product specialists walk you through the assembly process. -
Page 3: Please Read
Returns: We offer a hassle-free 30 day return on all products. Contact customer support at 309-278-5303 or help@vivo-us.com. Please note: For items ordered in error or no longer needed, the return shipping charges will be at the buyer’s expense. Product Specific Warnings: WARNING: CHOKING HAZARD SMALL PARTS - NOT FOR CHILDREN UNDER 3 YEARS. -
Page 4: Package Contents
Package Contents A (x1) B (x1) Motorized Leg C (x2) D (x1) E (x1) Feet Sync Rod Control Panel F (x1) G (x2) H (x1) Power Cable Side Bracket Left Crossbar I (x1) J (x1) K (x3) Right Crossbar Inner Crossbar Cable Clip L (x2) M (x12) -
Page 5: Included Hardware & Tools
Included Hardware & Tools S-A (x14) S-B (x5) S-C (x14) S-D (x9) M6x11mm Screw M8x18mm Screw ST5x15mm Screw M6x35mm Screw T-A (x1) T-B (x1) 2mm Allen 5mm Allen Wrench Wrench *Extra hardware has been included. Tools Needed: Weight Capacity: 220lbs (100kg) Phillips Drill... -
Page 6: Desk Frame Assembly
User Guide Desk Frame Assembly pg. 7-14 Control Panel Instructions Operating/Overview pg. 16 Troubleshooting pg. 17 Custom Programming pg. 18... -
Page 7: Assembly Steps
Assembly Steps STEP 1 Attach the Left Crossbar (H) to Leg (B) and Right Crossbar (I) to the Motorized Leg (A) using M6x11mm Screws (S-A) and 5mm Allen Wrench (T-B). Ensure the metal Tabs are pointing away from the Legs. - Page 8 STEP 2 2.1 Place the Side Brackets (G) onto the Legs (A,B) facing inwards with the Inset Holes on top. Loosely attach Side Brackets using M8x18mm Screws (S-B) through the top holes using 5mm Allen Wrench (T-B). 2.2 Secure the Side Brackets (G) using M6x11mm Screws (S-A) through the side holes using 5mm Allen Wrench (T-B).
- Page 9 STEP 3 Attach the Feet (C) to the Legs (A,B) using the M6x35mm Screws (S-D) and 5mm Allen Wrench (T-B).
- Page 10 STEP 4 Insert the Inner Crossbar (J) into the Left Assembly and into the Right Assembly. Slot Ensure the Slots on Inner Crossbar are facing inward. Right Assembly Left Assembly Partially thread M6x11mm Screws (S-A) into the Left and Right Crossbars (H,I) using 5mm Allen Wrench (T-B).
- Page 11 STEP 5 5.1 Loosen the Wing Nut on the Sync Rod (D) so that it freely extends. 5.2 Fully insert the Hex Shaft into Leg (B) so that the Ring makes contact. 5.3 Extend the Spline Shaft to fit into the Motorized Leg (A). Tighten the set screw using 2mm Allen Wrench (T-A).
-
Page 12: Before Proceeding
STEP 6 Insert the Rubber Pads (M) into the holes on Side Brackets (G) and Left and Right Crossbars (H, I). Pinch together the ends of Hooks (L) and insert into the slots on Side Brackets (G). Before Proceeding Follow the instructions included with your desktop (not included) to assemble your desktop. - Page 13 STEP 7 For VIVO Desktops 7.1 Flip the desk frame upside down onto the desktop and extend the frame until the holes on the Side Brackets (G) line up with the pilot holes on the desktop. 7.2 Attach the frame and Control Panel (E) to the desktop using ST5x15mm Screws (S-C) through the Side Brackets (G) and Crossbars (H,I) using a Phillips screwsdriver or drill.
- Page 14 STEP 7 - Cont’d Secure the Inner Crossbar (J) by tightening the previously installed M6x11mm Screws (S-A) using 5mm Allen Wrench (T-B). Tighten the Wing Nut on the Sync Rod (D). If the Sync Rod has disconnected, insert back into Leg (B). Wing Nut STEP 8 Plug the Power Cable (F) and the cable from Control Panel (E) into the Motor (A1).
- Page 15 Controller Overview & Troubleshooting...
-
Page 16: Controller Manual
Controller Manual Standard Operation LED Panel Displays the current desk height Up Arrow Press and hold to raise the desk. Release when desired height is reached. Down Arrow Press and hold to lower the desk. Release when desired height is reached. -
Page 17: Troubleshooting
If error persists, please contact our Product Support Team at 309-278-5303 or help@vivo-us.com for further assistance Undervoltage Warning: The input voltage is too low. If the correct AC adapter is being used, unplug the desk from the wall and disconnect all cables from the controller. -
Page 18: Custom Programming
Custom Programming Change Displayed Height Metric To switch between inches and Centimeters, press and hold buttons 1 & 3 for 2 seconds. Repeat process to switch again. Child Safety Lock To activate the child safety lock, press and hold buttons 1 & 2 for 2 seconds. LOC will be displayed when controller is locked, and normal display height will show when unlocked. - Page 19 Securely store your PC in Clamp on & under desk and more with our clamp-on an under desk mount or keyboard tray options for and wall mount solutions. cart for easy access. all setup types. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 20 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
