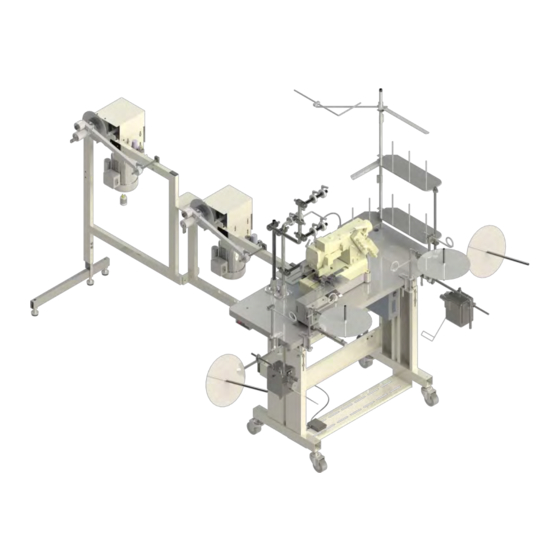

- Page 1 Model 1330K Revision 0 Created Aug 9, 2016 Technical Manual & Parts Lists Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 • www.atlatt.com...
- Page 3 Attachment Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or disclosure of these materials.
-
Page 4: Table Of Contents
1330348 Zipper Guide Rod Assembly ..................... 18 1334-1000A Sewing Head Detail ......................19 1334-1100B Folder Mount Assembly, 1334 .................... 20 1961-320P Rewinder Assembly, HD ......................23 1961-320T Rewinder Assembly, HD ....................... 25 1330K-PD Pneumatic Diagram ........................ 26 1330K-WD Wiring Diagram ........................27... -
Page 5: Important Safety Instruction
Mandatory Information All persons operating and/or working on the 1330K, should read and understand all parts of the Safety Instructions. This applies, in particular, for persons who only operate and/or work on the unit occasionally (e.g. for maintenance and repair). Persons who have difficulty reading must receive particularly thorough instruction. -
Page 6: Liability
Technical Manual & Parts Lists Liability The machine should only be operated when in perfect working order, with due regard for safety and the potential dangers, as well as in accordance with the Instruction Material. Faults and malfunctions capable of impairing safety should be remedied immediately. We cannot accept any liability for personal injury or property damage due to operator errors or non-compliance with the safety instructions contained in this booklet. -
Page 7: Safety Equipment On The Machines
Technical Manual & Parts Lists A Word to the Operator The greatest danger inherent in our machines: is that of fingers, hands or loose clothing being drawn into a machine by live, coasting or rotating tools or assemblies or of being cut by sharp tools or burned by hot elements. LWAYS BE CONSCIOUS OF THESE DANGERS Safety Equipment on the Machines All machines are delivered with safety equipment, which shall not be removed or... -
Page 8: Protective Eyewear
Technical Manual & Parts Lists Protective Eyewear Protective eyewear that has been tested by the local authorities should be worn whenever there is a possibility of loose or flying objects or particles such as when cleaning the machine with compressed air. Tools Always count the number of tools in your possession before starting work on the machine. -
Page 9: Important Notices
Technical Manual & Parts Lists Important Notices Reporting and Fighting Fires Read the instructions posted in the factory with regard to reporting fires and the emergency exits. Make sure you know exactly where the fire extinguishers and sprinkler systems are located and how they are operated. - Page 10 Technical Manual & Parts Lists - Kinetic energy - Note that some motors or spindles, for example, may continue to run or coast run on after being switched off. - Potential energy - Individual assemblies may need to be secured if necessary for repair work. Delivery of the Machine/Packaging Note any markings on the packaging, such as weights, lifting points and special information.
-
Page 11: Maintenance
Technical Manual & Parts Lists Protect against influences from the surroundings: no structure-borne vibrations, no grinding dust, or chemical vapors. Protect against unauthorized access. Ensure that the machine and accessories are set up in a stable position. Ensure easy access for operation and maintenance (Instruction Manual and layout diagram); also verify that the floor is strong enough to carry the weight of the machine. -
Page 12: Repair
Technical Manual & Parts Lists Repair Replacement Parts We cannot accept any liability whatsoever for damage due to the use of parts made by other manufacturers or due to unqualified repair or modification of the machine. Repair, Electrical The power supply must be switched off (master switch off) and secured so that it cannot be switched on again inadvertently before starting any work on live parts. -
Page 13: A Word To The End User
Technical Manual & Parts Lists A Word to the End User The end user has sole responsibility to enforce the use of safety procedures and guards on the machine. Any other safety devices or procedures due to local regulations should be should be retrofitted in accordance to these regulations and/or the EC Directive on the safety of machines. - Page 14 Technical Manual & Parts Lists...
-
Page 15: Assembly Drawings & Parts Lists
Company. In addition to any confidentiality and non-disclosure obligations that currently exist between you and Atlanta Attachment Company, your use of these materials serves as an acknowledgment of the confidential and proprietary nature of these materials and your duty not to make any unauthorized use or... - Page 16 Technical Manual & Parts Lists...
-
Page 17: 11330K Double Cord W/Zipper
SS2090710SP SCREW,9/64-40X7MM 1330348 ZIPER GUIDE ROD ASSY SSBC01048 SCREW,BUTTON CAP,1/4-20X3/4 1330351 THROAT PLATE, MODIFIED SSBC98064 10-32 X 1.0 BUTTON CAP SC 1330K-01 DIAGRAM, PNEUMATIC SSFC80016 SCR,FLAT HD,CAP,6-32 X 1/4 1330K-PD DIAGRAM, PNEUMATIC SSHC01112 HEX HEAD BOLT 1/4-20X1.75 1330K-WD DIAGRAM, WIRING... -
Page 18: 1330344 Left Cord Feeder Assembly
Technical Manual & Parts Lists 1330344 Left Cord Feeder Assembly AAC Drawing Number 1330344 Rev 0 NO QTY PART # DESCRIPTION 1330339 CORD GUIDE 1330341 PLATE, SIDE GUIDE 1347116 RING,TAPE GUIDE 1951-0701 ROD,BENT,CRS,1/2OD, 13X17 273-4-405 ROD, STRAIGHT, CRS, 18"LG 781-1-1232 BALL BEARING DISC ASSY A-7-1/2 TABLE CLAMP ASSEMBLY... -
Page 19: 1330345 Left Tape Holder Assembly
Technical Manual & Parts Lists 1330345 Left Tape Holder Assembly AAC Drawing Number 1330345 Rev 0 PART # DESCRIPTION 1347116 RING,TAPE GUIDE 781-1-1232 BALL BEARING DISC ASSY A-7-1/2 TABLE CLAMP ASSEMBLY ROD CROSS BLOCK 780-102C ROD, BENT,12 X 12 X 90DEG 1951-0501E ROD, STRAIGHT, CRS... -
Page 20: 1330346 Right Tape Holder Assembly
Technical Manual & Parts Lists 1330346 Right Tape Holder Assembly AAC Drawing Number 1330346 Rev 0 NO QTY PART # DESCRIPTION 1347116 RING,TAPE GUIDE 781-1-1232 BALL BEARING DISC ASSY A-7-1/2 TABLE CLAMP ASSEMBLY ROD CROSS BLOCK 780-102C ROD, BENT,12 X 12 X 90DEG 1951-0501E ROD, STRAIGHT, CRS... -
Page 21: 1330347 Right Cord Feeder Assembly
Technical Manual & Parts Lists 1330347 Right Cord Feeder Assembly AAC Drawing Number 1330347 Rev 0 NO QTY PART # DESCRIPTION 1330009 ROD,BENT 90,1/2"CRS,4X20 1330339 CORD GUIDE 1330341 PLATE, SIDE GUIDE 1347116 RING,TAPE GUIDE 1951-0701 ROD,BENT,CRS,1/2OD, 13X17 273-4-405 ROD, STRAIGHT, CRS, 18"LG 781-1-1232 BALL BEARING DISC ASSY A-7-1/2... -
Page 22: 1330348 Zipper Guide Rod Assembly
Technical Manual & Parts Lists 1330348 Zipper Guide Rod Assembly AAC Drawing Number 1330348 Rev 1 NO QTY PART # DESCRIPTION 1325075 ROD, STRAIGHT, 3/4X8" 1330349 ZIPPER PULL CLIP 1347117 ROD,BENT,3/4 X 5 X 17-3/4 1347442 ROD,L,3/4X12.0X10.0 23219 ROD,BENT,S/S,1/4 x7x4-1/2 28201 CROSS BLOCK, 3/4 X 3/4 28202... -
Page 23: 1334-1000A Sewing Head Detail
Technical Manual & Parts Lists 1334-1000A Sewing Head Detail AAC Drawing Number 192557C Rev 3 NO QTY PART # DESCRIPTION NO QTY PART # DESCRIPTION 1 SYAM-1804A YAM. SEWING HD. 1 54420X9016 PRESSER FOOT 1 1862N94016 NEEDLE HOLDER 1 54224A9016 THROAT PLATE 1 112013 BRACKET... -
Page 24: 1334-1100B Folder Mount Assembly, 1334
Technical Manual & Parts Lists 1334-1100B Folder Mount Assembly, 1334 AAC Drawing Number 9002988 Rev 4 NO QTY PART # DESCRIPTION NO QTY PART # DESCRIPTION 1334-1005 MOUNT, ANGLE, UPPER SSSC25048 3/8-16X3/4 SOC CAP 1334-1006 MOUNT,LOCKING HANDLE SSSCM6X20 M6 X 20, SOC CAP 1334-1022 MOUNT, ANGLE, UPPER TTH32416... - Page 25 Technical Manual & Parts Lists...
- Page 26 Technical Manual & Parts Lists...
-
Page 27: 1961-320P Rewinder Assembly, Hd
Technical Manual & Parts Lists 1961-320P Rewinder Assembly, HD AAC Drawing Number 9006603 Rev 1 PART # DESCRIPTION 1312043 REWINDER BRAKE ASSY 1961-335B FRAME WELDMENT 1961-354A SUPPORT, AIR CLUTCH 1961-358 SHAFT,FLATTED,1/2,X8 1961-365 YOKE, BEARING 1961-366 PULLEY, CLUTCH, 20T, 3/8 1961-370 PLATE, NUT, 1/4-20 X 4 ,1 X 2 CTC 1961141 SPINDLE ASSY, 1.5"... - Page 28 Technical Manual & Parts Lists...
-
Page 29: 1961-320T Rewinder Assembly, Hd
Technical Manual & Parts Lists 1961-320T Rewinder Assembly, HD AAC Drawing Number 9006937 Rev 1 NO QTY PART # DESCRIPTION 97-3320 PLATE, ADAPTOR, AIR CLUTCH 97-3398 KEY, 3/16 X 3/16 X 3.56L 1961-354A SUPPORT, AIR CLUTCH 1961-358 SHAFT,FLATTED,1/2,X8 1961-365 YOKE, BEARING 1961-366 PULLEY, CLUTCH, 20T, 3/8 1961-370... -
Page 30: 1330K-Pd Pneumatic Diagram
Technical Manual & Parts Lists 1330K-PD Pneumatic Diagram... -
Page 31: 1330K-Wd Wiring Diagram
Technical Manual & Parts Lists 1330K-WD Wiring Diagram... - Page 32 Atlanta Attachment Company (AAC) Statement of Warranty Manufactured Products Atlanta Attachment Company warrants manufactured products to be free from defects in material and workmanship for a period of eight hundred (800) hours of operation or one hundred (100) days whichever comes first. Atlanta Attachment Company warrants all electrical components of the Serial Bus System to be free from defects in material or workmanship for a period of thirty six (36) months.
- Page 33 Declaración de Garantía Productos Manufacturados Atlanta Attachment Company garantiza que los productos de fabricación son libres de defectos de material y de mano de obra durante un periodo de ochocientos (800) horas de operación o cien (100) días cual llegue primero.
- Page 34 Atlanta Attachment Company 362 Industrial Park Drive Lawrenceville, GA 30046 770-963-7369 Printed in the USA www.atlatt.com...
