Please follow the installation steps below to set up your D6111 Vandal Dome Camera.
Check the package contents against the list below. See P.1
Physical overview. See P.2
Install the hardware and connect all cables. See P.3
Microsoft OS: Use the software CD to install Intelligent IP Installer. See P.7
Access the IP Camera using Intelligent IP Installer. See P.7
Change light environment setting. See P.9
Mac OS using Safari Browser. See P.10
Change the Web Interface into your preferred language. See P.10
Use IP Camera via Mobile Phone. See P.10
Windows Live Messenger Setting. See P.10
Access to Internet via Static IP, Dynamic IP or both. See P.13
Application of IP Camera. See P.15
For more information, please check the User Manual available in the Software CD or you can download the latest
software from
http://www.zavio.com
Package Contents
Camera
Quick Installation Guide
Software CD
Accessory
Wall Mounting Bracket (optional)
Adaptor (optional)
Zavio D6111 Quick Installation Guide

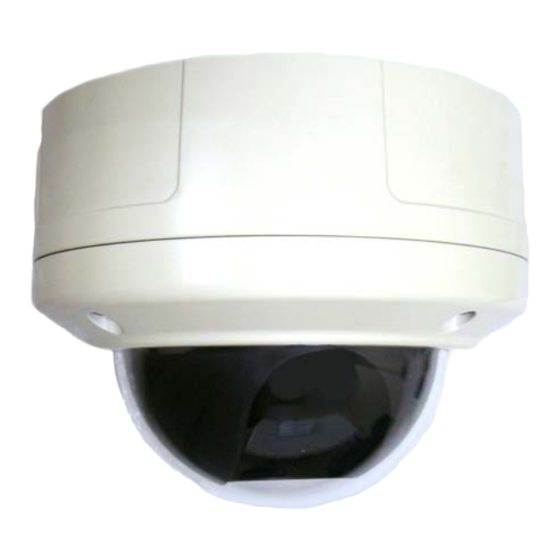

D6111 Megapixel Vandal Dome IP Camera
Brief product information and quick installation
IP Surveillance Software
Intelligent IP Installer
User Manuals
Language Packs
Special hex wrench for temper-proof screw
Cable gland
Screw pack for wall and ceiling mounting
Silicon gel packet * 3
Drill template
JACK BNC Female to RCA Male
2 pin terminal blocks for power
4 pin terminal blocks for DI/DO
5 pin terminal blocks for audio
Bracket
Screw pack for mounting
Allen key
12V DC, max 6W
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the D6111 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Zavio D6111

Summary of Contents for Zavio D6111

  • Page 1 Zavio D6111 Quick Installation Guide Please follow the installation steps below to set up your D6111 Vandal Dome Camera. Check the package contents against the list below. See P.1 Physical overview. See P.2 Install the hardware and connect all cables. See P.3 Microsoft OS: Use the software CD to install Intelligent IP Installer.
  • Page 2 Physical overview Dome cover Reset button Rugged dome Wire clip Conduit hole plug Cable gland Thread-lock sealing nut Cable gland Claw Note: The size of Cable gland is M20*1.5...
  • Page 3 Install the hardware and connect all cables a. Installer the hardware 1. Loosen the tamper-proof screws using supplied special hex wrench and remove the dome cover from the rugged dome. Be careful do not scratch the cover glass. 2. Disassemble the cable gland. 3.
  • Page 4 b.Wall mounting and Ceiling mounting Plastic anchor nuts 1. Paste the drill template on the Wall or Ceiling Ceiling which rugged dome desired. 2. Drill four holes in the wall or ceiling and insert plastic anchor nuts into them. 3. Insert the supplied screws into the corresponding anchor nuts and secure them with screwdriver.
  • Page 5 Bolt c. Wall Mounting with Bracket (Optional) 1. Route network and power cables through wall and allow extending. 2. Loosen the two bolts to rotate bracket to the desired position. 3. Thread all cable through cable gland. 4. Route network cable and power cable, then fixe those with wire clip.
  • Page 6 7. Drill four holes and insert plastic anchor nuts into them. 8. Insert the supplied screws into the corresponding anchor nuts and secure them with screwdriver. d. Connect all cables b1. Power over Ethernet (PoE) 1. Using a standard RJ-45 network cable, connect the IP Camera a PoE-enabled Hub / Switch / Router b2.
  • Page 7 Microsoft OS: Use the software CD to install Intelligent IP Installer Power on your PC and insert the CD-ROM. The setup page will show up automatically. Please follow those steps to install the firmware. Select “Intelligent IP Installer” and follow the installation process to complete the installation. Access the IP Camera using Intelligent IP Installer 1.
  • Page 8 4. When accessing the IP Camera for the first time, a yellow information bar appears below the address bar: This website wants to install the following add-on: ‘AxvideoView.cab from ‘Zavio Inc’. 5. Click the information bar, and select Install ActiveX control.
  • Page 9 6. Click Install. 7. Live video displays in the centre of your web browser. Change light environment setting The default setting of lighting environment is Auto. However, you may also select 50 or 60 Hz upon the lighting environment of your country. Go to “Setting →...
  • Page 10 Mac OS using Safari Browser 2. Click Bonjour function and select the camera 1. Select Safari icon you wish to access. 3. Enter name and password to login to the IP 4. The monitor image will be displayed in your browser . camera.
  • Page 11 Select Safari function → Enter IP address in the web link → enter username and password (default value admin/admin) → The Zavio user interface and Live Image will show up in the middle of the screen. 2. Mobile phone viewing a.

  • Page 12: Image Setup

    8. Add the new MSN Messenger account (e.g.: Camera at home) to your contact list. 9. The IP Camera will send you a message with its Public IP and Private IP if the IP Notification Option is enabled. 10. Click on the small camera icon. Then, choose “View a new contact's webcam”. Camera at home says: 11.
  • Page 13 Access to the Internet a. Internet connectivity of the IP camera can be established by inputting the cameras IP information within the Information section. (Please go to Setting → Basic → Network→ Information) Internet Connectivity of the IP Camera can be established through PPPoE (Point-to-Point Protocol over the Ethernet) by inputting the username and password from your Internet Service Provider (ISP) within the PPPoE section (Please go to Setting →...
  • Page 14 c. Internet Connectivity of the IP Camera can be established if your router is UPnP (Universal Plug and Play) enabled. The IP camera is automatically detected and added to “My Network Places” on your computer. Please note that only Home Routers manufactured after 2006 support the UPnP function. c1.

  • Page 15: Application Of Ip Camera

    Application of IP Camera...
