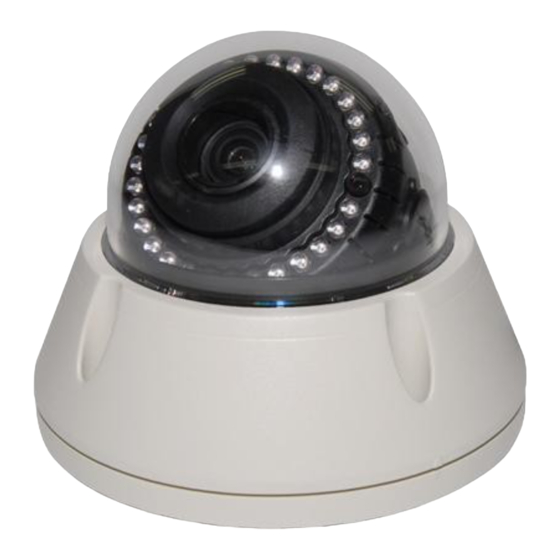

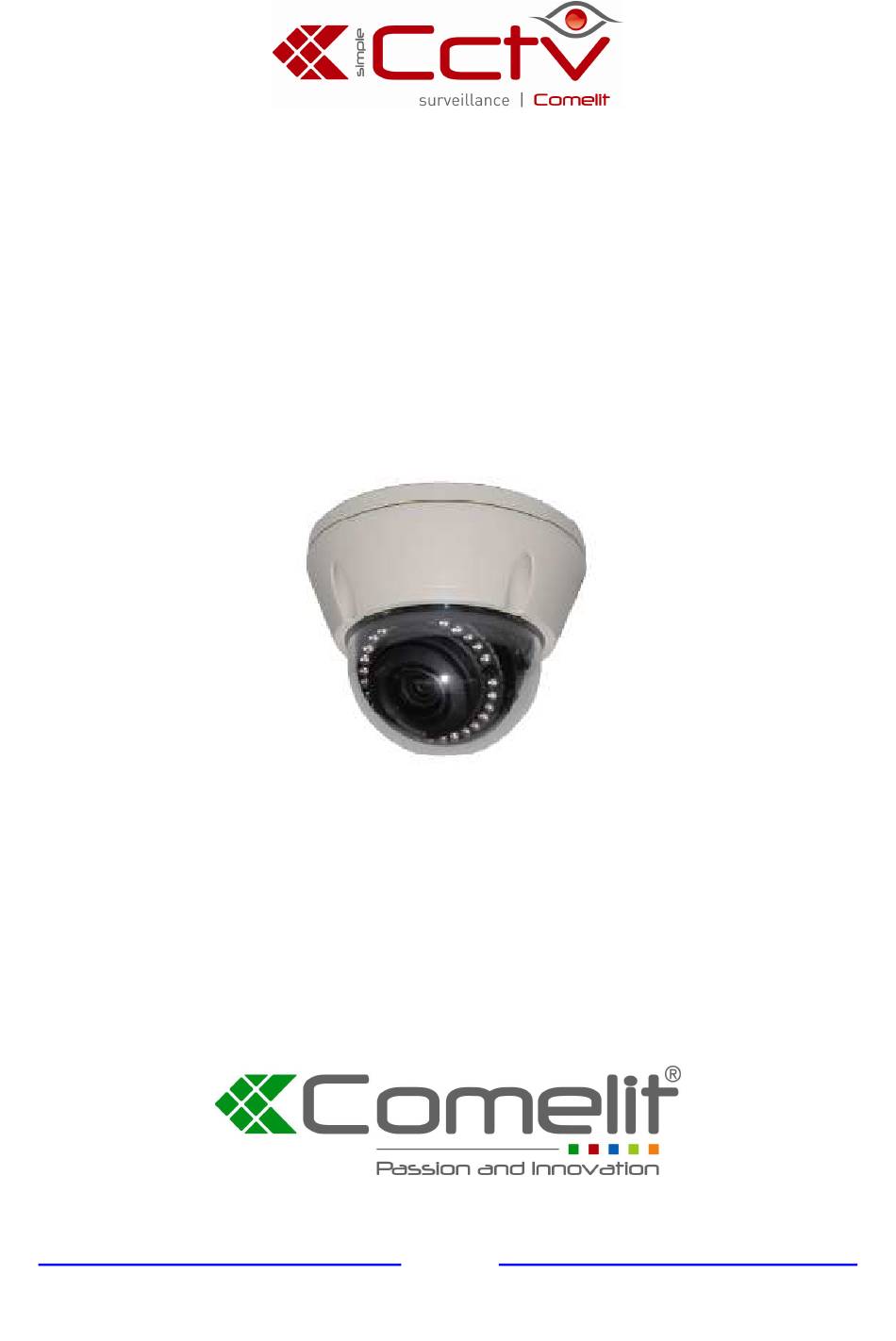

- Page 1 SUPER HIGH RESOLUTION COLOR DAY & NIGHT MINIDOME VANDALPROOF CAMERA WITH IR LEDS ART. HCAM635B Please read this manual thoroughly before use, and keep for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
- Page 2 WARNINGS AND CAUTIONS TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENINGS ON THE EQUIPMENT. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER(OR BACK).
- Page 3 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Clean only with dry cloth. 6. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 7. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
- Page 4 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER: THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL...
-
Page 5: Table Of Contents
CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The contents of the package includes : 1. -
Page 6: Camera In Housing
INTRODUCTION The camera provides high-quality images using SONY 1/3” CCD and digital Signal process LSIs. Features: ● 1/3" EXview HAD CCD II II II II for an image of high sensitivity ● 2.8~12 mm D/N Vari-focal ● Digital Wide Dynamic Range ( Adaptive Tone Reproduction) ●... -
Page 7: Camera Connection & Contensts Of Package
CAMERA CONNECTION 1. Lens: 2.8-12 mm D/N Vari-focal for wide area monitoring 2. Power: power source from a DC 12V or AC 24V 3. Video: BNC connector used to connect the camera to a monitor, switcher.ect. CONTENTS of PACKAGE The content of the package includes: 1. -
Page 8: Installation
INSTALLATION... - Page 9 (if something is disturbing Photo Sensor, operation problem might be occured) Right Down Left Enter...
-
Page 10: Osd Menu Structure
OSD MENU STRUCTURE SETUP MENU (page 1) LENS SHUTTER/AGC LENS SHUTTER/AGC AUTO ↵ WHITE BAL AUTO↵ BACKLIGHT MANUAL MANUAL↵ PICT ADJUST MOTION DET NEXT (page2) EXIT SAVE ALL WHITE BALANCE BACKLIGHT ATW ↵ PUSH USER 1↵ USER 2↵ ANTI CR MANUAL↵... - Page 11 SETUP MENU (page 2) PRIVACY PRIVACY DAY/NIGHT DAY/NIGHT COLOR CAMERA ID ON↵ B/W↵ LANGUAGE CAMERA RESET BACK (page 1) EXIT SAVE ALL CAMERA ID NR↵ NR MODE Y LEVEL ON↵ C LEVEL RETURN LANGUAGE CAMERA RESET ENGLISH (return the camera to ”' factory defaults) DEUTSCH...
- Page 12 LENS AUTO TYPE (DC / VIDEO) Sets the type of mechanical iris (Video lens is not supported) MODE (AUTO / OPEN / CLOSE ) Sets the type of control to be applied over the mechanical iris. SPEED (0 – 255) Sets the convergence speed of the mechanical iris.
- Page 13 WHITE BAL ATW (Auto Trace White balance) SPEED (0~255) Adjusts the pull-in speed of ATW. DELAY CNT (0~255) Sets the time-based hysteresis of ATW. ATW FRAME (x0.5 / x1 / x1.5 / x2) Sets the pull-in frame magnification. ENVIROMENT (INDOOR / OUTDOOR) Preset for either indoor or outdoor applications of the ATW PUSH Wide range Auto White Balance mode (AWB)
- Page 14 ATR (Adaptive Tone Reproduction) allows adjustment of the image to assist with widely contrasting scenes of view. LUMINANCE (LOW / MID / HIGH) Sets the extent of the luminance compression CONTRAST (LOW / MIDLOW / MID / MIDHIGH / HIGH) Sets the extent of the contrast enhancement MOTION DET DETECT SENSE (0~127)
- Page 15 LEFT (NTSC: 0~474, PAL: 0~468) 0= left RIGHT (NTSC: 0~474, PAL: 0~468) 474 (468)= right COLOR (1~8) Sets the colors of the privacy zones. TRANSP (0.00 / 0.50 / 0.75 / 1.00) Sets the transparency of the privacy zone area if color is selected. MOSAIC (OFF / ON) Sets the mosaic function as the privacy to ON or OFF.
- Page 16 CAMERA ID Sets the camera ID to ON or OFF. A title of 52 characters per line can be applied. Use the joystick to navigate the cursor. Pushing centrally on the joystick will allow selection of that character. The arrows at the bottom allow you to move the cursor without changing the character.
-
Page 17: Auto White Defect & Lens Adjustment
AUTO WHITE DEFECT Push the left button for 5 seconds and enter Auto white defect menu. Cover the lens and Enter for starting. If white defects are over 65pcs, the camera is faulty and auto defect is useless. Over 70'C Auto white defect can't be activated. LENS ADJUSTMENT (OPTIONAL VARIFOCAL LENS) Lens 2.8 ~ 12 mm... -
Page 18: External Dimension
EXTERNAL DIMENSION 0.1 in. (2.5 mm thick), Window Size impact-resistant P.C (LEXAN) 3.93 in. (10 cm) diameter Cable Entry One 1" (25 mm) opening holes Weight – Unit: 1.54 lb. (760 g) Shipping: 2.11 lb. (960 g) -
Page 19: Specifications
SPECIFICATIONS MODEL NTSC Power source 12 VDC / 24 VAC ±10% Power Power consumption 5 W (450mA Image sensor 1/3″ SONY EXview HAD CCD II Total pixels (H x V) 1020 x 508 1020 x 596 Effective pixels (H x V) 976 x 494 976 x 582 Scanning system... - Page 20 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
