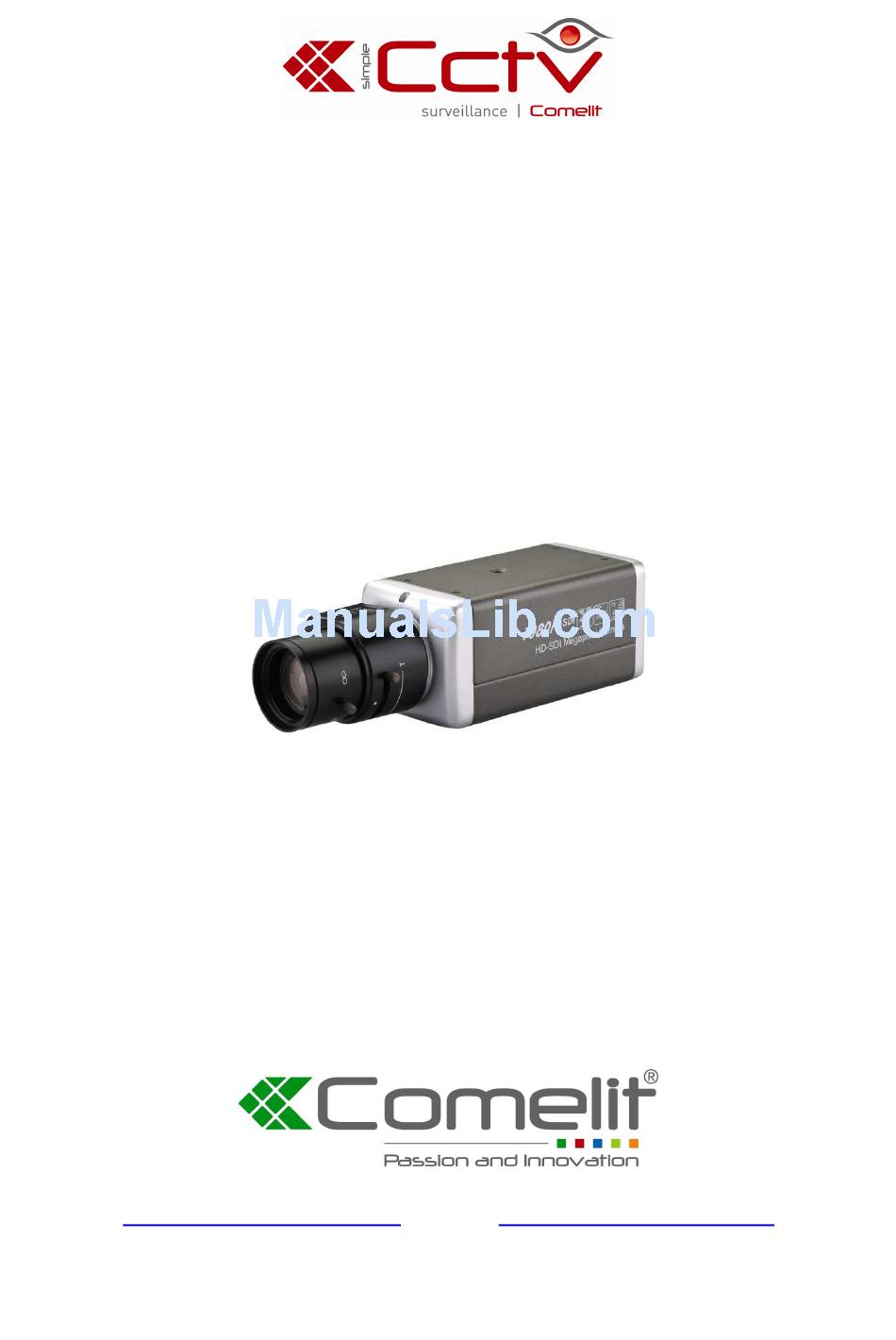

- Page 1 HD-SDI BOX CAMERA, 2 MEGAPIXEL ART. HDCAM502A Please read this manual thoroughly before use, and keep for future reference Via Don Arrigoni, 5 24020 Rovetta S.Lorenzo (Bergamo) http://www.comelitgroup.com export.department@comelit.it e-mail:...
-
Page 2: Safety Precautions
SAFETY PRECAUTIONS Please read before using The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of insulated dangerous Voltage within the product’s enclosure that may be sufficient magnitude to constitute risk of electrical shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instructions in the... - Page 3 Product Features Full HD 1080p SDI output. CVBS Output. Lens type: DC / Manual (C/CS mount). 30x Sense-Up. Picture-Effect: Mirror. Smart NR. 2DNR & 3DNR function (Digital Noise Reduce). Defog function. 10. OSD menu language: English/ Chinese 11. OSD operation: buttons 12.
- Page 4 Key Features SDI output Our camera provides high definition image up to 2 Megapixels via HD-SDI interface with conventional coaxial connection. For best performance we recommend to use standard RG-59 cable. CVBS output You could connect the camera directly to a monitor with AV port to see picture or connect to standard DVR with analog recording.
- Page 5 Specifications Pick up device 1/3” CMOS Panasonic 2 Megapixel Resolution (H x V) 1920 x 1080 @ 30 fps Video Output HD-SDI (BNC) / CVBS (RCA) DEFOG OFF / Low / Middle / High Lens Shading Compensation OFF / ON Lens Type DC / Manual (C/CS) Electronic Shutter...
-
Page 6: Main Menu
MAIN MENU SETUP 1. LENS 2. EXPOSURE 3. WHITE BAL 4. DAY&NIGHT AUTO 5. NR 6. SPECIAL 7. ADJUST 8. RESET 9. EXIT 1. LENS Default LENS VIDEO MANUAL Fixed or Varifocal lens can be installed on this camera. Manual – Iris is adjusted manually DC –... - Page 7 EXPOSURE SHUTTER 1/60, FLK, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/50000, x2, x4, x6, x8, x10, x15, x20, x25, x30, AUTO MIDDLE, HIGH, LOW SENS-UP AUTO SENS-UP x2, x4, x6, x8, x10, x15, x20, x25, RETURN BRIGHTNESS 0~100 ACCE OFF, LOW, MIDDLE, HIGH DEFOG OFF, LOW, MIDDLE, HIGH BACKLIGHT...
-
Page 8: White Balance
ACCE (DWDR) Stand for Adaptive Contrast and Color Enhancement which is equivalent to Wide Dynamic Range technique. The contrast ratio of the image can be effectively expressed and the edge information can be improved in order to enhance the overall visibility of the image. DEFOG Improves the clarity of images taken in poor conditions such as fog, smoke, rain or snow. - Page 9 5. NR 2DNR OFF, ON 3DNR S-LEVEL 0~100 E-LEVEL 0~100 RETURN LEVEL 0~100 SMART NR ON, OFF RETURN SMART NR. Avoid over exposure problem when the camera is focus on area with wall. 6. SPECIAL SPECIAL CAM TITLE 0123456789ABCDEFGHIJKLMNOPQRSTUVWXYZ＜＞ CLR POS END D-EFFECT FREEZE OFF, ON...
- Page 10 DISPLAY ON / POSITION COLOR 1~16 DEFAULT RETURN LANGUAGE DEFECT LIVE DPC ON, OFF LEVEL 0~60 STATIC DPC ON, OFF START LEVEL 0~60 SENS-UP x2, x4, x6, x8, x10, x15, x20 RETURN RS485 CAM ID 0~255 ID DISPLAY CAM001~CAM255 BAUDRATE 9600, 19200, 38400, 2400, 4800 RETURN RET, END...
- Page 11 RETURN ON, OFF NTSC/PAL NTSC, PAL RETURN RET, END RESET FACTORY RETURN EXIT 7. RESET RESET FACTORY RETURN I/O panel and dimensions: Rear: 1. SDI output ① 1 2. CVBS output ① 5 3. 12 VDC jack ① 3 ① 4.
- Page 12 Dimensions Via Don Arrigoni, 5 24020 Rovetta S.Lorenzo (Bergamo) http://www.comelitgroup.com export.department@comelit.it e-mail:...
