Comelit HCAM433B Manual

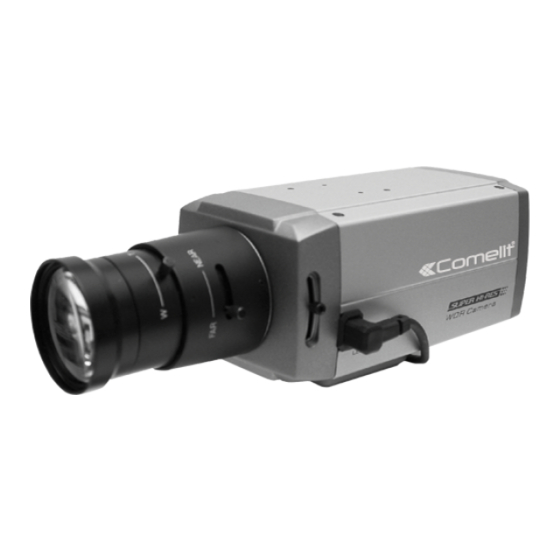

1/3 inch ccd sony super high resolution color day & night analitics camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1/3" CCD SONY SUPER HIGH RESOLUTION
COLOR DAY & NIGHT ANALITICS CAMERA
ART. HCAM433B-HCAM533B
HCAM434B-HCAM534B
Please read this manual thoroughly before use, and keep for
future reference.
Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo)
http://www.comelitgroup.com e-mail:export.department@comelit.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCAM433B and is the answer not in the manual?

Questions and answers

Related Manuals for Comelit HCAM433B

Summary of Contents for Comelit HCAM433B

  • Page 1 1/3” CCD SONY SUPER HIGH RESOLUTION COLOR DAY & NIGHT ANALITICS CAMERA ART. HCAM433B-HCAM533B HCAM434B-HCAM534B Please read this manual thoroughly before use, and keep for future reference. Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the m anufacturer’s instructions.

  • Page 3: Ce Compliance Statement

    CE COMPLIANCE STATEMENT WARNING This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures. FCC COMPIANCE STATEMENT FCC INFORMATION : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
  • Page 4 CONTENTS OF PACKAGE Installation of the camera must be performed by qualified service personnel in accordance with all local and national electrical and mechanical codes. Carefully remove the color camera and its accessories from the carton and verify that they were not damaged in shipment. The content of the package includes: Color CCD camera Mini-DIN connector (for video-or dc-type auto-iris lens)

  • Page 5: Introduction

    INTRODUCTION The camera provided high-quality image using SONY 1/3” CCD and digital signal processing LSIs. Features: 1/3" Sony CCD Super high-resolution (700TVL) Wide Dynamic Range (~x512) (Optional) Day & Night (Auto, Manual, External, Filter delay, Change level adjust) 0.1 lux (color), 0.01 lux (BW), 0.0001 lux (Sens-Up B/W) @ F1.2 (50IRE) Auto Electronic Shutter [1/50 ~ 1/100,000] and manual electronic shutter modes [1/50 ~ 1/10,000] Sens-Up (~x256)
  • Page 6 CAMERA OVERVIEW (ART. HCAM433B - HCAM533B) SIDE VIEW TOP VIEW FRONT VIEW LEFT Button UP Button ENTER Button RIGHT Button DOWN Button REAR VIEW Day / Night External I/O, Motion, Alarm OUT, RS-485 Power Indicator Video Output Connector (BNC) N.C.

  • Page 7: Camera Overview

    CAMERA OVERVIEW (ART. HCAM434B - HCAM534B) SIDE VIEW TOP VIEW FRONT VIEW LEFT button UP button ENTER button REAR VIEW RIGHT button DOWN button Day / Night External I/O, Motion, Alarm OUT, RS-485 power Indicator video output connector (BNC) N.C. AC/DC compatible input terminal AC power cord...

  • Page 8: Camera Adjustment

    <Remarks> 1) Menu: Represent present menu subject on top of screen. In case of used Multi-Camset, Represent CAM ID and “camset” name included. Common Headers: : Currently active menu item is displayed. Move by Up/Down keys. : There is sub-menu. Press Enter key going to sub-menu. : Indicates the selected menu item.

  • Page 9: Auto Exposure

    - Push/Set: Tracking WB of current screen, and represent R, B value. - Default: Restore R, B default value. 5) Fix/FL Mode: Fixed color temperature mode, for fluorescent lamp environment. 6) Fix/Outdoor Mode: Fixed color temperature (6300 ºK)mode, for outdoor environment. <Auto Exposure>...
  • Page 10 3) Color: Select mask color (15 colors available). 4) Transparency: Change the mask transparency. 5) Mosaic: Making mosaic current area. 6) Frame: Border display current area. 7) Shape: Select the shape of mask (4-point polygon or rectangle) - Rect (Rectangle) Adjust rectangle with 4-arrow keys.
  • Page 11 *) Because they share area ID with Privacy mask, it can not be used same ID. - Zone: Select zone ID. - Func (Function) : Zone Function On/Off (Blinking enabled area). - Shape: Select area shape. Color: Select area’s frame color. Rect (Rectangle) : Adjust rectangle with 4-arrow keys.
  • Page 12 Moved In & Rect, Poly Objects from outside, move into inside, Disappear and disappears inside. *) Please don’t use as a signal for video recording start. *) In Simple mode is not supported. Loitering Rect, Poly Detect moving object within the zone during a time.
  • Page 13 Clear All: All path combinations clear. 2) Env.Setup (Environment setup) : Configurations for each PVA functions. - Md Sens (MD Sensitivity) : Adjust motion sensitivity.(HW sensitivity) - Loiter Time (min): Time for judge to loitering object. - Abandon/Absent Setup Sens (Sensitivity) : Adjust sensitivity of abandon/absent detection. Det Time (min): Time for judge to absent/abandon area.

  • Page 14: System Setup

    Because of this function used d-ptz, screen magnification will be changed. 5) dPTZ Preset: Configuration for dPTZ preset. It will be applied when menu exit. - Zoom: Adjust magnification. - Pan&Tilt: Adjust Pen/Tilt position. - Up/Down: Adjust tilt position. - Left/Right: Adjust pan position. 6) i-Freeze: Select term of refresh rate for output video.
  • Page 15 *) If brightness is too high, stop the process and print message “Bright Too High”. *) This function can compensate max. 63 points. *) If detected points are more than 63 points, repeats this detection by changes conditions. *) If more than 63 point while changing conditions, stop the process, and print “Too Many WH Pixels”...
  • Page 16 3) Lens : Select lens (DC lens/Video lens/Manual Lens) - Iris Speed: Only for DC/Video Lens, Adjust Iris speed. *) If iris speed is too high, it can occur AE hunting. *) If iris speed is too low, IRIS adjusting operate too slowly. 4) LLC (Line Lock Control) Active only used AC Power.

  • Page 17: Control And Connections Of Terminals

    CONTROL AND CONNECTIONS OF TERMINALS D&N D&N ALARM RS-485+ RS-485- (RX) (TX) N.C. (terminals 1 & 2) DAY&NIGHT I/O To select Day/Night mode using external equipment, by connecting control lines to the appropriate terminals. ● DAY&NIGHT OUTPUT (terminals 4 & 5) Is the camera function that can turn on an external IR LED Lamp by detecting the sensitivity on the AGC level when the D&N mode is set "AUTO"...

  • Page 18: Lens

    LENS The lens is not supplied with this camera. Purchase a lens suitable for your requirements. These cameras accept both C-and CS-mount type lens. <Notes > *) For using main functions it is recommended to use Auto Iris Lens with DC type. If the lens is marked with fingerprints other marks, the image quality might be poor.

  • Page 19: Specifications

    SPECIFICATIONS (ART. HCAM433B - HCAM533B) ITEM NTSC Free Voltage ELECTRICAL 100÷240 VAC Input Voltage DUAL (12 VDC, 24 VAC) ±10% 50Hz±1Hz Power Consumption 3.5 W (300mA) 4.0 W (40mA) Power Connector 2-Pin Terminal Block VIDEO Image Device 1/3" Sony EXview 960H CCD II...
  • Page 20 SPECIFICATIONS (ART. HCAM434B - HCAM534B) ITEM NTSC PAL (12Vcc/24Vca) 230 Vca ELECTRICAL 100÷240 VAC Input Voltage DUAL (12 VDC, 24 VAC) ±10% 50Hz±1Hz Power Consumption 3.5 W (300mA) 4.0 W (40mA) Connett. alimentazione 2-Pin terminal blocks Power cord VIDEO Image Device 1/3"...
  • Page 21 Via Don Arrigoni, 5 24020 Rovetta S. Lorenzo (Bergamo) http://www.comelitgroup.com e-mail:export.department@comelit.it...
