Vision™ OPLC™ V570-57-C30B, V570-57-T40B

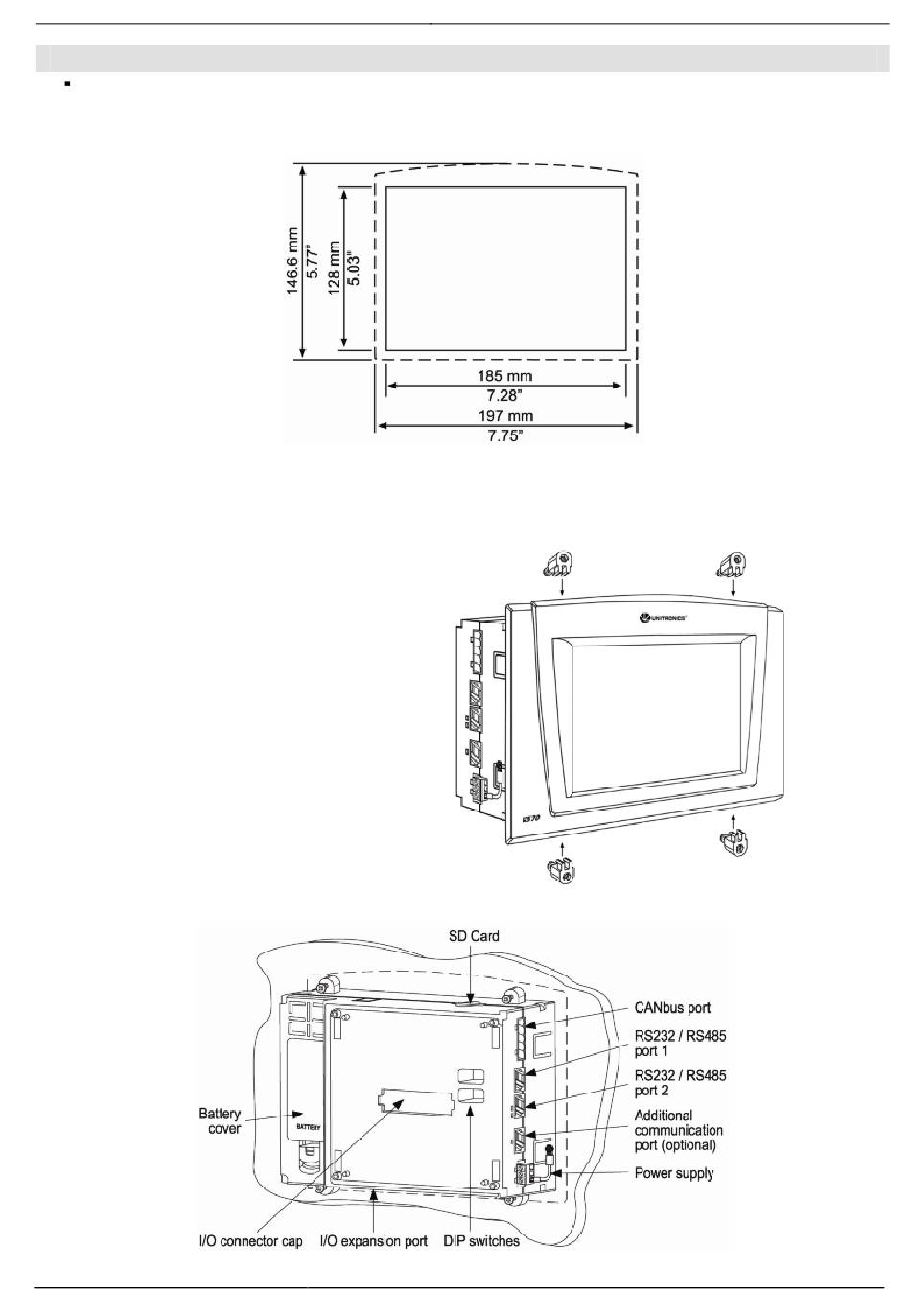

Mounting
Before you begin, note that the mounting panel cannot be more than 5 mm thick.
1. Make a panel cut-out according to the dimensions in the next figure.
Cut-out Dimensions
2. Slide the controller into the
cut-out, ensuring that the
rubber seal is in place.
3. Push the 4 mounting brackets
into their slots on the sides of
the controller as shown in the
figure to the right.
4. Tighten the bracket screws
against the panel. Hold the
bracket securely against the
unit while tightening the screw.
5. When properly mounted, the controller is squarely situated in the panel cut-out as shown below.
4
Installation Guide
Unitronics
