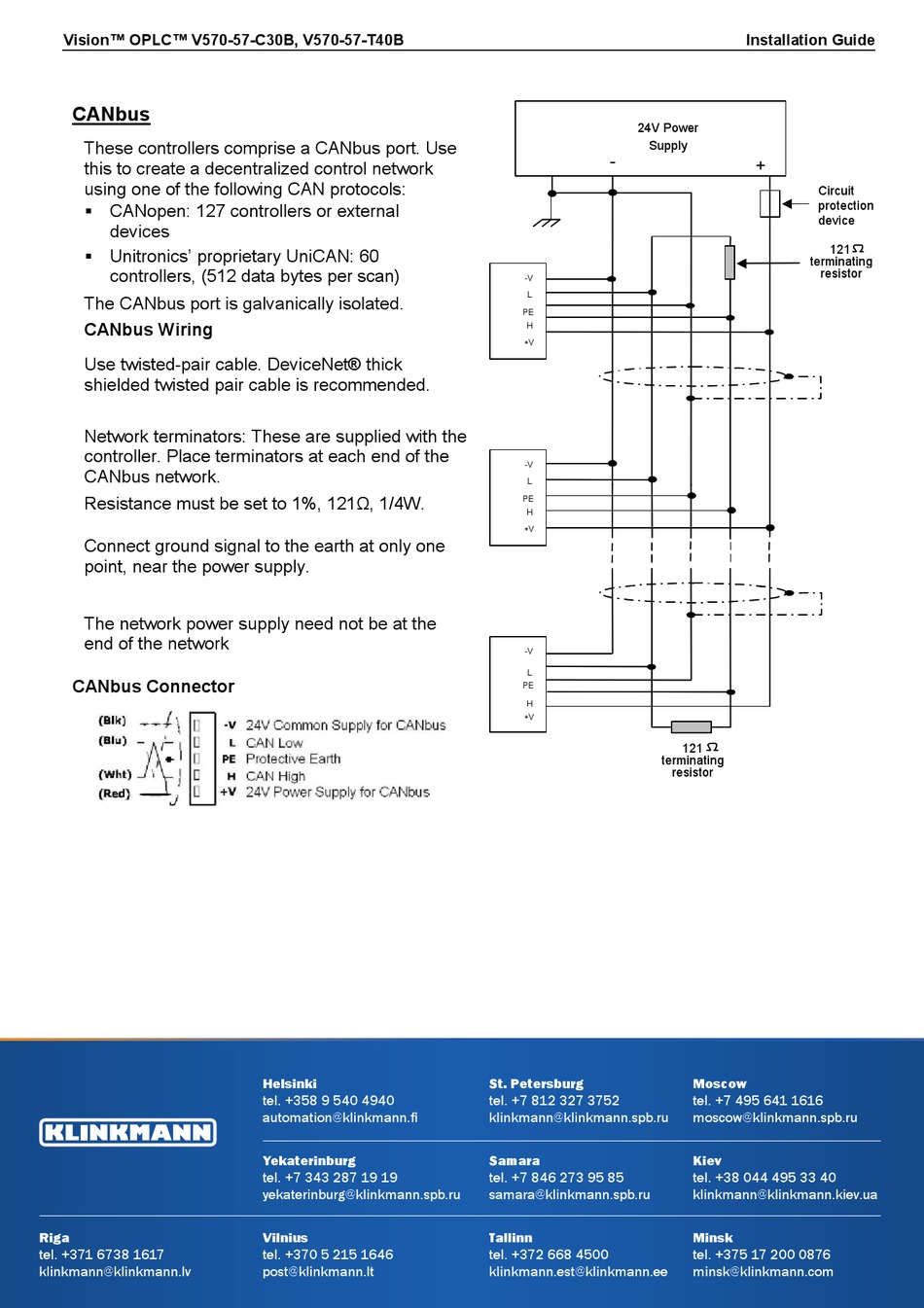

Unitronics Vision OPLC V570-57-C30B Installation Manual page 8

Vision™ OPLC™ V570-57-C30B, V570-57-T40B
CANbus
These controllers comprise a CANbus port. Use
this to create a decentralized control network
using one of the following CAN protocols:
CANopen: 127 controllers or external
devices
Unitronics' proprietary UniCAN: 60
controllers, (512 data bytes per scan)
The CANbus port is galvanically isolated.
CANbus Wiring
Use twisted-pair cable. DeviceNet® thick
shielded twisted pair cable is recommended.
Network terminators: These are supplied with the
controller. Place terminators at each end of the
CANbus network.
Resistance must be set to 1%, 121S, 1/4W.
Connect ground signal to the earth at only one
point, near the power supply.
The network power supply need not be at the
end of the network
CANbus Connector
Riga
tel. +371 6738 1617
klinkmann@klinkmann.lv
Helsinki
tel. +358 9 540 4940
automation@klinkmann.fi
Yekaterinburg
tel. +7 343 287 19 19
yekaterinburg@klinkmann.spb.ru
Vilnius
tel. +370 5 215 1646
post@klinkmann.lt
24V Power
Supply
-
-V
L
PE
H
+V
-V
L
PE
H
+V
-V
L
PE
H
+V
terminating
St. Petersburg
tel. +7 812 327 3752
klinkmann@klinkmann.spb.ru
Samara
tel. +7 846 273 95 85
samara@klinkmann.spb.ru
Tallinn
tel. +372 668 4500
klinkmann.est@klinkmann.ee
Installation Guide
+
Circuit
protection
device
121
terminating
resistor
121
resistor
