Vision™ OPLC™

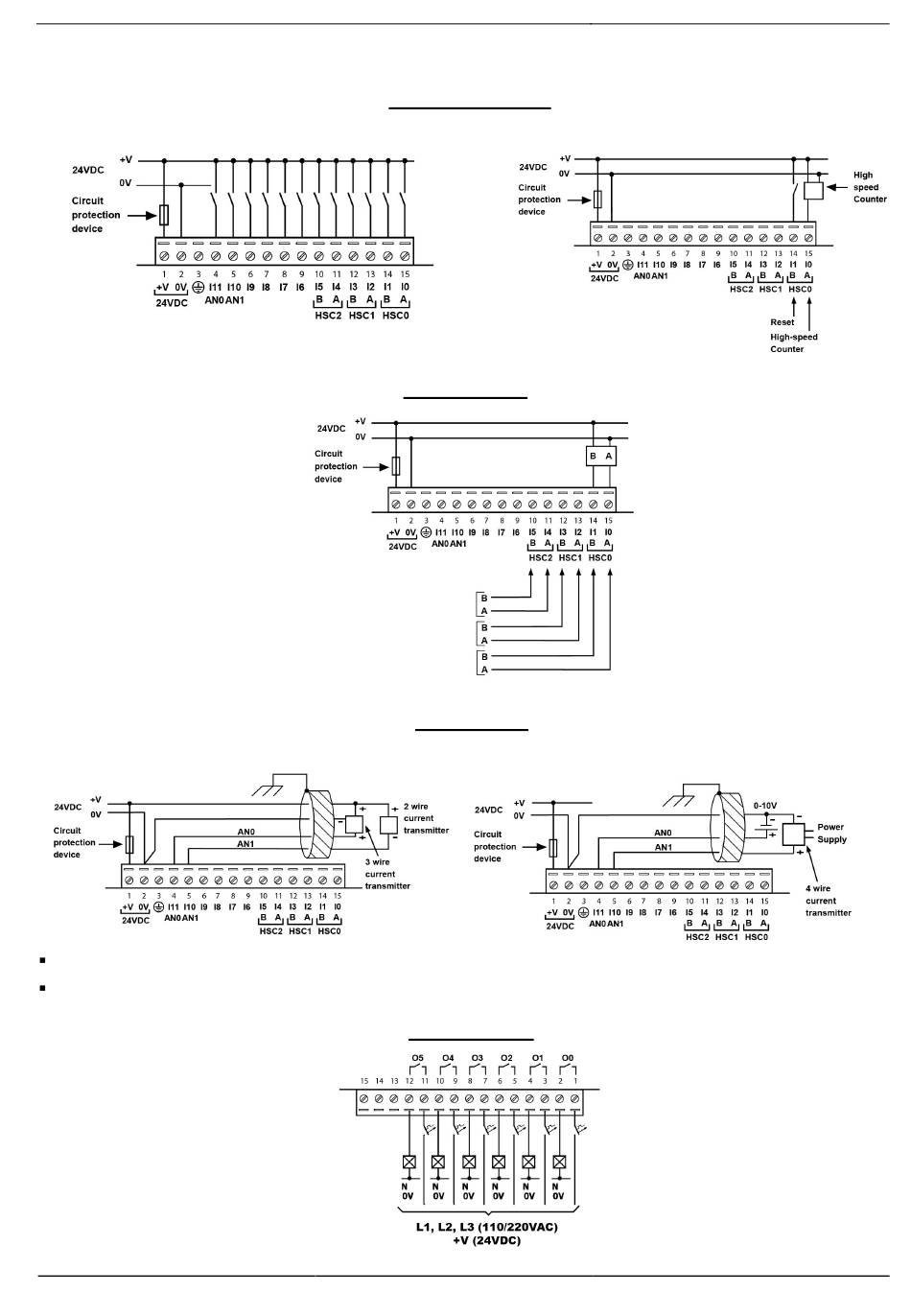

pnp (source) Input
Input wiring
HSC input wiring
Shaft-encoder
Analog Input
Analog input wiring, current (2/3-wire)
Analog input wiring, current (4-wire), voltage
Shields should be connected at the signal's source.
The 0V signal of the analog input must be connected to the controller's 0V.
Relay Outputs
Unitronics
7
