Unitronics Vision OPLC V130-J-TR20 Installation Manual page 6

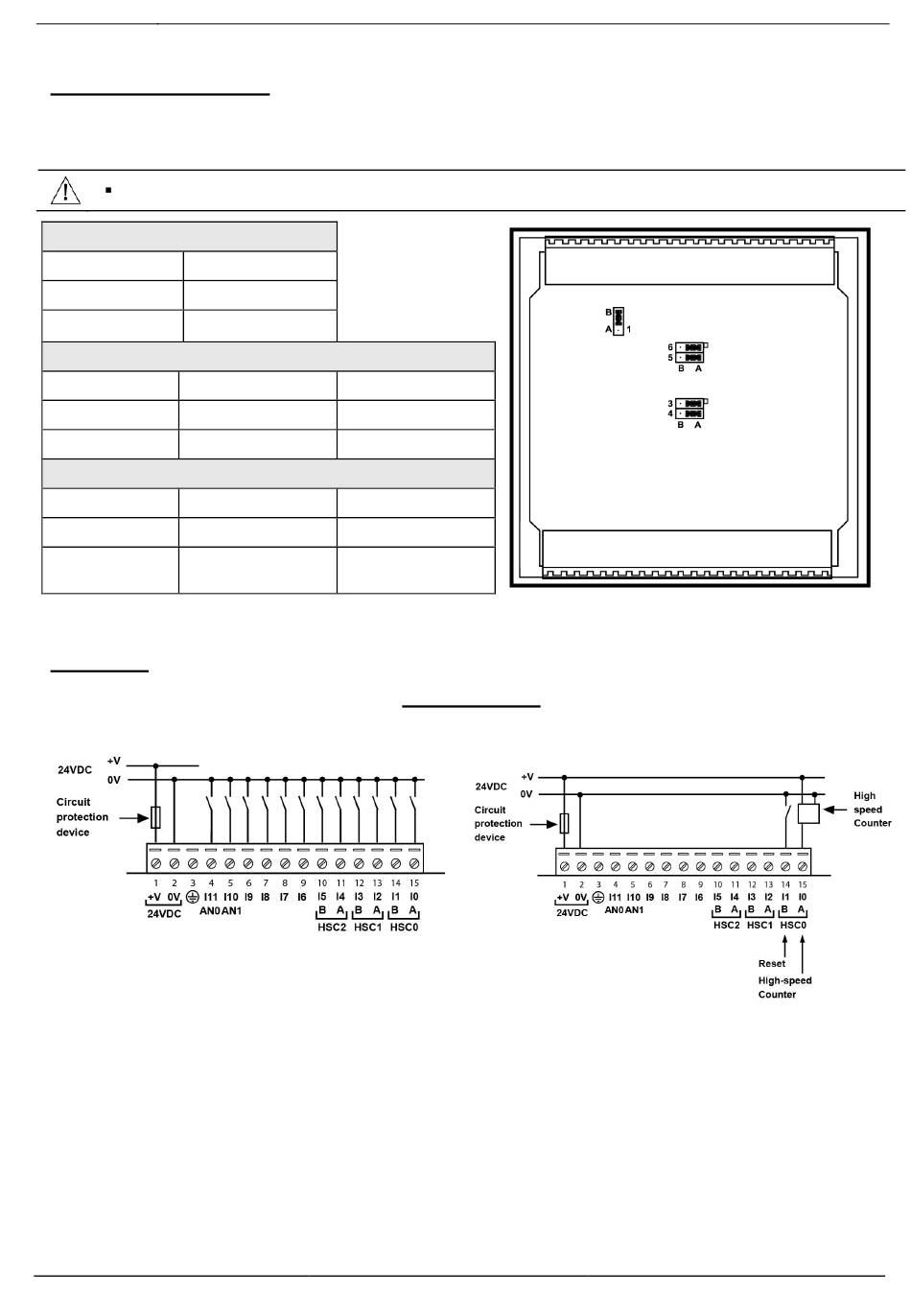

Input Jumper Settings
The tables below show how to set a specific jumper to change input functionality. To access the I/O
jumpers, you must open the controller according to the instructions beginning on page 11.
Incompatible jumper settings and wiring connections may seriously damage the controller.
Digital Inputs 0-11: Set Type
Set to JP1 (all Inputs)
npn (sink) A
pnp (source)* B
Inputs 10/11: Set as Digital or Analog
Set to JP5 (Input 10)
Digital* A
Analog B
Analog Inputs AN0/AN1: Set Type
Set to JP3 (AN0)
Voltage* A
Current B
*Default settings
I/O Wiring
Input wiring
6
JP6 (Input 11)
A
B
JP4 (AN1)
A
B
npn (sink) Input
Vision™ OPLC™ Installation Guide
HSC input wiring
