StarTech.com HB31C3A1CME Quick Start Manual

4-Port Industrial USB-C™ 10Gbps Hub - 3x USB-A + 1 USB-C - ESD + Surge Protection

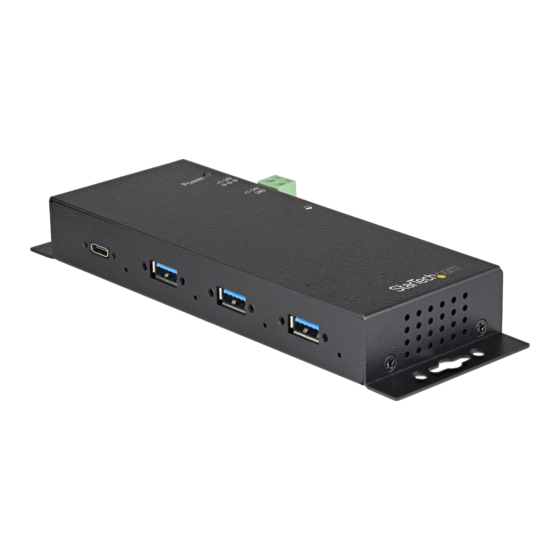

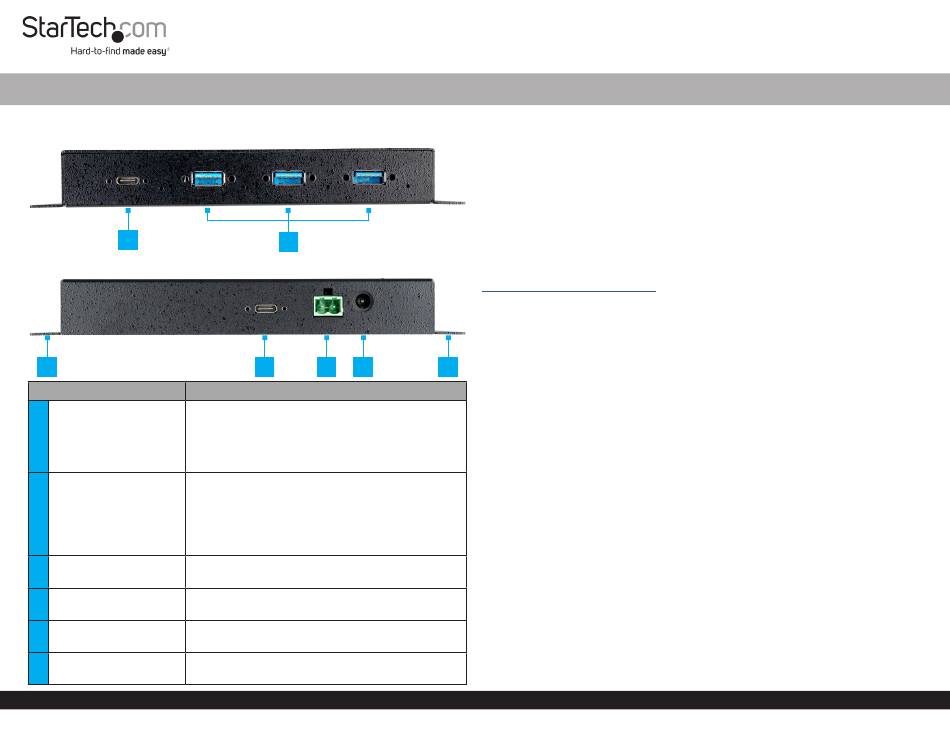

Product Diagram (HB31C3A1CME)
Front View
1
Rear View
3
Port
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Supports USB BC 1.2 charging
1
USB-C Port
• Supports surge and 15KV ESD (Electrostatic
Discharge) protection
• Connect USB-C Peripheral Devices to the Hub
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
• Used to connect USB-A Peripheral Devices ( x 3) to
the Hub.
2
USB-A Ports (x 3)
• Supports USB BC 1.2 charging
• Supports surge and 15KV ESD (Electrostatic
Discharge) protection
• Wall mount the Hub
3
Mounting Holes
• Mount the Hub to the side/underside of a Desk
• SuperSpeed USB 10Gbps (USB 3.2 Gen 2)
4
USB-C Host Port
• Connect the Hub to a Host Computer
• Connect an external DC Power Source (+7 - 24V DC
5 2-Wire Terminal Block
Input) to the Hub
6 Power Input Port • Connect a DC 12V Power Source to power the Hub
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2
4 5 6
Function
Package Contents
• USB Hub x 1
• Universal Power Adapter (NA, JP, UK, EU, ANZ) x 1
• Terminal Block Connector x 1
• USB Type-C to Type-C Cable x 1
• USB Type-C to Type-A Cable x 1
• Quick-Start Guide x 1
Requirements
For the latest requirements, please visit:
www.startech.com/HB31C3A1CME.
• Mounting Screws (x 2)
Tools
• Phillips or Flat Head Screwdriver
• Writing Utensil
3
• Level
Installation
Warning: Connect the Universal Power Adapter after all the other installation steps
have been completed.
Notes: There are two ways to power the Hub.
It is recommended to use an external DC Power Source or a Terminal Block Power
Source (+7 - 24V DC) connected to the 2-Wire Terminal Block to ensure full and
stable function.
Connect the USB Ports
1. Connect a USB Type-C to Type-C Cable (included) to the USB-C Host Port on the
rear of the Hub and to a USB-C Port on the Host Computer.
2. The Host Computer's Operating System should detect the Hub and automatically
install it.
3. Connect the USB Peripheral Devices to the USB-C Port and the USB-A Ports (x3)
on the front of the Hub.
Power the Hub
Power the Hub Using the 2-Wire Terminal Block
1. Remove the Terminal Block Connector Housing from the rear of the Hub's Casing.
Quick-Start Guide
Manual Revision: December 2, 2020
