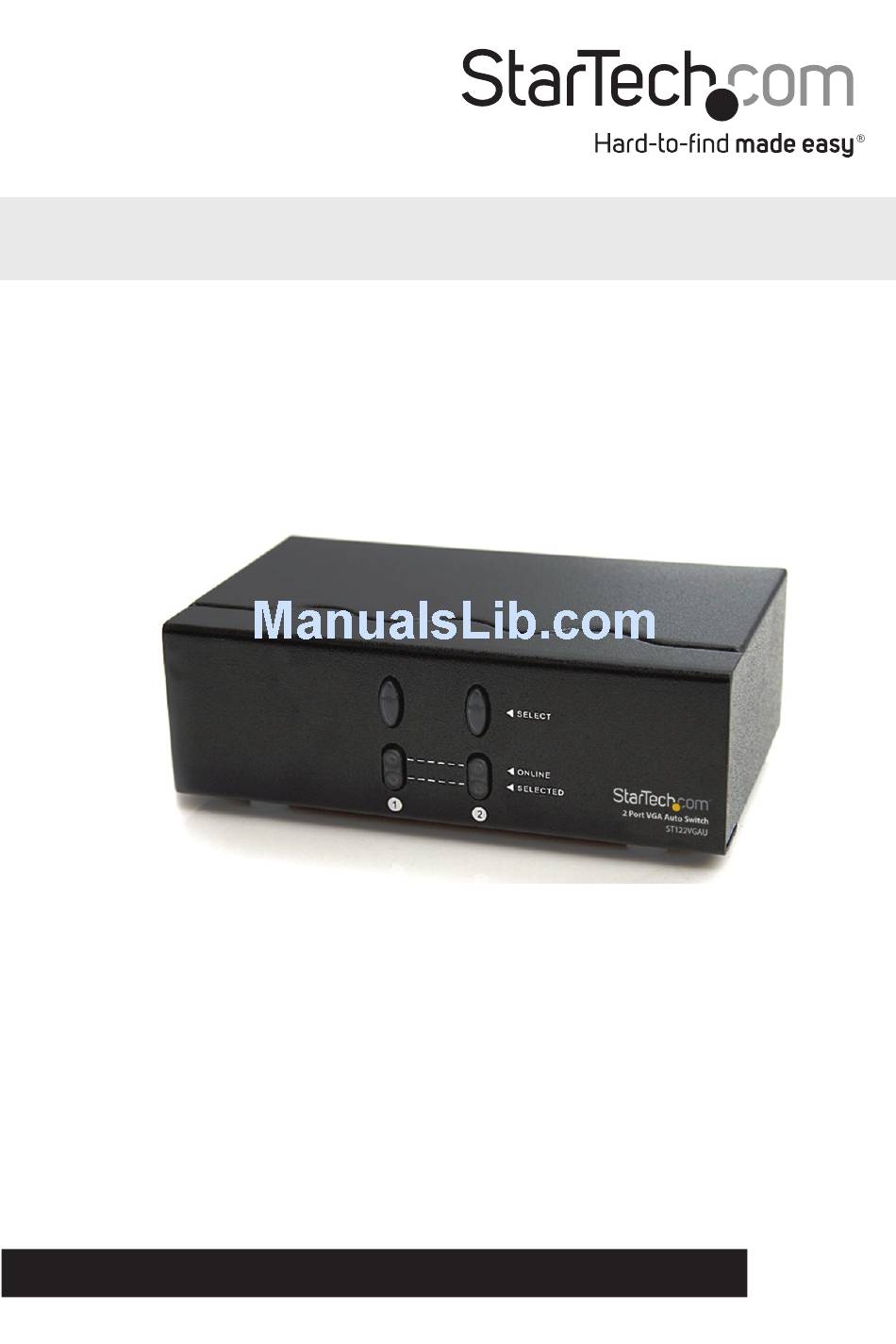

2 Port VGA Auto Switch
ST122VGAU
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com
For the most up-to-date information, please visit: www.startech.com
Manual Revision: 03/30/2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for StarTech.com ST122VGAU
Summary of Contents for StarTech.com ST122VGAU
- Page 1 DE: Bedienungsanleitung - de.startech.com FR: Guide de l'utilisateur - fr.startech.com ES: Guía del usuario - es.startech.com IT: Guida per l'uso - it.startech.com NL: Gebruiksaanwijzing - nl.startech.com PT: Guia do usuário - pt.startech.com For the most up-to-date information, please visit: www.startech.com Manual Revision: 03/30/2011...
- Page 2 Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges...
-
Page 3: Table Of Contents
Table of Contents Introduction ................................1 Packaging Contents ..........................1 System Requirements ..........................1 Front View ..............................2 Rear View ................................2 Installation................................3 Hardware Installation ..........................3 Driver Installation ............................3 How to Use ................................3 Specifications ..............................4 Technical Support ............................5 Warranty Information ............................5 Instruction Manual... -
Page 4: Introduction

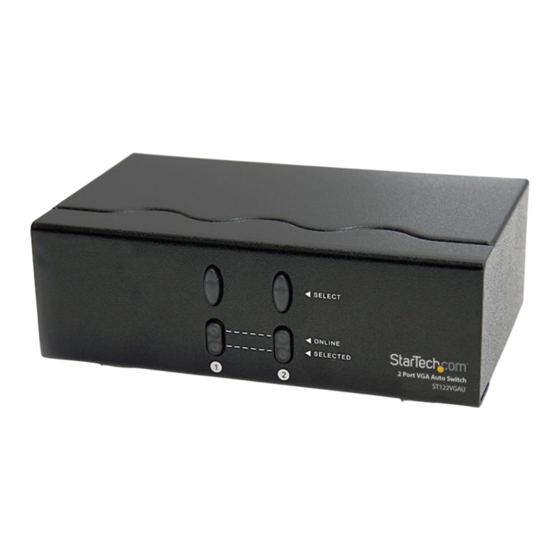

Introduction The ST122VGAU VGA Auto Switcher lets you share a single display between two computers and prioritize your VGA signals. The switch features a primary and secondary VGA input, and automatically outputs the signal from the primary input. When the signal feed connected to the primary input is cut or turned off, the switcher automatically defaults to the video signal on the secondary VGA input. -
Page 5: Front View
Front View Rear View Instruction Manual... -
Page 6: Installation
Installation Hardware Installation 1. Connect the VGA monitor/display to the VGA output connector on the Video Switch. Power on the monitor/display. 2. Connect a male/male VGA cable from the VGA video source (i.e. computer video card) to the Port 1 VGA input on the Video Switch. This is the Primary input, so will be automatically selected, when a video signal is present. -
Page 7: Specifications
Specifications Video Signal VGA (RGB) Number of Ports 3 x DE-15 VGA female Connectors 1 x Power Connector Maximum Video Resolution 1920x1440 Video Bandwidth 250MHz DDC1, DDC2, DDC2B, DDC2B+, DDC Support DDC2AB (Primary port only) Enclosure Material Metal Power Adapter 9VDC, 300mA, center positive Dimensions 130.0mm x 76.0mm x 42.0mm... -
Page 8: Technical Support
Limitation of Liability In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for any damages (whether direct or indirect, special, punitive, incidental, conse- quential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. - Page 9 StarTech.com is an ISO 9001 Registered manufacturer of connectivity and technology parts. StarTech.com was founded in 1985 and has operations in the United States, Canada, the United Kingdom and Taiwan servicing a worldwide market.
