StarTech.com 2PORT-HDMI-SWITCH-8K Quick Start Manual

2-Port HDMI Video Switch - 8K 60Hz - USB Powered
Product ID
2PORT-HDMI-SWITCH-8K

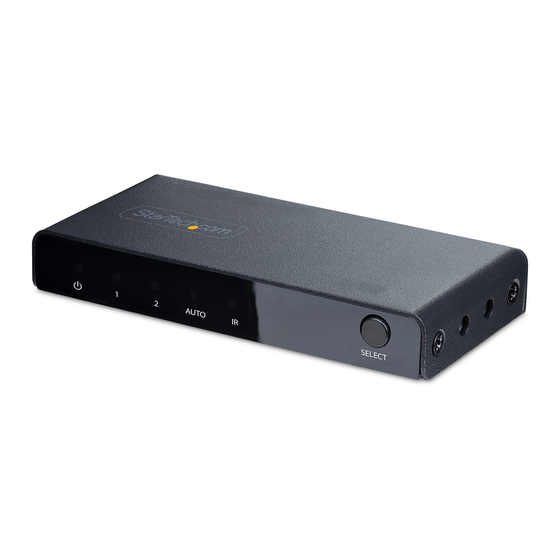

Front
1 2
Rear
6 7
Sides
Remote Control
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
3 4
8
* Actual product may vary from photos
9

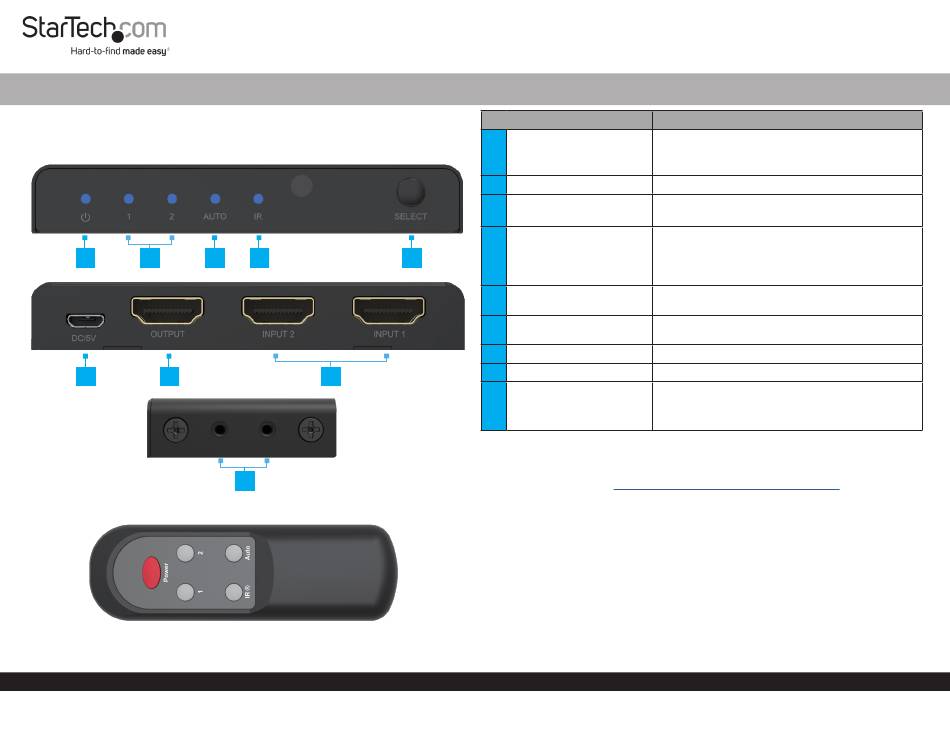

Component
1 Power LED Indicator
2 Port Selection Indicator
3 Auto Switching Indicator
4 IR Mode Indicator
5
5 Push Button Selector
6
USB Power Input
7
HDMI Output Port
8 HDMI Input Ports
Mounting Bracket Screw
9
Holes
Product Information
For the latest manuals, product information, technical specifications, and declarations of
conformance, please visit:
Package Contents
HDMI Video Switch x 1
•
Remote Control (Batteries Not Included) x 1
•
Mounting Kit x 1
•
USB Wall Charger x 1
•
USB Micro-B Power Cable x 1
•
Rubber Feet x 4
•
Quick-Start Guide x 1
•
Function
Solid Red: HDMI Switch in Standby Mode
•
Solid Blue: HDMI Switch is powered on and
•
operational
Solid Blue: HDMI Input Port is active
•
Solid Blue: Automatic Switching is enabled
•
LED Off: Automatic Switching is disabled
•
Solid Blue: IR Receiver enabled, Remote Control
•
will operate the HDMI Switch
LED Off: IR Receiver disabled, Remote Control
•
will not operate the HDMI Switch
Switch between HDMI Input 1 and HDMI Input
•
2
Connect the included USB Wall Charger and
•
USB Micro-B Power Cable
Connect to an HDMI Display
•
Connect to an HDMI Source Device
•
Connect the included Mounting Brackets
•
Holes are on each side of the HDMI Video
•
Switch
www.StarTech.com/2PORT-HDMI-SWITCH-8K
