Attaching/Removing the Lens
Lens are optional. For purchase please contact Foxtech sales.

Attaching the Lens

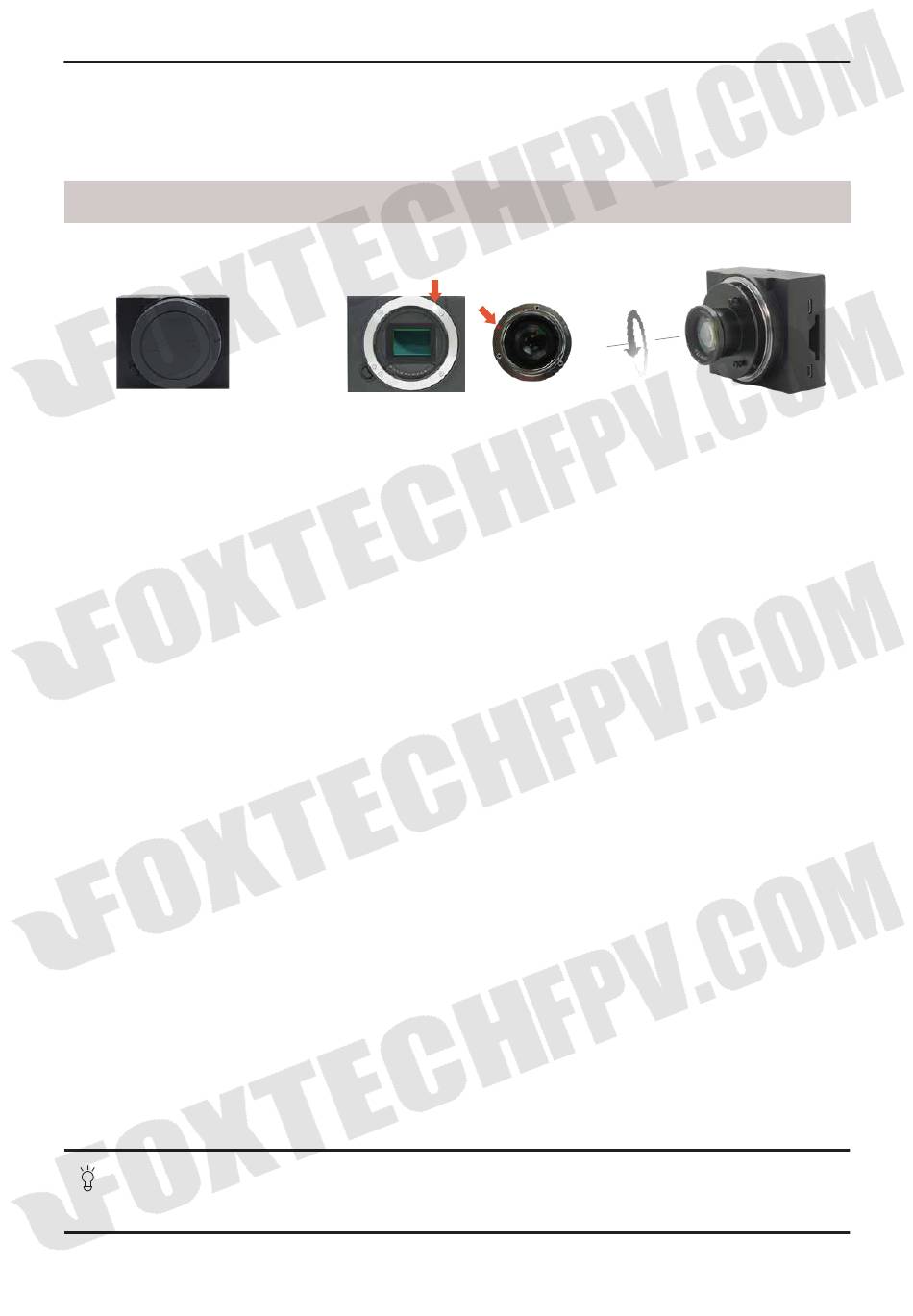

Fig.1
1. If the cap or the packaging lid is attached, remove it from the camera or the lens.(Fig.1)
• Quickly change the lens somewhere away from dusty locations to keep dust or debris from getting
inside the camera.
2. Mount the lens by aligning the white index marks on the lens and the camera.(Fig.2)
• Hold the camera facing down to prevent dust from entering into the camera.
3. While pushing the lens lightly toward the camera, turn the lens clockwise until it clicks into the locked
position.(Fig.3)
• Be sure to put the lens on straight.
• When attaching a lens, do not press the lens release button.
• Do not use excessive force when attaching a lens.
