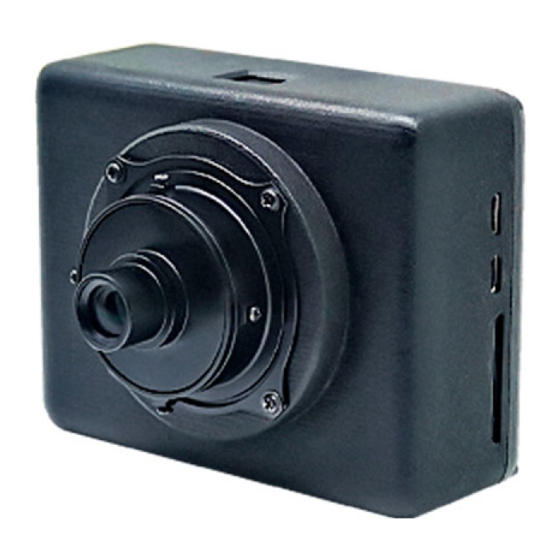

- Page 1 Map-A7R II Full-Frame Mapping Camera User Manual V1.0 2021.12...
-
Page 2: Table Of Contents
Contents Description..................... 1 Disclaimer....................1 Intellectual Property................1 Specification....................2 Interface Definition..................3 Operating Instructions................6 Camera Shutter Setting................6 Triggered by Relay..................6 Triggered by PWM signal...............6... -
Page 3: Description
Please read the instruction manual carefully and strictly follow the instructions in this manual to use this product. Foxtech will not be liable for any result or loss caused by improper use, installation, assembly or modification of users. -
Page 4: Specification
Map-A7R II Full-Frame Mapping Camera User Manual Specification Product A7R Ⅱ Pixels 42.2 mega pixels pixel size 4.5цm Minimum exposure time 0.8s Sensor size 35.8*23.9mm Hot shoes for PPK Support Image size(pixels) 7952*5304 Shutter speed 30—1/8000 Size 95mm*75mm*43mm Lens 35mm/40mm/56mm Power 7.2-8.6V... -
Page 5: Interface Definition
Map-A7R II Full-Frame Mapping Camera User Manual Interface Definition Description Description POS Card Setting Screen HDMI/USB SkyPort SD Card Restart/Save Menu ©2021 FOXTECH All Rights Reserved... - Page 6 Map-A7R II Full-Frame Mapping Camera User Manual Manually shooting Power out+ Power in+ Power Input Power Module 7.2-8.6V Hot Shoe for PPK Shutter Wire GND Shutter Wire ©2021 FOXTECH All Rights Reserved...
- Page 7 Map-A7R II Full-Frame Mapping Camera User Manual PWM module Power in+(5V) PWM Module PWM input PPK(Insert into the flight controller) Relay Module PWM input ©2021 FOXTECH All Rights Reserved...
-
Page 8: Operating Instructions
Map-A7R II Full-Frame Mapping Camera User Manual Operating Instructions 1. The camera will take a picture automatically, then it can be used via flight controller or manually. 2. If the memory card is used for the first time. After camera self-check, insert the memory card into the camera and click “OK”... - Page 9 Map-A7R II Full-Frame Mapping Camera User Manual 5. Locate the SERVO13_FUNCTION in the same category and set its value to “10” which means the shutter release cable connects to the flight controller 13 port. 6. Locate the CAM_FEEDBACK_PIN parameter in the same category, and set it to “55”, which means the PPK module connects to flight controller via AUX OUT 6.
