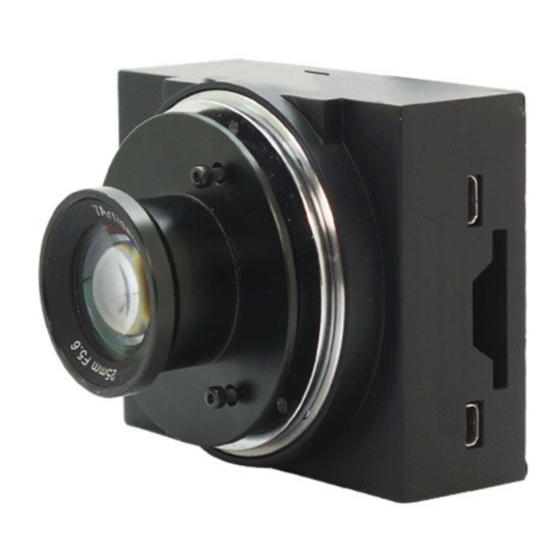

- Page 1 Foxtech Map-02 Mapping Camera User Manual 2020.04 V1.3...
-
Page 2: Table Of Contents
FOXTECH Map-02 Mapping Camera User Manual Contents Warning Checking the Supplied Items Notes on Using the Camera How to Trigger Shutter About SD Card About Camera Settings Identifying Parts Optional Mapping Lens Specifications Attaching/Removing the Lens Attaching the Lens Removing the Lens Power Supply for Camera 2020 FOXTECH All Rights Reserved ©... -
Page 3: Warning
• Camera (1) • Cable (1) Notes on Using the Camera Avoid rough handling, disassembling, modifying, physical shock, or impact such as hammering, dropping, or stepping on the product. Be particularly careful of the lens. 2020 FOXTECH All Rights Reserved ©... -
Page 4: How To Trigger Shutter
If you set a wrong data and don't want to save, then you can cut off power directly. 3.The default setting is suitable for most tasks,so you don't need to adjust it if you are unfamiliar with it at the beginning. 2020 FOXTECH All Rights Reserved ©... -
Page 5: Identifying Parts
FOXTECH Map-02 Mapping Camera User Manual Identifying Parts 1. Menu 5. USB 2. Lens Release Button 6. SD Card 3. Len Contacts* 7. HDMI 4. Image Sensor* *Do not directly touch these parts. 2020 FOXTECH All Rights Reserved ©... -
Page 6: Optional Mapping Lens
FOXTECH Map-02 Mapping Camera User Manual Optional Mapping Lens Choose E-mount Lenses according to you need. 2020 FOXTECH All Rights Reserved ©... -
Page 7: Specifications
Programmed AE(P)/Aperture priority(A)/Shutter-speed priority(S), Manual(M) Continuous Shooting Up to 6FPS Storage Card Type SD/SDHC/SDXC Card/MS Storage SD Card(maximum support 640G) Parameter Setting Button/USB Data Reading SD card/USB Interface HDMI USB2.0 Power 8.4V Size 7.3x5.8x2.6cm Weight 115g 2020 FOXTECH All Rights Reserved ©... -
Page 8: Attaching/Removing The Lens
FOXTECH Map-02 Mapping Camera User Manual Attaching/Removing the Lens Lens are optional. For purchase please contact Foxtech sales. Attaching the Lens Fig.1 Fig.2 Fig.3 1. If the cap or the packaging lid is attached, remove it from the camera or the lens.(Fig.1) •... -
Page 9: Removing The Lens
• Do not leave the camera with the lens removed. • When you want to use body caps or rear lens caps, please purchase ALC-B1EM (Body cap) or ALC-R1EM (Rear lens cap) (sold separately). 2020 FOXTECH All Rights Reserved ©... -
Page 10: Power Supply For Camera
This content is subject to change. Download the latest version from https://www.foxtechfpv.com/foxtech-map-01-camera.html For everyday updates, please follow Foxtech facebook page"Foxtechhobby". YouTube Channel: Foxtech 2020 FOXTECH All Rights Reserved ©...
