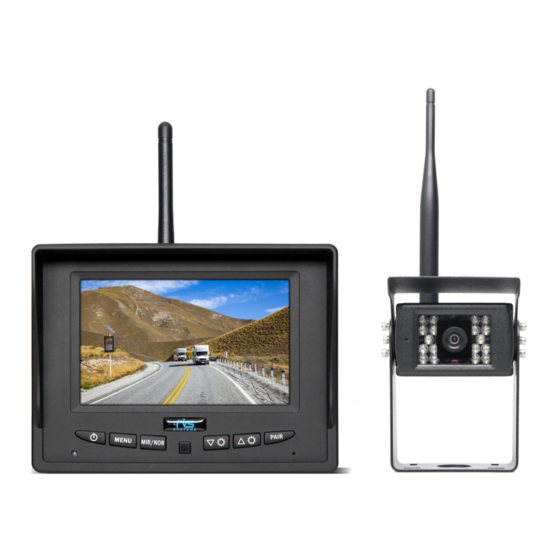

- Page 1 Instruction Manual Wireless Backup Camera System with 5" Single Screen Monitor RVS-155W Reverse With Confidence ™...
-
Page 2: Table Of Contents
Warranty....... 14 Disclaimer....... 15 Rear View Safety... -
Page 3: Introduction
NOTE! Please read all of the installation instructions carefully before installing the product. Improper installation will void manufacturer’s warranty. Congratulations on purchasing a Rear View Backup Camera System! With this manual you will be able to properly install and operate the unit. The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. -
Page 4: Safety Information
Rear View Camera System. If you back up while looking only at the monitor, you may cause Rear View Safety... - Page 5 INSTALLATION: • Electric shock or product or disconnected wire may cause a malfunction may occur if this fire. product is installed incorrectly. • While installing the Rear View System be careful with the wire • Use this product within positioning in order to avoid wire the voltage range specified.
- Page 6 If you have questions about this product, contact: Rear View Safety 1797 Atlantic Avenue Brooklyn, NY 11233 Tel: 1.800.764.1028 IN NO EVENT SHALL SELLER OR MANUFACTURER BE LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
-
Page 7: Before Beginning Installation
Before drilling please check that no cable or wiring is on the other side of the wall. Please clamp all wires securely to reduce the possibility of them being damaged while vehicle is in use. Keep all cables away from hot/moving parts and electrical noisy components. We recommend doing a benchmark test before installation to insure that all components are working properly. - Page 8 To toggle back a screen, press the"MENU" button. Instant Pair 1. Connect camera to power 2. Short press"PAIR" 3. The system will automatically pair NOTE: Make sure camera is receiving power when pairing Rear View Safety...
-
Page 9: Monitor Dimensions
Monitor Dimensions Reverse With Confidence ™... -
Page 10: Connection Options
Connection Options HARDWIRE LOOSE POWER CABLE OR CIGARETTE LIGHTER PLUG FEMALE TO MALE MONITOR LOOSE MALE TO FEMALE POWER CABLE WATERPROOF CONNECTION MALE PLUG TWIST & PUT IN WATERPROOF TIGHTEN FEMALE PLUG Rear View Safety... -
Page 11: Camera Dimensions
Camera Dimensions Note: Certain models include bracket for a pre-wired Furrion mount. Reverse With Confidence ™... -
Page 12: Monitor Specifications
Operating Temperature -20°C ~ +70°C RH 90% MAX Storage Temperature -30°C ~ +80°C RH 90% MAX Frequency 2400-2500MHZ Transmission Type Digital Wireless Transmission Range 100ft Video Input 1 Channel Video Source 1VP-P 75Ω Auto Pair Power Consumption About 4W Power Supply DC9-32V Rear View Safety... -
Page 13: Camera Specifications
Camera Specifications Sensor 1099 Color Camera Effective Pixel Array 976 (H) X 496 (V) Picture Elements 480,000 Pixels NTSC Output 720 (H) X 480 (V) PAL Output 720 (H) X 576 (V) Optical Format 1/4 Inch Camera Correction R=0.45-1.0 Lens F=2.5mm Viewing Angle 130°... -
Page 14: Warranty
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE, NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC. SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES. -
Page 15: Disclaimer
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN... - Page 16 If you have any questions about this product, contact: Rear View Safety, Inc. 1797 Atlantic Avenue Brooklyn, NY 11233 800.764.1028 Better Cameras. Better Service. IT’S OUR GUARANTEE. Rear View Safety...
