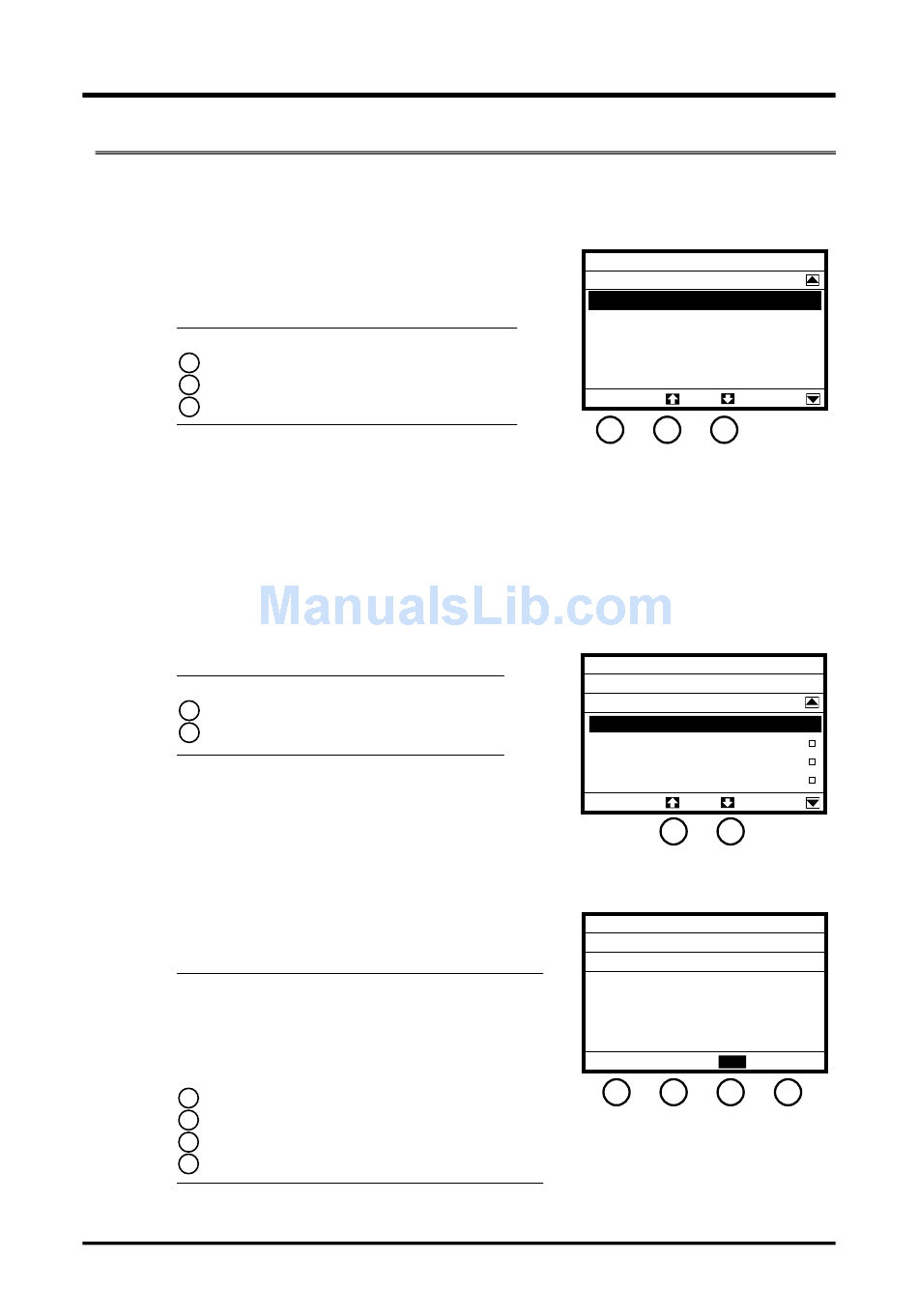

6.2 Setting a basic parameter

When Quick mode is selected using the EASY key function, skip step 1.
Go straight to step 2.
1
Select/confirm "Basic parameters" using the
control dial.
The Basic Parameters window appears.
Functions of function keys
: Brings you to the Top View Mode.
F1
: Displays the previous window.
F2
: Displays the next window.
F3
2
Select/confirm the parameter setting you want
to change, using the control dial.
(Ex. Select/confirm "Command input mode"
and "Base frequency 1."
The Parameter Setting window appears.
If the setting selected is changed by selecting a
menu item, the menu item selected is highlighted
and marked with a checkmark.
Functions of function keys
: Displays the previous window.
F2
: Displays the next window.
F3
If the setting selected is changed by specifying a
value, the value specified is displayed. In addition,
the minimum allowable value (min) and the
maximum allowable value (max) are also
displayed at the bottom of the window.
Functions of function keys
The functions keys allow you to select the position
or decimal place of each figure (operation
frequency) you want to increment or decrement
with the control dial.
: Selects the position of hundreds.
F1
: Selects the position of tens.
F2
: Selects the position of ones.
F3
: Selects the first decimal place.
F4
6. Operation in Parameter Setup Mode
AU1
AU2
AU4
CMOd
FMOd
Top
F1
●
If the setting selected is
changed by selecting a menu
item
0 :Terminal
1 :Panel / LCD-option
2 :RS485-2wire
3 :RS485-3wire
●
If the setting selected is
changed by specifying a
value
min=25.0
×1000
F1
6-2
Parameter Setup Mode
Basic Parameters
:Automatic acc/dec
:Automatic torque boost
:Automatic function set
:Command input mode
:Frequency input mode 1
F2 F3
Basic Parameters
CMOd
Command input mode
∨
口
F2 F3
Basic Parameters
vL
Base frequency 1
60.0
Hz
max=500.0
×100 ×1
×10
F2 F3 F4
