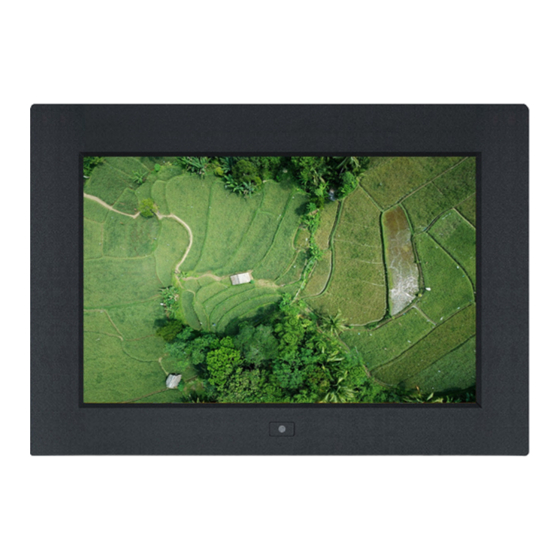

Synergy Global Technology ID-HE21AwN User Manual

21.5 fhd 1920 x 1080 lcd
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ID-HE21AwN and is the answer not in the manual?

Questions and answers

Related Manuals for Synergy Global Technology ID-HE21AwN

Summary of Contents for Synergy Global Technology ID-HE21AwN

  • Page 2 User Manual 21.5” FHD 1920 x 1080 LCD ID-E21Aw / ID-HE21Aw Aluminum front bezel ID-E21AwN / ID-HE21AwN Front NEMA4 / IP65 ID-E21Dw / ID-HE21Dw Universal Mounting Open Frame ID-E21Pw / ID-HE21Pw Universal Mounting Open Frame...
  • Page 3 Legal Information First English printing, November 2020 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

  • Page 4: Table Of Contents

    Contents < Part. 1 > ID-E21Aw / ID-HE21Aw series Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > ID-E21Dw / ID-HE21Dw Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > ID-E21Pw / ID-HE21Pw Package Content Structure Diagram &...
  • Page 5 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.

  • Page 6: Id-E21Aw / Id-He21Aw Series

    < Part 1 > ID-E21Aw / ID-HE21Aw Series < 1.1 > Package Content 21.5” FHD LCD Display ID-E21Aw / ID-E21AwN ID-HE21Aw / ID-HE21AwN 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1...

  • Page 7: Structure Diagram & Dimension

    6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Model Net Weight (W x D x H) ID-E21Aw ID-E21AwN 577.8 x 59.1 x 369.3 mm 9 kg ID-HE21Aw 22.7 x 2.3 x 14.5 inch 19.8 lb ID-HE21AwN www.RackmountMart.com...
  • Page 8 < 1.2 > Dimension 21.5” FHD LCD Display Front View Side View Rear View UNIT : mm 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 9 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. PT-BK-IDA Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...

  • Page 10: Id-E21Dw / Id-He21Dw

    < Part 2 > ID-E21Dw / ID-HE21Dw 21.5” FHD LCD Display < 2.1 > Package Content ID-E21Dw / ID-HE21Dw 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D Upgrade I/O with advanced features...

  • Page 11: Structure Diagram & Dimension

    < 2.2 > Structure Diagram Front view Side View Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Model Net Weight (W x D x H) ID-E21Dw 546.8 x 56.4 x 338.3 mm 7.9 kg ID-HE21Dw 21.5 x 2.2 x 14.5 inch...
  • Page 12 21.5” FHD LCD Display < 1.2 > Dimension Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View www.RackmountMart.com...
  • Page 13 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided www.RackmountMart.com...

  • Page 14: Id-E21Pw / Id-He21Pw

    < Part 3 > ID-E21Pw / ID-HE21Pw < 3.1 > Package Content 21.5” FHD LCD Display ID-E21Pw / ID-HE21Pw 21.5" FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Basic I/O Power DVI-D Upgrade I/O with advanced features...

  • Page 15: Structure Diagram & Dimension

    < 3.2 > Structure Diagram Front view Side View Bottom view Rear case LCD panel Rear view Audio speaker, pair Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Model Net Weight...
  • Page 16 < 3.2 > Dimension 21.5” FHD LCD Display Front View Side View UNIT : mm Rear View 1mm = 0.03937 inch Bottom View P.11 www.RackmountMart.com...
  • Page 17 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided P.12 www.RackmountMart.com...

  • Page 18: Product Specifi Cations

    < Part 4 > < 4.1 > Product Specifi cations Mechanical Design ID-E21Aw / ID-E21AwN / ID-\ E 21Dw / ID-E21Pw / ID-HE21Aw ID-HE21AwN ID-HE21Dw ID-HE21Pw Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel...
  • Page 19 10~300Hz 0.5G RMS random vibration Physical SpeciÞ cation ID-E21Aw / ID-E21AwN / ID-E21Dw / ID-E21Pw / ID-HE21Aw ID-HE21AwN ID-HE21Dw ID-HE21Pw Product ( W x D x H ) 577.8 x 59.1 x 369.3 546.8 x 56.4 x 338.3 574.8 x 52.6 x 366.3 inch 22.7 x 2.3 x 14.5...

  • Page 20: On-Screen Display Operation ( Osd )

    < 4.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &...
  • Page 21 21.5” FHD LCD Display Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic luminous control : Control the dynamic brightness...

  • Page 22: Option Table

    < Part 5 > Options < 5.1 > Option Table HA / Options ✓ ✓ ✓ ✓ ✓ ✓ SDI *** ✓ ✓ ✓ ✓ ✓ ✓ S-Video * + Composite ( BNC ) ✓ ✓ ✓ ✓ ✓ ✓ Audio ✓...
  • Page 23 < 5.2 > Options : 3G / HD / SD-SDI input 21.5” FHD LCD Display Our SDI input is an ideal solution for the broadcast-grade video and high resolution CCTV market. Designed for use with NOVA series displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 1-year warranty.
  • Page 24 More control is always good. Especially when it is necessary and ( Multi-display Control ) easy. Synergy Global Technology provides MC solution to control the OSD of various Industrial LCD displays up to 64 units. The RS-232C is used for the communication between the PC and the Þ...
  • Page 25 < 5.4 > Upgrade Options : 21.5” FHD LCD Display - HMDI ( HDMI 1.4, CEA-861-E ) - Display Port ( DP 1.0, HCDP 1.3 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out ) Power Audio HDMI...
  • Page 26 How to Use Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.

  • Page 27: Projected Capacitive ( 10-Point Touch )

    < 5.5 > Options : Touchscreen & driver 21.5” FHD LCD Display F21" USB Touchscreen Specifi cation Model e-Resistive Multi-touch e-Capacitive Technology Projected Capacitive 5-Wire Resistive Capacitive Touch Point Single Single Input Type Finger or Capacitive Stylus Finger or Stylus Finger Resolution 2048 x 2048...
  • Page 28 < 5.5 > Options : Touchscreen & driver TPC Driver Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports easy Plug-and-Play operations. There is no need to install additional drivers on the computer. TRB / TCB Driver Please follow the below steps to setup the touch screen:- Step 1.
  • Page 29 < 5.6 > Options : DC Power 21.5” FHD LCD Display Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...

  • Page 30: Mil-Type Or Lockable Connector

    < 5.7 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design ß...
  • Page 31 < 5.8 > Options : Quad Display 21.5” FHD LCD Display QD Specifi cation Item Description Model Number QD (NTSC) QD (PAL) Number of Color 16.7 M 16.7 M Imaging System NTSC Resolution 1024 x 525 1024 x 625 Refresh Rate Video Input 1.0 Vpp, 75 Ohm x 4 Camera Input...

  • Page 32: Options For Sunlight Readable : Auto Dimming

    < 5.9 > Options for Sunlight Readable : Auto Dimming Light sensor on OP model Light sensor on Aw model ( 66cm from AD board to sensor end ) light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu.
  • Page 33 The company reserves the right to modify product speciÞ cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Synergy Global Technology Inc. All rights reserved. P.28 www.RackmountMart.com...
