ACME LS-1005 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
LS-1005 RGB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS-1005 and is the answer not in the manual?

Questions and answers

Related Manuals for ACME LS-1005

Summary of Contents for ACME LS-1005

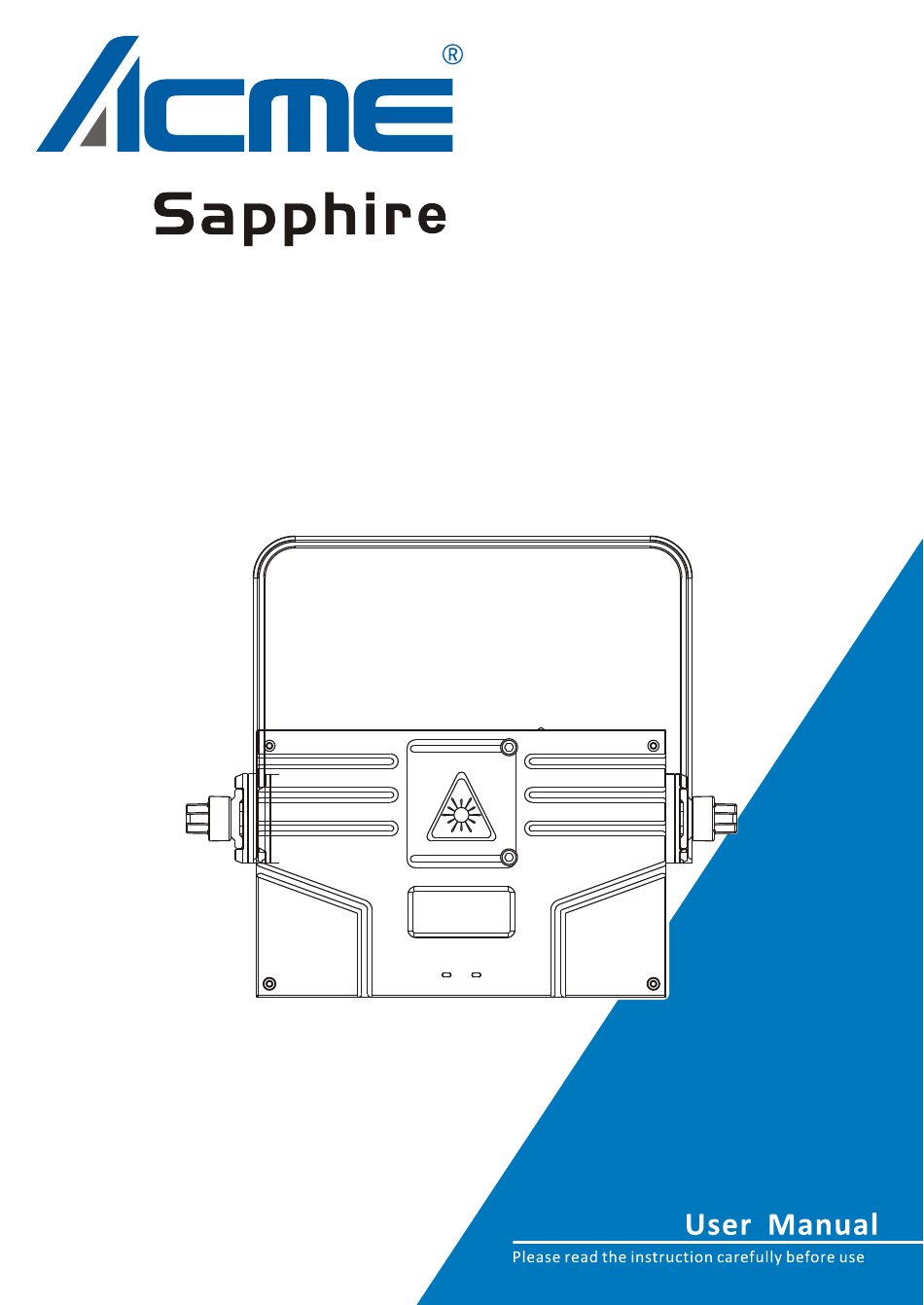

  • Page 1 LS-1005 RGB...

  • Page 2: Table Of Contents

    MENU 1. Safety Instructions ........................... 2 2. Technical Specifications ........................3 3. Installation ............................3 4. How to Set the Unit ......................... 4 4.1 Control Panel ..........................4 4.2 Main Function ..........................4 5. How to Control the Unit ........................6 6.

  • Page 3: Safety Instructions

    1. Safety Instructions Please read carefully the instruction, which includes important information about the installation, usage and maintenance. WARNING  Please keep this User Guide for future consultation. If you sell the unit to another user, be sure that they also receive this instruction booklet. ...

  • Page 4: Technical Specifications

     DO NOT touch any wire during operation as high voltage might be causing electric shock. 2. Technical Specifications  Four control modes: ILDA / DMX/Sound Active/Auto Play;  Voltage: AC100V~240V，50/60Hz  Laser power consumption: 5W  Power consumption:  Scanning system： 40K Scanner ...

  • Page 5: How To Set The Unit

    4. How to Set the Unit 4.1 Control Panel ○ ○ 1 OLED Display 2 Knob ○ ○ 3 SD Card Port 4 Key Switch: The unit works when set RUN. ○ ○ 5 Power Input/output 6 Fuse ○ ○ 7 MIC 8 ILDA Port ○...
  • Page 6 DMX Functions Press the knob when the DMX FUNCTIONS show on the display, use the knob to select DMX Address, DMX state or Exit. Enter DMX Address, turn the knob to change the address, press the knob to confirm. Enter DMX State, select the HOLD/Black Out/Show Mode, when select Show Mode, the unit preference to sound active.

  • Page 7: How To Control The Unit

    SD Functions Press the knob when the SD Functions show on the display, use the knob to select SD Mode, SD File or Exit. Enter SD Mode, use the knob to select ILD Show, PRG Show or No SD, press the knob to confirm. Enter SD File, select the file or folder, press the knob to confirm.
  • Page 8 Channel Value Function Blackout 10-49 PRG Mode 50-99 ILD Mode Choose Mode 100-149 Sound active Mode 150-199 Auto play Mode 200-255 Manual Mode Pattern/File Manual Mode PRG/ILD Mode Select 0-255 Pattern change Select file (Change pattern every 3 values) Strobe/File 0-10 No strobe Auto Play File Select...

  • Page 9: Dmx512 Connections

    145-184 Repeat slow drawing 185-224 Repeat slow drawing from slow to fast end to end 225-255 Repeat slow drawing from fast to slow end to end Pan Waving 0-10 No function 11-69 Small wave 70-129 Middle wave 130-189 Big wave 190-255 The biggest wave Tilt Waving...

  • Page 10: Troubleshooting

    1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3 pin adapter-cable. 2. Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input of the next unit.

  • Page 11: Fixture Cleaning

    2. If the DMX LED is on and no response to the channel, check the address settings and DMX polarity. 3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of the unit or the previous one. 4.
  • Page 12 Declaration of Conformity We declare that our products (lighting equipments) comply with the following specification and bears CE mark in accordance with the provision of the Electromagnetic Compatibility (EMC) Directive 89/336/EEC. EN55103-1: 2009+A1:2012; EN55103-2: 2009; EN61000-3-2: 2014; EN61000-3-3: 2013. & Harmonized Standard EN 60598-1:2015;...
