MadgeTech Process101A 20mA Product User Manual

Description
Current Range
Current Resolution
Calibrated Accuracy
Input Impedance
1,000,000 readings; software configurable memory wrap
Memory
333,000 readings in multiple start/stop mode
Reading Rate
LED Indicator
Required Interface Package
Baud Rate
Typical Battery Life 10 year battery life typical, at a 15 minute reading rate
-40 °C to +80 °C (-40 °F to +176 °F),
Operating Environment
0 %RH to 95 %RH (non–condensing)
Material
Dimensions
Weight
Approvals
*Current Series Range, Resolution and Calibrated Accuracy
Nominal Range 20 mA
Measurement Range -2 mA to +30 mA
Maximum Voltage Between
Inputs to Ground
Resolution 0.5 µA
Calibrated Accuracy @ 25 °C
Input Impedence 10 Ω, +1%
Absolute Maximum Current 316 mA
Battery Warning
WARNING: FIRE, EXPLOSION, AND SEVERE BURN HAZARD. DO NOT SHORT CIRCUIT, CHARGE,
FORCE OVER DISCHARGE, DISASSEMBLE, CRUSH, PENETRATE OR INCINERATE. BATTERY MAY
LEAK OR EXPLODE IF HEATED ABOVE 80 °C (176 °F).
Specifications subject to change.
See MadgeTech's terms and conditions at www.madgetech.com
MadgeTech, Inc.
6 Warner Road
Phone 603.456.2011
www.madgetech.com
Process101A
*See Table Below
4 Hz to 1 reading every 24 hours
Red and green
IFC200
115,200
ABS plastic
1.4 in x 2.2 in x 0.6 in
(36 mm x 56 mm x 16 mm)
0.9 oz (24 g)
CE
+160 mA +3 A
+160 mA +3 A
0 V to 2.5 V
5 µA 100 µA
+0.05 %FSR +0.15 %FSR
1 Ω, +1% <0.05 Ω
1 A 6 A
Warner, NH 03278
l
Fax 603.456.2012
l
info@madgetech.com
l
DOC-1219035-00 REV 8 2014.11.26
Product User Guide

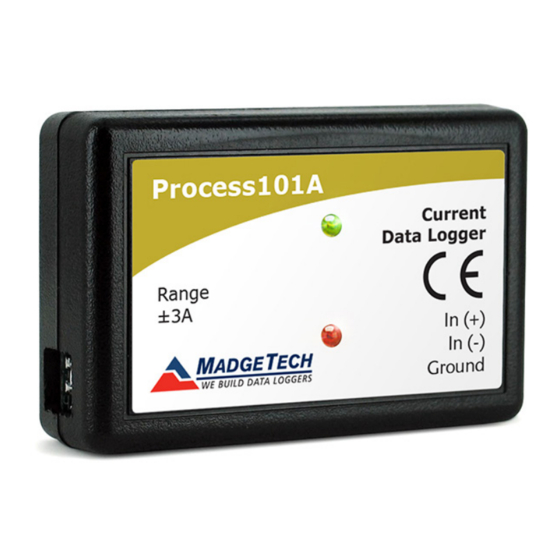

Process101A 20mA, Process101A +160mA
and Process101A +3A
Low Level Current Data Loggers with a 10 Year Battery Life
Process101A
Red 485
Dark Blue Pantone 289
Light Blue 58% of Pantone 289
