AFL2-08A-N26
IEI Te c h n o lo g y Co rp .
MODEL:
AFL2-08A-N26 S e rie s

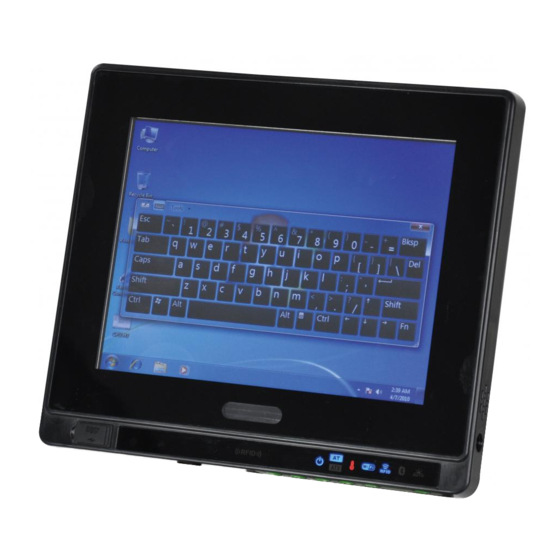

Flat Bezel Panel PC with 1.6 GHz Intel® Atom™ N2600 processor,
Touch Screen, Wi-Fi, USB, GbE LAN , RS-232/422/485,
Re v. 1.00 - 19 Fe b ru a ry, 2013
HD Audio and RoHS
Us e r Ma n u a l
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL2-08A-N26 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology AFL2-08A-N26 Series

Summary of Contents for IEI Technology AFL2-08A-N26 Series

  • Page 1 AFL2-08A-N26 IEI Te c h n o lo g y Co rp . MODEL: AFL2-08A-N26 S e rie s Flat Bezel Panel PC with 1.6 GHz Intel® Atom™ N2600 processor, Touch Screen, Wi-Fi, USB, GbE LAN , RS-232/422/485, HD Audio and RoHS Us e r Ma n u a l Page I Re v.
  • Page 2 AFL2-08A-N26 Re vis io n Date Version Changes Initial release 19 February, 2013 1.00 Page II...
  • Page 3 AFL2-08A-N26 Co p yrig h t COP YRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.

  • Page 4: Table Of Contents

    AFL2-08A-N26 Ta b le o f Co n te n ts 1 INTRODUCTION ......................1 1.1 AFL2-08A-N26 F PC O ..........2 EZEL ANEL VERVIEW 1.1.1 Model Variations ....................3 1.1.2 Features ......................3 1.2 E ....................3 XTERNAL VERVIEW 1.2.1 Front Panel ......................
  • Page 5 AFL2-08A-N26 4.1 A ..................22 STATIC RECAUTIONS 4.2 I ................... 22 NSTALLATION RECAUTIONS 4.3 I ............. 23 NSTALLATION AND ONFIGURATION TEPS SATA ................... 23 CARD NSTALLATION 4.5 RFID R ) ..................25 EADER PTIONAL 4.6 AT/ATX M ..................27 ELECTION 4.6.1 AT Power Mode ....................
  • Page 6 AFL2-08A-N26 5.2.7 EC Firmware Connector (JSPI1) ..............48 5.2.8 Hot Key Connector (HOT_KEY1) ..............48 5.2.9 K Type Connector (K_TYPE1, K_TYPE2) ............48 5.2.10 LCD Inverter Connector (INVERTER1) ............49 5.2.11 LCD LVDS connector (JR1) ................ 49 5.2.12 LED Connector (LEDCN1) ................49 5.2.13 LPT Connector (LPT_DB1) ................
  • Page 7 AFL2-08A-N26 6.5.2 WLAN Card Replacement ................63 6.6 R ..................66 EINSTALLING THE OVERS 7 BIOS SETUP ........................ 67 7.1 I ......................68 NTRODUCTION 7.1.1 Starting Setup ....................68 7.1.2 Using Setup ...................... 68 7.1.3 Getting Help ..................... 69 7.1.4 Unable to Reboot after Configuration Changes ..........69 7.1.5 BIOS Menu Bar ....................
  • Page 8 AFL2-08A-N26 8.5 T ..................103 OUCH CREEN RIVER 8.5.1 Calibrating the Touch Screen ................. 107 8.6 A ................109 UDIO RIVER NSTALLATION 8.7 LAN D ................... 111 RIVER NSTALLATION 8.8 USB 3.0 D ................114 RIVER NSTALLATION 8.9 W .................. 116 RIVER NSTALLATION 8.10 B...
  • Page 9 AFL2-08A-N26 C.5.3 Restore Your Last Backup ................163 C.5.4 Manual ......................164 C.6 R LAN ........165 ESTORE YSTEMS FROM A INUX ERVER THROUGH C.6.1 Configure DHCP Server Settings ..............166 C.6.2 Configure TFTP Settings ................167 C.6.3 Configure One Key Recovery Server Settings ..........168 C.6.4 Start the DHCP, TFTP and HTTP ..............
  • Page 10 AFL2-08A-N26 Lis t o f Fig u re s Figure 1-1: AFL2-08A-N26 Flat Bezel Panel PC ................2 Figure 1-2: AFL2-08A-N26 Front View ..................4 Figure 1-3: LED Indicators ......................4 Figure 1-4: Function Keys ......................6 Figure 1-5: AFL2-08A-N26 Rear View ................... 7 Figure 1-6: AFL2-08A-N26 Bottom Panel ..................
  • Page 11 AFL2-08A-N26 Figure 4-21: USB Device Connection ..................41 Figure 5-1: System Motherboard (front) ..................44 Figure 5-2: System Motherboard (rear) ..................45 Figure 5-3: External Interface Panel Connectors ..............53 Figure 6-1: Back Cover Retention Screws .................60 Figure 6-2: Internal Cover Retention Screws ................61 Figure 6-3: Internal Components ....................61 Figure 6-4: DDR SO-DIMM Module Installation ................63 Figure 6-5: Releasing the WLAN Card ..................64...
  • Page 12 AFL2-08A-N26 Figure 8-25: Audio Driver Installation Complete ..............111 Figure 8-26: LAN Driver Welcome Screen ................112 Figure 8-27: LAN Driver Ready to Install Screen ..............112 Figure 8-28: LAN Driver Setup Status Screen .................113 Figure 8-29: LAN Driver Installation Complete ................113 Figure 8-30: USB 3.0 Driver Welcome Screen .................114 Figure 8-31: USB 3.0 Driver License Agreement ..............115 Figure 8-32: USB 3.0 Driver Installation ...................115 Figure 8-33: USB 3.0 Driver Update Complete ................116...
  • Page 13 AFL2-08A-N26 Figure C-11: Recovery Tool Menu ....................147 Figure C-12: About Symantec Ghost Window .................148 Figure C-13: Symantec Ghost Path ..................148 Figure C-14: Select a Local Source Drive ................149 Figure C-15: Select a Source Partition from Basic Drive ............149 Figure C-16: File Name to Copy Image to ................150 Figure C-17: Compress Image ....................150 Figure C-18: Image Creation Confirmation ................151 Figure C-19: Image Creation Complete ..................151...
  • Page 14 AFL2-08A-N26 Lis t o f Ta b le s Table 1-1: AFL2-08A-N26 Model Variations ................. 3 Table 1-2: LED Indicators ......................5 Table 1-3: Function Key Descriptions ..................6 Table 1-4: System Specifications ....................10 Table 4-1: DB-9 Connector Pinout ....................40 Table 5-1: Peripheral Interface Connectors ................46 Table 5-2: Audio Connector Pinouts (AUDIO1) .................47 Table 5-3: Auto-dimming Connector Pinouts (IR1) ..............47...
  • Page 15 AFL2-08A-N26 Table 5-27: Ethernet Connector Pinouts (LAN1) ...............54 Table 5-28: Power Connector Pinouts (DC_IN1) ...............55 Table 5-29: RS-232 Serial Ports Pinouts (COM1) ..............55 Table 5-30: RS-422/485 Serial Port Pinouts (COM2) ..............55 Table 5-31: USB 2.0 Connectors Pinouts (USB1) ..............55 Table 5-32: USB 3.0 Connector Pinouts (USB3_1) ..............56 Table 7-1: BIOS Navigation Keys ....................69 Page XV...
  • Page 16 AFL2-08A-N26 Lis t o f BIOS Me n u s BIOS Menu 1: Main ........................70 BIOS Menu 2: Advanced ......................72 BIOS Menu 3: ACPI Configuration ....................72 BIOS Menu 4: RTC Wake Settings ....................73 BIOS Menu 5: CPU Configuration ....................75 BIOS Menu 6: IDE Configuration ....................76 BIOS Menu 7: USB Configuration ....................77 BIOS Menu 8: Super IO Configuration ..................78 BIOS Menu 9: Serial Port n Configuration Menu ...............79...

  • Page 17: Introduction

    AFL2-08A-N26 Chapter In tro d u c tio n P a g e 1...

  • Page 18: Afl2-08A-N26 Flat Bezel Panel Pc Overview

    AFL2-08A-N26 1.1 AFL2-08A-N26 Fla t Be ze l P a n e l P C Ove rvie w Figure 1-1: AFL2-08A-N26 Flat Bezel Panel PC The AFL2-08A-N26 is an Intel® Atom™ N2600 processor powered flat bezel panel PC with a rich variety of functions and peripherals. The AFL2-08A-N26 is designed for easy and simplified integration into kiosk and point-of-sales (POS) applications.

  • Page 19: Model Variations

    AFL2-08A-N26 1.1.1 Mo d e l Va ria tio n s The model variations of the AFL2-08A-N26 Series are listed below. Mo d e l No . To u c h S c re e n Typ e Op tio n a l Fe a tu re s...

  • Page 20: Led Indicators

    AFL2-08A-N26 Figure 1-2: AFL2-08A-N26 Front View 1.2.1.1 LED In d ic a to rs There are seven LED indicator lights located along the front of the LCD screen (Figure 1-3). Figure 1-3: LED Indicators The descriptions of each LED indicator are listed below. P a g e 4...

  • Page 21: Table 1-2: Led Indicators

    AFL2-08A-N26 LED In d ic a to r De s c rip tio n Shows power status. Power Orange: Standby mode. Blue: Power-on mode. AT/ATX Mode Shows the power mode status. Controlled by the AT/ATX power mode switch. BLUE: CPU temperature is normal. CPU Temperature Alert RED: CPU temperature is too high.

  • Page 22: Rear Panel

    AFL2-08A-N26 The corresponding Function Keys are located under the bottom right hand corner of the LCD screen (Figure 1-4). Figure 1-4: Function Keys The Function Keys are described in Table 1-3: Ke y Co m b in a tio n Fu n c tio n Ke y De s c rip tio n RFID Enable/Disable Fn + LCD On/Off...

  • Page 23: Bottom Panel

    AFL2-08A-N26 Figure 1-5: AFL2-08A-N26 Rear View 1.2.3 Bo tto m P a n e l The bottom panel of the AFL2-08A-N26 has the following features (Figure 1-6):  1 x AT/ATX Switch  1 × Audio jack (Line out)  1 x Clear CMOS switch ...

  • Page 24: Internal Overview

    AFL2-08A-N26 Figure 1-6: AFL2-08A-N26 Bottom Panel 1.3 In te rn a l Ove rview The AFL2-08A-N26 has the following components installed internally:  1 x Motherboard  1 x 2.0 GB 800 MHz DDR3 SO-DIMM 1.4 S ys te m Sp e c ific a tio n s The technical specifications for the AFL2-08A-N26 systems are listed in Table 1-4.
  • Page 25 AFL2-08A-N26 Contrast Ratio 500:1 LCD Color 16.2 M Pixel Pitch (H x V) (mm) 0.2025(H) x 0.2025(V) Viewing Angle (H-V) 140°(H) / 130°(V) Backlight MTBF (hr) 30000 hrs Touch Screen 5-wire resistive type touch screen Intel® Atom™ N2600 dual core 1.6 GHz CPU Chipset Intel®...

  • Page 26: Table 1-4: System Specifications

    AFL2-08A-N26 Power Consumption 19V@1.1A (Intel® Atom™ N2600 CPU with 2GB DDR3 memory ) I/O Ports and Switches 1 x RS-232 connector (DB-9) 1 x RS-422/485 connector (DJ-11) 1 x GbE LAN (RJ-45) 2 x USB 3.0 connectors 2 x USB 2.0 connectors 1 x Mini USB 2.0 port (on front panel) 1 x Micro SD card slot (on front panel) 1 x Audio jack (line-out)

  • Page 27: Detailed Specifications

    AFL2-08A-N26 Chapter De ta ile d S p e c ific a tio n s P a g e 11...

  • Page 28: Dimensions

    AFL2-08A-N26 2.1 Dim e n s io n s The AFL2-08A-N26 dimensions are shown below. Figure 2-1: AFL2-08A-N26 Dimensions (mm) P a g e 12...

  • Page 29: Intel ® Atom ™ Processor

    AFL2-08A-N26 2.2 In te l® Ato m ™ P ro c e s s o r An Intel® Atom™ N2600 processor is installed in the system. The N2600 CPU is a 1.6 GHz dual core processor with Direct Media Interface (DMI) speed of 2.5 GT/s. The CPU also features a 1.0 MB L2 cache.

  • Page 30: Lan Connectivity

    AFL2-08A-N26 Figure 2-2: Serial Ports 2.4.2 LAN Co n n e c tivity The AFL2-08A-N26 has one RJ-45 LAN connector on the bottom panel. Figure 2-3: RJ-45 Ethernet Connector (Bottom Panel) The PCIe LAN from the Intel® NM10 chipset of the AFL2-08A-N26 is interfaced to the Realtek RTL8111E PCIe gigabit Ethernet (GbE) controller.

  • Page 31: Audio

    AFL2-08A-N26 Revision 2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1 and USB 2.0 compliant devices. Only USB 3.0 connectors are compatible with USB 3.0 devices. Figure 2-4: External USB Ports (Bottom Panel) 2.5 Au d io 2.5.1 Au d io Co d e c Co n tro lle r The integrated HD Audio compliant audio controller on the Intel®...

  • Page 32: Stereo Speakers

    AFL2-08A-N26 Figure 2-5: Audio Jack 2.5.2 Ste re o Sp e a ke rs Two internal 0.8 W stereo speakers on the sides of the AFL2-08A-N26 are interfaced to the system. P a g e 16...

  • Page 33: Unpacking

    AFL2-08A-N26 Chapter Un p a c kin g P a g e 17...

  • Page 34: Unpacking

    AFL2-08A-N26 3.1 Un pa c kin g To unpack the flat bezel panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat bezel panel PC has been properly installed.
  • Page 35 AFL2-08A-N26 Power adapter Power cord (P/N: 32702-000200-100-RS) Power transfer cord (P/N: 32702-000300-100-RS) RJ-11 to DB-9 COM port cable Infrared Remote Controller (P/N: 7Z000-SLPCB001-RS) (P/N: 43125-0002C0-00-RS) Utility CD One Key Recovery CD Op tio n a l Panel Mounting Kit (P/N: AFL2PK-W07A) Wall mounting kit (P/N: AFLWK-12) Rack Mounting Kit...
  • Page 36 AFL2-08A-N26 Stand (P/N: STAND-A08/STAND-B08/STAND-C12) V-stand (P/N: VSTAND-A07) Hybrid Card Reader (P/N: AFL2P-07AMSI-U-R10) Magnetic Stripe Reader (P/N: AFL2P-07AMSR-U-R10) Bluetooth Module Kit (P/N: AFL2-BT-KIT01-R11) OS: Win CE 6.0 (CD-ROM) (P/N: AFL2-W07A-CV-CE060-R10) OS: Win XPE (CD-ROM) (P/N: AFL2-W07A-CV-XPE-R10) OS: Linux (CD-ROM) (P/N: AFL2-W07A-CV-LNX-R10) OS: Win 7 Embedded (CD-ROM) (P/N: AFL2-W07A-CV-WES7E-R10 for Resistive Touch) If any of these items are missing or damaged, contact the distributor or sales...

  • Page 37: Installation

    AFL2-08A-N26 Chapter In s ta lla tio n P a g e 21...

  • Page 38: Anti - Static Precautions

    AFL2-08A-N26 4.1 An ti-s ta tic P re c a u tio n s WARNING: Failure to take ESD precautions during the maintenance of the AFL2-08A-N26 may result in permanent damage to the AFL2-08A-N26 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL2-08A-N26.

  • Page 39: Installation And Configuration Steps

    AFL2-08A-N26  Anti-static Discharge: If a user open the rear panel of the flat bezel panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband. 4.3 In s ta lla tio n a n d Co n fig u ra tio n Ste ps The following installation steps must be followed.

  • Page 40: Figure 4-1: Msata Cover Retention Screw

    AFL2-08A-N26 Figure 4-1: mSATA Cover Retention Screw S te p 2: Remove the mSATA cover from the device. Locate the PCIe mini card slot on the motherboard. (Figure 4-2). S te p 3: Figure 4-2: PCIe Mini Card Slot S te p 4: Insert into the slot at an angle.

  • Page 41: Rfid Reader (Optional )

    4.5 RFID Re a d e r (Op tio n a l) The AFL2-08A-N26 series (selected models only) supports RFID reader function. The RFID reader is located at the bottom of the screen. An optional Mifare 13.56 MHz or EM 125 KHz RFID reader can be integrated in the system.

  • Page 42: Figure 4-4: Connect The Rfid Usb Cable

    AFL2-08A-N26 Figure 4-4: Connect the RFID USB cable S te p 2: Connect the RFID connector of the RFID USB cable to the RFID connector on the motherboard (RFID1). Attach the sticker of the RFID module to the bottom of the panel. S te p 3: Figure 4-5: Install the RFID module Secure the RFID module to the motherboard using two retention screws on...

  • Page 43: At/Atx Mode Selection

    AFL2-08A-N26 S te p 5: Use the RFID reader to read a RFID card. 4.6 AT/ATX Mo d e S e le c tio n AT or ATX power mode can be used on the AFL2-08A-N26. The selection is made through an AT/ATX switch located on the bottom panel (Figure 4-6).

  • Page 44: Atx Power Mode

    AFL2-08A-N26 4.6.2 ATX P owe r Mo d e With the ATX mode selected, the AFL2-08A-N26 panel PC goes in a standby mode when it is turned off. The panel PC can be easily turned on via network or a power switch in standby mode.

  • Page 45: Powering O N The System

    AFL2-08A-N26 Figure 4-8: Reset Button Location S te p 2: Press the reset button. S te p 0: 4.9 P owe rin g On th e S ys te m To power on the system, follow the steps below: S te p 1: Locate the Function and Brightness Up function keys.

  • Page 46: Mounting The System

    AFL2-08A-N26 4.11 Mo u n tin g th e S ys te m WARNING! When mounting the flat bezel panel PC onto an arm, onto the wall or onto a panel, it is better to have more than one person to help with the installation to make sure the panel PC does not fall down and get damaged.

  • Page 47: Figure 4-9: Wall-Mounting Bracket

    AFL2-08A-N26 Figure 4-9: Wall-mounting Bracket S te p 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 4-10).

  • Page 48: Figure 4-10: Chassis Support Screws

    AFL2-08A-N26 S te p 7: Align the mounting screws on the monitor rear panel with the mounting holes on the bracket. Carefully insert the screws through the holes and gently pull the monitor S te p 8: downwards until the monitor rests securely in the slotted holes (Figure 4-10). Ensure that all four of the mounting screws fit snuggly into their respective slotted holes.

  • Page 49: Panel Mounting

    AFL2-08A-N26 Figure 4-11: Secure the Panel PC 4.11.2 P a n e l Mo u n tin g To mount the AFL2-08A-N26 flat bezel panel PC into a panel, please follow the steps below. Select the position on the panel to mount the flat bezel panel PC. S te p 1: S te p 2: Cut out a section corresponding to the size shown below.

  • Page 50: Figure 4-13: Tighten The Panel Mounting Clamp Screws

    AFL2-08A-N26 S te p 3: Slide the flat bezel panel PC through the hole until the frame is flush against the panel. Align the panel mounting bracket screw holes with the VESA mounting holes on S te p 4: the rear of the panel PC. Secure the two panel mounting brackets to the rear of the panel PC by inserting S te p 5: ...

  • Page 51: Stand Mounting

    AFL2-08A-N26 4.11.3 Sta n d Mo u n tin g To mount the AFL2-08A-N26 using the stand mounting kit, please follow the steps below. S te p 1: Locate the screw holes on the rear of the AFL2-08A-N26. This is where the bracket will be attached.

  • Page 52: Audio Connection

    AFL2-08A-N26 To install these devices, connect the corresponding cable connector from the actual device to the corresponding AFL2-08A-N26 external peripheral interface connector making sure the pins are properly aligned. 4.12.1 Au d io Co n n e c tio n The audio jack on the external audio connector enables the AFL2-08A-N26 to be connected to a stereo sound setup.

  • Page 53: Display Device Connection

    AFL2-08A-N26 4.12.2 Dis p la y De vic e Co n n e c tio n The DisplayPort connector transmits a digital signal to compatible DisplayPort display devices such as a TV or computer screen. To connect the DisplayPort cable to the AFL2-08A-N26, follow the steps below.

  • Page 54: Serial Device Connection

    AFL2-08A-N26 Align the connector. Align the RJ-45 connector on the LAN cable with the S te p 2: RJ-45 connector on the AFL2-08A-N26. See Figure 4-17. Figure 4-17: LAN Connection S te p 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN cable RJ-45 connector into the external interface.

  • Page 55: Serial Port Connection

    AFL2-08A-N26 Insert the serial connector. Insert the DB-9 connector of a serial device into S te p 2: the DB-9 connector on the bottom panel. See Figure 4-18. Figure 4-18: DB-9 Serial Port Connector S te p 3: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector.

  • Page 56: Figure 4-19: Rj-11 Serial Port Connector

    AFL2-08A-N26 Figure 4-19: RJ-11 Serial Port Connector S te p 4: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector. Step 0: The DB-9 connector pinouts are listed below. PIN NO.

  • Page 57: Usb Device Connection

    AFL2-08A-N26 4.12.5 US B De vic e Co n n e c tio n NOTE: User must install the USB 3.0 driver before connecting a USB device to the system or else the system may not recognize the connected device. There are two USB 2.0 connectors and two USB 3.0 connectors on the AFL2-08A-N26.
  • Page 58 AFL2-08A-N26 Insert the device connector. Once aligned, gently insert the USB device S te p 3: connector into the onboard connector. S te p 0: P a g e 42...

  • Page 59: System Motherboard

    AFL2-08A-N26 Chapter S ys te m Mo th e rb o a rd P a g e 43...

  • Page 60: Overview

    AFL2-08A-N26 5.1 Ove rvie w This chapter details all the jumpers and connectors of the system motherboard. 5.1.1 La yo u t The figures below show all the connectors and jumpers of the system motherboard. The Pin 1 locations of the on-board connectors are also indicated in the diagram below. Figure 5-1: System Motherboard (front) P a g e 44...

  • Page 61: Internal Peripheral Connectors

    AFL2-08A-N26 Figure 5-2: System Motherboard (rear) 5.2 In te rn a l P e rip h e ra l Co n n e c to rs The table below shows a list of the internal peripheral interface connectors on the system motherboard.

  • Page 62: Audio Connector (Audio1)

    AFL2-08A-N26 Co n n e c to r Typ e La b e l K type connector 2-pin wafer K_TYPE1, K_TYPE2 LCD inverter connector 5-pin wafer INVERTER1 LCD LVDS connector 20-pin wafer LED connector 14-pin wafer LEDCN1 LPT connector 20-pin wafer LPT_DB1 Micro SD connector 5-pin wafer...

  • Page 63: Auto-Dimming Connector (Ir1)

    AFL2-08A-N26 GND_AUDIO GND_AUDIO Table 5-2: Audio Connector Pinouts (AUDIO1) 5.2.2 Au to -d im m in g Co n n e c to r (IR1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION IRRX SMB_CLK_AD SMB_DAT_AD Table 5-3: Auto-dimming Connector Pinouts (IR1) 5.2.3 Ba tte ry Co n n e c to r (BAT1) PIN NO.

  • Page 64: Debug Port Connector (Lpc_Debug1)

    AFL2-08A-N26 5.2.6 De b u g P o rt Co n n e c to r (LP C_DEBUG1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PLT_RST# LPC_DEBUG_CLK LPC_AD3 LPC_AD2 LPC_AD1 LPC_AD0 LPC_FRAME# VCC3 Table 5-7: Debug Port Connector Pinouts (LPC_DEBUG1) 5.2.7 EC Firm wa re Co n n e c to r (J S P I1) PIN NO.

  • Page 65: Lcd Inverter Connector (Inverter1)

    AFL2-08A-N26 5.2.10 LCD In ve rte r Co n n e c to r (INVERTER1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION BRIGHTNESS DATA7_N BKL_POWER ENABKL Table 5-11: LCD Inverter Connector Pinouts (INVERTER1) 5.2.11 LCD LVDS connector (J R1) PIN NO. DESCRIPTION PIN NO.

  • Page 66: Lpt Connector (Lpt_Db1)

    AFL2-08A-N26 Table 5-13: LED Connector Pinouts (LEDCN1) 5.2.13 LP T Co n n e c to r (LP T_DB1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION EC_KSI0 EC_KSO0 EC_KSO1 EC_KSO2 EC_KSO3 EC_KSO4 EC_KSO5 EC_KSO6 EC_KSO7 EC_KSO8 EC_KSO9 EC_KSO10 EC_KSO12 EC_KSI1 EC_KSO11 EC_KSI2 EC_KSI3 Table 5-14: LPT Connector Pinouts ( LPT_DB1)

  • Page 67: Microphone Connector (Webcam_Dmic1)

    AFL2-08A-N26 5.2.16 Mic ro p h o n e Co n n e c to r (WEBCAM_DMIC1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DMIC_CLK_R DMIC_DATA_R Table 5-17: Microphone Connector Pinouts (WEBCAM_DMIC1) 5.2.17 P owe r Bu tto n Co n n e c to r (P W_BT1) PIN NO.

  • Page 68: Touch Panel Connector (Cap_Ts1)

    AFL2-08A-N26 Table 5-21: Touch Panel Connector Pinouts (TS1) 5.2.21 To u c h P a ne l Co n n e c to r (CAP _TS 1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION -DATA4 +DATA4 Table 5-22: Touch Panel Connector Pinouts (CAP_TS1) 5.2.22 VGA Co n n e c to r (VGA1) PIN NO.

  • Page 69: External Interface Panel Connectors

    AFL2-08A-N26 5.3 Exte rn a l In te rfa c e P a n e l Co n n e c to rs The figures below show all the external interface panel connectors on the system motherboard. Figure 5-3: External Interface Panel Connectors The table below shows a list of the external interface panel connectors on the system motherboard.

  • Page 70: Display Port Connector (Display_Port1)

    AFL2-08A-N26 5.3.1 Dis p la y P o rt Co n n e c to r (DIS P LAY_P ORT1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION C_DDI0_DP_DATA0 C_DDI0_DP_DATA0# C_DDI0_DP_DATA1 C_DDI0_DP_DATA1# C_DDI0_DP_DATA2 C_DDI0_DP_DATA2# C_DDI0_DP_DATA3 C_DDI0_DP_DATA3# C_DDI0_DP_AUXP C_DDI0_DP_AUXN C_DDI0_DP_HPD Table 5-26: Display Port Connector Pinouts (DISPLAY_PORT1) 5.3.2 Eth e rn e t Co n n e c to r (LAN1) PIN NO.

  • Page 71: Power Connector (Dc_In1)

    AFL2-08A-N26 5.3.3 P owe r Co n n e c to r (DC_IN1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION Table 5-28: Power Connector Pinouts (DC_IN1) 5.3.4 RS -232 S e ria l P o rts (COM1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION NDCD1 NRX1...

  • Page 72: Usb 3.0 Connectors (Usb3_1)

    AFL2-08A-N26 5.3.7 US B 3.0 Co n n e c to rs (US B3_1) PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB2P0_DM2_L USB2P0_DP2_L USB3P0_RXDN2 USB3P0_RXDP2 USB3P0_TXDN2_C USB3P0_TXDP2_C USB2P0_DM1_L USB2P0_DP1_L USB3P0_RXDN1 USB3P0_RXDP1 USB3P0_TXDN1_C USB3P0_TXDP1_C Table 5-32: USB 3.0 Connector Pinouts (USB3_1) P a g e 56...

  • Page 73: System Maintenance

    AFL2-08A-N26 Chapter S ys te m Ma in te n a n c e P a g e 57...

  • Page 74: System Maintenance Introduction

    AFL2-08A-N26 6.1 S ys te m Ma in te n a n c e In tro d u c tio n If the components of the AFL2-08A-N26 fail they must be replaced. Components that can be replaced include:  SO-DIMM module ...

  • Page 75: Turn Off The Power

    AFL2-08A-N26 6.3 Tu rn o ff th e P owe r WARNING: Failing to turn off the system before opening it can cause permanent damage to the system and serious or fatal injury to the user. Before any maintenance procedures are carried out on the system, make sure the system is turned off.

  • Page 76: Removing The Internal Aluminum Cover

    AFL2-08A-N26 Figure 6-1: Back Cover Retention Screws S te p 4: Carefully separate the back cover from the chassis and lift the cover clear of the device 6.4.2 Re m o vin g th e In te rn a l Alu m in u m Co ve r To remove the internal aluminum cover, follow the steps below.

  • Page 77: Figure 6-2: Internal Cover Retention Screws

    AFL2-08A-N26 Figure 6-2: Internal Cover Retention Screws S te p 2: Lift the aluminum cover off the AFL2-08A-N26. S te p 3: The internal parts will all be viewable. Figure 6-3: Internal Components P a g e 61...

  • Page 78: Replacing Components

    AFL2-08A-N26 6.5 Re p la c in g Co m p o n e n ts 6.5.1 Me m o ry Mo d u le Re p la c e m e n t The flat bezel panel PC is preinstalled with two 2.0 GB DDR3 memory module. If the memory module fails, follow the instructions below to replace the memory module.

  • Page 79: Wlan Card Replacement

    AFL2-08A-N26 Figure 6-4: DDR SO-DIMM Module Installation Replace the internal aluminum cover and secure it to the chassis using five (5) S te p 11: retention screws. Replace the back cover and secure it using ten (10) previously removed S te p 12: retention screws.

  • Page 80: Figure 6-5: Releasing The Wlan Card

    AFL2-08A-N26 Figure 6-5: Releasing the WLAN Card Grasp the WLAN card by the edges and carefully pull it out of the socket (Figure S te p 7: 6-6). Figure 6-6: Removing the WLAN card Install a new WLAN card by inserting the card into the slot at an angle S te p 8: P a g e 64...

  • Page 81: Figure 6-7: Attaching The Antennas

    AFL2-08A-N26 S te p 9: Push the WLAN card down until the spring retainer clips lock into place. Connect the main (1) and auxiliary (2) antennas. The main antenna is indicated S te p 10: with a strip of black electrical tape. See Figure 6-7. NOTE: To ensure the WLAN module functions correctly, please make sure the WLAN antennas are attached in the proper configuration.

  • Page 82: Reinstalling The Covers

    AFL2-08A-N26 6.6 Re in s ta llin g th e Co ve rs WARNING: Failing to reinstall the covers may result in permanent damage to the system. Please make sure all coverings are properly installed. When maintenance procedures are complete, please make sure all the covers are replaced, including the following: ...

  • Page 83: Bios Setup

    AFL2-08A-N26 Chapter BIOS S e tu p P a g e 67...

  • Page 84: Introduction

    AFL2-08A-N26 7.1 In tro d u c tio n A licensed copy of the BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 85: Getting Help

    AFL2-08A-N26 F2 key Load previous values. F3 key Load optimized defaults F4 key Save changes and Exit BIOS Esc key Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu Table 7-1: BIOS Navigation Keys 7.1.3 Ge ttin g He lp...

  • Page 86: Main

    AFL2-08A-N26 7.2 Ma in The Main BIOS menu (BIOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset...

  • Page 87: Advanced

    AFL2-08A-N26  iWDD Ve rs io n  The iWDD Version displays the current iWDD version. The fields in iWDD Version cannot be changed. The System Overview field also has two user configurable fields:  S ys te m Da te [xx/xx/xx] Use the System Date option to set the system date.

  • Page 88: Acpi Settings

    AFL2-08A-N26 Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters. > RTC Wake Settings > CPU Configuration > SATA Configuration > USB Configuration ---------------------- > F81866 Super IO Configuration : Select Screen >...

  • Page 89: Rtc Wake Settings

    AFL2-08A-N26  ACP I S le e p Sta te [S 1 (CP U Sto p Clo c k)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  The system enters S1 (POS) sleep state.
  • Page 90 AFL2-08A-N26 Use the Wake system with Fixed Time option to enable or disable the system wake on alarm event.  Disabled The real time clock (RTC) cannot generate a wake EFAULT event  Enabled If selected, the Wake up every day option appears allowing you to enable to disable the system to wake every day at the specified time.

  • Page 91: Cpu Configuration

    AFL2-08A-N26 7.3.3 CP U Co n fig u ra tio n Use the CPU Configuration menu (BIOS Menu 5) to view detailed CPU specifications and configure the CPU. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Processor Type...

  • Page 92: Sata Configuration

    AFL2-08A-N26  Hyp e r-Th re a d in g [En a b le d ] Use the Hyper-Threading option to enable or disable the CPU hyper threading function.  Disables the use of hyper threading Disabled technology  Enabled Enables the use of hyper threading EFAULT technology...

  • Page 93: Usb Configuration

    AFL2-08A-N26 7.3.5 US B Co n fig u ra tio n Use the USB Configuration menu (BIOS Menu 7) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 94: F81866 Super Io Configuration

    AFL2-08A-N26  Legacy USB support disabled Disabled  Auto Legacy USB support disabled if no USB devices are connected 7.3.6 F81866 S u pe r IO Co nfig u ra tio n Use the F81866 Super IO Configuration menu (BIOS Menu 8) to set or change the configurations for the serial ports.

  • Page 95: Serial Port N Configuration

    AFL2-08A-N26 7.3.6.1 S e ria l P o rt n Co n fig u ra tio n Use the Serial Port n Configuration menu (BIOS Menu 9) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Serial Port 0 Configuration Enable or Disable Serial...
  • Page 96 AFL2-08A-N26  Serial Port I/O port address is 2F8h and the IO=2F8h; IRQ=3 interrupt address is IRQ3 7.3.6.1.2 S e ria l P o rt 2 Co n fig u ra tio n  S e ria l P o rt [En a b le d ] Use the Serial Port option to enable or disable the serial port.

  • Page 97: H/W Monitor

    AFL2-08A-N26 7.3.7 H/W Mo n ito r The H/W Monitor menu (BIOS Menu 10) shows the hardware health status. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced CPU temperature :+56 C System temperature :+55 C Environment temperature :+25 C --------------------- : Select Screen...
  • Page 98 AFL2-08A-N26 Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable. > Console Redirection Settings --------------------- : Select Screen ↑ ↓: Select Item Enter Select +/-: Change Opt. General Help Previous Values Optimized Defaults Save &...
  • Page 99 AFL2-08A-N26  Sets the serial port transmission speed at 9600. 9600  19200 Sets the serial port transmission speed at 19200.  38400 Sets the serial port transmission speed at 38400.  57600 Sets the serial port transmission speed at 57600. ...

  • Page 100: I E I Feature

    AFL2-08A-N26  Sets the number of stop bits at 1. EFAULT  Sets the number of stop bits at 2. 7.4 iEi Fe a tu re Use the iEi Feature menu (BIOS Menu 12) to configure the auto recovery function. Aptio Setup Utility –...

  • Page 101: Chipset

    AFL2-08A-N26  Mic ro S D Ca rd [En a b le d ] Use the Micro SD Card BIOS option to enable or disable the micro SD card. Once to run One Key Recovery function, disable the micro SD card firstly. ...

  • Page 102: Host Bridge Configuration

    AFL2-08A-N26 7.5.1 Ho s t Brid g e Co n fig u ra tio n Use the Host Bridge Configuration menu (BIOS Menu 14) to configure the Intel IGD Configuration and display the memory information. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Chipset >...
  • Page 103 AFL2-08A-N26 Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Advanced Intel IGD Configuration Select the Video Device IGFX – Boot Type [VBIOS Default] which will be activated LCD Panel Type [800x600-18BIT] during POST. This has no Active LFP [Int-LVDS] effect if external Fixed Graphics Memory Size...

  • Page 104: South Bridge Configuration

    AFL2-08A-N26  Fixe d Gra p h ic s Me m o ry S ize [128MB] Use the Fixed Graphics Memory Size option to specify the maximum amount of memory that can be allocated as graphics memory. Configuration options are listed below. ...
  • Page 105 AFL2-08A-N26  DMIC Fu n c tio n [En a b le d ] Use the DMIC Function option to enable or disable the Microphone function.  Microphone function disabled Disabled  Enabled Microphone function enabled EFAULT  Blu e To o th Fu n c tio n [En a b le d ] Use the Blue Tooth Function option to enable or disable the blue tooth function.

  • Page 106: Boot

    AFL2-08A-N26 7.6 Bo o t Use the Boot menu (BIOS Menu 17) to configure system boot options. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard Bootup NumLock State [On] NumLock state...
  • Page 107 AFL2-08A-N26  Qu ie t Bo o t [En a b le d ] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  Enabled OEM Logo displayed instead of POST messages EFAULT ...

  • Page 108: Security

    AFL2-08A-N26  Ha rd Drive BBS P rio ritie s Use the Hard Drive BBS Priorities option to set the order of the legacy devices in this group. 7.7 S e c u rity Use the Security menu (BIOS Menu 18) to set system and user passwords. Aptio Setup Utility –...

  • Page 109: Save & Exit

    AFL2-08A-N26 7.8 S a ve & Exit Use the Save & Exit menu (BIOS Menu 19) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2011 American Megatrends, Inc. Main Advanced Chipset Boot...
  • Page 110 AFL2-08A-N26  S a ve a s Us e r De fa u lts Use the Save as User Defaults option to save the changes done so far as user defaults.  Re s to re Us e r De fa u lts Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 111: Software Drivers

    AFL2-08A-N26 Chapter S o ftwa re Drive rs P a g e 95...

  • Page 112: Available Software Drivers

    AFL2-08A-N26 8.1 Ava ila b le S o ftwa re Drive rs NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 113: Chipset Driver Installation

    AFL2-08A-N26 Figure 8-1: Drivers 8.3 Ch ips e t Drive r In s ta lla tio n To install the chipset driver, please do the following. S te p 1: Access the driver list. (See Section 8.2) S te p 2: Click “Chipset.”...

  • Page 114: Figure 8-2: Chipset Driver Screen

    AFL2-08A-N26 Figure 8-2: Chipset Driver Screen S te p 5: When the setup files are completely extracted the Welcome Screen in Figure 8-3 appears. S te p 6: Click Next to continue. Figure 8-3: Chipset Driver Welcome Screen S te p 7: The license agreement in Figure 8-4 appears.

  • Page 115: Figure 8-4: Chipset Driver License Agreement

    AFL2-08A-N26 Click Yes to continue. S te p 9: Figure 8-4: Chipset Driver License Agreement The Read Me file in Figure 8-5 appears. S te p 10: Figure 8-5: Chipset Driver Read Me File Click Next to continue S te p 11: Once the setup process is complete, click Finish.

  • Page 116: Graphics Driver Installation

    AFL2-08A-N26 Figure 8-6: Chipset Driver Setup Operations 8.4 Gra p h ic s Drive r In s ta lla tio n To install the Graphics driver, please do the following. Access the driver list. (See Section 8.2) S te p 1: S te p 2: Click “Graphic”...

  • Page 117: Figure 8-7: Graphics Driver Welcome Screen

    AFL2-08A-N26 Figure 8-7: Graphics Driver Welcome Screen S te p 6: The License Agreement in Figure 8-8 appears. Click Yes to accept the agreement and continue. S te p 7: Figure 8-8: Graphics Driver License Agreement The Read Me file in Figure 8-9 appears. S te p 8: P a g e 101...

  • Page 118: Figure 8-9: Graphics Driver Read Me File

    AFL2-08A-N26 Click Next to continue. S te p 9: Figure 8-9: Graphics Driver Read Me File Setup Operations are performed as shown in Figure 8-10. S te p 10: Once the Setup Operations are complete, click Next to continue. S te p 11: Figure 8-10: Graphics Driver Setup Operations P a g e 102...

  • Page 119: Touch Screen Driver

    AFL2-08A-N26 The Finish Screen in Figure 8-11 appears. S te p 12: Select “Yes, I want to restart this computer now” and click Finish.S te p 0: S te p 13: Figure 8-11: Graphics Driver Installation Finish Screen 8.5 To u c h S c re e n Drive r To install the touch panel software driver, please follow the steps below.

  • Page 120: Figure 8-12: Touch Screen Driver Welcome Screen

    AFL2-08A-N26 Figure 8-12: Touch Screen Driver Welcome Screen S te p 6: The License Agreement shown in Figure 8-13 appears. Click I A to accept and continue. S te p 7: GREE Figure 8-13: Touch Screen Driver License Agreement Browse for an install location or use the one suggested (Figure 8-14). S te p 8: P a g e 104...

  • Page 121: Figure 8-14: Touch Screen Driver Choose Install Location

    AFL2-08A-N26 Click I to continue. S te p 9: NS TALL Figure 8-14: Touch Screen Driver Choose Install Location The Install screen appears and displays the progress of the installation (Figure S te p 10: 8-15). S te p 11: Click N to continue.

  • Page 122: Figure 8-15: Touch Screen Driver Installation Screen

    AFL2-08A-N26 Figure 8-15: Touch Screen Driver Installation Screen to exit setup. (Figure 8-16). S te p 12: When the installation is complete, click F INIS H S te p 0: Figure 8-16: Touch Screen Driver Update Complete P a g e 106...

  • Page 123: Calibrating The Touch Screen

    AFL2-08A-N26 8.5.1 Ca lib ra tin g th e To uc h S c re e n To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below: S te p 1: Make sure the touch screen driver is properly installed.

  • Page 124: Figure 8-19: Configuration Screen

    AFL2-08A-N26 Figure 8-19: Configuration Screen S te p 6: Double click the PenMount 9000 icon as shown in Figure 8-19. The calibration initiation screen in Figure 8-20 appears. S te p 7: Select the Standard Calibration button as shown in Figure 8-20. S te p 8: Figure 8-20: Calibration Initiation Screen P a g e 108...

  • Page 125: Audio Driver Installation

    AFL2-08A-N26 The calibration screen in is shown. See Figure 8-21. S te p 9: Figure 8-21: Calibration Screen S te p 10: Follow the instructions. The user is asked touch the screen at five specified points after which the screen is calibrated. S te p 0: 8.6 Au d io Drive r In s ta lla tio n To install the audio driver, please do the following.

  • Page 126: Figure 8-22: Audio Driver - Extracting Files

    AFL2-08A-N26 Figure 8-22: Audio Driver – Extracting Files The Audio Driver Welcome message in Figure 8-23 appears. S te p 5: Click Yes to install the audio driver. S te p 6: Figure 8-23: Audio Driver Welcome Screen The audio driver installation begins. See Figure 8-24. S te p 7: P a g e 110...

  • Page 127: Lan Driver Installation

    AFL2-08A-N26 Figure 8-24: Audio Driver Installation When the installation is complete, the screen in Figure 8-25 appears. S te p 8: Select “Yes, I want to restart my computer now” and click Finish. S te p 9: S te p 0: Figure 8-25: Audio Driver Installation Complete 8.7 LAN Drive r In s ta lla tio n To install the LAN driver, please do the following.

  • Page 128: Figure 8-26: Lan Driver Welcome Screen

    AFL2-08A-N26 Figure 8-26: LAN Driver Welcome Screen S te p 5: Click Next to continue. The Ready to Install the Program Screen in Figure 8-27 appears. S te p 6: Click Install to proceed with the installation. S te p 7: Figure 8-27: LAN Driver Ready to Install Screen The program begins to install.

  • Page 129: Figure 8-28: Lan Driver Setup Status Screen

    AFL2-08A-N26 The Setup Status screen in Figure 8-28 appears. S te p 9: Figure 8-28: LAN Driver Setup Status Screen When the driver installation is complete, the screen in Figure 8-29 appears. S te p 10: Click Finish to exit. S te p 11: Figure 8-29: LAN Driver Installation Complete P a g e 113...

  • Page 130: Usb 3.0 Driver Installation

    AFL2-08A-N26 8.8 US B 3.0 Drive r In s ta lla tio n To install the touch panel software driver, please follow the steps below. S te p 1: Access the driver list. (See Section 8.2) Click “USB 3.0”. S te p 2: Locate the setup file and double click on it.

  • Page 131: Figure 8-31: Usb 3.0 Driver License Agreement

    AFL2-08A-N26 Figure 8-31: USB 3.0 Driver License Agreement to continue. S te p 8: Click N Figure 8-32: USB 3.0 Driver Installation The Install screen appears and displays the progress of the installation. S te p 9: When the installation is complete, click Finish to exit setup. (Figure 8-33). S te p 10: P a g e 115...

  • Page 132: W I -F I Driver Installation

    AFL2-08A-N26 Figure 8-33: USB 3.0 Driver Update Complete 8.9 Wi-Fi Drive r In s ta lla tio n To install the wireless LAN driver, please follow the steps below. S te p 1: Access the driver list. (See Section 8.2) S te p 2: Click “WiFi”...

  • Page 133: Figure 8-34: License Agreement

    AFL2-08A-N26 Figure 8-34: License Agreement S te p 5: Accept the conditions of the license agreement and click NEXT to continue. The Setup Type screen in Figure 8-35 appears. S te p 6: Figure 8-35: Setup Type Select “Install driver and Ralink WLAN Utility” and click NEXT to continue. S te p 7: P a g e 117...

  • Page 134: Figure 8-36: Configuration Tool

    AFL2-08A-N26 The Configuration Tool screen in Figure 8-36 appears. S te p 8: Figure 8-36: Configuration Tool Select “Ralink Configuration Tool”and click NEXT to continue. S te p 9: The Ready to Install the Program screen in Figure 8-37 appears. S te p 10: Figure 8-37: Ready to Install the Program P a g e 118...

  • Page 135: Figure 8-38: Setup Status

    AFL2-08A-N26 Click Install to proceed with the installation. S te p 11: The Setup Status screen in Figure 8-38 appears and displays the progress of S te p 12: the installation. Figure 8-38: Setup Status S te p 13: When the driver installation is complete, the screen in Figure 8-39 appears. P a g e 119...

  • Page 136: Bluetooth Driver

    AFL2-08A-N26 Figure 8-39: Installation Complete Click FINISH to complete installation. S te p 14: 8.10 Blu e to o th Drive r To install the Bluetooth software driver, please follow the steps below. S te p 1: Access the driver list. (See Section 8.2) Click “Bluetooth”...

  • Page 137: Figure 8-40: Welcome Screen

    AFL2-08A-N26 Figure 8-40: Welcome Screen S te p 6: The License Agreement appears as shown in Figure 8-41. S te p 7: Agree to the license by selecting “I accept the terms in the license agreement” and click N Figure 8-41: License Agreement S te p 8: Browse for an install location or use the one suggested (Figure 8-42) and click P a g e 121...

  • Page 138: Figure 8-42: Bluetooth Driver Destination Folder

    AFL2-08A-N26 Figure 8-42: Bluetooth Driver Destination Folder S te p 9: The Installshield Wizard is ready to install the program. Click I to continue (Figure 8-43). S te p 10: NS TALL Figure 8-43: Ready to Install the Program S te p 11: The installation screen appears and displays the progress of the installation (Figure 8-44).

  • Page 139: Figure 8-44: Installing Bluesoleil

    AFL2-08A-N26 Figure 8-44: Installing BlueSoleil S te p 12: When the installation process is complete, click F . See Figure 8-45. INIS H Figure 8-45: Bluetooth Driver Complete Installation Screen The user is then prompted to select to restart the computer now or later (Figure S te p 13: 8-46).

  • Page 140: Amc Ap Driver Installation

    AFL2-08A-N26 Figure 8-46: Reboot the Computer 8.11 AMCa p Drive r In s ta lla tio n To install the AMCap driver, please do the following. Access the driver list. (See Section 8.2) S te p 1: Click “AMCap” and select the folder which corresponds to your operating S te p 2: system.

  • Page 141: Figure 8-47: Amcap Driver Welcome Screen

    AFL2-08A-N26 Figure 8-47: AMCap Driver Welcome Screen S te p 6: Browse for an install location or use the one suggested (Figure 8-48). Click I to continue. S te p 7: NS TALL Figure 8-48: AMCap Driver Choose Install Location The program begins to install.

  • Page 142: Figure 8-49: Amcap Driver Installation Complete

    AFL2-08A-N26 When the driver installation is complete, the screen in Figure 8-49 appears. S te p 9: Click Finish to save and exit. S te p 10: S te p 0: Figure 8-49: AMCap Driver Installation Complete P a g e 126...

  • Page 143: A Safety Precautions

    AFL2-08A-N26 Appendix S a fe ty P re c a u tio n s P a g e 127...

  • Page 144: Safety Precautions

    AFL2-08A-N26 WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFL2-08A-N26. A.1 S a fe ty P re c a u tio n s Please follow the safety precautions outlined in the sections that follow: A.1.1 Ge n e ra l S a fe ty P re c a u tio n s Please ensure the following safety precautions are adhered to at all times.

  • Page 145: Cpu Temperature Warning

    AFL2-08A-N26 A.1.2 CP U Te m p e ra tu re Wa rn in g WARNING: If the CPU Temperature Alert LED shows RED, the CPU core temperature is too high. To lower the CPU temperature, lower the environment temperature or decrease the amount of running programs. A.1.3 An ti-s ta tic P re c a u tio n s WARNING: Failure to take ESD precautions during the installation of the...

  • Page 146: Product Disposal

    AFL2-08A-N26 A.1.4 P ro d u c t Dis p o s a l CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.

  • Page 147: Cleaning Tools

    AFL2-08A-N26  Except for the LCD panel, never spray or squirt liquids directly onto any other components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth.  The interior of the AFL2-08A-N26X does not require cleaning. Keep fluids away from the AFL2-08A-N26 interior.

  • Page 148: B Bios Menu Options

    AFL2-08A-N26 Appendix BIOS Me n u Op tio n s P a g e 132...
  • Page 149 AFL2-08A-N26  BIOS Information .........................70  iWDD Vendor ........................70  iWDD Version ........................71  System Date [xx/xx/xx] ......................71  System Time [xx:xx:xx] .......................71  ACPI Sleep State [S1 (CPU Stop Clock)] ................73  Wake system with Fixed Time [Disabled] ................73 ...
  • Page 150 AFL2-08A-N26  Bootup NumLock State [On] ....................90  Quiet Boot [Enabled] ......................91  Launch PXE OpROM [Disabled] ..................91  Option ROM Messages [Force BIOS] .................91  UEFI Boot [Disabled] ......................91  Boot Option Priority ......................91  Hard Drive BBS Priorities ....................92 ...

  • Page 151: C One Key Recovery

    AFL2-08A-N26 Ap p e n d ix On e Ke y Re c o ve ry P a g e 135...

  • Page 152: One Key Recovery Introduction

    AFL2-08A-N26 C.1 On e Ke y Re c o ve ry In tro d u c tio n The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 153: System Requirement

    AFL2-08A-N26 5. Create factory default image (see Section C.2.5) After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section C.5. NOTE: The initial setup procedures for Linux system are described in Section C.3.

  • Page 154: Supported Operating System

    AFL2-08A-N26 The partition created for recovery images must be big enough to contain both the factory default image and the user backup image. The size must be calculated before creating the partitions. Please take the following table as a reference when calculating the size of the partition.

  • Page 155: Setup Procedure For Windows

    AFL2-08A-N26 RedHat RHEL-5.4 RedHat 9 (Ghirke) Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail. C.2 S e tu p P ro c e d u re fo r Win d ows Prior to using the recovery tool to backup or restore, a few setup procedures are required.

  • Page 156: Hardware And Bios Setup

    AFL2-08A-N26 NOTE: The setup procedures described below are for Microsoft Windows operating system users. For Linux, most of the setup procedures are the same except for several steps described in Section C.3. C.2.1 Ha rdwa re a n d BIOS S e tu p S te p 1: Make sure the system is powered off and unplugged.

  • Page 157: Figure C-2: Launching The Recovery Tool

    AFL2-08A-N26 Figure C-2: Launching the Recovery Tool S te p 3: The recovery tool setup menu is shown as below. Figure C-3: Recovery Tool Setup Menu S te p 4: Press <6> then <Enter>. P a g e 141...

  • Page 158: Figure C-4: Command Prompt

    AFL2-08A-N26 Figure C-4: Command Prompt The command prompt window appears. Type the following commands (marked S te p 5: in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition. (Press <Enter>...

  • Page 159: Figure C-5: Partition Creation Commands

    AFL2-08A-N26 Figure C-5: Partition Creation Commands P a g e 143...

  • Page 160: Install Operating System, Drivers And Applications

    AFL2-08A-N26 NOTE: Use the following commands to check if the partitions were created successfully. S te p 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build the Recovery Partition.S t e p 0 : C.2.3 In s ta ll Op e ra tin g S ys te m , Drive rs a n d Ap p lic a tio n s Install the operating system onto the unlabelled partition.

  • Page 161: Building The Recovery Partition

    AFL2-08A-N26 C.2.4 Bu ild in g th e Re c o ve ry P a rtitio n Put the recover CD in the optical drive. S te p 1: Start the system. S te p 2: S te p 3: Boot the system from the recovery CD.

  • Page 162: Figure C-8: Building The Recovery Partition

    AFL2-08A-N26 S te p 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the recovery tool is saved in this partition. Figure C-8: Building the Recovery Partition S te p 6: After completing the system configuration, press any key in the following window...

  • Page 163: Create Factory Default Image

    AFL2-08A-N26 C.2.5 Cre a te Fa c to ry De fa u lt Im a g e NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below. Turn on the system.

  • Page 164: Figure C-12: About Symantec Ghost Window

    AFL2-08A-N26 Figure C-12: About Symantec Ghost Window S te p 4: Use mouse to navigate to the option shown below (Figure C-13). Figure C-13: Symantec Ghost Path S te p 5: Select the local source drive (Drive 1) as shown in Figure C-14. Then click OK. P a g e 148...

  • Page 165: Figure C-14: Select A Local Source Drive

    AFL2-08A-N26 Figure C-14: Select a Local Source Drive Select a source partition (Part 1) from basic drive as shown in Figure C-15. S te p 6: Then click OK. Figure C-15: Select a Source Partition from Basic Drive Select 1.2: [Recovery] NTFS drive and enter a file name called S te p 7: (Figure C-16).

  • Page 166: Figure C-16: File Name To Copy Image To

    AFL2-08A-N26 Figure C-16: File Name to Copy Image to When the Compress Image screen in Figure C-17 prompts, click High to make S te p 8: the image file smaller. Figure C-17: Compress Image P a g e 150...

  • Page 167: Figure C-18: Image Creation Confirmation

    AFL2-08A-N26 The Proceed with partition image creation window appears, click Yes to S te p 9: continue. Figure C-18: Image Creation Confirmation The Symantec Ghost starts to create the factory default image (Figure C-19). S te p 10: Figure C-19: Image Creation Complete When the image creation completes, a screen prompts as shown in Figure C-20.

  • Page 168: Auto Recovery Setup Procedure

    AFL2-08A-N26 S te p 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure C-21: Press Any Key to Continue C.3 Au to Re c o ve ry S e tu p P ro c e d u re The auto recovery function allows a system to automatically restore from the factory default image after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 169: Figure C-22: Auto Recovery Utility

    AFL2-08A-N26 Figure C-22: Auto Recovery Utility Reboot the system from the recovery CD. When prompted, press any key to S te p 3: boot from the recovery CD. It will take a while to launch the recovery tool. Please be patient! Figure C-23: Launching the Recovery Tool When the recovery tool setup menu appears, press <4>...

  • Page 170: Figure C-25: Building The Auto Recovery Partition

    AFL2-08A-N26 S te p 5: The Symantec Ghost window appears and starts configuring the system to build an auto recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the auto recovery tool is saved in this partition. Figure C-25: Building the Auto Recovery Partition After completing the system configuration, the following message prompts to S te p 6:...

  • Page 171: Figure C-27: Image Creation Complete

    AFL2-08A-N26 The Symantec Ghost starts to create the factory default image (Figure C-27). S te p 7: Figure C-27: Image Creation Complete S te p 8: After completing the system configuration, press any key in the following window to restart the system. Figure C-28: Press any key to continue Eject the One Key Recovery CD and restart the system.

  • Page 172: Setup Procedure For Linux

    AFL2-08A-N26 BIOS SETUP UTILITY Main Advanced PCIPNP Boot Security Chipset Exit iEi Feature  Auto Recovery Function [Enabled] Recover from PXE [Disabled]  Select Screen ↑ ↓ Select Item Enter Go to SubScreen General Help Save and Exit Exit v02.61 ©Copyright 1985-2006, American Megatrends, Inc. BIOS Menu 20: iEi Feature S te p 12: Save changes and restart the system.

  • Page 173: Figure C-29: Partitions For Linux

    AFL2-08A-N26 Install Linux operating system. Make sure to install GRUB (v0.97 or earlier) S te p 2: MBR type and Ext3 partition type. Leave enough space on the hard drive to create the recover partition later. NOTE: If the Linux OS is not installed with GRUB (v0.97 or earlier) and Ext3, the Symantec Ghost may not function properly.

  • Page 174: Figure C-30: Manual Recovery Environment For Linux

    AFL2-08A-N26 DISKPART>create part pri size= DISKPART>assign letter=N DISKPART>exit system32>format N: /fs:ntfs /q /v:Recovery /y system32>exit Build the recovery partition. Press any key to boot from the recovery CD. It will S te p 4: take a while to launch the recovery tool. Please be patient. When the recovery tool setup menu appears, type <3>...

  • Page 175: Figure C-31: Access Menu.lst In Linux (Text Mode)

    AFL2-08A-N26 Figure C-31: Access menu.lst in Linux (Text Mode) Modify the menu.lst as shown below. S te p 6: The recovery tool menu appears. (Figure C-32) S te p 7: Figure C-32: Recovery Tool Menu S te p 8: Create a factory default image. Follow Step 2 Step 12 described in Section...

  • Page 176: Recovery Tool Functions

    AFL2-08A-N26 C.5 Re c o ve ry To o l Fu n c tio n s After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. However, if the setup procedure in Section C.3 has been completed and the auto recovery function is enabled, the system will automatically restore from the factory default image without pressing the F3 key.

  • Page 177: Factory Restore

    AFL2-08A-N26 WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup). C.5.1 Fa c to ry Re s to re To restore the factory default image, please follow the steps below. Type <1>...

  • Page 178: Backup System

    AFL2-08A-N26 Figure C-35: Recovery Complete Window C.5.2 Ba c ku p S ys te m To backup the system, please follow the steps below. Type <2> and press <Enter> in the main menu. S te p 1: The Symantec Ghost window appears and starts to backup the system. A S te p 4: backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 179: Restore Your Last Backup

    AFL2-08A-N26 Figure C-37: System Backup Complete Window C.5.3 Re s to re Yo u r La s t Ba c ku p To restore the last system backup, please follow the steps below. Type <3> and press <Enter> in the main menu. S te p 1: The Symantec Ghost window appears and starts to restore the last backup S te p 2:...

  • Page 180: Manual

    AFL2-08A-N26 Figure C-39: Restore System Backup Complete Window C.5.4 Ma n u a l To restore the last system backup, please follow the steps below. Type <4> and press <Enter> in the main menu. S te p 1: The Symantec Ghost window appears. Use the Ghost program to backup or S te p 2: recover the system manually.

  • Page 181: Restore Systems From A Linux Server Through Lan

    AFL2-08A-N26 C.6 Re s to re S ys te m s fro m a Lin u x S e rve r thro u g h LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 182: Configure Dhcp Server Settings

    AFL2-08A-N26 C.6.1 Co n fig u re DHCP S e rve r S e ttin g s Install the DHCP S te p 1: #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Confirm the operating system default settings: dhcpd.conf.

  • Page 183: Configure Tftp Settings

    AFL2-08A-N26 filename “pxelinux.0”; C.6.2 Co n fig u re TFTP S e ttin g s S te p 1: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) S te p 2: Enable the TFTP server by editing the “/etc/xinetd.d/tftp”...

  • Page 184: Configure One Key Recovery Server Settings

    AFL2-08A-N26 Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp C.6.3 Co n fig u re On e Ke y Re c o ve ry S e rve r S e ttin g s Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key S te p 1: Recovery CD to the system (server side).

  • Page 185: Start The Dhcp, Tftp And Http

    AFL2-08A-N26 C.6.4 Sta rt th e DHCP, TFTP a n d HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart C.6.5 Cre a te S ha re d Dire c to ry S te p 1: Install the samba.

  • Page 186: Setup A Client System For Auto Recovery

    AFL2-08A-N26 Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 S te p 4: Edit “/etc/samba/smb.conf” for your environment. For example: Modify the hostname S te p 5: #vi /etc/hostname Modify:...
  • Page 187 AFL2-08A-N26 Continue to configure the Boot Option Priorities BIOS option of the client S te p 2: system: Boot Option #1  remain the default setting to boot from the original OS. Boot Option #2  select the boot from LAN option. Save changes and exit BIOS menu.
  • Page 188 AFL2-08A-N26 NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. P a g e 172...

  • Page 189: Other Information

    AFL2-08A-N26 C.7 Oth e r In fo rm a tio n C.7.1 Us in g AHCI Mo d e o r ALi M5283 / VIA VT6421A Co n tro lle r When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 190 AFL2-08A-N26 When the following window appears, press <S> to select “Specify Additional S te p 5: Device”. In the following window, select a SATA controller mode used in the system. Then S te p 6: press <Enter>. The user can now start using the SATA HDD. P a g e 174...

  • Page 191: System Memory Requirement

    AFL2-08A-N26 S te p 7: After pressing <Enter>, the system will get into the recovery tool setup menu. Continue to follow the setup procedure from Step 4 in Section C.2.2 Create Partitions to finish the whole setup process. S t e p 0 : C.7.2 S ys te m Me m o ry Re q u ire m e n t To be able to access the recovery tool by pressing <F3>...

  • Page 192: D Hazardous Materials Disclosure

    AFL2-08A-N26 Appendix Ha za rd o u s Ma te ria ls Dis c lo s u re P a g e 176...

  • Page 193: Hazardous Material Disclosure Table For Ipb Products Certified As

    AFL2-08A-N26 D.1 Ha za rd o u s Ma te ria l Dis c lo s ure Ta b le fo r IP B P ro d u c ts Ce rtifie d a s Ro HS Co m p lia n t Un d e r 2002/95/EC With o u t Me rc u ry The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards.
  • Page 194 AFL2-08A-N26 Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply Assemblies Battery This toxic or hazardous substance is contained in all of the homogeneous materials for the part is below the limit requirement in SJ/T11363-2006 This toxic or hazardous substance is contained in at least one of the homogeneous materials for this part...
  • Page 195 AFL2-08A-N26 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本 产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。 P a g e 179...
