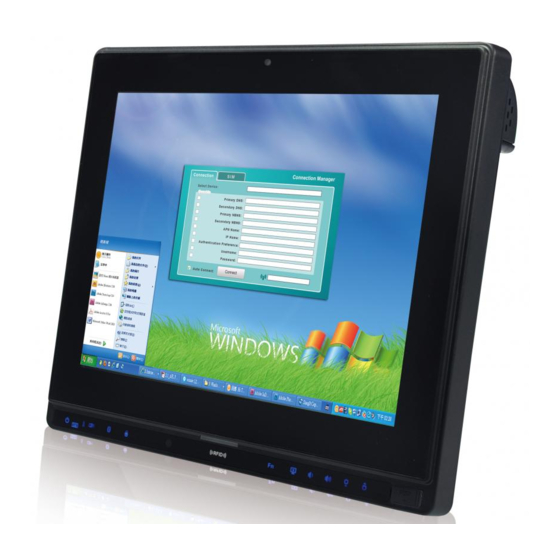

AFL2-12A-HM65 Series Panel PC
IEI Technology Corp.
MODEL:
AFL2-12A-HM65 Series
Flat Bezel Panel PC with Intel® Sandy Bridge Mobile CPU, TFT LCD
Wi-Fi, Touch Screen, RFID Reader, Dual GbE LAN RS-232/422/485
Rev. 1.00 - 8 December, 2011
Camera, RoHS
User Manual
User Manual
Page I

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AFL2-12A-HM65 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology AFL2-12A-HM65 Series

Summary of Contents for IEI Technology AFL2-12A-HM65 Series

  • Page 1 AFL2-12A-HM65 Series Panel PC IEI Technology Corp. MODEL: AFL2-12A-HM65 Series Flat Bezel Panel PC with Intel® Sandy Bridge Mobile CPU, TFT LCD Wi-Fi, Touch Screen, RFID Reader, Dual GbE LAN RS-232/422/485 Camera, RoHS User Manual User Manual Page I Rev. 1.00 - 8 December, 2011...
  • Page 2 AFL2-12A-HM65 Series Panel PC Revision Date Version Changes Initial release 8 December, 2011 1.00 Page II...
  • Page 3 AFL2-12A-HM65 Series Panel PC Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. In no event will the manufacturer be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
  • Page 4 AFL2-12A-HM65 Series Panel PC WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This...

  • Page 5: Table Of Contents

    AFL2-12A-HM65 Series Panel PC Table of Contents 1 INTRODUCTION......................15 1.1 AFL2-12A-HM65 F PC O ..........16 EZEL ANEL VERVIEW 1.1.1 Model Variations ....................16 1.1.2 Features ......................17 1.1.3 Applications ..................... 17 1.2 E ....................18 XTERNAL VERVIEW 1.2.1 Front Panel ...................... 18 1.2.1.1 LED Indicators..................
  • Page 6 AFL2-12A-HM65 Series Panel PC 2.7 S ....................... 34 YSTEM OWER 2.7.1 Power Mode ..................... 34 2.7.1.1 ATX Power Mode (Default)..............34 2.7.1.2 AT Power Mode ..................34 2.7.2 Power Adapter ....................34 3 UNPACKING ....................... 35 3.1 U ......................36 NPACKING 3.1.1 Packing List .....................
  • Page 7 AFL2-12A-HM65 Series Panel PC 5.2 A ..................64 STATIC RECAUTIONS 5.3 T ....................65 URN OFF THE OWER 5.4 O ....................65 PENING THE YSTEM 5.4.1 Removing the Back Cover................65 5.4.2 Removing the Internal Aluminum Cover............66 5.5 R ..................
  • Page 8 AFL2-12A-HM65 Series Panel PC 6.7 S ....................... 104 ECURITY 6.8 S & E ......................106 7 SOFTWARE DRIVERS .................... 108 7.1 A ................109 VAILABLE OFTWARE RIVERS 7.2 S ................109 TARTING THE RIVER ROGRAM 7.3 C ................109 HIPSET...
  • Page 9 AFL2-12A-HM65 Series Panel PC C.2.5 Create Factory Default Image ..............151 C.3 A ..............156 ECOVERY ETUP ROCEDURE C.4 S ................161 ETUP ROCEDURE FOR INUX C.5 R ................164 ECOVERY UNCTIONS C.5.1 Factory Restore ..................... 165 C.5.2 Backup System....................166 C.5.3 Restore Your Last Backup................
  • Page 10 AFL2-12A-HM65 Series Panel PC List of Figures Figure 1-1: AFL2-12A-HM65 Flat Bezel Panel PC ..............16 Figure 1-2: AFL2-12A-HM65 Front View ..................18 Figure 1-3: LED Indicators......................19 Figure 1-4: Function Keys ......................20 Figure 1-5: AFL2-12A-HM65 Rear View ..................21 Figure 1-6: AFL2-12A-HM65 I/O Interface Panel ................23 Figure 1-7: Top Panel View......................23...
  • Page 11 AFL2-12A-HM65 Series Panel PC Figure 4-17: Ethernet Connector....................57 Figure 4-18: RJ-45 Serial Port Connector ..................58 Figure 4-19: RS-422/485 Serial Port ....................58 Figure 4-20: RS-422/485 Cable ....................59 Figure 4-21: DB-9 Connector.......................59 Figure 4-22: USB Device Connection ..................61 Figure 4-23: HDMI Connection ....................62 Figure 5-1: Back Cover Retention Screws .................66...
  • Page 12 AFL2-12A-HM65 Series Panel PC Figure 7-22: PenMount Monitor Icon ..................124 Figure 7-23: PenMount Monitor Popup Menu................. 124 Figure 7-24: Configuration Screen................... 125 Figure 7-25: Calibration Initiation Screen ................125 Figure 7-26: Calibration Screen ....................126 Figure 7-27: AMCap Driver Welcome Screen ................. 127 Figure 7-28: AMCap Driver Choose Install Location..............
  • Page 13 AFL2-12A-HM65 Series Panel PC Figure C-24: Auto Recovery Environment for Windows ............158 Figure C-25: Building the Auto Recovery Partition..............158 Figure C-26: Factory Default Image Confirmation ..............159 Figure C-27: Image Creation Complete ................... 159 Figure C-28: Press any key to continue .................. 159 Figure C-29: Partitions for Linux....................
  • Page 14 AFL2-12A-HM65 Series Panel PC List of Tables Table 1-1: AFL2-12A-HM65 Model Variations ................17 Table 1-2: LED Indicators ......................20 Table 1-3: Function Key Descriptions ..................21 Table 1-4: System Specifications....................26 Table 4-1: Ethernet Connector Pinouts ..................57 Table 4-2: RS-422/485 Serial Port Pinouts .................59 Table 4-3: DB-9 Connector Pinouts ....................60...

  • Page 15: Introduction

    AFL2-12A-HM65 Series Panel PC Chapter Introduction Page 15...

  • Page 16: Afl2-12A-Hm65 Flat Bezel Panel Pc Overview

    RJ-45 Ethernet connector provide the system with smooth connection to an external LAN. An optional MSR card reader can equip the system for scanning credit cards, identification cards, loyalty cards, gift cards, and more. 1.1.1 Model Variations The model variations of the AFL2-12A-HM65 Series are listed below. Page 16...

  • Page 17: Features

    5-Wire Resistive or Projected Capacitive type touch screen  RoHS compliance  Auto-dimming control  1.3 megapixel webcam 1.1.3 Applications AFL2-12A-HM65 Series panel PCs are elegant, sophisticated systems that can be easily implemented in commercial, industrial and corporate environments. Page 17...

  • Page 18: External Overview

    AFL2-12A-HM65 Series Panel PC 1.2 External Overview 1.2.1 Front Panel The front side of the AFL2-12A-HM65 is a flat bezel panel TFT LCD screen surrounded by an ABS/PC plastic frame. Figure 1-2: AFL2-12A-HM65 Front View Page 18...

  • Page 19: Led Indicators

    AFL2-12A-HM65 Series Panel PC 1.2.1.1 LED Indicators There are fifteen LED indicator lights located along the front of the LCD screen (Figure 1-3). Figure 1-3: LED Indicators The descriptions of each LED indicator are listed below. LED Indicator Description Shows power on/off status.

  • Page 20: Figure 1-4: Function Keys

    AFL2-12A-HM65 Series Panel PC LED Indicator Description Lights on when the audio is turned off. Controlled by the Audio Mute hot keys. See Table 1-3 Shows the status of the function key below the LED Function indicator. Blinks when the corresponding button is pushed.

  • Page 21: Rear Panel

    AFL2-12A-HM65 Series Panel PC The Function Keys are described in Table 1-3: Key Combination Function Key Description RFID Enable/Disable Fn + LCD On/Off Audio Mute Fn + Audio Volume Down Camera Enable/Disable Fn + Audio Volume Up Mini USB / MicroSD Enable/Disable...

  • Page 22: I/O Interface Panel

    AFL2-12A-HM65 Series Panel PC 1.2.3 I/O Interface Panel The I/O interface panel located on the bottom of the AFL2-12A-HM65 has the following features:  1 x Audio jack  1 x 9V ~ 36V DC-IN power jack  1 x HDMI port ...

  • Page 23: Top Panel And Side Panels

    AFL2-12A-HM65 Series Panel PC The external I/O interface connector panel is shown in Figure 1-6. Figure 1-6: AFL2-12A-HM65 I/O Interface Panel 1.2.4 Top Panel and Side Panels The top panel and side panels of AFL2-12A-HM65 provide access to slots that support the rack mount (Figure 1-7).

  • Page 24: Internal Overview

    AFL2-12A-HM65 Series Panel PC Figure 1-8: Side Panel Views 1.3 Internal Overview The AFL2-12A-HM65 has the following components installed internally:  1 x Motherboard  1 x 1.0 GB 800 MHz DDR3 SO-DIMM 1.4 System Specifications The technical specifications for the AFL2-12A-HM65 systems are listed in Table 1-4.
  • Page 25 AFL2-12A-HM65 Series Panel PC Brightness (cd/m Contrast Ratio 700:1 LCD Color 16.2M Pixel Pitch (H x V) (mm) 0.240 (H) x 0.240 (V) Viewing Angle (H-V) 176 / 176 Backlight MTBF (hr) 50,000 Touch Screen 5-Wire resistive type touchscreen (select models only)

  • Page 26: Table 1-4: System Specifications

    AFL2-12A-HM65 Series Panel PC Power Adapter Input: 100V AC ~ 240V AC @ 50 / 60 Hz Output: 19V DC Power Requirement 9V ~ 36V DC Power Consumption LED Functions Power / RFID / MIC / Auto-dimming / Wi-Fi / RFID device / AT/ATX...

  • Page 27: Detailed Specifications

    AFL2-12A-HM65 Series Panel PC Chapter Detailed Specifications Page 27...

  • Page 28: Dimensions

    AFL2-12A-HM65 Series Panel PC 2.1 Dimensions The AFL2-12A-HM65 dimensions are shown below.  Width: 310.0 mm  Height: 265.0 mm  Depth: 52.6 mm Figure 2-1: AFL2-12A-HM65 Dimensions (mm) Page 28...

  • Page 29: Figure 2-2: Afl2-12A-Hm65 Dimensions (Mm) Cont

    AFL2-12A-HM65 Series Panel PC Figure 2-2: AFL2-12A-HM65 Dimensions (mm) cont. Page 29...

  • Page 30: Intel® Sandy Bridge Mobile Processor

    AFL2-12A-HM65 Series Panel PC 2.2 Intel® Sandy Bridge Mobile Processor An Intel® Sandy Bridge Mobile processor is installed in the system. The Sandy Bridge CPU interfaces with the HM65 chipset through a Direct Media Interface (DMI) with speed of 5 GT/s and a Flexible Display Interface (FDI).

  • Page 31: Lan Connectivity

    AFL2-12A-HM65 Series Panel PC Figure 2-3: COM Ports 2.4.2 LAN Connectivity The AFL2-12A-HM65 has one RJ-45 LAN connector on the bottom panel. Figure 2-4: RJ-45 Ethernet Connectors The PCIe LAN from the Intel® HM65 chipset of the AFL2-12A-HM65 is interfaced to the Realtek RTL8111E PCIe gigabit Ethernet (GbE) controllers.

  • Page 32: Touchscreen Lcd

    AFL2-12A-HM65 Series Panel PC Revision 2.0 and USB specification Revision 1.1 and can be interfaced to both USB 1.1 and USB 2.0 compliant devices. Only USB 3.0 connectors are compatible with USB 3.0 devices. Figure 2-5: External USB Ports 2.5 Touchscreen LCD 2.5.1 Monitor...

  • Page 33: Touch-Screen Module

    AFL2-12A-HM65 Series Panel PC Figure 2-6: LCD Screen 2.5.2 Touch-Screen Module A controller for the touch screen is installed on the motherboard. The sensitive touch screen is accurate, reliable and durable. 2.6 Audio 2.6.1 Audio Codec Controller The integrated HD Audio compliant audio controller on the Intel® HM65 Southbridge is integrated to a Realtek ALC888 audio codec.

  • Page 34: System Power

    AFL2-12A-HM65 Series Panel PC 2.7 System Power 2.7.1 Power Mode The system can be run in the AT power mode or the ATX power mode. Both these power modes are described below. 2.7.1.1 ATX Power Mode (Default) With the ATX mode selected, the AFL2-12A-HM65 panel PC goes in a standby mode when it is turned off.

  • Page 35: Unpacking

    AFL2-12A-HM65 Series Panel PC Chapter Unpacking Page 35...

  • Page 36: Unpacking

    AFL2-12A-HM65 Series Panel PC 3.1 Unpacking To unpack the flat bezel panel PC, follow the steps below: WARNING! The front side LCD screen has a protective plastic cover stuck to the screen. Only remove the plastic cover after the flat bezel panel PC has been properly installed.
  • Page 37 AFL2-12A-HM65 Series Panel PC Power adapter (P/N: 63040-010090-030-RS) Power cord (P/N: 32702-000401-100-RS) Power transfer cord (P/N: 32000-089400-RS) M3 Screws Pack (P/N: 44013-030041-RS) M4 Screws Pack (P/N: 32702-000401-100-RS) Touch Pen (P/N: 43125-0002C0-00-RS) RJ-45 to DB-9 COM Port Cable (P/N: 32005-000200-200-RS) RS-422 cable...
  • Page 38 AFL2-12A-HM65 Series Panel PC Wall mounting kit (P/N: AFLWK-19/AFLWK-19B) (P/N: ARM-11-RS) Stand (P/N: STAND-A12) V-Stand (P/N: VSTAND-A12) Hybrid Card Reader (P/N: AFL2P-12AMSI-U-R10) Magnetic Stripe Reader (P/N: AFL2P-12AMSR-U-R10) Rack Mounting Kit (P/N: AFL2RK-12) OS: Win CE 6.0 (128MB CF Card) (P/N: AFL2CF-12-HM65-CE060-128M-R10)
  • Page 39 AFL2-12A-HM65 Series Panel PC OS: Win XPE (4GB CF Card) (P/N: AFL2CF-12-HM65-XPE-4G-R10) OS: Linux (2GB CF Card) (P/N: AFL2CF-12A-HM65-LNX-R10) OS: Win 7 Embedded (4GB CF Card) (P/N: AFL2CF-12-HM65-WES7P-4G-R10 AFL2CF-12-HM65-WES7E-4G-R10) If any of these items are missing or damaged, contact the distributor or sales representative immediately.

  • Page 40: Installation

    AFL2-12A-HM65 Series Panel PC Chapter Installation Page 40...

  • Page 41: Anti-Static Precautions

    AFL2-12A-HM65 Series Panel PC 4.1 Anti-static Precautions WARNING: Failure to take ESD precautions during the maintenance of the AFL2-12A-HM65 result permanent damage AFL2-12A-HM65 and severe injury to the user. Electrostatic discharge (ESD) can cause serious damage to electronic components, including the AFL2-12A-HM65. Dry climates are especially susceptible to ESD. It is...

  • Page 42: Installation And Configuration Steps

    AFL2-12A-HM65 Series Panel PC  Anti-static Discharge: If a user open the rear panel of the flat bezel panel PC, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband. 4.3 Installation and Configuration Steps The following installation steps must be followed.

  • Page 43: Figure 4-1: Hdd Cover Retention Screws

    AFL2-12A-HM65 Series Panel PC Figure 4-1: HDD Cover Retention Screws Step 2: Remove the HDD cover from the device. Step 3: Loosen the captive screw to release the HDD bracket from the chassis (Figure 4-2). Figure 4-2: HDD Bracket Screw...

  • Page 44: Figure4-3: Removing The Hdd Bracket

    AFL2-12A-HM65 Series Panel PC Step 4: Slide the HDD bracket out of the device as shown (Figure 4-3). Figure 4-3: Removing the HDD Bracket Step 5: Insert an HDD into the bracket as shown (Figure 4-4). Figure 4-4: Inserting the HDD...

  • Page 45: At/Atx Mode Selection

    AFL2-12A-HM65 Series Panel PC Step 6: Secure the HDD to the bracket using four (4) retention screws (two screws on each side) (Figure 4-5). Figure 4-5: Securing the HDD Step 7: Slide the HDD module back into the device. Step 8: Tighten the captive screw.

  • Page 46: At Power Mode

    AFL2-12A-HM65 Series Panel PC Figure 4-6: AT/ATX Switch Location Step 2: Adjust the AT/ATX switch. Step 0: 4.5.1 AT Power Mode With the AT mode selected, the power is controlled by a central power unit rather than a power switch. The AFL2-12A-HM65 panel PC turns on automatically when the power is connected.

  • Page 47: Powering On The System

    AFL2-12A-HM65 Series Panel PC 4.6 Powering On the System To power on the system, follow the steps below: Step 1: Locate the Function and Brightness Up function keys. See Section 1.2.1.1. Step 2: Hold down the Function and Brightness Up buttons for three seconds to power on the system.

  • Page 48: Wall Mounting

    AFL2-12A-HM65 Series Panel PC 4.8.1 Wall Mounting To mount the flat bezel panel PC onto the wall, please follow the steps below. Step 1: Select the location on the wall for the wall-mounting bracket. Step 2: Carefully mark the locations of the four screw holes in the bracket on the wall.
  • Page 49 AFL2-12A-HM65 Series Panel PC Step 6: Insert the four monitor mounting screws provided in the wall mount kit into the four screw holes on the real panel of the flat bezel panel PC and tighten until the screw shank is secured against the rear panel (Figure 4-8).

  • Page 50: Figure 4-8: Chassis Support Screws

    AFL2-12A-HM65 Series Panel PC Figure 4-8: Chassis Support Screws Step 9: Secure the panel PC by fastening the retention screw of the wall-mounting bracket. (Figure 4-9). Step 0: Figure 4-9: Secure the Panel PC Page 50...

  • Page 51: Stand Mounting

    AFL2-12A-HM65 Series Panel PC 4.8.2 Stand Mounting To mount the AFL2-12A-HM65 using the stand mounting kit, please follow the steps below. Step 1: Locate the screw holes on the rear of the AFL2-12A-HM65. This is where the bracket will be attached. (Figure 4-10)

  • Page 52: Cabinet And Rack Installation

    AFL2-12A-HM65 Series Panel PC NOTE: When purchasing the arm please ensure that it is VESA compliant and that the arm has a 75 mm or 100 mm interface pad. If the mounting arm is not VESA compliant it cannot be used to support the AFL2-12A-HM65 flat bezel panel PC.

  • Page 53: Figure 4-12: The Rack/Cabinet Bracket

    AFL2-12A-HM65 Series Panel PC NOTE: When purchasing the cabinet/rack installation bracket, make sure it is compatible with both the AFL2-12A-HM65 flat bezel panel PC and the rack/cabinet into which the AFL2-12A-HM65 is installed. Step 1: Slide the rear chassis of the AFL2-12A-HM65 flat bezel panel PC through the rack/cabinet bracket until the aluminum frame is flush against the front of the bracket (Figure 4-12).

  • Page 54: Figure 4-13: Secure The Rack/Cabinet Bracket

    AFL2-12A-HM65 Series Panel PC Figure 4-13: Secure the Rack/Cabinet Bracket Step 4: Slide the flat bezel panel PC with the attached rack/cabinet bracket into a rack or cabinet (Figure 4-14). Figure 4-14: Install into a Rack/Cabinet Step 5: Once the flat bezel panel PC with the attached rack/cabinet bracket has been...

  • Page 55: Bottom Panel Connectors

    AFL2-12A-HM65 Series Panel PC 4.9 Bottom Panel Connectors 4.9.1 LAN Connection There are two external RJ-45 LAN connectors. The RJ-45 connector enables connection to an external network. To connect a LAN cable with an RJ-45 connector, please follow the instructions below.

  • Page 56: Serial Port Connection

    AFL2-12A-HM65 Series Panel PC 4.9.2.1 DB-9 Serial Port Connection Follow the steps below to connect a serial device to the DB-9 connector of the AFL2-12A-HM65 panel PC. Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in Chapter 2.

  • Page 57: Figure 4-17: Ethernet Connector

    AFL2-12A-HM65 Series Panel PC CN Location: See Figure 4-17 CN Pinouts: See Table 4-1 A 10/100/1000 Mb/s connection can be made to a Local Area Network. Description Description NDCD3 NTXD3 NDSR3 NCTS3 NRXD3 NDTR3 NRTS3 NRI3 Table 4-1: Ethernet Connector Pinouts...

  • Page 58: Rs-422/485 Serial Port Connection

    AFL2-12A-HM65 Series Panel PC Figure 4-18: RJ-45 Serial Port Connector Step 4: Secure the connector. Secure the serial device connector to the external interface by tightening the two retention screws on either side of the connector. Step 0: 4.9.3 RS-422/485 Serial Port Connection...

  • Page 59: Figure 4-20: Rs-422/485 Cable

    AFL2-12A-HM65 Series Panel PC RS-422 RS-485 DATA+ DATA- Table 4-2: RS-422/485 Serial Port Pinouts To install the RS-422/485 devices, follow the steps below. Step 1: Locate the RS-422/RS485 connector. The location of the RS-422/RS-485 connector is shown in Figure 1-6.

  • Page 60: Usb Device Connection

    AFL2-12A-HM65 Series Panel PC RS-422 RS-485 DATA- DATA+ Table 4-3: DB-9 Connector Pinouts 4.9.4 USB Device Connection NOTE: User must install the USB 3.0 driver before connecting a USB device to the system or else the system may not recognize the connected device.

  • Page 61: Hdmi Device Connection

    AFL2-12A-HM65 Series Panel PC Figure 4-22: USB Device Connection Step 3: Insert the device connector. Once aligned, gently insert the USB device connector into the onboard connector. Step 0: 4.9.5 HDMI Device Connection The HDMI connector transmits a digital signal to compatible HDMI display devices such as a TV or computer screen.

  • Page 62: Figure 4-23: Hdmi Connection

    AFL2-12A-HM65 Series Panel PC Figure 4-23: HDMI Connection Step 3: Insert the HDMI connector. Gently insert the HDMI connector. The connector should engage with a gentle push. If the connector does not insert easily, check again that the connector is aligned correctly, and that the connector is being inserted with the right way up.

  • Page 63: System Maintenance

    AFL2-12A-HM65 Series Panel PC Chapter System Maintenance Page 63...

  • Page 64: System Maintenance Introduction

    AFL2-12A-HM65 Series Panel PC 5.1 System Maintenance Introduction If the components of the AFL2-12A-HM65 fail they must be replaced. Components that can be replaced include:  SO-DIMM module  WLAN Module Please contact the system reseller or vendor to purchase the replacement parts. Back cover removal instructions for the AFL2-12A-HM65 are described below.

  • Page 65: Turn Off The Power

    AFL2-12A-HM65 Series Panel PC 5.3 Turn off the Power WARNING: Failing to turn off the system before opening it can cause permanent damage to the system and serious or fatal injury to the user. Before any maintenance procedures are carried out on the system, make sure the system is turned off.

  • Page 66: Removing The Internal Aluminum Cover

    AFL2-12A-HM65 Series Panel PC Step 3: Remove a total of nine (9) retention screws from the back cover (Figure 5-1). Figure 5-1: Back Cover Retention Screws Step 4: Carefully separate the back cover from the chassis and lift the cover clear of the...

  • Page 67: Replacing Components

    AFL2-12A-HM65 Series Panel PC Figure 5-2: Internal Cover Retention Screws Step 2: Lift the aluminum cover off the AFL2-12A-HM65. Step 0: 5.5 Replacing Components 5.5.1 Memory Module Replacement The flat bezel panel PC is preinstalled with a 1.0 GB DDR3 memory module. If the memory module fails, follow the instructions below to replace the memory module.

  • Page 68: Wlan Card Replacement

    AFL2-12A-HM65 Series Panel PC Step 8: Install the new DDR3 memory module by pushing it into the socket at an angle (Figure 5-3). Step 9: Gently pull the spring retainer clips of the SO-DIMM socket out and push the rear of the DDR memory module down (Figure 5-3).

  • Page 69: Figure5-4: Removing The Antennas

    AFL2-12A-HM65 Series Panel PC Step 5: Locate the WLAN card. Step 6: Disconnect the main and auxiliary antennas on the WLAN module (Figure 5-4). Figure 5-4: Removing the Antennas Step 7: Push the two spring clips in to release the WLAN card.

  • Page 70: Figure5-6: Removing The Wlan Card

    AFL2-12A-HM65 Series Panel PC Step 8: Grasp the WLAN card by the edges and carefully pull it out of the socket (Figure 5-6). Figure 5-6: Removing the WLAN card Step 9: Install a new WLAN card by inserting the card into the slot at an angle Step 10: Push the WLAN card down until the spring retainer clips lock into place.

  • Page 71: Figure5-7: Attaching The Antennas

    AFL2-12A-HM65 Series Panel PC Step 11: Connect the main (1) and auxiliary (2) antennas. The main antenna is indicated with a strip of black electrical tape. See Figure 5-7. NOTE: To ensure the WLAN module functions correctly, please make sure the WLAN antennas are attached in the proper configuration.

  • Page 72: Reinstalling The Covers

    AFL2-12A-HM65 Series Panel PC 5.6 Reinstalling the Covers WARNING: Failing to reinstall the covers may result in permanent damage to the system. Please make sure all coverings are properly installed. When maintenance procedures are complete, please make sure all the covers are replaced, including the following: ...

  • Page 73: Ami Bios Setup

    AFL2-12A-HM65 Series Panel PC Chapter AMI BIOS Setup Page 73...

  • Page 74: Introduction

    AFL2-12A-HM65 Series Panel PC 6.1 Introduction A licensed copy of the BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed.

  • Page 75: Getting Help

    AFL2-12A-HM65 Series Panel PC Esc key Main Menu – Quit and do not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu F1 key General help, only for Status Page Setup Menu and Option...

  • Page 76: Main

    AFL2-12A-HM65 Series Panel PC 6.2 Main The Main BIOS menu ( B IOS Menu 1) appears when the BIOS Setup program is entered. The Main menu gives an overview of the basic system information. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 77: Advanced

    AFL2-12A-HM65 Series Panel PC  System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year.  System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 78: Acpi Settings

    AFL2-12A-HM65 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit > ACPI Settings System ACPI Parameters. > CPU Configuration > SATA Configuration > USB Configuration > Super IO Configuration ---------------------- >...

  • Page 79: Cpu Configuration

    AFL2-12A-HM65 Series Panel PC  ACPI Sleep State [S1 (CPU Stop Clock)] Use the ACPI Sleep State option to specify the sleep state the system enters when it is not being used.  Suspend Disabled Suspend function disabled.  The system enters S1 (POS) sleep state. The...

  • Page 80: Hyper Threading Function [Disabled]

    AFL2-12A-HM65 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced CPU Configuration Enabled for Windows XP and Linux (OS optimized Intel(R) Core(TM) i5-2510E CPU @ 2.50GHz for Hyper-Threading Processor Stepping 206a7 Technology) and Disabled Microcode Revision...

  • Page 81: Sata Configuration

    AFL2-12A-HM65 Series Panel PC  Disabled Disables the use of hyper threading technology  Enables the use of hyper threading technology Enabled EFAULT  Intel® Virtualization Technology [Disabled] Use the Intel® Virtualization Technology option to enable or disable virtualization on the system.

  • Page 82: Sata Mode Selection [Ide]

    AFL2-12A-HM65 Series Panel PC  Disabled Disables the on-board SATA controller.  Configures the on-board SATA controller to be in Compatible compatible mode. In this mode, a SATA channel will replace one of the IDE channels. This mode supports up to 6 storage devices.

  • Page 83: Usb Configuration

    AFL2-12A-HM65 Series Panel PC 6.3.4 USB Configuration Use the USB Configuration menu (BIOS Menu 6) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced USB Configuration USB Support Parameters...

  • Page 84: Legacy Usb Support [Enabled]

    AFL2-12A-HM65 Series Panel PC  Legacy USB Support [Enabled] Use the Legacy USB Support BIOS option to enable USB mouse and USB keyboard support. Normally if this option is not enabled, any attached USB mouse or USB keyboard does not become available until a USB compatible operating system is fully booted with all USB drivers loaded.

  • Page 85: Port 60/64 Emulation [Enabled]

    AFL2-12A-HM65 Series Panel PC  Enabled EHCI Hand-off enabled  EHCI Hand-off disabled Disabled EFAULT  Port 60/64 Emulation [Enabled] Use the Port 60/64 Emulation BIOS option to enable Port 60-/64 Emulation support. This should be enabled for complete USB keyboard legacy support for non-USB aware OSes.

  • Page 86: Super Io Configuration

    AFL2-12A-HM65 Series Panel PC  Manual Device power-up delay function is manual  Generic Storage Device 9454 [Auto] Use the Generic Storage Device 9454 BIOS option to configure the mass storage device.  Sets the mass storage device to automatically detect...

  • Page 87: Serial Port N Configuration

    AFL2-12A-HM65 Series Panel PC 6.3.5.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 8) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Serial Port 0 Configuration...

  • Page 88: H/W Monitor

    AFL2-12A-HM65 Series Panel PC  IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4 address is IRQ3, 4  Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4 IRQ=3, 4 6.3.6 H/W Monitor...

  • Page 89: Fan 1 Configuration

    AFL2-12A-HM65 Series Panel PC  Voltages: VCC3V +Vcc_core +V5S +V12S +1.5V VSB3V VBAT 5VSB 6.3.6.1 Fan 1 Configuration The Fan 1 Configuration submenu (BIOS Menu 9) allows user to configure the CPU Smart fan settings. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 90: Serial Port Console Redirection

    AFL2-12A-HM65 Series Panel PC  Manual Mode by The fan spins at the speed set in: Fan PWM control  Auto Mode The fan adjusts its speed using these settings: EFAULT Temp. Limit of OFF Temp. Limit of Start Fan Start PWM Slope PWM 1 ...

  • Page 91: Console Redirection [Disabled]

    AFL2-12A-HM65 Series Panel PC Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced COM1 Console Redirection Console Redirection [Disabled] Enable or Disable. > Console Redirection Settings COM3 --------------------- : Select Screen Console Redirection [Disabled]  : Select Item >...

  • Page 92: Iei Feature

    AFL2-12A-HM65 Series Panel PC 6.4 iEi Feature Use the iEi Feature menu (BIOS Menu 12) to configure the auto recovery function. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover...

  • Page 93: Chipset

    AFL2-12A-HM65 Series Panel PC 6.5 Chipset Use the Chipset menu (BIOS Menu 13) to access the Northbridge and Southbridge configuration menus WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 94: Northbridge Configuration

    AFL2-12A-HM65 Series Panel PC 6.5.1 NorthBridge Configuration Use the NorthBridge Configuration menu (BIOS Menu 14) to configure the northbridge chipset. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset NorthBridge Configuration Config Graphics Settings. Memory Information Memory Frequency...

  • Page 95: Graphics Configuration

    AFL2-12A-HM65 Series Panel PC 6.5.1.1 Graphics Configuration The Graphics Configuration submenu (BIOS Menu 9) allows user to configure graphics settings. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Advanced Graphics Configuration Select DVMT 5.0 Pre-Allocated (Fixed) DVMT Pre-Allocated...

  • Page 96: Dvmt Total Gfx Mem [128M]

    AFL2-12A-HM65 Series Panel PC  192M DVMT memory size set at 192 MB  DVMT memory size set at 224 MB 224M  256M DVMT memory size set at 256 MB  288M DVMT memory size set at 288 MB ...

  • Page 97: South Bridge Configuration

    AFL2-12A-HM65 Series Panel PC  800x600 Sets the panel resolution at 800x600 (18-bit) 18BIT  Sets the panel resolution at 1024x768 (18-bit) 1024x768 EFAULT 18BIT 1024x768 Sets the panel resolution at 1024x7678 (24-bit) 24BIT 6.5.2 South Bridge Configuration Use the South Bridge Configuration menu (BIOS Menu 16) to configure the southbridge chipset.

  • Page 98: Usb 3.0 Controller [Enabled]

    AFL2-12A-HM65 Series Panel PC  USB 3.0 Controller [Enabled] Use the USB 3.0 Controller BIOS option to enable or disable the USB 3.0 controller  USB 3.0 controller disabled Disabled  Enabled USB 3.0 controller enabled EFAULT  Restore AC Power Loss [Power Off] Use the Restore AC Power Loss BIOS option to specify what state the system returns to if there is a sudden loss of power to the system.

  • Page 99: Wifi Function [Enabled]

    AFL2-12A-HM65 Series Panel PC  WIFI Function [Enabled] Use the WIFI Function option to enable or disable the Wi-Fi function.  Wi-Fi function disabled Disabled  Enabled Wi-Fi function enabled EFAULT  DMIC Function [Enabled] Use the DMIC Function option to enable or disable the DMIC function.

  • Page 100: Graphics Configuration

    AFL2-12A-HM65 Series Panel PC 6.5.3 Graphics Configuration Use the Graphics Configuration menu (BIOS Menu 17) to configure the video device connected to the system. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Chipset Graphics Configuration The platform supports...

  • Page 101: Dvmt Total Gfx Mem [128M]

    AFL2-12A-HM65 Series Panel PC  256M DVMT memory size set at 256 MB  DVMT memory size set at 288 MB 288M  320M DVMT memory size set at 320 MB  352M DVMT memory size set at 352 MB ...

  • Page 102: Boot

    AFL2-12A-HM65 Series Panel PC 6.6 Boot Use the Boot menu (BIOS Menu 18) to configure system boot options. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Boot Configuration Select the keyboard...

  • Page 103: Quiet Boot [Enabled]

    AFL2-12A-HM65 Series Panel PC  Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots.  Normal POST messages displayed Disabled  Enabled OEM Logo displayed instead of POST messages EFAULT ...

  • Page 104: Security

    AFL2-12A-HM65 Series Panel PC 6.7 Security Use the Security menu (BIOS Menu 19) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc. Main Advanced Chipset Boot Security Save & Exit Password Description Set Setup Administrator Password If ONLY the Administrator’s password is set,...

  • Page 105: Set Master Password

    AFL2-12A-HM65 Series Panel PC NOTE: It is recommended that the system be reset after setting a new HDD password.  Set Master Password Use the Set Master Password field to set or change the master HDD password. NOTE: It is recommended that the system be reset after setting a new master HDD password.

  • Page 106: Save & Exit

    AFL2-12A-HM65 Series Panel PC 6.8 Save & Exit Use the Save & Exit menu (BIOS Menu 20) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2010 American Megatrends, Inc.

  • Page 107: Save As User Defaults

    AFL2-12A-HM65 Series Panel PC  Save as User Defaults Use the Save as User Defaults option to save the changes done so far as user defaults.  Restore User Defaults Use the Restore User Defaults option to restore the user defaults to all the setup options.

  • Page 108: Software Drivers

    AFL2-12A-HM65 Series Panel PC Chapter Software Drivers Page 108...

  • Page 109: Available Software Drivers

    AFL2-12A-HM65 Series Panel PC 7.1 Available Software Drivers NOTE: The content of the CD may vary throughout the life cycle of the product and is subject to change without prior notice. Visit the IEI website or contact technical support for the latest updates.

  • Page 110: Figure 7-1: Chipset Driver Screen

    AFL2-12A-HM65 Series Panel PC Step 3: Locate the setup file and double click on it. Step 4: The setup files are extracted as shown in Figure 7-1. Figure 7-1: Chipset Driver Screen Step 5: When the setup files are completely extracted the Welcome Screen in Figure 7-2 appears.

  • Page 111: Figure 7-2: Chipset Driver Welcome Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-2: Chipset Driver Welcome Screen Step 7: The license agreement in Figure 7-3 appears. Step 8: Read the License Agreement. Step 9: Click Yes to continue. Figure 7-3: Chipset Driver License Agreement Page 111...

  • Page 112: Figure 7-4: Chipset Driver Read Me File

    AFL2-12A-HM65 Series Panel PC Step 10: The Read Me file in Figure 7-4 appears. Step 11: Click Next to continue. Figure 7-4: Chipset Driver Read Me File Step 12: Setup Operations are performed as shown in Figure 7-5. Step 13: Once the Setup Operations are complete, click Next to continue.

  • Page 113: Figure 7-5: Chipset Driver Setup Operations

    AFL2-12A-HM65 Series Panel PC Figure 7-5: Chipset Driver Setup Operations Step 14: The Finish screen in Figure 7-6 appears. Step 15: Select “Yes, I want to restart this computer now” and click Finish.Step 0: Figure 7-6: Chipset Driver Installation Finish Screen...

  • Page 114: Graphics Driver Installation

    AFL2-12A-HM65 Series Panel PC 7.4 Graphics Driver Installation To install the Graphics driver, please do the following. Step 1: Access the driver list. (See Section 7.2) Step 2: Click “Graphic” and select the folder which corresponds to your operating system.

  • Page 115: Figure 7-8: Graphics Driver Setup Files Extracted

    AFL2-12A-HM65 Series Panel PC Figure 7-8: Graphics Driver Setup Files Extracted Step 8: The Welcome Screen in Figure 7-9 appears. Step 9: Click Next to continue. Figure 7-9: Graphics Driver Welcome Screen Step 10: The License Agreement in Figure 7-10 appears.

  • Page 116: Figure 7-10: Graphics Driver License Agreement

    AFL2-12A-HM65 Series Panel PC Step 11: Click Yes to accept the agreement and continue. Figure 7-10: Graphics Driver License Agreement Step 12: The Read Me file in Figure 7-11 appears. Step 13: Click Next to continue. Figure 7-11: Graphics Driver Read Me File...

  • Page 117: Figure 7-12: Graphics Driver Setup Operations

    AFL2-12A-HM65 Series Panel PC Step 14: Setup Operations are performed as shown in Figure 7-12. Step 15: Once the Setup Operations are complete, click Next to continue. Figure 7-12: Graphics Driver Setup Operations Step 16: The Finish screen in Figure 7-13 appears.

  • Page 118: Audio Driver Installation

    AFL2-12A-HM65 Series Panel PC Figure 7-13: Graphics Driver Installation Finish Screen 7.5 Audio Driver Installation To install the audio driver, please do the following. Step 1: Access the driver list. (See Section 7.2) Step 2: Click “Audio” and select the folder which corresponds to your operating system.

  • Page 119: Figure 7-14: Audio Driver Welcome Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-14: Audio Driver Welcome Screen Step 6: The audio driver installation begins. See Figure 7-15. Figure 7-15: Audio Driver Installation Page 119...

  • Page 120: Touch Screen Driver

    AFL2-12A-HM65 Series Panel PC Step 7: When the installation is complete, the screen in Figure 7-16 appears. Step 8: Select “Yes, I want to restart my computer now” and click Finish. Step 0: Figure 7-16: AC’97 Driver Installation Complete 7.6 Touch Screen Driver To install the touch panel software driver, please follow the steps below.

  • Page 121: Figure 7-17: Touch Screen Driver Welcome Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-17: Touch Screen Driver Welcome Screen Step 6: The License Agreement shown in Figure 7-18 appears. Step 7: Click I A to accept and continue. GREE Figure 7-18: Touch Screen Driver License Agreement Step 8: Browse for an install location or use the one suggested (Figure 7-19).

  • Page 122: Figure 7-19: Touch Screen Driver Choose Install Location

    AFL2-12A-HM65 Series Panel PC Step 9: Click I to continue. NSTALL Figure 7-19: Touch Screen Driver Choose Install Location Step 10: The Install screen appears and displays the progress of the installation (Figure 7-20). Page 122...

  • Page 123: Figure 7-20: Touch Screen Driver Installation Screen

    AFL2-12A-HM65 Series Panel PC Step 11: Click N to continue. Figure 7-20: Touch Screen Driver Installation Screen Step 12: When the installation is complete, click F to exit setup. (Figure 7-21). INISH Step 0: Figure 7-21: Touch Screen Driver Update Complete...

  • Page 124: Calibrating The Touch Screen

    AFL2-12A-HM65 Series Panel PC 7.6.1 Calibrating the Touch Screen To calibrate the touch screen cursor with the motion of the touch screen pen (or finger), please follow the steps below: Step 1: Make sure the touch screen driver is properly installed.

  • Page 125: Figure 7-24: Configuration Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-24: Configuration Screen Step 6: Double click the PenMount 9000 icon as shown in Figure 7-24. Step 7: The calibration initiation screen in Figure 7-25 appears. Step 8: Select the Standard Calibration button as shown in Figure 7-25.

  • Page 126: Amcap Driver Installation

    AFL2-12A-HM65 Series Panel PC Step 9: The calibration screen in is shown. See Figure 7-26. Figure 7-26: Calibration Screen Step 10: Follow the instructions. The user is asked touch the screen at five specified points after which the screen is calibrated.

  • Page 127: Figure 7-27: Amcap Driver Welcome Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-27: AMCap Driver Welcome Screen Step 6: Browse for an install location or use the one suggested (Figure 7-28). Step 7: Click I to continue. NSTALL Figure 7-28: AMCap Driver Choose Install Location Step 8: The program begins to install.

  • Page 128: Usb 3.0 Driver Installation

    AFL2-12A-HM65 Series Panel PC Step 9: When the driver installation is complete, the screen in Figure 7-29 appears. Step 10: Click Finish to save and exit. Step 0: Figure 7-29: AMCap Driver Installation Complete 7.8 USB 3.0 Driver Installation To install the USB 3.0 driver, please do the following.

  • Page 129: Figure 7-30: Usb 3.0 Driver Welcome Screen

    AFL2-12A-HM65 Series Panel PC Figure 7-30: USB 3.0 Driver Welcome Screen Step 6: Browse for an install location or use the one suggested (Figure 7-31). Step 7: Click N to continue. Figure 7-31: USB 3.0 Driver Choose Install Location Step 8: The program is ready to install (Figure 7-32).

  • Page 130: Figure 7-32: Usb 3.0 Driver Choose Install Location

    AFL2-12A-HM65 Series Panel PC Step 9: Click I to continue. NSTALL Figure 7-32: USB 3.0 Driver Choose Install Location Step 10: When the driver installation is complete, the screen in Figure 7-33 appears. Step 11: Click Finish to exit. Step 0: Figure 7-33: USB 3.0 Driver Installation Complete...

  • Page 131: A Safety Precautions

    AFL2-12A-HM65 Series Panel PC Appendix Safety Precautions Page 131...

  • Page 132: Safety Precautions

    AFL2-12A-HM65 Series Panel PC WARNING: The precautions outlined in this chapter should be strictly followed. Failure to follow these precautions may result in permanent damage to the AFL2-12A-HM65. A.1 Safety Precautions Please follow the safety precautions outlined in the sections that follow: A.1.1 General Safety Precautions...

  • Page 133: Cpu Temperature Warning

    AFL2-12A-HM65 Series Panel PC A.1.2 CPU Temperature Warning WARNING: If the CPU Temperature Alert LED shows RED, the CPU core temperature is too high. To lower the CPU temperature, lower the environment temperature or decrease the amount of running programs.

  • Page 134: Product Disposal

    AFL2-12A-HM65 Series Panel PC A.1.4 Product Disposal CAUTION: Risk of explosion if battery is replaced by and incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations.  Outside the European Union - If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 135: Cleaning Tools

    AFL2-12A-HM65 Series Panel PC  Except for the LCD panel, never spray or squirt liquids directly onto any other components. To clean the LCD panel, gently wipe it with a piece of soft dry cloth or a slightly moistened cloth.

  • Page 136: B Bios Configuration Options

    AFL2-12A-HM65 Series Panel PC Appendix BIOS Configuration Options Page 136...

  • Page 137: Bios Configuration Options

    AFL2-12A-HM65 Series Panel PC BIOS Configuration Options Below is a list of BIOS configuration options described in Chapter 6. 　 System Overview .........................76 　 System Date [xx/xx/xx] ......................77 　 System Time [xx:xx:xx] .......................77 　 ACPI Sleep State [S1 (CPU Stop Clock)] ................79 　...
  • Page 138 AFL2-12A-HM65 Series Panel PC 　 Boot Display Device [LFP] ....................96 　 LCD Panel Type [1024x768 18BIT] ..................96 　 USB Function [Enabled]......................97 　 USB 3.0 Controller [Enabled]....................98 　 Restore AC Power Loss [Power Off]..................98 　 HD Audio Controller [Enabled] ...................98 　...

  • Page 139: C One Key Recovery

    AFL2-12A-HM65 Series Panel PC Appendix One Key Recovery Page 139...

  • Page 140: One Key Recovery Introduction

    AFL2-12A-HM65 Series Panel PC C.1 One Key Recovery Introduction The IEI one key recovery is an easy-to-use front end for the Norton Ghost system backup and recovery tool. This tool provides quick and easy shortcuts for creating a backup and reverting to that backup or reverting to the factory default settings.

  • Page 141: System Requirement

    AFL2-12A-HM65 Series Panel PC After completing the five initial setup procedures as described above, users can access the recovery tool by pressing <F3> while booting up the system. The detailed information of each function is described in Section C.5. NOTE: The initial setup procedures for Linux system are described in Section C.3.

  • Page 142: Supported Operating System

    AFL2-12A-HM65 Series Panel PC partitions. Please take the following table as a reference when calculating the size of the partition. OS Image after Ghost Compression Ratio Windows® 7 7 GB 5 GB Windows® XPE 776 MB 560 MB Windows® CE 6.0...

  • Page 143: Setup Procedure For Windows

    AFL2-12A-HM65 Series Panel PC Ubuntu 8.10 (Intrepid) Ubuntu 7.10 (Gutsy) Ubuntu 6.10 (Edgy) Debian 5.0 (Lenny) Debian 4.0 (Etch) SuSe 11.2 SuSe 10.3 NOTE: Installing unsupported OS versions may cause the recovery tool to fail. C.2 Setup Procedure for Windows Prior to using the recovery tool to backup or restore, a few setup procedures are required.

  • Page 144: Hardware And Bios Setup

    AFL2-12A-HM65 Series Panel PC C.2.1 Hardware and BIOS Setup Step 1: Make sure the system is powered off and unplugged. Step 2: Install a hard drive or SSD in the system. An unformatted and unpartitioned disk is recommended. Step 3: Connect an optical disk drive to the system and insert the recovery CD.

  • Page 145: Figure C-2: Launching The Recovery Tool

    AFL2-12A-HM65 Series Panel PC Figure C-2: Launching the Recovery Tool Step 3: The recovery tool setup menu is shown as below. Figure C-3: Recovery Tool Setup Menu Step 4: Press <6> then <Enter>. Page 145...

  • Page 146: Figure C-4: Command Prompt

    AFL2-12A-HM65 Series Panel PC Figure C-4: Command Prompt Step 5: The command prompt window appears. Type the following commands (marked in red) to create two partitions. One is for the OS installation; the other is for saving recovery files and images which will be an invisible partition.

  • Page 147: Figure C-5: Partition Creation Commands

    AFL2-12A-HM65 Series Panel PC Figure C-5: Partition Creation Commands Page 147...

  • Page 148: Install Operating System, Drivers And Applications

    AFL2-12A-HM65 Series Panel PC NOTE: Use the following commands to check if the partitions were created successfully. Step 6: Press any key to exit the recovery tool and automatically reboot the system. Please continue to the following procedure: Build the Recovery Partition.S t e p 0 :...

  • Page 149: Building The Recovery Partition

    AFL2-12A-HM65 Series Panel PC C.2.4 Building the Recovery Partition Step 1: Put the recover CD in the optical drive. Step 2: Start the system. Step 3: Boot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 150: Figure C-8: Building The Recovery Partition

    AFL2-12A-HM65 Series Panel PC Step 5: The Symantec Ghost window appears and starts configuring the system to build a recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the recovery tool is saved in this partition.

  • Page 151: Create Factory Default Image

    AFL2-12A-HM65 Series Panel PC C.2.5 Create Factory Default Image NOTE: Before creating the factory default image, please configure the system to a factory default environment, including driver and application installations. To create a factory default image, please follow the steps below.

  • Page 152: Figure C-12: About Symantec Ghost Window

    AFL2-12A-HM65 Series Panel PC Figure C-12: About Symantec Ghost Window Step 4: Use mouse to navigate to the option shown below (Figure C-13). Figure C-13: Symantec Ghost Path Step 5: Select the local source drive (Drive 1) as shown in Figure C-14. Then click OK.

  • Page 153: Figure C-14: Select A Local Source Drive

    AFL2-12A-HM65 Series Panel PC Figure C-14: Select a Local Source Drive Step 6: Select a source partition (Part 1) from basic drive as shown in Figure C-15. Then click OK. Figure C-15: Select a Source Partition from Basic Drive Step 7: Select 1.2: [Recovery] NTFS drive and enter a file name called...

  • Page 154: Figure C-16: File Name To Copy Image To

    AFL2-12A-HM65 Series Panel PC Figure C-16: File Name to Copy Image to Step 8: When the Compress Image screen in Figure C-17 prompts, click High to make the image file smaller. Figure C-17: Compress Image Page 154...

  • Page 155: Figure C-18: Image Creation Confirmation

    AFL2-12A-HM65 Series Panel PC Step 9: The Proceed with partition image creation window appears, click Yes to continue. Figure C-18: Image Creation Confirmation Step 10: The Symantec Ghost starts to create the factory default image (Figure C-19). Figure C-19: Image Creation Complete Step 11: When the image creation completes, a screen prompts as shown in Figure C-20.

  • Page 156: Auto Recovery Setup Procedure

    AFL2-12A-HM65 Series Panel PC Step 12: The recovery tool main menu window is shown as below. Press any key to reboot the system. S t e p 0 : Figure C-21: Press Any Key to Continue C.3 Auto Recovery Setup Procedure...

  • Page 157: Figure C-22: Auto Recovery Utility

    AFL2-12A-HM65 Series Panel PC Figure C-22: Auto Recovery Utility Step 3: Reboot the system from the recovery CD. When prompted, press any key to boot from the recovery CD. It will take a while to launch the recovery tool. Please...

  • Page 158: Figure C-24: Auto Recovery Environment For Windows

    AFL2-12A-HM65 Series Panel PC Step 4: When the recovery tool setup menu appears, press <4> then <Enter>. Figure C-24: Auto Recovery Environment for Windows Step 5: The Symantec Ghost window appears and starts configuring the system to build an auto recovery partition. In this process the partition created for recovery files in Section C.2.2 is hidden and the auto recovery tool is saved in this partition.

  • Page 159: Figure C-26: Factory Default Image Confirmation

    AFL2-12A-HM65 Series Panel PC process (The default option is YES). It is suggested to choose YES for this option. Figure C-26: Factory Default Image Confirmation Step 7: The Symantec Ghost starts to create the factory default image (Figure C-27). Figure C-27: Image Creation Complete...
  • Page 160 AFL2-12A-HM65 Series Panel PC Step 9: Eject the One Key Recovery CD and restart the system. Step 10: Press the <DELETE> key as soon as the system is turned on to enter the BIOS. Enable the Auto Recovery Function option (Advanced  iEi Feature  Auto Step 11: Recovery Function).

  • Page 161: Setup Procedure For Linux

    AFL2-12A-HM65 Series Panel PC C.4 Setup Procedure for Linux The initial setup procedure for Linux system is mostly the same with the procedure for Microsoft Windows. Please follow the steps below to setup recovery tool for Linux OS. Step 1: Hardware and BIOS setup.

  • Page 162: Figure C-30: Manual Recovery Environment For Linux

    AFL2-12A-HM65 Series Panel PC Step 3: Create a recovery partition. Insert the recovery CD into the optical disk drive. Follow Step 1 Step 3 described in Section C.2.2. Then type the following commands (marked in red) to create a partition for recovery images.

  • Page 163: Figure C-31: Access Menu.lst In Linux (Text Mode)

    AFL2-12A-HM65 Series Panel PC cd /boot/grub vi menu.lst Figure C-31: Access menu.lst in Linux (Text Mode) Step 6: Modify the menu.lst as shown below. Step 7: The recovery tool menu appears. (Figure C-32) Figure C-32: Recovery Tool Menu Page 163...

  • Page 164: Recovery Tool Functions

    AFL2-12A-HM65 Series Panel PC Step 8: Create a factory default image. Follow Step 2 Step 12 described in Section C.2.5 to create a factory default image. S t e p 0 : C.5 Recovery Tool Functions After completing the initial setup procedures as described above, users can access the recovery tool by pressing <F3>...

  • Page 165: Factory Restore

    AFL2-12A-HM65 Series Panel PC WARNING: All data in the system will be deleted during the system recovery. Please backup the system files before restoring the system (either Factory Restore or Restore Backup). C.5.1 Factory Restore To restore the factory default image, please follow the steps below.

  • Page 166: Backup System

    AFL2-12A-HM65 Series Panel PC Figure C-35: Recovery Complete Window C.5.2 Backup System To backup the system, please follow the steps below. Step 4: Type <2> and press <Enter> in the main menu. Step 5: The Symantec Ghost window appears and starts to backup the system. A backup image called iei_user.GHO is created in the hidden Recovery partition.

  • Page 167: Restore Your Last Backup

    AFL2-12A-HM65 Series Panel PC Figure C-37: System Backup Complete Window C.5.3 Restore Your Last Backup To restore the last system backup, please follow the steps below. Step 1: Type <3> and press <Enter> in the main menu. Step 2: The Symantec Ghost window appears and starts to restore the last backup image (iei_user.GHO).

  • Page 168: Manual

    AFL2-12A-HM65 Series Panel PC Figure C-39: Restore System Backup Complete Window C.5.4 Manual To restore the last system backup, please follow the steps below. Step 4: Type <4> and press <Enter> in the main menu. Step 5: The Symantec Ghost window appears. Use the Ghost program to backup or recover the system manually.

  • Page 169: Restore Systems From A Linux Server Through Lan

    AFL2-12A-HM65 Series Panel PC C.6 Restore Systems from a Linux Server through LAN The One Key Recovery allows a client system to automatically restore to a factory default image saved in a Linux system (the server) through LAN connectivity after encountering a Blue Screen of Death (BSoD) or a hang for around 10 minutes.

  • Page 170: Configure Dhcp Server Settings

    AFL2-12A-HM65 Series Panel PC C.6.1 Configure DHCP Server Settings Step 7: Install the DHCP #yum install dhcp (CentOS, commands marked in red) #apt-get install dhcp3-server (Debian, commands marked in blue) Step 8: Confirm the operating system default settings: dhcpd.conf. CentOS Use the following command to show the DHCP server sample location: #vi /etc/dhcpd.conf...

  • Page 171: Configure Tftp Settings

    AFL2-12A-HM65 Series Panel PC filename “pxelinux.0”; C.6.2 Configure TFTP Settings Step 9: Install the tftp, httpd and syslinux. #yum install tftp-server httpd syslinux (CentOS) #apt-get install tftpd-hpa xinetd syslinux (Debian) Step 10: Enable the TFTP server by editing the “/etc/xinetd.d/tftp” file and make it use the remap file.

  • Page 172: Configure One Key Recovery Server Settings

    AFL2-12A-HM65 Series Panel PC Debian Replace the TFTP settings from “inetd” to “xinetd” and annotate the “inetd” by adding “#”. #vi /etc/inetd.conf Modify: #tftp dgram udp wait root /usr/sbin..(as shown below) #vi /etc/xinetd.d/tftp C.6.3 Configure One Key Recovery Server Settings Step 11: Copy the Utility/RECOVERYR10.TAR.BZ2 package from the One Key...

  • Page 173: Start The Dhcp, Tftp And Http

    AFL2-12A-HM65 Series Panel PC C.6.4 Start the DHCP, TFTP and HTTP Start the DHCP, TFTP and HTTP. For example: CentOS #service xinetd restart #service httpd restart #service dhcpd restart Debian #/etc/init.d/xinetd reload #/etc/init.d/xinetd restart #/etc/init.d/dhcp3-server restart C.6.5 Create Shared Directory Step 14: Install the samba.

  • Page 174: Setup A Client System For Auto Recovery

    AFL2-12A-HM65 Series Panel PC Modify: [image] comment = One Key Recovery path = /share/image browseable = yes writable = yes public = yes create mask = 0644 directory mask = 0755 Step 17: Edit “/etc/samba/smb.conf” for your environment. For example:...
  • Page 175 AFL2-12A-HM65 Series Panel PC Step 20: Continue to configure the Boot Option Priorities BIOS option of the client system: Boot Option #1  remain the default setting to boot from the original OS. Boot Option #2  select the boot from LAN option.
  • Page 176 AFL2-12A-HM65 Series Panel PC NOTE: A firewall or a SELinux is not in use in the whole setup process. If there is a firewall or a SELinux protecting the system, modify the configuration information to accommodate them. Page 176...

  • Page 177: Other Information

    AFL2-12A-HM65 Series Panel PC C.7 Other Information C.7.1 Using AHCI Mode or ALi M5283 / VIA VT6421A Controller When the system uses AHCI mode or some specific SATA controllers such as ALi M5283 or VIA VT6421A, the SATA RAID/AHCI driver must be installed before using one key recovery.
  • Page 178 AFL2-12A-HM65 Series Panel PC Step 28: When the following window appears, press <S> to select “Specify Additional Device”. Step 29: In the following window, select a SATA controller mode used in the system. Then press <Enter>. The user can now start using the SATA HDD.

  • Page 179: System Memory Requirement

    AFL2-12A-HM65 Series Panel PC Step 30: After pressing <Enter>, the system will get into the recovery tool setup menu. Continue to follow the setup procedure from Step 4 in Section C.2.2 Create Partitions to finish the whole setup process. S t e p 0 : C.7.2 System Memory Requirement...

  • Page 180: D Watchdog Timer

    AFL2-12A-HM65 Series Panel PC Appendix Watchdog Timer Page 180...
  • Page 181 AFL2-12A-HM65 Series Panel PC NOTE: The following discussion applies to DOS environment. IEI support is contacted or the IEI website visited for specific drivers for more sophisticated operating systems, e.g., Windows and Linux. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.

  • Page 182: Example Program

    AFL2-12A-HM65 Series Panel PC NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. Example program: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BX, 05 ;time-out value is 5 seconds ;...

  • Page 183: E Hazardous Materials Disclosure

    AFL2-12A-HM65 Series Panel PC Appendix Hazardous Materials Disclosure Page 183...

  • Page 184: Hazardous Material Disclosure Table For Ipb Products Certified As Rohs Compliant Under 2002/95/Ec Without Mercury

    AFL2-12A-HM65 Series Panel PC E.1 Hazardous Material Disclosure Table for IPB Products Certified as RoHS Compliant Under 2002/95/EC Without Mercury The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 185 AFL2-12A-HM65 Series Panel PC Part Name Toxic or Hazardous Substances and Elements Lead Mercury Cadmium Hexavalent Polybrominated Polybrominated (Pb) (Hg) (Cd) Chromium Biphenyls Diphenyl Ethers (CR(VI)) (PBB) (PBDE) Housing Display Printed Circuit Board Metal Fasteners Cable Assembly Fan Assembly Power Supply...
  • Page 186 AFL2-12A-HM65 Series Panel PC 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些 元件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T11363-2006 标准规定的限量要求以下。 X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T11363-2006 标准规定的限量要求。...

Table of Contents
