Lectrosonics D-Squared DSQD Manual page 19

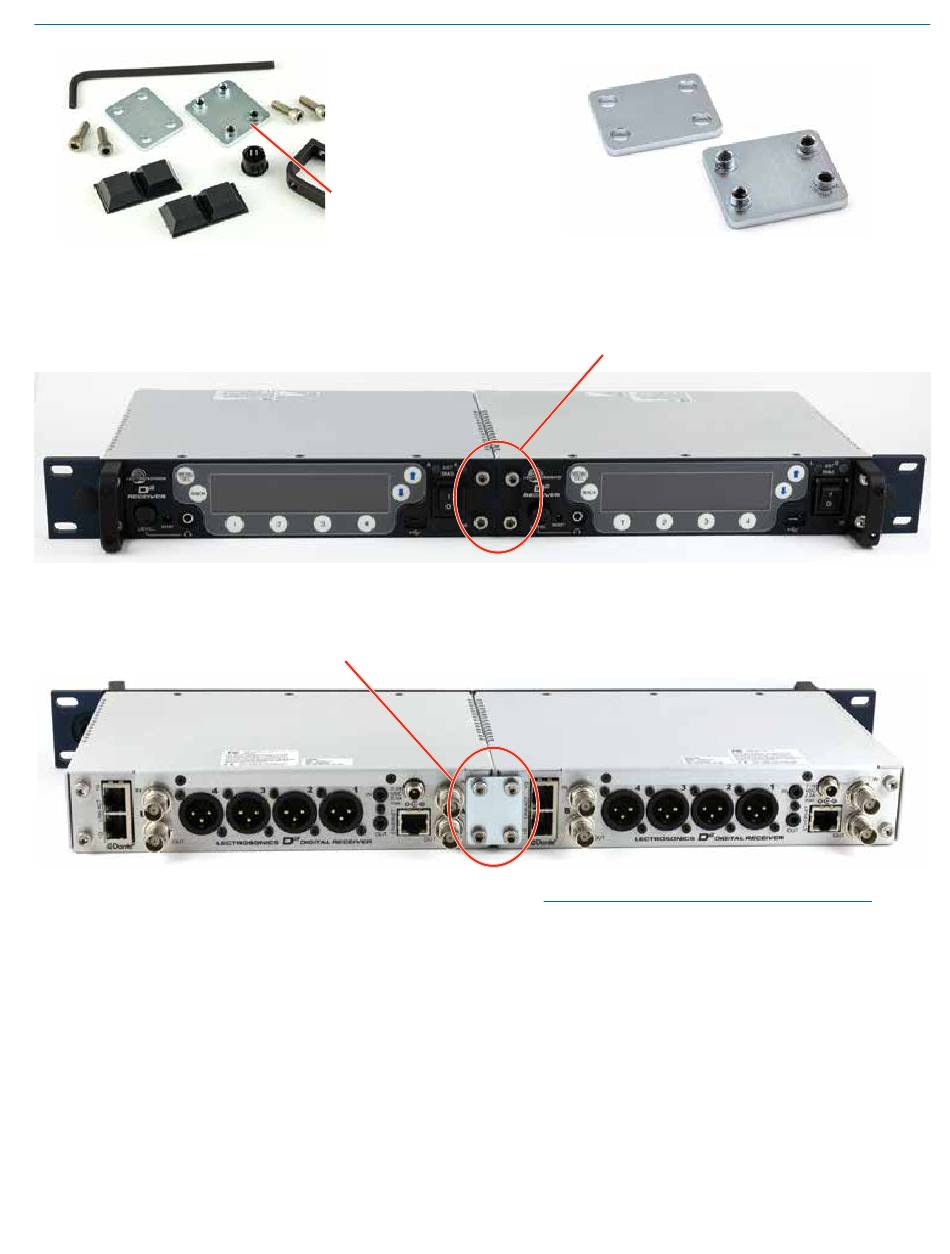

6. Install one side of the front tie bracket (Part #25991)
into the side panel opening in one of the receivers.
Insert the screws, but do not tighten them com-
pletely at this point.
7. Remove the four cap screws from the adjacent rear
panels, and then use them to attach the rear tie
bracket. Do not tighten the screws completely.
8. After front and rear tie brackets are installed, place
the receivers on a flat surface so the that the front
panels are even with each other. Hold the receivers
in place and tighten all cap screws on the front and
rear brackets.
Rio Rancho, NM
Tensioning lock
nuts on the rear
side of the bracket
Rear tie bracket
Front tie bracket
(Part #25991)
Slide the other receiver over the tie bracket and in-
sert the screws, but do not tighten them completely
until the rear tie bracket is installed.
NOTE: If the supplied rubber feet are installed on
under side of DSQD, it will not fit in a rack unless
there is an empty space below it.
Digital Receiver
(Part #25990)
19
