Summary of Contents for CYP EL-31SY

  • Page 1 EL-31SY 3 in, 1 out v1.3 HDMI Switcher OPERATION MANUAL...
  • Page 2 Table of Contents Introduction Features Package Contents Operation Controls and Functions Front Panel Diagram Rear Panel Diagram Remote Control Connection Diagram Specification Finden Sie ab Seite 7.
  • Page 3 1. Introduction The EL-31SY is a high performance HDMI switcher with IR control. It allows you to connect up to three hdmi sources to a single hdmi input on a HDTV. A simple remote control selects your required HDMI source for display on the HDTV.

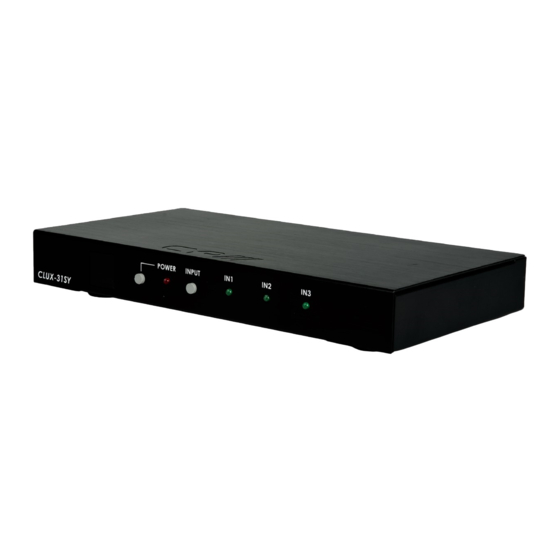

  • Page 4 4.1 Front Panel POWERI NPUT IN1I EL-31SY 1. Remote control sensor. 2. Power LED Indicator/ Power Button: The LED will illuminate when the power is turned on. Press the power button to switch the unit On/Off. 3. Input select Button/Indicators: Press the “INPUT” button repeatedly to cycle through the inputs to your required input source.
  • Page 5 4.2 Rear Panel DC 5V OUTPUT IN3I 1. HDMI output: Connect the HDMI output of the unit to the HDMI input of your display using a HDMI cable. 2. HDMI inputs: Connect your various HDMI sources to the 3 HDMI inputs using HDMI cables.
  • Page 6 6. Connection Diagram Page 4...
  • Page 7 7. Specifications Input Ports 3 x HDMI female ports HDCP Version v1.1 Output Port 1 x HDMI female port HDMI Specification v1.3 Frequency bandwidth 2.25Gbps Power Supply 5VDC/2.6A (US/EU standards, CE/FCC/UL Certified) Dimensions (mm) 200 (W) x 104 (D) x 25(H) Chassis Colour Black Chassis Material...
  • Page 8 www.cypeurope.com Page 6...
