INSTRUCTION MANUAL

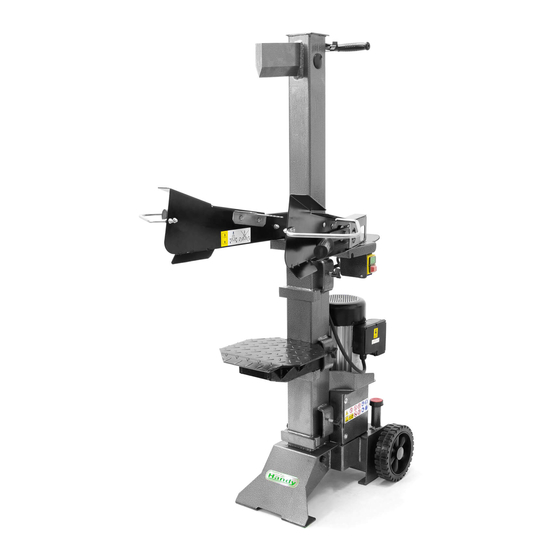

2700W ELECTRIC
6 TON VERICAL
LOG SPLITTER
Model No: THLSV6 -- Product No: 1938138001
ASSEMBLY REQUIRED
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying particular attention to the safety instructions,
before use.
The manufacturer reserves the right to change the product specification and livery according to
continued product improvements.
29-03-2017
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for The Handy THLSV6
Summary of Contents for The Handy THLSV6
- Page 1 INSTRUCTION MANUAL 2700W ELECTRIC 6 TON VERICAL LOG SPLITTER Model No: THLSV6 -- Product No: 1938138001 ASSEMBLY REQUIRED SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS SET UP & PREPARATION FOR OPERATION WIRING & HYDRAULIC DIAGRAMS OPERATION CHECKING & REPLACING HYDRAULIC OIL TROUBLE SHOOTING MAINTENANCE & STORAGE EC DECLARATION OF CONFORMITY PARTS LISTS & DIAGRAM WARRANTY If you require any assistance with regards to the contents or operation of your machine, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk... -
Page 4: Specifications
SPECIFICATION The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model THLSV6 Product No. 1938138001 Motor Rated Power 230V~ 50Hz - 2700W - S6 - 40% - IP54 Diameter Min. 13cm - Max. 30cm... -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense. AVOID DANGEROUS CONDITIONS Make sure there is adequate surrounding workspace.
- Page 7 PROTECT THE ENVIRONMENT Take left over materials to an authorised collection point or follow the stipulations in the country where the machine is used. Do not discharge into drains, soil or water. STORE IDLE EQUIPMENT When not in use, the machine should be stored in a dry location. Keep the machine away from children and others not qualified to use it.
- Page 8 UNPACKING At least 2 people are required to unpack the log splitter. Put the Log Splitter on the ground by tipping every side of the carton by 45 degrees. Place Block (B) to support the Log Splitter pack (A) at a point a little higher than the middle of the pack (A).
-
Page 9: Set Up & Preparation For Operation
SET UP & PREPARATION FOR OPERATION STEP 1 • Insert the wheel shafts into the grooves provided in the machine base, secure with two M6x8 bolts. • Tighten • Put the wheels on the wheel shaft, followed by the washers. •... - Page 10 • The machine is transported with a rubber bung within the hydraulic oil tank filler neck. • Prior to operation, remove the bung and replace with the supplied breather & STEP 4 dipstick. Replace Transport Bung • Ensure is it securely positioned in the hydraulic oil tank filler neck.
-
Page 11: Operation
OPERATION • It is recommended you fix the machine using M10x30 bolts on level ground before operation. • Plan your work site. Work safely and save effort by planning your work beforehand. Have your logs positioned where they can be easily reached. Prepare an area to stack the split wood or load it onto a nearby truck or other carrier. - Page 12 • Before initial operation, check that the two-handed operation is properly functioning by following these steps: a) Lower both control levers, the wedge should lower to approx. 5cm above the table at the highest position. b) Release either of the levers, the wedge should remain in its original position. c) Release both levers, the ram should rise to the highest position automatically.
- Page 13 MAINTENANCE & STORAGE REPLACING THE HYDRAULIC OIL The hydraulic system is a closed system with an oil tank, oil pump and control valve. Check the oil level regularly with the dipstick. Low oil levels can damage the oil pump, check the dipstick which is built into the air breather, the oil level should be between the two marks, approx.
-
Page 14: Trouble Shooting
TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED No current in the socket Check mains fuse Motor does not start Electrical extension line defective Unplug, check and replace Switch or capacitor defective Have checked by Electrician Valve is not opened due to the Check and tighten the parts connection parts loosening Control levers or connection parts... - Page 15 PARTS DIAGRAM & LIST...
-
Page 17: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: 2700 Watt Vertical 6 Ton Log Splitter Model(s): THLSV6 Product Number: 1938138001 Type/Serial No: As per rating label on machine Complies with the following directives: 2006/42/EC –... - Page 18 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 19 GJ HANDY & CO LTD USER WARRANTY POLICY Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
-
Page 20: Tel: 01793 333212
For spares or support of your Handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
