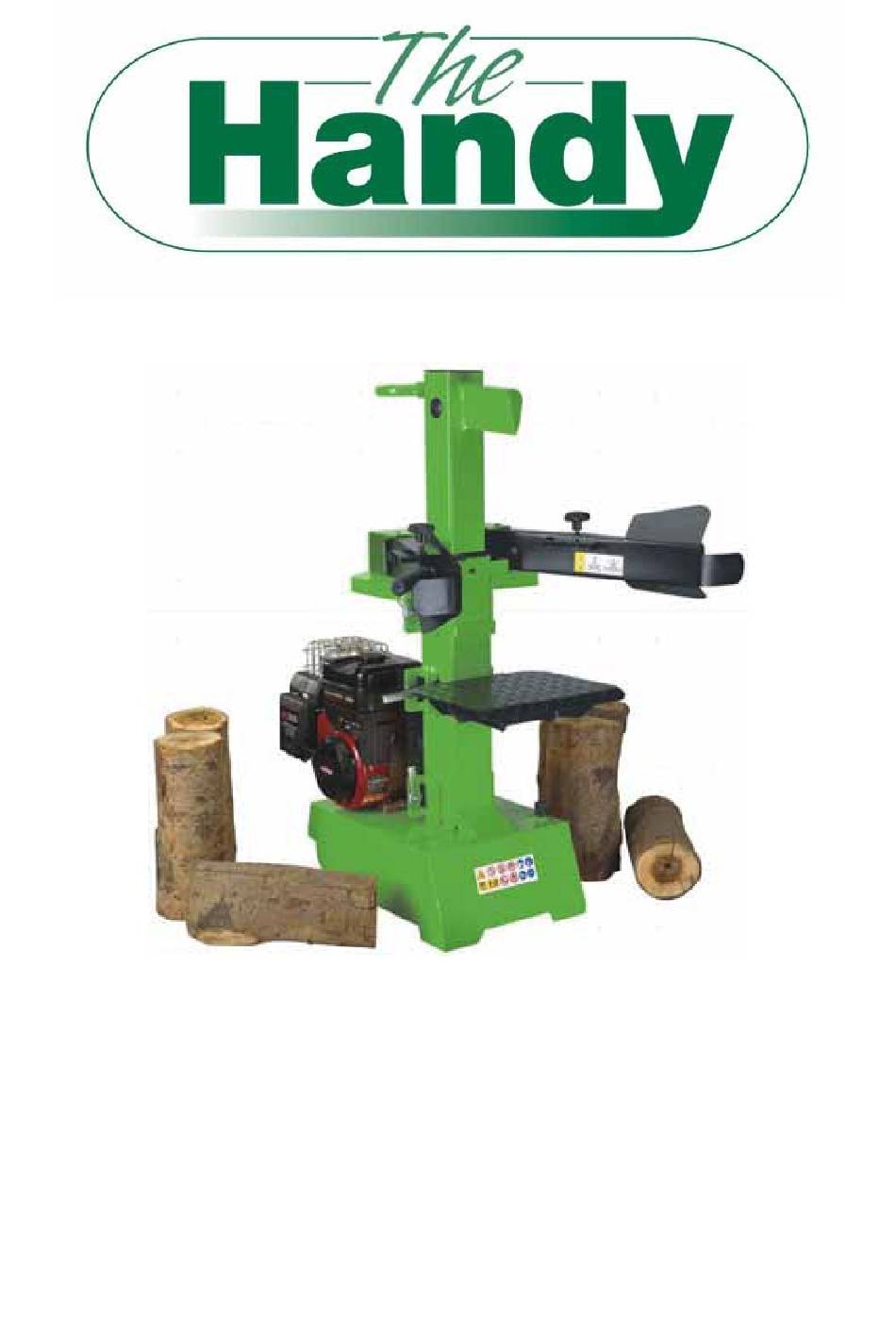

- Page 1 OPERATOR’S MANUAL AND PARTS LIST PETROL LOG SPLITTER - THPLS7TP Sales & Helpline 01793 333220 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. Page 1 2010 v1...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS MAJOR PARTS FUEL SPECIFICATIONS ASSEMBLY OPERATION PARTS DIAGRAM AND LIST 10-11 EC DECLARATION OF CONFORMITY Page 2... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the logsplitter. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for reference. • Use sturdy footwear and a helmet with eye and ear protection. Protect exposed parts of your body. -
Page 4: Major Parts
MAJOR PARTS Transport Handle Ram Travel Adjusting Rod Split Wedge Control Levers Connection Bracket Top Motor Shield Fuel Tank Wheels Base 10 Oil Tank Cover / Air Bleeder Table Lock Down Hook 12 Support Table Side Bracket, Support Table 14 Front Bracket, Support Table Control Lever 16 Control Lever Guard Adjustable Log Holder... -
Page 5: Fuel
• Dispose of any unwanted fuel or oil in a responsible way - take to your local recycling centre. SPECIFICATION Model No THPLS7TP Engine Briggs & Stratton I/C 65 Log Size Capacity Diameter = 12-32cm Length = 104/78/52cm Maximum Force... -
Page 6: Assembly
ASSEMBLY At least two people are required to unpack the log splitter package because of its weight. Following the diagrams above, carefully unpack the log splitter, using B and C to support package A. You should have the following contents: Log Splitter Frame;... - Page 7 ASSEMBLY. cont’d • Pull Spring Pin (A) to remove Lock Pin (B). • Apply a thin coat of grease to both surfaces of the Control Lever Guard as shown. • Insert Control Lever and Guard Assembly and ensure that the Control Lever End fixes into the slot of the Connection Bracket (C) •...
- Page 8 Work safely and save effort by planning your work beforehand. Position your logs so that they can be easily lifted onto the log splitter and, either stack close by or load onto a truck/trolley as soon as they are split. Inspect your logs and do not attempt to split logs containing nails, wire or debris which could damage the log splitter.
-
Page 9: Operation
OPERATION, cont’d To operate: • Place log on support table vertically and sitting flat. Do not attempt to split a log at an angle and do not place the log across the splitter - always split in the direction of the grain. -
Page 10: Parts Diagram And List
PARTS DIAGRAM WIRING DIAGRAM Page 10... - Page 11 PARTS LIST Part No Description Part No Description TH107-1 Upright Tube Weld B&S TH107-41 CCQ Cylinder TH107-2 Pump Guard TH107-42 Hex Bolt TH107-3 Spring Washer 6 TH107-43 Lever Handle TH107-4 Screw M6x12 TH107-44 Locknut M8 TH107-5 O Ring 23.6x3.55G TH107-45 Pin D TH107-6 TH107-46...
-
Page 12: Ec Declaration Of Conformity
- Machinery Directive 98/37/EC Handy Distribution Ltd hereby declares that the product: Machine Type: Log Splitter Machine Model: THPLS7TP Conforms to the main safety requirements of the EC Directives listed above. This conformity is based on the following standards and normative documents:... - Page 13 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Page 13...
