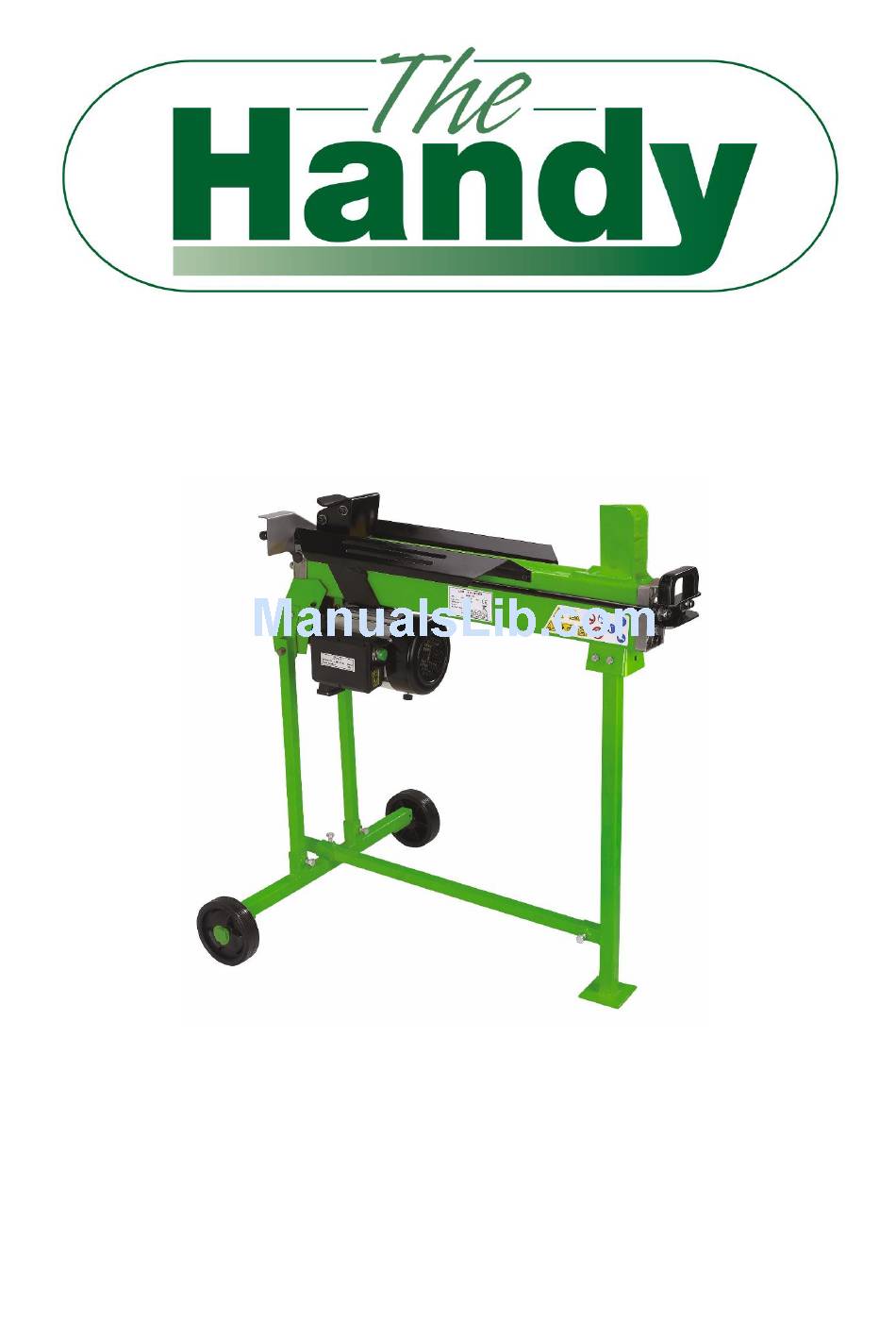

OPERATOR'S MANUAL & PARTS LIST
MODEL – THLS-6-PLUS
6 TON ELECTRIC LOGSPLITTER WITH STAND
SPARES & SUPPORT: 01793 333212
Please read & understand this manual, paying particular attention to the safety
instructions, before use.
The manufacturer reserves the right to change the product specification and
livery according to continued product improvements.
Due to the weight of this machine, we recommend a two-person lift from the carton
193894001
25/02/2016
Advertisement
Table of Contents
Related Manuals for The Handy THLS-6-PLUS
Summary of Contents for The Handy THLS-6-PLUS
- Page 1 OPERATOR’S MANUAL & PARTS LIST MODEL – THLS-6-PLUS 6 TON ELECTRIC LOGSPLITTER WITH STAND SPARES & SUPPORT: 01793 333212 Please read & understand this manual, paying particular attention to the safety instructions, before use. The manufacturer reserves the right to change the product specification and livery according to continued product improvements.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS SET UP & PREPARATION FOR OPERATION WIRING & HYDRAULIC DIAGRAMS OPERATION CHECKING & REPLACING HYDRAULIC OIL TROUBLE SHOOTING MAINTENANCE & STORAGE PARTS LISTS & DIAGRAM WARRANTY EC DECLARATION OF CONFORMITY If you require any assistance with regards to the contents or operation of your machine, please contact us: ... -
Page 4: Specifications
SPECIFICATIONS The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model Number THLS-6 Product Number 193893001 230V~ 50Hz 2200W S6 (40%) Motor IP54 Splitting Force 6 Ton Forward Speed 3.4cm/s Retract Speed 5.1cm/s Hydraulic Pressure 20Mpa... -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Be aware of what you are doing at all times. Use common sense. AVOID DANGEROUS CONDITIONS Make sure there is adequate surrounding workspace.
- Page 7 PROTECT THE ENVIRONMENT Take left over materials to an authorised collection point or follow the stipulations in the country where the mixer is used. Do not discharge into drains, soil or water. STORE IDLE EQUIPMENT When not in use, the machine should be stored in a dry location. Keep the machine away from children and others not qualified to use it.
-
Page 8: Set Up & Preparation For Operation
SET UP & PREPARATION FOR OPERATION Bolt the Support Leg to the Log Splitter, lift the log splitter by the Log Pusher & Handle & place it on a 60 – 75cm high, stable, flat and level work surface. ... - Page 9 ATTACHING THE LOGSPLITTER TO THE STAND 1. Ensure the machine is disconnected from the electrical source. 2. Remove the front support leg and the wheels. The wheels are secured by a circlip behind the wheel cap. Circlip pliers are required to remove. 3.
- Page 10 BLEED SCREW IMPORTANT Before operating the log splitter, the Bleed Screw should be loosened a few rotations until air can go in and out of the oil tank smoothly. Air flow through the Bleed Screw hole should be noticeable while the log splitter is working.
- Page 11 WIRING DIAGRAM HYDRAULIC DIAGRAM...
-
Page 12: Operation
OPERATION This log splitter is equipped with “ZHB” control system that must be operated with both hands – the left hand controls the hydraulic control lever while right hand controls the pushbutton switch. The log splitter will freeze if either hand is removed. The log pusher will only start to return backward to the starting position after both hands release the controls. -
Page 13: Freeing A Jammed Log
FREEING A JAMMED LOG Release both controls. After the log pusher moves back and completely stops at its starting position, insert a wedge of wood under the jammed log. Start the log splitter to push the wedge wood to go completely under the jammed one. - Page 14 Adjustment Knob The Handy Log Splitters are fitted with a Ram Adjustment Knob which reduces any unnecessary movement of the ram, allowing for quicker and more efficient use of the tool. Warning: When adjusting the ram movement do not put your hands between the hand knob and the log splitter, as accidental release of the Control Handle would cause the returning hand knob and handle to trap and crush your hand against the splitter.
-
Page 15: Checking & Replacing Hydraulic Oil
CHECKING & REPLACING HYDRAULIC OIL The log splitter is supplied with a full hydraulic oil tank, however you should check if hydraulic oil needs to be added, in case of leakage during transit. You should also replace the hydraulic oil in the log splitter after every 150 hours of use. -
Page 16: Trouble Shooting
TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Be sure the extension lead is no longer Motor running, ram Incorrect specification than 10m and its cross-section is no not moving extension lead less than 2.5mm² to allow sufficient current flow to the motor. Refer to the “Operation”... - Page 17 PARTS DIAGRAM – THLS-6 (193893001)
- Page 18 PARTS LIST – THLS-6 (193893001)
- Page 19 PARTS DIAGRAM & LIST – THLSS-6 STAND Parts No. Description Specification TH202-01 Bolt 8.8 M8*25 TH202-02 TH202-03 Washer TH202-04 Spring Washer TH202-05 Support Leg - Front CAA39011 TH202-06 Bolt 8.8 M10*25 TH202-07 Connector CBA39107-A-1 TH202-08 Rear Axle CBA39011 TH202-09 Support Leg - Rear CAA39012...
- Page 20 GJ HANDY & CO LTD USER WARRANTY POLICY 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 21 GJ HANDY & CO LTD USER WARRANTY POLICY 3. Not covered by this warranty The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident.
-
Page 22: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: 6 Ton 2200w Electric Log Splitter with Stand Model(s): THLS-6-PLUS Type/Serial No. As per rating label on machine Complies with the following directives:... -
Page 24: Tel: 01793 333212 (Mon To Friday 8.30Am To 5.30Pm)
FOR SPARES OR SUPPORT OF YOUR HANDY PRODUCT, PLEASE CONTACT US: TEL: 01793 333212 (MON – FRI 8.30AM TO 5.30PM) Email: customerservice@handydistribution.co.uk To see our complete range of garden machinery and equipment visit: www.thehandy.co.uk Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
