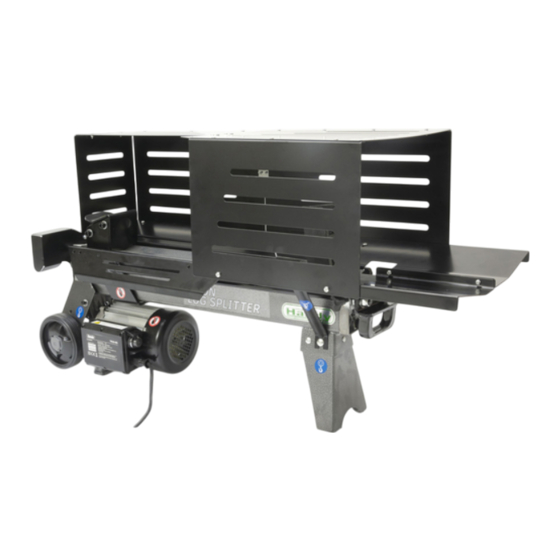

INSTRUCTION MANUAL
2200W ELECTRIC
HORIZONTAL
6-TON LOGSPLITTER
WITH GUARD
MODEL NO: THLS-6G -- PRODUCT NO: 1938181001
EN - ORIGINAL INSTRUCTIONS
ASSEMBLY REQUIRED – TWO PERSON LIFT
SAVE THESE INSTRUCTIONS
SPARES & SUPPORT: 01793 333212
FOR YOUR SAFETY
Please read & understand this manual, paying attention to the safety instructions, before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, our
policy of continuous improvement determines the right to make modifications without prior warning.
Images used are for illustration purposes only
03-09-2018
Advertisement
Table of Contents
Related Manuals for The Handy THLS-6G
Summary of Contents for The Handy THLS-6G
- Page 1 INSTRUCTION MANUAL 2200W ELECTRIC HORIZONTAL 6-TON LOGSPLITTER WITH GUARD MODEL NO: THLS-6G -- PRODUCT NO: 1938181001 EN - ORIGINAL INSTRUCTIONS ASSEMBLY REQUIRED – TWO PERSON LIFT SAVE THESE INSTRUCTIONS SPARES & SUPPORT: 01793 333212 FOR YOUR SAFETY Please read & understand this manual, paying attention to the safety instructions, before use.
- Page 2 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.
-
Page 3: Table Of Contents
CONTENTS SPECIFICATIONS IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS SET UP & PREPARATION FOR OPERATION KNOW YOUR MACHINE OPERATION CHECKING & REPLACING HYDRAULIC OIL TROUBLE SHOOTING MAINTENANCE & STORAGE WIRING & HYDRAULIC SYSTEM DIAGRAMS EC DECLARATION OF CONFORMITY PARTS DIAGRAM & LIST WARRANTY NOTES ASSEMBLY IS REQUIRED –... -
Page 4: Specifications
SPECIFICATIONS The manufacturer reserves the right to change the product specification and livery according to continued product improvements. Model Number THLS-6G Product Number 1938181001 (220-240V ~50Hz 9.6A), 2200W, S3 25%, Motor* 9.6A Splitting Force 6 Ton Forward Speed 3.08cm/s Retract Speed 5.29cm/s... -
Page 5: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 STAY ALERT Do not operate the machine while under the influence of drugs, alcohol, or any medication that could affect your ability to use it properly. Do not use this machine when you are tired or distracted from the job at hand. Always be aware of what you are doing at all times.
- Page 7 DISCONNECT POWER Unplug from the electrical supply when not in use, before adjusting, changing parts, cleaning or working on the logsplitter. All servicing and repairs are recommended to be undertaken by an approved service dealer. MAINTAIN YOUR MACHINE WITH CARE Clean the machine immediately after use.
-
Page 8: Set Up & Preparation For Operation
SET UP & PREPARATION FOR OPERATION Familiarise yourself with the assembly components of this logsplitter. If you believe you are missing any components, please contact us: TEL: 01793 333212 or EMAIL: customerservice@handydistribution.co.uk (MON – FRI 8.00AM TO 5.30PM EXCL. BANK HOLIDAYS) 1. - Page 9 ASSEMBLY LIFTING HANDLE Mount the lifting handle to the U bracket with two M6×16 bolts. LOG TRAY 1. Mount the guard bottom plate to the rear guiding plate and secure with two M6×12 socket head cap screws and locknuts. Loosen the socket head cap screw and big washer on the wheel bracket, insert the open end of support strut B between the big washer and...
- Page 10 2. Align the two mounting holes of the log tray A to the holes on rear side of the splitter. Insert one socket head cap screw M6×12 and spring washer 6 into the mounting hole on left side and the other socket head cap screw M16×12 and locknut M6 on right side and securely tighten both.
- Page 11 4. Connect log tray A and log tray B with two M6×12 screws and locknuts. STEEL GUARD Attach the front guard plate, left guard plate and two rear guard plates to the log tray and bottom plate with M6×12 bolts and nuts. Mount the two top guard plates to the vertical plates with M5×12 bolts and nuts.
-
Page 12: Know Your Machine
KNOW YOUR MACHINE Make yourself aware of the compnents and operational levers of the machine, prior to attempting any work. - Page 13 BLEED SCREW IMPORTANT Before operating the logsplitter, the Bleed Screw should be loosened a few rotations until air can go in and out of the oil tank smoothly. Air flow through the Bleed Screw hole should be noticeable while the logsplitter is working.
-
Page 14: Operation
OPERATION WARNING The safety guard supplied with this logsplitter has been done so to protect the user from debris. Using the logsplitter without the guard positioned or closed correctly, could cause serious damage to the user and bystanders. Enclose the log at all times. APPLICATION CONDITIONS This log splitter is a home use model. - Page 15 The log pusher will only start to return backwards to the starting position after both hands release the controls. During use the log pusher will move towards the splitting wedge putting pressure on the log. The trigger type lockout device is used to avoid accidental Hydraulic Control Lever activation.
- Page 16 Break the log in the direction of its growing grain. Do not place log across the log splitter for splitting. It may be dangerous and may seriously damage the machine. Do not attempt to split 2 pieces of logs at the same time.
- Page 17 RAM ADJUSTMENT The logsplitter is fitted with a Ram Adjustment Knob which reduces any unnecessary movement of the ram, allowing for quicker and more efficient use of the tool. Adjustment Knob WARNING When adjusting the ram movement, do not put your hands between the hand knob and the log splitter mechanism, as accidental release of the Control Handle would cause the returning hand knob and handle to trap and crush your hand against the splitter.
-
Page 18: Checking & Replacing Hydraulic Oil
CHECKING & REPLACING HYDRAULIC OIL CHECKING HYDRAULIC OIL LEVEL Periodically check the oil level to ensure it is between the 2 grooves around the Dipstick. To check the oil. • Stand the machine up at the wheel end. • Using an 8mm Allen Key, unscrew the Dipstick & remove it. •... - Page 19 REPLACING HYDRAULIC OIL The logsplitter is supplied with a full hydraulic oil tank; however, you should check if hydraulic oil needs to be added in case of leakage during transit, prior to your first operation. You should also replace the hydraulic oil in the logsplitter after every 150 hours of use.
-
Page 20: Trouble Shooting
TROUBLE SHOOTING PROBLEM PROBABLE CAUSE REMEDY SUGGESTED Refer to “Operation” section for perfect Log is improperly positioned log loading. The sizes or hardness of the log Reduce the log sizes before splitting it on exceeds the capacity of the the log splitter. machine Refer to “Sharpening Wedge”... -
Page 21: Wiring & Hydraulic System Diagrams
WIRING & HYDRAULIC SYSTEM DIAGRAMS WIRING DIAGRAM HYDRAULIC DIAGRAM... -
Page 22: Ec Declaration Of Conformity
EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Horizontal Electric 6 Ton Log Splitter with Guard Model(s): THLS-6G Product Number: 1938181001 Type/Serial No: As per rating label on machine Motor Wattage: 2200 Complies with the following directives: 2006/42/EC –... - Page 23 PARTS DIAGRAM – THLS-6G (1938181001)
- Page 24 PARTS LIST – THLS-6G (1938181001) – Pt 1 Item No. Handy Part No Description TH114-38 Lever Mount Nut TH244-1 Cap Nut M10 TH114-36 Lever TH114-37 Lever Knob TH244-2 Lever Guard TH114-35 Customized Nut TH114-28 Copper Gasket 10 TH155-8 Safety Valve Bolt M8 TH155-9 O-ring 5.5x2...
- Page 25 PARTS LIST – THLS-6G (1938181001) – Pt 2 Item No. Handy Part No Description TH114-29 Pressure Limited Valve Spring TH114-30 Adjusting Screw M8x8 TH244-6 Log Pusher Connection Weldment TH114-52 Plastic Insert 1 TH114-23 Plastic Insert 2 TH114-24 Log Pusher TH114-25...
- Page 26 PARTS LIST – THLS-6G (1938181001) – Pt 3 Item No. Handy Part No Description TH114-93 Airproof Underlay TH114-95 Connection Terminal TH114-96 Capacitor TH114-94 Switch TH114-97 Switch Box TH114-98 Waterproof Underlay TH114-73 Motor Support Left Shoe TH114-72 Motor Support Right Shoe...
- Page 27 GJ HANDY & CO LTD USER WARRANTY POLICY Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 28 GJ HANDY & CO LTD USER WARRANTY POLICY Not covered by this warranty a) The warranty policy does not cover any depreciation or damages caused by ordinary wear, rusting or corrosion, lack of correct maintenance or operation, misuse, abuse, lack of transportation or accident. b) The warranty policy does not cover any costs necessary for the standard periodic maintenance services instructed by the operator’s manual, or service parts replacement which would include oil, filters, tyres, belts, brake linings, fuses, blades, seals and other service parts unless it can be proven that the item has...
-
Page 29: Notes
NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________... - Page 30 NOTES ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________ ________________________________________________________...
-
Page 32: Tel: 01793 333212
For spares or support of your handy product, please contact us: Tel: 01793 333212 Email: customerservice@handydistribution.co.uk (Mon – Fri 8.00am to 5.30pm excl. Bank Holidays) To see our range of garden machinery & equipment visit: www.thehandy.co.uk Making gardening easier & affordable since 1938 Distributed by Handy Distribution, Murdock Road, Dorcan, Swindon, SN3 5HY...
