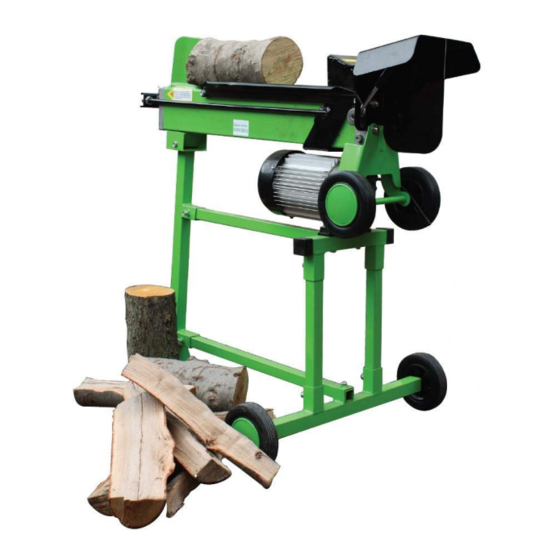

Log splitter stand

Advertisement

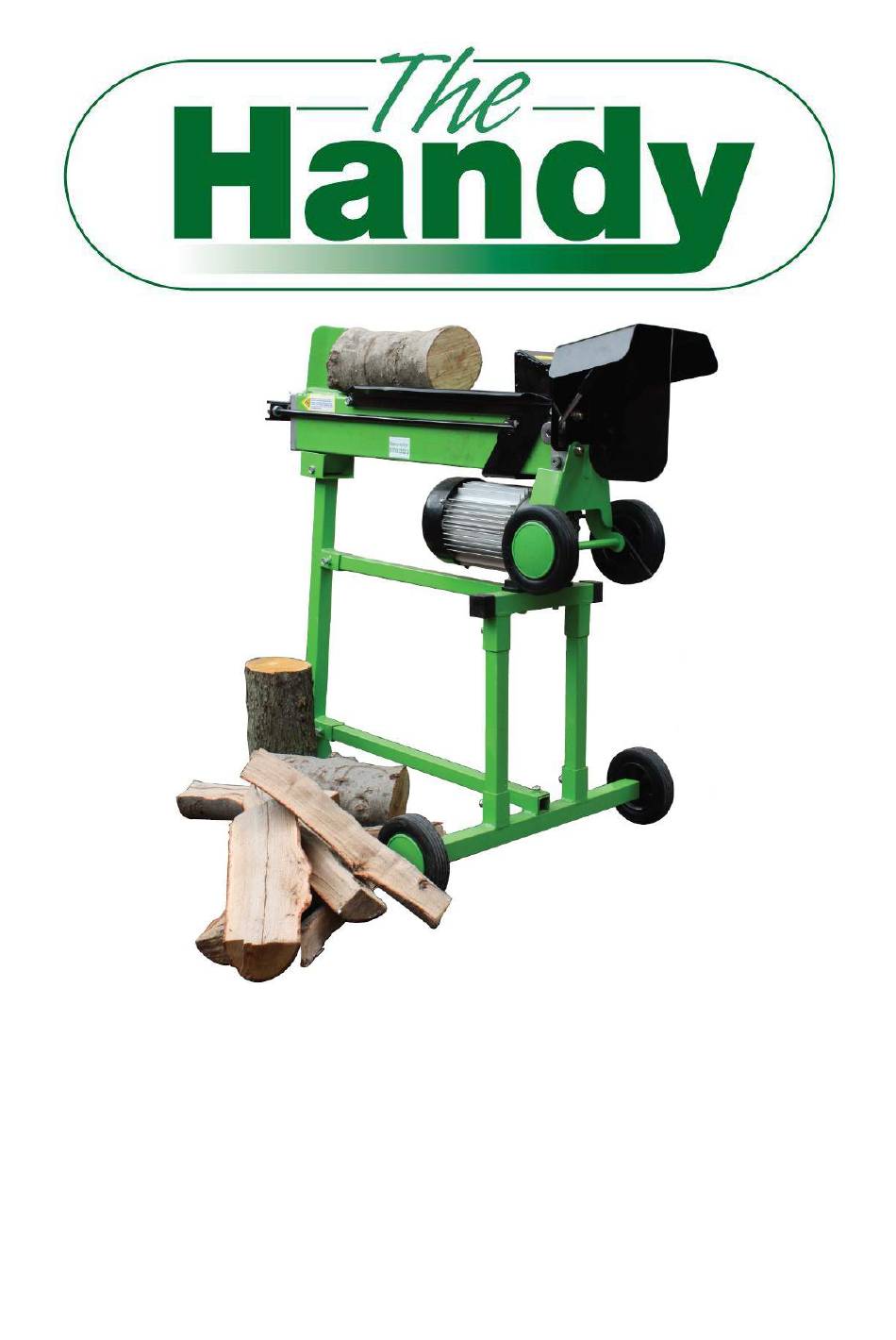

OPERATOR'S MANUAL AND PARTS LIST

Log Splitter Stand - THLSS-B

Spares & Support: 01793 333212
www.thehandy.co.uk
Before use please read & understand this manual, paying particular
attention to the safety instructions.
13/02/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the THLSS-B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for The Handy THLSS-B

  • Page 1 OPERATOR’S MANUAL AND PARTS LIST Log Splitter Stand - THLSS-B Spares & Support: 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 13/02/2012...
  • Page 2 Log Splitter Stand-THLSS-B This stand is produced to support The Handy Log splitter THLS-B Thank you for purchasing The Handy log splitter stand. Please carefully read the assembly instructions for the safety of yourself and the persons around you. PRODUCT SPECIFICATION Measure: 74x64x70cm Net Weight: 9.5kg...
  • Page 3 Parts List and Diagram Name Main upright support leg Horizontal bar Horizontal bar Screw (M8 X 100) 4-1 Nut (M8) Screw(M8 X 16) Stand fixing for electrical motor Screw(M8 X 50) Axle and wheels Leg Support Leg Support Fig 2.
  • Page 4 Stand Assembly - As Per Fig 3. Using the parts and fixings supplied assemble as follows: 1. Pass part C through the centre mounting bracket on part G 2. Connect parts E and F to the outer mounting brackets on parts G 3.
  • Page 5 Remove the supporting foot (part 22) on your log splitter THLS-B as shown in Fig 4. (Please keep these parts safe for future use). Remove the nut and bolt (4 and 4.1 Fig 2) from the main upright support leg A. Carefully lower the log splitter into place on the stand as shown in Fig 5.
  • Page 6 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212...
