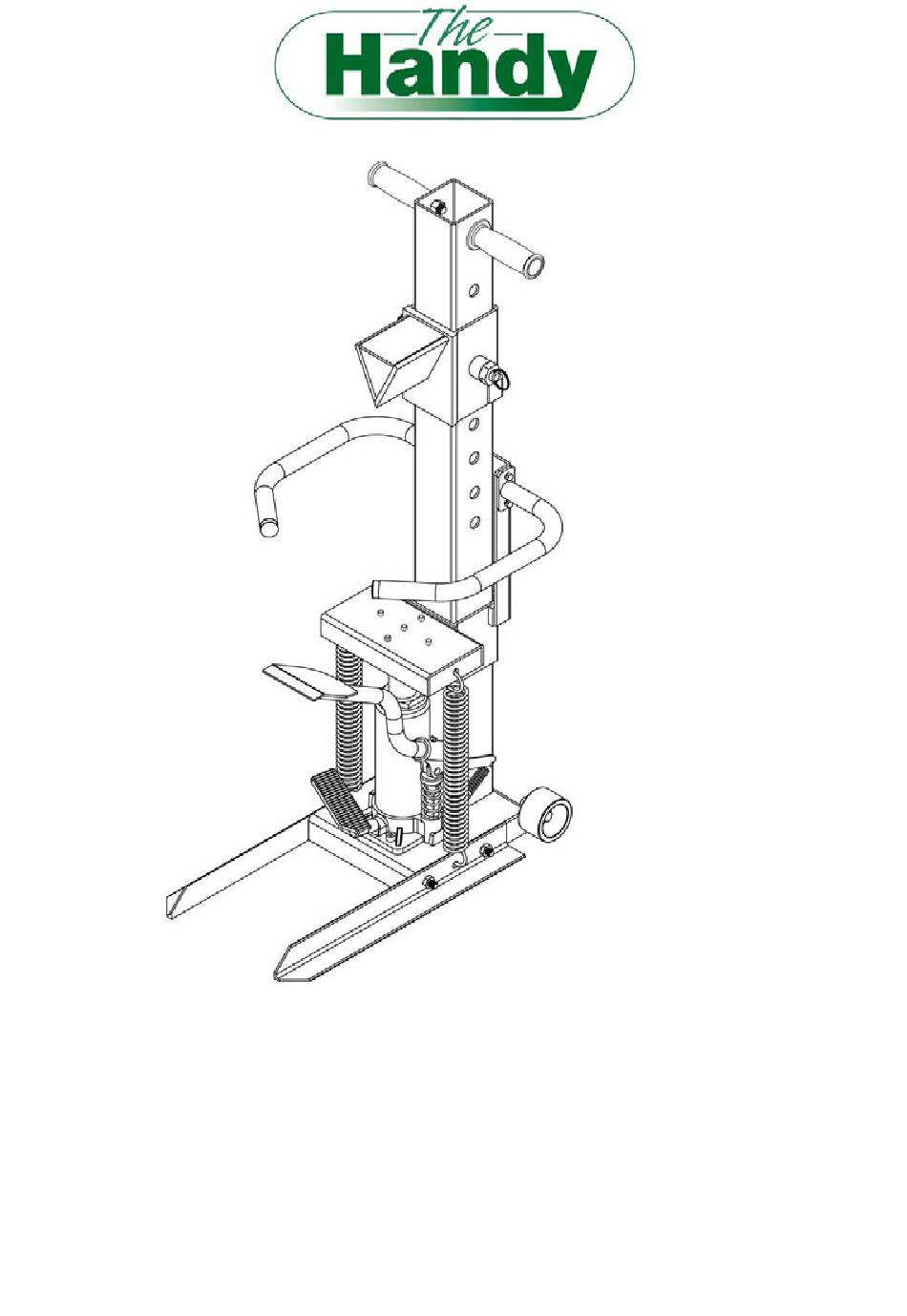

- Page 1 OPERATOR’S MANUAL AND PARTS LIST 8 Ton Manual Logsplitter - THMLS Spares & Support: 01793 333212 www.thehandy.co.uk Before use please read & understand this manual, paying particular attention to the safety instructions. 2013-04-03...
- Page 2 *** READ ALL WARNINGS BEFORE OPERATION!*** Always wear safety glasses when using this log splitter! Tie back long hair, roll up sleeves and remove any loose clothing, jewellery or gloves to prevent them getting caught in moving parts. This log splitter is only intended to be used to split logs! Serious injury may occur if this log splitter is used for any other purpose than its intended use.
- Page 3 ASSEMBLY: Place log splitter horizontal or vertical on floor in a clear and level area. Refer to the parts list for the following steps: Step 1: Attach The Handles Attach handles (part #8) to the top of the log splitter. One handle on each side. Secure each handle using a Lock Washer Ø10 (part #20) and M10 Hex Nut (part #21).
- Page 4 Step 3: Attach The Base Feet Attach the Base Feet (part #22) to the bottom of the main post near the hydraulic pump as shown in Step 3. One foot on each side. Secure each foot using two M10X25 Hex Bolts (part #19), two Lock Washers Ø10 (part #20) and two M10 Hex Nuts (part #21).
- Page 5 Step 5: Attach The Pull Springs Attach each pull spring (part #13) into the centre hole of the foot leg first. Then attach the opposite end to the splitter workbench (part #11). Repeat Step 5 for each spring. Step 6: Attach The Log Cradle Attach the log cradle (part #29) to the main post by using a Hex Bolt M6x12 (part #31) and a Lock Washer Ø6 (part #32).
-
Page 6: Operation
OPERATION: 1. Cut the logs for splitting to 23” or less to fit into the splitter. 2. To enable the hydraulic jack ram -- pump the foot pedal of the hydraulic pump to raise the splitter workbench. 3. Pull both of the wedge release pins out of the holes in the post, and lower the wedge to a height slightly more than the length of the log. -
Page 7: Maintenance
STORAGE: Store the log splitter in a dry location with the pressure released by treading the release lever. MAINTENANCE: Wipe down the log splitter to remove any tree sap or dirt after each use. Occasionally, you may need to add hydraulic oil to maximise performance. To add oil to the hydraulic pump: Note: Refer to the Parts Breakdown to identify the parts named below. - Page 8 8 TON MANUAL LOG SPLITTER PARTS DIAGRAM 2013-04-03...
-
Page 9: Parts List
PARTS LIST WEBB NO. DESCRIPTION TH196-1 Sleeve With Thread TH196-2 TH196-3 Ring TH196-4 Pressure Spring TH196-5 Foot Pedal TH196-6 Hex Bolt M6x10 TH196-7 Beam Frame TH196-8 Handle TH196-9 Inner Hex Screw M6x12 TH196-10 Wedge Assembly TH196-11 Workbench TH196-12 Hydraulic Pump TH196-13 Pull Spring TH196-14... - Page 10 We, Importer Handy Distribution SN3 4NS Declare that the product Designation: Manual 8 Ton Logsplitter Model: THMLS Complies with the following directives: 2006/42/EC - Machinery Directive The conformity assessment procedure followed was in accordance with Directive 2006/42/EC Name of the Notified Body: Ente Certificazione Macchine Srl.
- Page 11 2013-04-03...
- Page 12 To order spare parts and see the complete range of garden machinery and garden equipment from Handy, visit: www.thehandy.co.uk Spares & Support: 01793 333212 2013-04-03...
