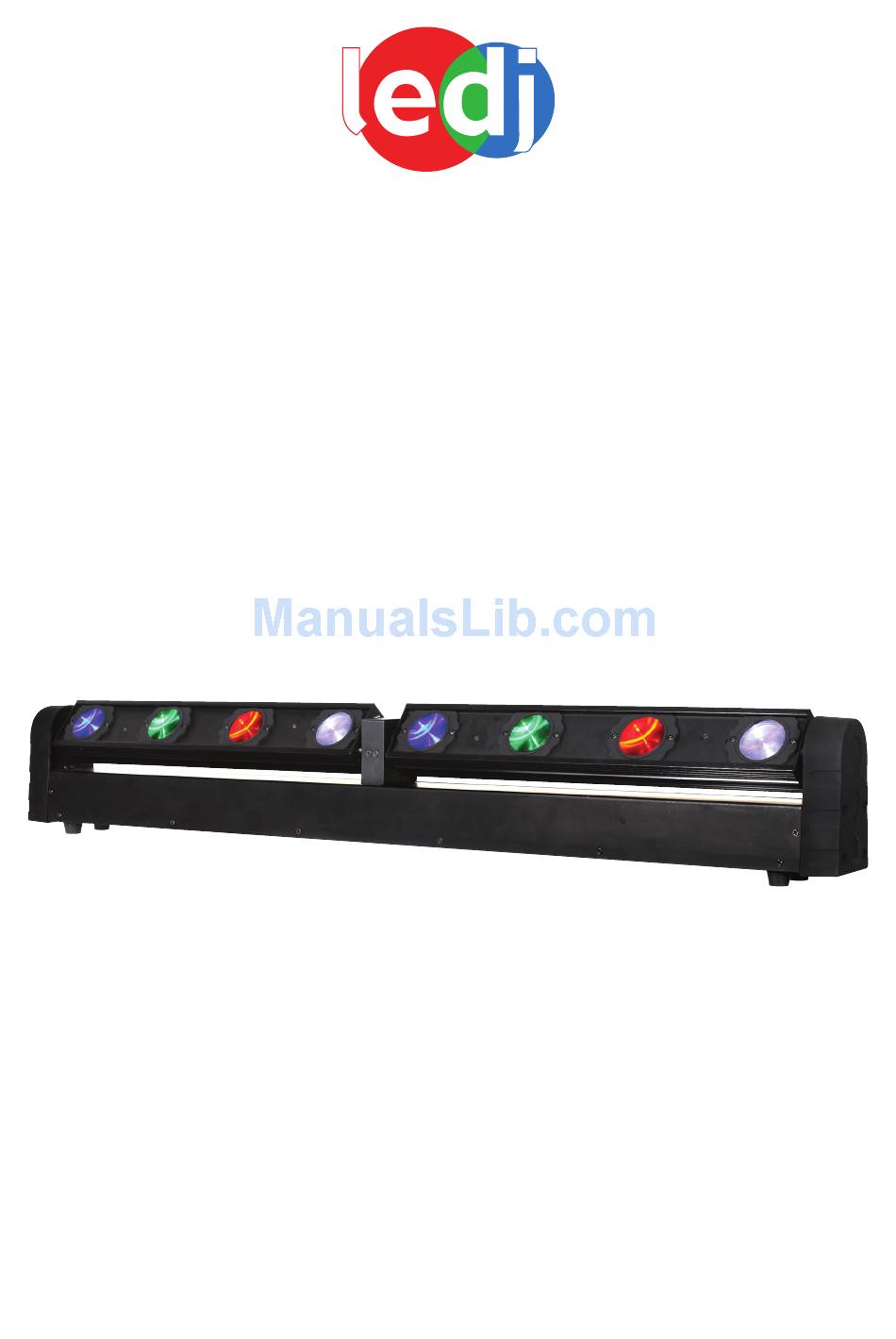

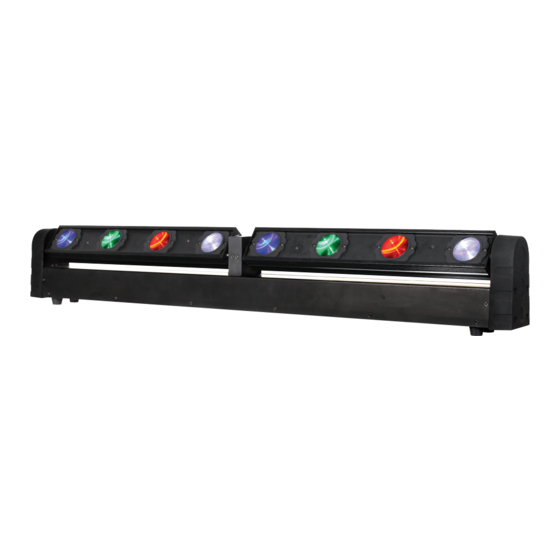

- Page 1 Vector Beam Quad User Manual Order code: LEDJ266...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. • To maintain the equipment in good working condition and to ensure safe operation, it is necessary for the user to follow the safety instructions and warning notes written in this manual. • Please note that damages caused by user modifications to this equipment are not subject to warranty. CAUTION! CAUTION! TAKE CARE USING KEEP THIS EQUIPMENT THIS EQUIPMENT! AWAY FROM RAIN, HIGH VOLTAGE-RISK MOISTURE AND LIQUIDS OF ELECTRIC SHOCK!! IMPORTANT:... - Page 3 • Convection cooled LED’s • Quick release omega clamps included 3° - Lux 8993 2743 1239 14720 3949 1725 Specifications Vector Beam Quad 3143 24640 7328 3326 1887 1231 Power consumption 110W Power supply 100~240V, 50/60Hz Dimensions 156 x 1066 x 80mm 3° Weight 8.7kg Order code LEDJ266 1066mm 80mm www.prolight.co.uk Vector Beam Quad User Manual...
-
Page 4: Technical Specifications
Technical specifications ector BEAM MENU ENTER DOWN POWER IN POWER OUT 3-PIN DMX IN 5-PIN DMX IN 100-240V~50/60Hz FUSE: T2.0A 250V 100-240V~50/60Hz 5-PIN DMX OUT 3-PIN DMX OUT ector BEAM MENU ENTER DOWN POWER IN POWER OUT 3-PIN DMX IN 5-PIN DMX IN 100-240V~50/60Hz FUSE: T2.0A 250V... -
Page 5: Dmx Channel Mode
Operating instructions DMX channel mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX channel mode, press the “MENU” button on the rear of the unit to show “DMX” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust each setting. The “Address” setting allows the user to adjust the DMX address betweeen “001” and “512”. The “Channel” setting allows the user to select from one the DMX channels “1/36 or 40” and “512”. Please note: When a DMX lead is connected and a signal is being received correctly the LCD display will show “DMX IN”. 1 channel mode: Channel Value Function 0-19 Blackout 20-29 Show 1 30-39 Show 2 40-49 Show 3 50-59 Show 4 60-69 Show 5 70-79 Show 6 80-89 Show 7... - Page 6 Operating instructions 36 channel mode: Channel Value Function 000-180 Left bar 0-180° tilt 181-255 Left bar is static at 180° 000-255 Left bar tilt speed (000: fast, 255: slow) 000-255 Right bar tilt 0-180° 000-255 Right bar is static at 180° 000-255 Right bar tilt speed (000: fast, 255: slow) 000-255 LED 1 Red (0-100% dimming) 000-255 LED 1 Green (0-100% dimming) 000-255 LED 1 Blue (0-100% dimming) 000-255 LED 1 White (0-100% dimming) 000-255 LED 2 Red (0-100% dimming) 000-255 LED 2 Green (0-100% dimming) 000-255 LED 2 Blue (0-100% dimming) 000-255 LED 2 White (0-100% dimming) 000-255 LED 3 Red (0-100% dimming) 000-255 LED 3 Green (0-100% dimming) 000-255 LED 3 Blue (0-100% dimming) 000-255 LED 3 White (0-100% dimming) 000-255 LED 4 Red (0-100% dimming)
-
Page 7: Show Mode
Operating instructions 40 channel mode: Channel Value Function 000-255 LED 1 Blue (0-100% dimming) 000-180 Left bar 0-180° tilt 000-255 LED 1 White (0-100% dimming) 181-255 Left bar is static at 180° 000-255 LED 2 Red (0-100% dimming) 000-255 Left bar tilt speed 000-255 LED 2 Green (0-100% dimming) (000: fast, 255: slow) 000-255 LED 2 Blue (0-100% dimming) 000-255 Right bar 0-180° tilt 000-255 LED 2 White (0-100% dimming) 000-255 Right bar is static at 180° 000-255 LED 3 Red (0-100% dimming) 000-255 Right bar tilt speed 000-255 LED 3 Green (0-100% dimming) (000: fast, 255: slow) 000-255 LED 3 Blue (0-100% dimming) 000-255 Master dimmer 000-255 LED 3 White (0-100% dimming) 000-009 Blackout... -
Page 8: Sound Mode
Operating instructions LED: Press “ENTER” to go into the LED settings. Within this the user can either choose “e-Auto” or “e-Manul”. “e-Auto” - press the “ENTER” button for a menu to adjust the speed and frequency. “SPEED” - press the “ENTER” button to adjust the speed between “1-20” (1 being slowest, 20 being fastest). “FREQ” - press the “ENTER” button to adjust the flash speed from “00-20Hz” (00 being lowest, 20 being highest). “e-Manul” - press the “ENTER” button for a menu to choose the colour you require: Red/Green/Blue/White/Yellow/Cyan/Purple/Light Red/Light Green/Light Blue/All on/Black. BAR: Press “ENTER” to go into the BAR settings. Within this the user can either choose “m-Auto” or “m-Manul”. “m-Auto” - press the “ENTER” button to adjust the speed between “16” (1 being slowest, 16 being fastest). “m-Manul” - press the “ENTER” button to adjust the position of the left and right bar. “L-BAR” - press the “ENTER” button to adjust the left bar between “0-180°”. “R-BAR” - press the “ENTER” button to adjust the left bar between “0-180°”. Sound mode: To access sound mode, press the “MENU” button on the rear of the unit to show “SOUND” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to select the sensitivity between “01-31” (01 being lowest, 31 being highest). Slave mode: To access sound mode, press the “MENU” button on the rear of the unit to show “SLAVE” on the LCD display. Settings: To access the fixtures settings, press the “MENU” button on the rear of the unit to show “SETTINGS” on the LCD display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust each setting. These are as follows: “BL TIME” - press the “ENTER” button to adjust the LCD backlight auto switch-off time from “ON”... -
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 511. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. For example, a fixture that occupies or uses 7 channels of DMX and was addressed to start on DMX channel 100, would read data from channels: 100,101,102,103,104,105 and 106. Choose a start address so that the channels used do not overlap. E.g. the next unit in the chain starts at 107. DMX 512: DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX fixtures (most controllers only have a data “out” terminal). DMX linking: DMX is a language allowing all makes and models of different manufactures to be linked together and operate from a single controller, as long as all fixtures and the controller are DMX compliant. To ensure proper DMX data transmission, when using several DMX fixtures try to use the shortest cable path possible. The order in which fixtures are connected in a DMX line does not influence the DMX addressing. For example; a fixture assigned to a DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at the end, or anywhere in the middle. When a fixture is assigned a DMX address of 1, the DMX controller knows to send DATA assigned to address 1 to that unit, no matter where it is located in the DMX chain. DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Do not connect the cables shield conductor to the ground lug or allow the shield conductor to come in contact with the XLRs outer casing. Grounding the shield could cause a short circuit and erratic behaviour. Special note: Line termination: When longer runs of cable are used, Termination reduces signal transmission you may need to use a terminator on problems and interference. It is always advisable to connect a DMX terminal, the last unit to avoid erratic behaviour. (resistance 120 Ohm 1/4 W) between pin 2 Using a cable terminator will decrease (DMX-) and pin 3 (DMX+) of the last fixture. the possibilities of erratic behaviour. (3-pin - Order ref: CABL90, 5-pin - Order ref: CABL89) 5-pin XLR DMX connectors: Some manufactures use 5-pin XLR connectors for data transmission in place of 3-pin. 5-pin XLR fixtures may be implemented in a 3-pin XLR DMX line. When inserting standard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be used. The diagram below details the correct cable conversion. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Vector Beam Quad User Manual... - Page 12 www.prolight.co.uk Vector Beam Quad User Manual...
