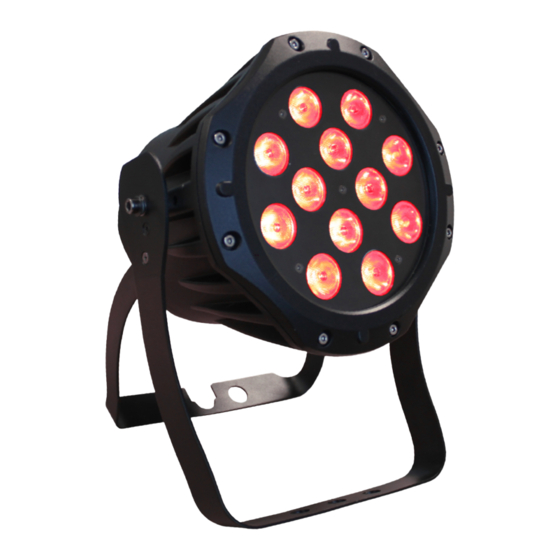

- Page 1 . p r o l i g h t . c o . u k OUTDOOR TRI PAR USER MANUAL Order code: LEDJ225...
- Page 2 Outdoor Tri Par Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! INPUT VOLTAGE OF 110~240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT! HIGH VOLTAGE-RISK OF ELECTRIC SHOCK!!
- Page 3 Outdoor Tri Par Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Outdoor Tri Par Technical specifications You should find inside the LEDJ carton the following items: 1, Outdoor Tri Par 2, Instruction manual 3, Power cable Technical Specifications: DMX channels: 6 12 x Ultra Bright 3W Tri-colour LEDs IP rated power in/out sockets...
- Page 5 Outdoor Tri Par Operation Operation: There are 5 different operation modes to choose from: 1) Static colour mode 2) Colour change mode 3) Colour fade mode 4) Master/slave 5) DMX mode 1, Static colour mode Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the “ENTER”...
- Page 6 Outdoor Tri Par Operation 5, DMX addressing mode To access the DMX address mode, press the “MODE” button until the LED display shows “A001”, and use the “UP and “DOWN” buttons to select the desired DMX address and press the “ENTER”...
- Page 7 Your unit and your DMX controller require a 3-pin XLR connector for data input/ output (figure 1). Figure 1 DMX cables can be purchased from all LEDJ dealers. Please quote: LEDJ91 - 1M Further exterior extension DMX cables can be purchased from all LEDJ dealers.
- Page 8 Outdoor Tri Par DMX Set up Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
