- Page 1 OPERATION MAINTENANCE INSTRUCTION MANUAL ALU-40TC ALU-40TC PORTABLE PORTABLE DENTAL LAMP DENTAL LAMP...
-
Page 2: Table Of Contents
CERTIFIED TO CSA STD C22.2 NO. 601.1 INFORMATION CONCERNING THE ACCURACY AND PRECISION OF THIS PRODUCT MAY BE OBTAINED UPON REQUEST BY CONTACTING ASEPTICO AT THE ADDRESS SHOWN ON THIS PAGE. To prevent injury to people and damage to property, please heed relevant warnings and remarks. -
Page 3: Package Contents

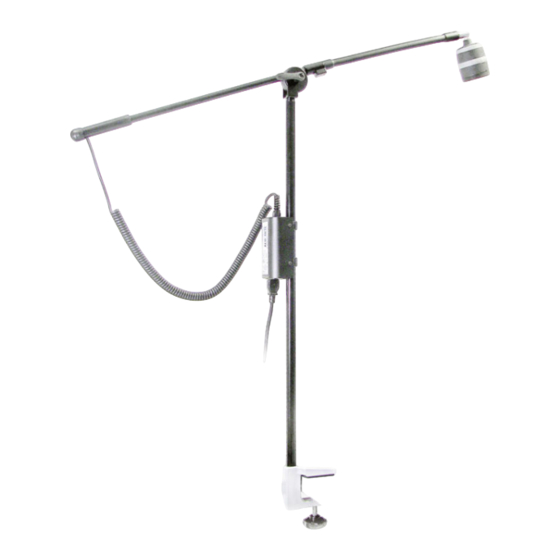

Your new Aseptico ALU-40TC Lamp is one of the finest operating lights available to the dental and medical professions. The ALU-40TC uses an LED light source which provides brilliant white light, reduced power consumption, and longer operating life. The universal voltage input Lamp operates from 100VAC to 240VAC, 50 and 60Hz, and it provides an auxillary DC input that allows 12V and 24V battery operation in the field. -
Page 4: Safety Precautions
All repairs to the LED Assembly, Boom Arm, and Power Supply are to be performed by authorized Aseptico service personnel only. WARNING: Do not install where there is a risk of an explosion. The ALU-40TC is not intended for operation in the presence of flammable anesthetics or gases. CAUTION: Connect AC power supply mains cable to a properly grounded outlet only. - Page 5 TABLE CLAMP Adjustable, up to 1.5" (3.81 cm) Max. Open Remove the ALU-40TC Lamp Assembly IMPORTANT: The table or support and accessory pouch from the carrying structure must be strong enough to safely case. Remove the Table Clamp from the support the Lamp Assembly.
- Page 6 Figure 2, page 3) and plug cord into a DC BATTERY CLIP grounded electrical outlet. NOTE: The ASSEMBLY (Optional) ALU-40TC Lamp features auto-sensing, global voltage compatibility for 100VAC, 115VAC, 230VAC, and 240VAC at 50Hz and 60Hz. The fuses provided are correct for these line voltages. NOTE: A USA style 110V power cord and 220V adapter are shipped with the unit.
-
Page 7: Setup
OPERATION: After the ALU-40TC Lamp has been set up, Fig. 4 - Illumination Controls the unit is ready to operate: Ensure that the protective Lens Cover is BRIGHTER BEAM mounted onto the front of the Lamp Head WIDER BEAM (see Figure 4). -
Page 8: Maintenance
Replacement Kit, PN: AA-40LK, from Aseptico. Follow these steps to replace Fig. 6 - Beam Adjustment the Lens (see Figure 5): a) Turn ALU-40TC power Off and unplug Lamp from power source. 28" (71 cm) b) Pull Lens Cover (461936) off the front of Lamp Head to expose the Fresnel Approx. - Page 9 Reinstall the Fuse Holder. Fig. 7 - Lens Adjustment Shelves NOTE: The ALU-40TC features auto- sensing, global voltage compatibility. The fuses indicated are correct for 100V-240V 50/60 Hz line voltages. SHELVES 4. CLEANING: WARNING Turn the power off and unplug the unit before following the steps below.
- Page 10 ALU-40TC PARTS DIAGRAM Figure 9 - Lamp Boom ALU-40TC LAMP HEAD: Refer to Figure 11, page 12...
- Page 11 HOLE PLUG NYLON 1/2 IN BLACK 510202 M/S STNLS PHDPHL 10-24 X 5/8 THRD CUTTING 510732 END CAP, MODIFIED BOOM, ALU-40 461959 CABLE COILED 2 CONDUCTOR ALU-40TC 870319 HANDLE CLAMP LEVR, M8X1.0 FEM THRD, BLK 850076 CLAMP, BOOM ALU-40TC 730646...
- Page 12 ALU-40TC PARTS DIAGRAM Figure 10 - Lamp & Power Supply...
- Page 13 PARTS LIST - Lamp & Power Supply Item Description Part Number BRACKET POLE POWER SUPPLY ALU-40TC 461945 C/S BTNSOC BLK 6-32 X 1/4 510009 OVERLAY POWER SUPPLY ALU-40TC 420921 TOP HOUSING POWER SUPPLY ALU-40TC 461943 TIE WRAP 4" PICO WHT...
- Page 15 RES 100K TRIM POT 350V 1/2W 810430 WIRE #24 TEFLON 41/40 TINNED COPPER WHT 870314 WIRE #24 TEFLON 41/40 TINNED COPPER BLK 870320 PCB ASSY LAMP HEAD ALU-40TC 330578 FTN UNIVERSAL JOINT M10-1.0 MALE THRDS 730643 WASHER #6 NYL .140 ID X .312 OD X .032 THK...
-
Page 16: Troubleshooting
Lamp ‘Off’.) - Check plug and electrical source. - LED Assembly might be damaged - Return entire Lamp Assembly to Aseptico for repairs. - Replace both fuses, 0.160 Amp, 5 x 20mm, 250V, Fuse is blown:... -
Page 17: Specifications
SPECIFICATIONS: Environmental Conditions Lamp Height: 30" (76.2 cm) Operating Temperature: 10 to 45°C (50 to 113°F) Boom Length: 41" (104.1 cm) Transportation & Storage Temperature:-20 to 60°C Weight: 4.8 lbs (2.17 kg) (-4 to 140°F) Table Clamp: Adjustable, up to 1.5" Relative Humidity: 10 to 90% non-condensing (3.81cm) max. -
Page 18: Symbol Definitions
SYMBOL DEFINITIONS: Attention, consult Protective Earth (Ground) accompanying documents Type B Equipment Temperature Limitation Class II Equipment Humidity Limitation Dangerous Voltage Atmospheric Pressure Limitation Alternating current Do Not Throw Into Trash Manufacturer Fuse Rating 0.160A Authorized European Representative... -
Page 19: Warranty
Aseptico's sole obligation under product warranty is (at its sole option and discretion) to repair or replace any defective component or product in part or whole. Aseptico shall be the sole arbiter of such action. - Page 20 P.O. Box 1548 • Woodinville, WA 98072 8333 216 Street S.E. • Woodinville, WA 98072 (425) 487-3157 • (800) 426-5913 www.aseptico.com • info@aseptico.com P/N: 420923 Rev. E ECO 14684 PRINTED IN THE USA 03/2019...
