- Page 1 OPERATION AND MAINTENANCE MANUAL Portable Dental Stool Item ADC-08 P.O. Box 1548 • Woodinville, WA 98072-1548 1-800-426-5913 • 425-487-3157 • Fax: 360-668-8722 email: info@aseptico.com • Internet: www.aseptico.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ..............3 Purpose . -
Page 3: Introduction

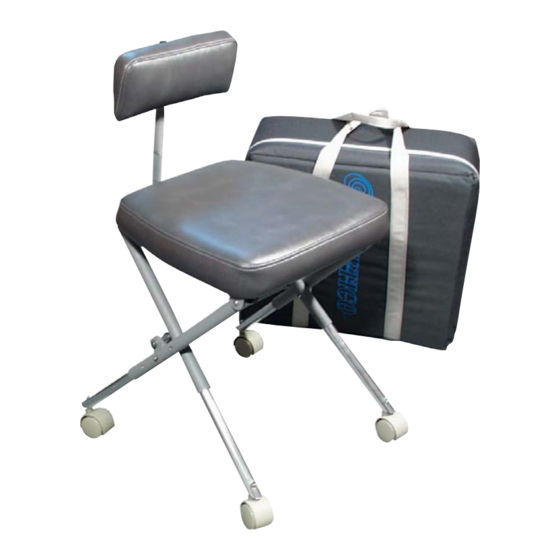

PURPOSE: Aseptico ADC-08 Portable Operator Stools provide seating for a doctor or an assistant during field dentistry and medical treatment. The padded seats and backrests make these stools comfortable for extended use, while the folding design and light weight ensure maximum portability. -
Page 4: Operation Instructions
1. Remove the stool from its carrying case and swivel the back support to the upright position. (Fig. 1) 2. Turn the ADC-08 Stool upside down and set on the edge of an elevated flat surface such as a table or counter top. Scissor the leg frame so... - Page 5 NOTES Page 5...
-
Page 6: Parts Diagram
Figure 4 - Parts Diagram Page 6... -
Page 7: Parts List
C/S, ¼-20x2 ¼" BtnSoc S/S 510440 C/S, ¼-20x1 ¼" BtnSoc S/S 510295 Nut, ¼-20 nyloc S/S 510296 Woodscrew, #10x1" flthd 510264 Spacer, 0.615"O.D.x1.0L Al 460894-08 C/S, 10-32x1” Flthd Soc S/S 510439 Strap, Retaining ADC-08 461954 Not Shown Case, grey carrying 410093 Page 7... - Page 8 Aseptico's sole obligation under product warranty is (at its sole option and discretion) to repair or replace any defective component or product in part or whole. Aseptico shall be the sole arbiter of such action.
