Labnet TC9600-G Operation Manual page 8

Name
Lid
The lid with heating pad is designed to protect against evaporation
resulting from heating of the reaction tube and reaction plate.
Lid Knob
Rotate Lid Knob in clockwise will lower the heating plate to place
pressure on the cap of tubes. This forces the tubes to sit firmly in the
block for better contact. Rotate Lid Knob in counter-clockwise
direction until the Lid pops up. Only after the Lid pops, can users
slide the Lid to the rear.
Sample Block
Section of the unit in which sample tubes and plates are placed.
Key-Pad
Used to enter the various Protocols and settings.
Control Panel
which includes Display and Key-Pad
Display
Displays current status of the various system features and functions.
Air Vents (Front) for air output
Air Vents (Left
for air output
and Right Sides)
Air Vents
for air intake
(Bottom)

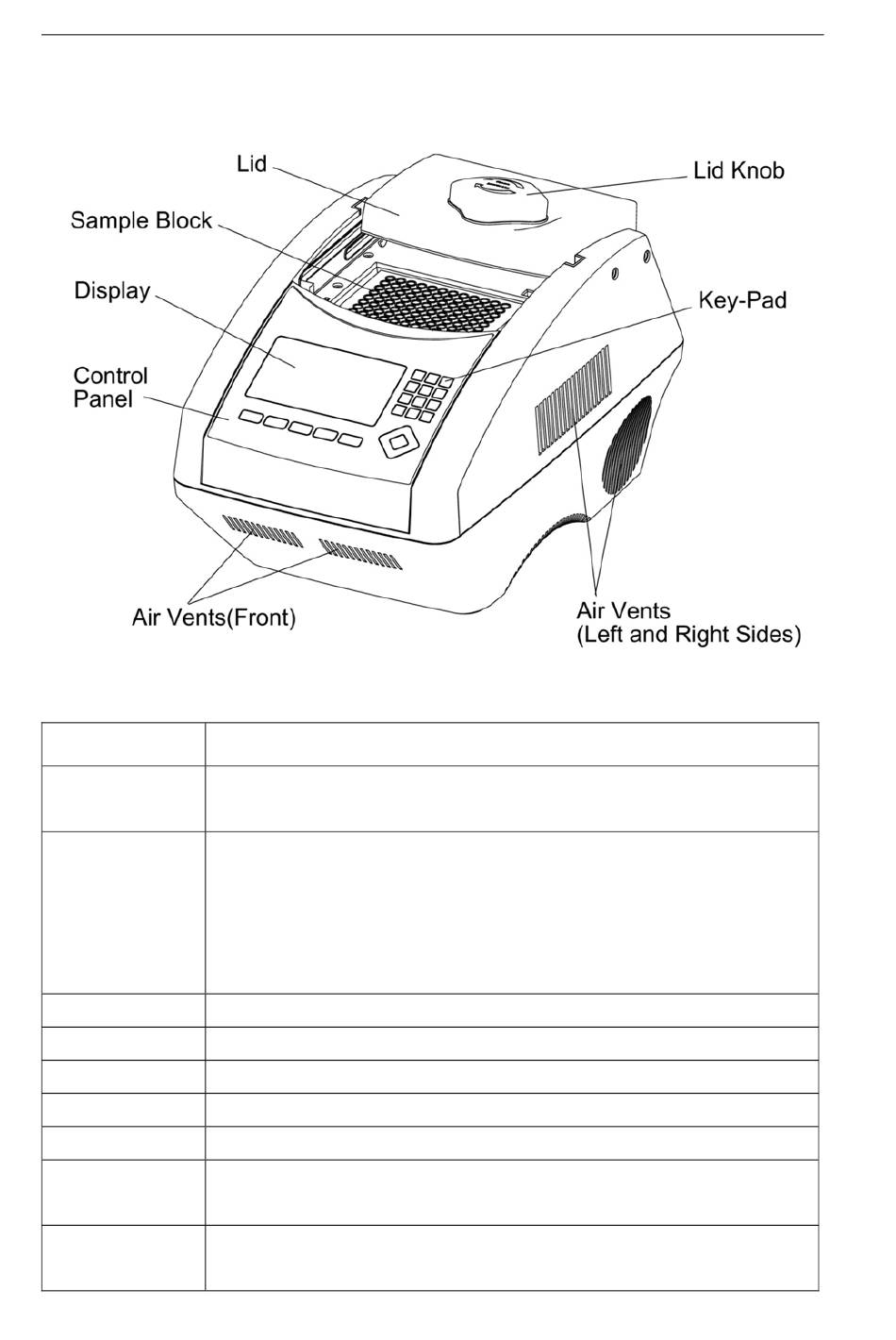

Figure 2. Front View
Function
4
