MULTISPAN UTC-121P Operating Manual page 2

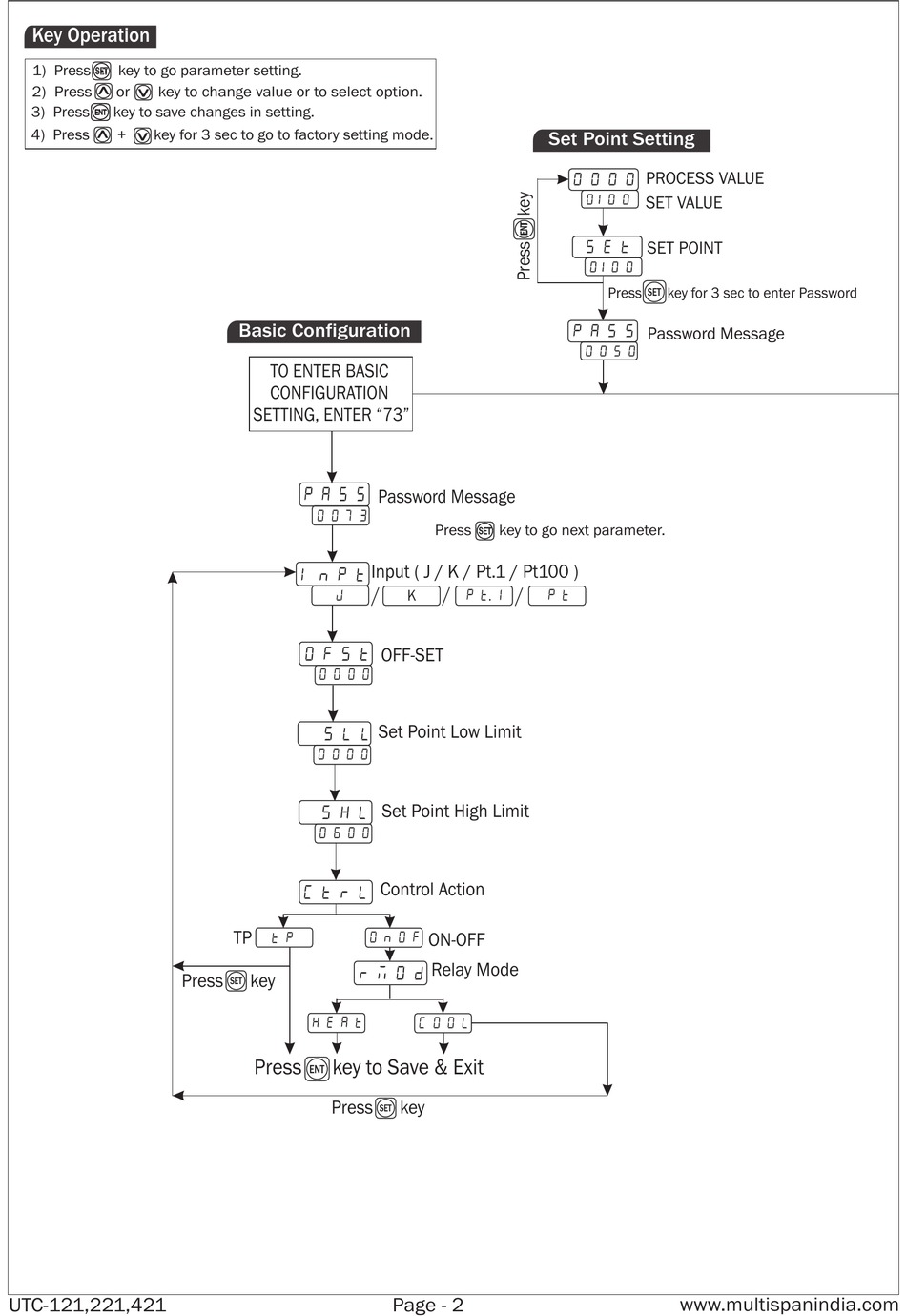

Key Operation
1) Press key to go parameter setting.
SET
2) Press or key to change value or to select option.
3) Press key to save changes in setting.
ENT
4) Press + key for 3 sec to go to factory setting mode.
UTC-121,221,421
Basic Configuration
TO ENTER BASIC
CONFIGURATION
SETTING, ENTER "73"
P A S S Password Message
0 0 7 3
I N P T Input ( J / K / Pt.1 / Pt100 )
J
O F S T
0 0 0 0
S L L
0 0 0 0
S H L
0 6 0 0
C T R L
TP
t p
Press key
SET
H E A T
Press key to Save & Exit
ENT
Press
Press key to go next parameter.
SET
P T 1 .
K
OFF-SET
Set Point Low Limit
Set Point High Limit
Control Action
O N O F
ON-OFF
Relay Mode
R M O D
C O O L
key
SET
Page - 2
Set Point Setting
0 0 0 0 PROCESS VALUE
01 0 0
SET VALUE
S E T
SET POINT
01 0 0
Press key for 3 sec to enter Password
SET
P A S S Password Message
0 0 5 0
P T
