Advantech PCI-1758UDO Startup Manual

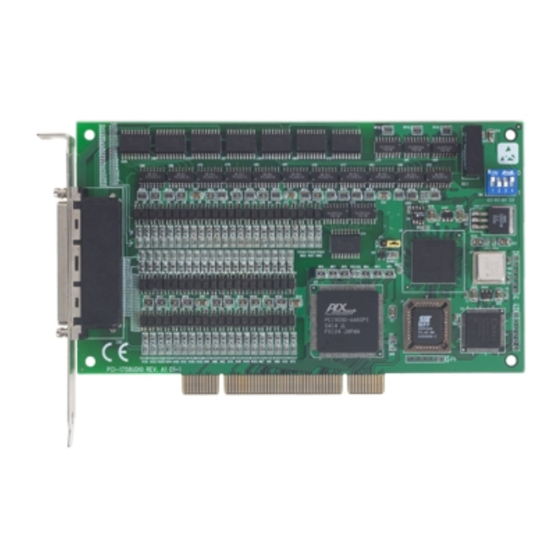

PCI-1758UDO
128-ch Isolated Digital Output Card
Packing List
Before installation, please make sure that you have
received the following:
• PCI-1758UDO card
• Driver CD
• Quick Start User Manual
If anything is missing or damaged, contact your dis-
tributor or sales representative immediately.
User Manual
For more detailed information on this product, please
refer to the PCI-1758U User Manual on the
CD-ROM (PDF format).
CD:\Documents\Hardware Manuals\PCI\PCI-1758U
Declaration of Conformity
FCC Class A
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the equip-
ment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause interference in which case the user
is required to correct interference at his own expense.
CE
This product has passed the CE test for environmental speci-
fications when shielded cables are used for external wiring.
We recommend the use of shielded cables. This kind of cable
is available from Advantech. Please contact your local sup-
plier for ordering information.
Overview
The PCI-1758UDO card enables powerful data acquisition
(DAS) for the PCI bus. It features a unique circuit design,
and complete functions for data acquisition and control. The
PCI-1758UDO card provides specific functions for different
user requirements.
Notes
For more information on this and other Advantech prod-
ucts, please visit our websites at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
This startup manual is for PCI-1758UDO
Part No. 2003175831
1 Startup Manual
Software Installation
Hardware Installation
1. Turn off your computer and unplug the power cord
and cables. TURN OFF your computer before
installing or removing any components on the
computer.
2. Remove the cover of your computer.
3. Remove the slot cover on the back panel of your
computer.
4. Touch the metal part on the surface of your com-
puter to neutralize the static electricity that might
be on your body.
5. Insert the PCI-1758UDO card into a PCI slot.
Hold the card only by its edges and carefully align
it with the slot. Insert the card firmly into place.
Use of excessive force must be avoided; other-
wise, the card might be damaged.
6. Fasten the bracket of the PCI card on the back
panel rail of the computer with screws.
7. Connect appropriate accessories (68-pin cable,
wiring terminals, etc. if necessary) to the PCI
card.
8. Replace the cover of your computer chassis. Re-
connect the cables you removed in step 2.
2nd Edition
9. Plug in the power cord and turn on the computer.
May 2011
