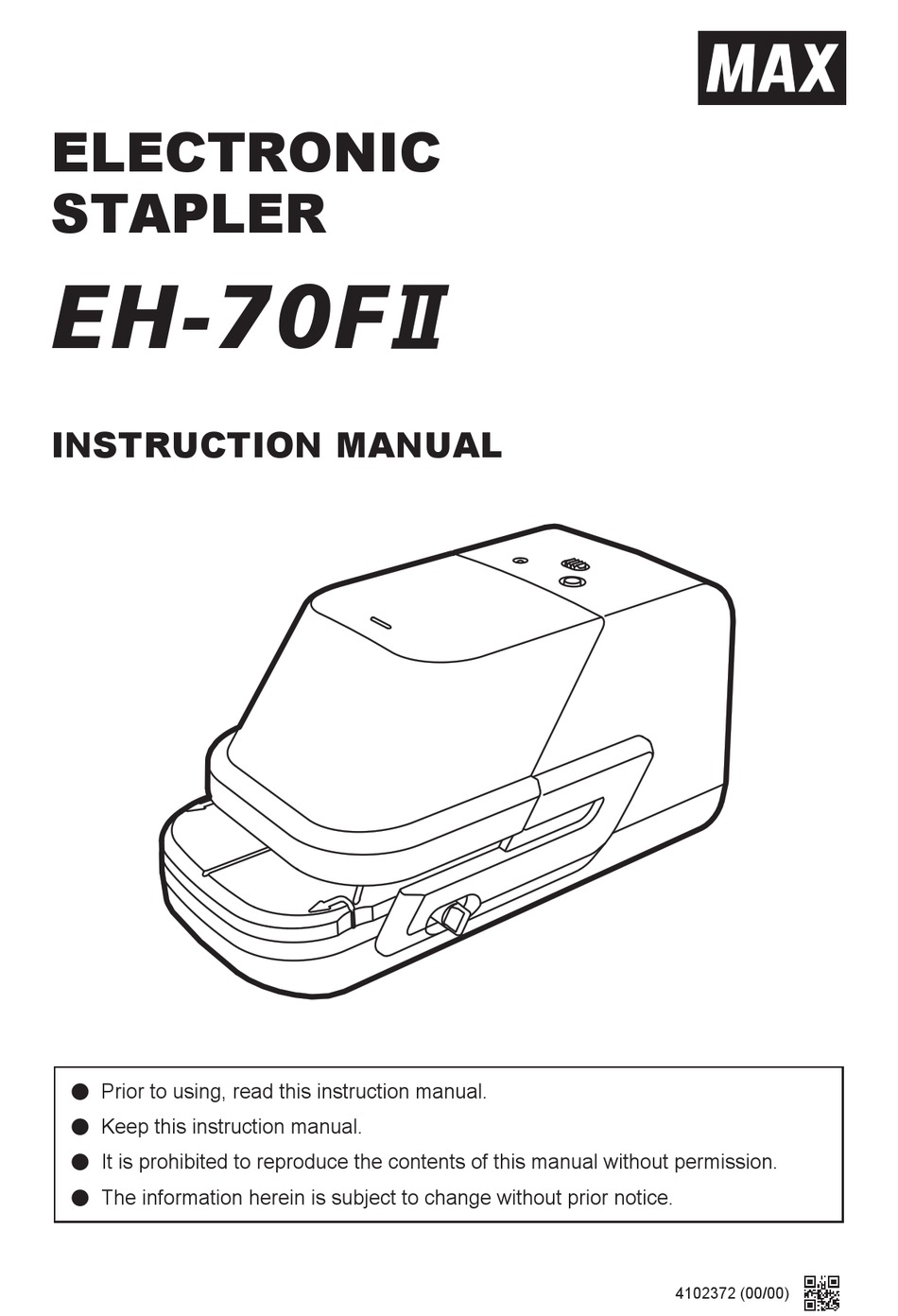

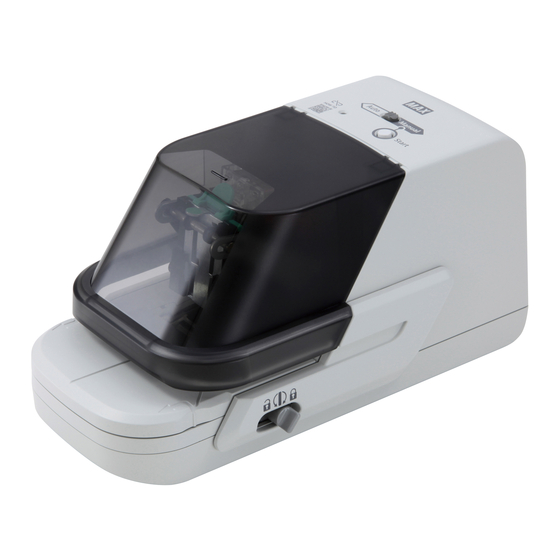

- Page 1 ELECTRONIC STAPLER Ⅱ EH-70F INSTRUCTION MANUAL ● Prior to using, read this instruction manual. ● Keep this instruction manual. ● It is prohibited to reproduce the contents of this manual without permission. ● The information herein is subject to change without prior notice. 4102372 (00/00)
- Page 3 BEFORE USE SAFETY INSTRUCTIONS ■ INDICATIONS This instruction manual uses various indications to help you use this instrument safely and properly. The following describes those indications. WARNING: Negligence could lead to serious injury or death. CAUTION: Negligence could lead to an injury, damage of your property, or cause loss of created data. REQUEST Describes operations that may cause damage to the instrument and require a repair, or operations that require resetting the machine, etc., to restore the condition of the instrument.
- Page 4 WARNING ● Do not insert foreign substances such as fingers, pens, or wire into this instrument. It could damage the instrument or cause a fire or an injury. ● Obtain power directly from a single plug socket. Avoid connecting many wires to one plug socket. It could lead to a fire. ● Do not place any heavy material on a power cord. It could cause damage or a fire. ● Do not connect/disconnect a power plug with a wet hand. It could cause an electric shock. ● Do not insert your fingers into this instrument. It could cause an injury when the stapler is abruptly activated. ● Do not splash water or chemicals on the instrument. It could damage the instrument or cause a fire. ● Keep a staple cartridge on the place where children can not touch it. If children take a staple, contact a doctor soon.
- Page 5 ● Install this instrument away from the following places: 1. Any place that catches direct sunlight or is located close to a heat source. 2. Any place that has dust or high humidity. 3. Any place that is not level or that is subject to vibration. 4. Any place that the temperature goes below 0°C /32°F or over 40°C /104°F. ● Use only MAX No. 70FE Staple Cartridge. ● Use a dry cloth to clean dirt of the instrument. Do not use solvents (alcohol, benzene, thinner, etc.) or a damp cloth. ● This machine does not staple when Case cap is opened because of safety. Close Case cap correctly when stapling.
-
Page 6: Table Of Contents
CONTENTS PACKAGE CONTENTS‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 5 NAME OF EACH SECTION‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 6 LOADING THE STAPLE CARTRIDGE‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥ 7 STAPLING AUTOMATICALLY‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 9 STAPLING MANUALLY‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 10 STAPLING ON THE CORNER‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 11 REPLACING THE STAPLE CARTRIDGE‥‥‥‥‥‥‥‥‥‥‥‥‥ 12 CLEARING JAMMED STAPLES‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 14 SPECIFICATIONS‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 15 TROUBLESHOOTING‥ ‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥‥ 16... -
Page 7: Package Contents
PACKAGE CONTENTS Ⅱ EH-70F (1pc) Instruction manual (1pc) AC adapter (1pc) No.70FE Staple cartridge (1pc) Power cord (1pc) (This cord is for USA model. The plug is different depends on each model.) -
Page 8: Name Of Each Section
NAME OF EACH SECTION LED lamp Serial number label Selector switch Serial number is shown with bar code. Manual button Case cap Depth control slider Paper table Selector switch LED lamp Green: Activate Red: No staple Manual button... -
Page 9: Loading The Staple Cartridge
LOADING THE STAPLE CARTRIDGE Prior to loading the staple cartridge into the machine, prepare and check it. (1) As shown in the figure, pull the stopper attached below the staple cartridge in the arrow direction to remove it. (2) If a staple sheet is come out of the cartridge, push it into the cartridge. - Page 10 Disconnect the power cord from a plug socket. (1) Open the case cap. (2) Load the staple cartridge in the arrow direction. (3) Close the case cap. (4) Connect the power cord to the plug socket.
-
Page 11: Stapling Automatically
STAPLING AUTOMATICALLY WARNING Never touch the white-colored switch. It could cause an injury when the stapler is abruptly activated. (1) Slide the selector switch to the “Auto,” which is located on top of the main body. (2) Stapling depth is adjustable within a range of approx. 6 to 18 mm (1/4” to 3/4”) for parallel stapling. Loosen the depth control knob and move it back and forth to adjust to your desired depth. UNLOCK LOCK Depth control slider Front Rear... -
Page 12: Stapling Manually
STAPLING MANUALLY When stapling the paper on the edge (stapling depth: 3 to 6 mm, 1/8” to 1/4”), use the Manual button. (1) Slide the selector switch to the “Manual,” which is located on top of the main body. (2) Pull out the paper table to the near side. Paper table (3) Insert the paper and press the Manual button Manual button to staple it. -
Page 13: Stapling On The Corner
STAPLING ON THE CORNER (1) When stapling on the corner, insert the corner of the paper. (2) If the stapling depth is set to 6 mm (1/4”), the paper will be stapled at the position of about 12 mm (1/2”) from its edge. -
Page 14: Replacing The Staple Cartridge
REPLACING THE STAPLE CARTRIDGE (No. 70FE) If the staples run out in the cartridge, the LED lamp on top of the machine will be illuminated in red in order to inform of replacement of cartridge. In this case, the paper cannot be stapled, even if it is inserted. Replace the cartridge as instructed below. WARNING Disconnect the power cord when loading the staple cartridge. It could cause an injury when the stapler is abruptly activated. - Page 15 (1) The staple sheet is exposed from the cartridge. In this case, push the staple sheet into the cartridge. REQUEST 1. Use MAX genuine staple cartridge “No.70FE.” 2. Do not set the broken and shortened staples into the cartridge or load them into the machine to reuse them. They could cause a trouble or staple jam. 3. Do not touch the staple sensor or feeding roller of staple when removing staples from the machine.
-
Page 16: Clearing Jammed Staples
CLEARING JAMMED STAPLES If the staples jam, eliminate them as follows: WARNING Disconnect the power cord when clearing jammed staples. It could cause an injury when the stapler is abruptly activated. (1) Disconnect the power cord from a plug socket. (2) Open the case cap. (3) Hold the cartridge and pull it upward to detach it. (4) Pushing inside the green lever located on the front of the main body, pull up the opener handle. -
Page 17: Specifications
SPECIFICATIONS Model name MAX Electronic Stapler EH-70FII Capacity 2 – 70 sheets (64gsm, 55kg / 16-lb.bond paper) Stapling speed 2 staples per second Stapling system Motor driven link mechanism with automatic feed Auto stapling: Adjustable approx. 6 to 18 mm (1/4” to 3/4”) Throat dept Manual stapling: Adjustable approx. 3 to 18 mm (1/8” to 3/4”) Dimensions 113mm (4-1/2”) (W) x 113mm (4-1/2”) (H) x 229mm (9”) (L) Weight 1.5kg (3.3 lbs) Power consumption Approx. 48W DC24V, 2.08A Power source Use only specified AC adapter (AC100-240V, 50-60 Hz) appended to machine. Working Temp. and 5°C / 41°F -35°C / 95°F, Below 80% RH (non-condensation) Humidity ranges MAX No.70FE staple cartridge Staple cartridge Contains a guaranteed minimum of 5,000 staples. COMMISSION REGULATION (EU) 2019/1782 of 1 October 2019 ■ AC ADAPTER INFOMATION Information published Unit Manufacturer’s name or... -
Page 18: Troubleshooting
TROUBLESHOOTING Phenomenon Check point Remedy page Check if the LED status lamp Load new No.70FE staples. is illuminated in Red. Disconnect the power plug Check if the LED status lamp immediately from the plug is blinking in RED. socket and contact your dealer or distributor for repair. The stapler does not Close the front cover firmly. operate when insert the Connect the dedicated AC paper. Check if the LED status lamp adapter correctly. is not illuminated. Set No.70FE staple cartridge firmly. - Page 19 - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. MAX USA CORP. ADDRESS : PHONE : (516)741-3151 FAX : (516)741-3272...
- Page 20 205 Express St. Plainview, NY, 11803, U.S.A. TEL: (1) 800-223-4293 MAX EUROPE B.V. Antennestraat 45, 1322AH, Almere, The Netherlands TEL: (31) 36-546-9669 MAX ASIA PTE. LTD. 101 Cecil Street #16-01 Tong Eng Building, Singapore 069533 TEL: (65) 6226-2180 MAX CO.,(HK)LTD.
