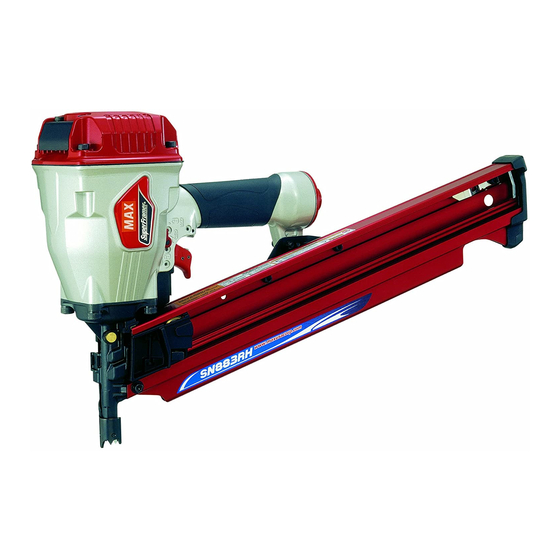

- Page 1 SN883RH, SN883CH/34, SN883CH/28 PNEUMATIC NAILER OPERATING and MAINTENANCE MANUAL WARNING: BEFORE USING THIS TOOL, STUDY THIS MANUAL TO ENSURE SAFETY WARNING AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE.
- Page 2 INDEX ENGLISH Page 3 to 17 Page DEFINITIONS OF SIGNAL WORDS WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.
-
Page 3: Table Of Contents
ENGLISH SN883RH, SN883CH/34, SN883CH/28 PNEUMATIC NAILER INDEX 1. SAFETY INSTRUCTIONS ……………4 2. SPECIFICATIONS & TECHNICAL DATA……………………7 3. AIR SUPPLY AND CONNECTIONS …9 4. INSTRUCTIONS FOR OPERATION …10 5. MAINTAIN FOR PERFORMANCE …17 6. STORING ……………………………17 7. TROUBLESHOOTING/REPAIRS……17 OPERATING and MAINTENANCE MANUAL... -
Page 4: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING: TO AVOID SEVERE PERSONAL INJURY OR PROPERTY DAMAGE BEFORE USING THE TOOL, READ CAREFULLY AND UNDERSTAND THE FOLLOWING “SAFETY INSTRUCTIONS”. FAILURE TO FOLLOW WARNINGS COULD RESULT IN DEATH OR SERIOUS INJURY. PRECAUTIONS ON USING THE TOOL WEAR SAFETY GLASSES OR GOGGLES Danger to the eyes always exists due to the possibility of dust being blown up by the exhausted air or of a fastener flying up due to the improper handling of the tool. - Page 5 INSPECT SCREW TIGHTNESS Loose or improperly installed screws or bolts cause accidents and tool damage when the tool is put into operation. Inspect to confirm that all screws and bolts are tight and properly installed prior to operating the tool. DO NOT TOUCH THE TRIGGER UNLESS YOU INTEND TO DRIVE A FASTENER Whenever the air supply is connected to the tool, never touch the trigger unless you intend to drive a fastener into the work.
- Page 6 • Keep the tool in a dry place out of reach of children when not in use. • Do not use the tool without Safety Warning label. • Do not modify the tool from original design or function without approval by MAX CO., LTD.
-
Page 7: Specifications & Technical Data
Grip e Contact Arm i Exhaust Cover r Nose o Pusher t Magazine !0 Adjustment Dial 2. TOOL SPECIFICATIONS PRODUCT NO. SN883RH SN883CH/34 SN883CH/28 HEIGHT 11-7/8˝ (300 mm) 12-1/4˝ (310 mm) 12-1/4˝ (310 mm) WIDTH 4-3/4˝ (121 mm) 4-3/4˝ (121 mm) 4-3/4˝... - Page 8 These values are determined and documented in accordance to EN12549 : 1999. w VIBRATION Vibration characteristic value ＝ 4.26 m/s (SN883RH) / 3.84 m/s (SN883CH/34) / 3.84 m/s (SN883CH/28) These values are determined and documented in accordance to ISO 8662-11.
-
Page 9: Air Supply And Connections
Air compressor Air filter Oiler HOSES: Hose has a min. ID of 1/4˝ (6 mm) and max. length of no more than 17˝ (5 Air hose meters). The supply hose should contain a fitting that will provide “quick disconnecting” from the male plug on the tool. -
Page 10: Instructions For Operation
4. INSTRUCTIONS FOR OPERATION Read section titled “SAFETY INSTRUCTIONS”. BEFORE OPERATION q Wear Safety Glasses or Goggles. w Do not connect the air supply. e Inspect screw tightness. r Check operation of the contact arm & trigger if moving smoothly. t Connect the air supply. - Page 11 w Pull the Pusher as far as the rear end of the magazine and release it gently. Pusher CAUTION: ● Abrupt release of the Pusher causes jamming of nails or dry-firing. TEST OPERATION q Adjust the air pressure at 70 p.s.i. (5 bar) and connect the air supply. w Without touching the trigger, depress the contact arm against the work-piece.
- Page 12 w Remove the Switching Lever to the direction of the arrow. Spring Pin Switching Lever NOTE: When switching back CONTACT ACTUATION with ANTI-DOUBLE FIRE MECHANISM to SINGLE ACTUATION, equip the Switching Lever facing “S” mark front with the Spring Pin to the Trigger by reverse procedure.
- Page 13 CONTACT TRIP MODEL with ANTI-DOUBLE FIRE MECHANISM The anti-double fire mechanism (US patent 5597106, UK patent 2286790) is installed on this tool. The common operating procedure on “Contact Trip” tools is for the operator to contact the work to actuate the trip mechanism while keeping the trigger pulled, thus driving a fastener each time the work is contacted.
- Page 14 MODEL IDENTIFICATION SINGLE ACTUATION Switching Lever Identified by SWITCHING LEVER. CONTACT TRIP WITH ANTI-DOUBLE FIRE MECHANISM (US patent 5597106, UK patent 2286790) Identified by RED TRIGGER. The Switching Lever is removed. SEQUENTIAL TRIP The Sequential Trip requires the operator to hold the tool against the work before pulling the trigger. This makes accurate fastener placement easier, for instance on framing, toe nailing and crating applications.
- Page 15 DRIVING DEPTH ADJUSTMENT Adjustment Dial WARNING: ALWAYS disconnect air supply before making adjustment. The driving depth adjustment is made by adjusting the Adjustment Dial. Deeper Shallow q With air pressure set, drive a few nails into a representative material sample to determine if adjustment is necessary.
- Page 16 Hole Pusher WARNING: ● Nails are held in the Nose of the tool by magnet. (SN883RH) Magnet This tool equips a magnet in the Nose to drive out all nails loaded in the Magazine. Therefore, in the case the collation strip is broken, there are nails remaining in the Nose even if you think that you removed whole nails.
-
Page 17: Maintain For Performance
All quality tools will eventually require servicing or replacement of parts because of wear from the normal use. 7. TROUBLE SHOOTING/REPAIRS The troubleshooting and/or repairs shall be carried out only by the MAX CO., LTD. authorised distributors or by other specialists. Supplement to the operating instruction According to the European Norm EN 792-13 the regulation is valid from 01.01.2001 that all fastener... - Page 18 Recycled paper is used for this manual and its recyclable. • The content of this manual might be changed without notice for improvement. 〔 〕 6-6 NIHONBASHI-HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN Tel: (03) 3669-8131 Telefax: (03) 3669-7104 www.maxusacorp.com (USA Site) www.max-ltd.co.jp/int/ (GLOBAL Site) www.max-europe.com ★ 071205-00/00 PRINTED IN JAPAN...
