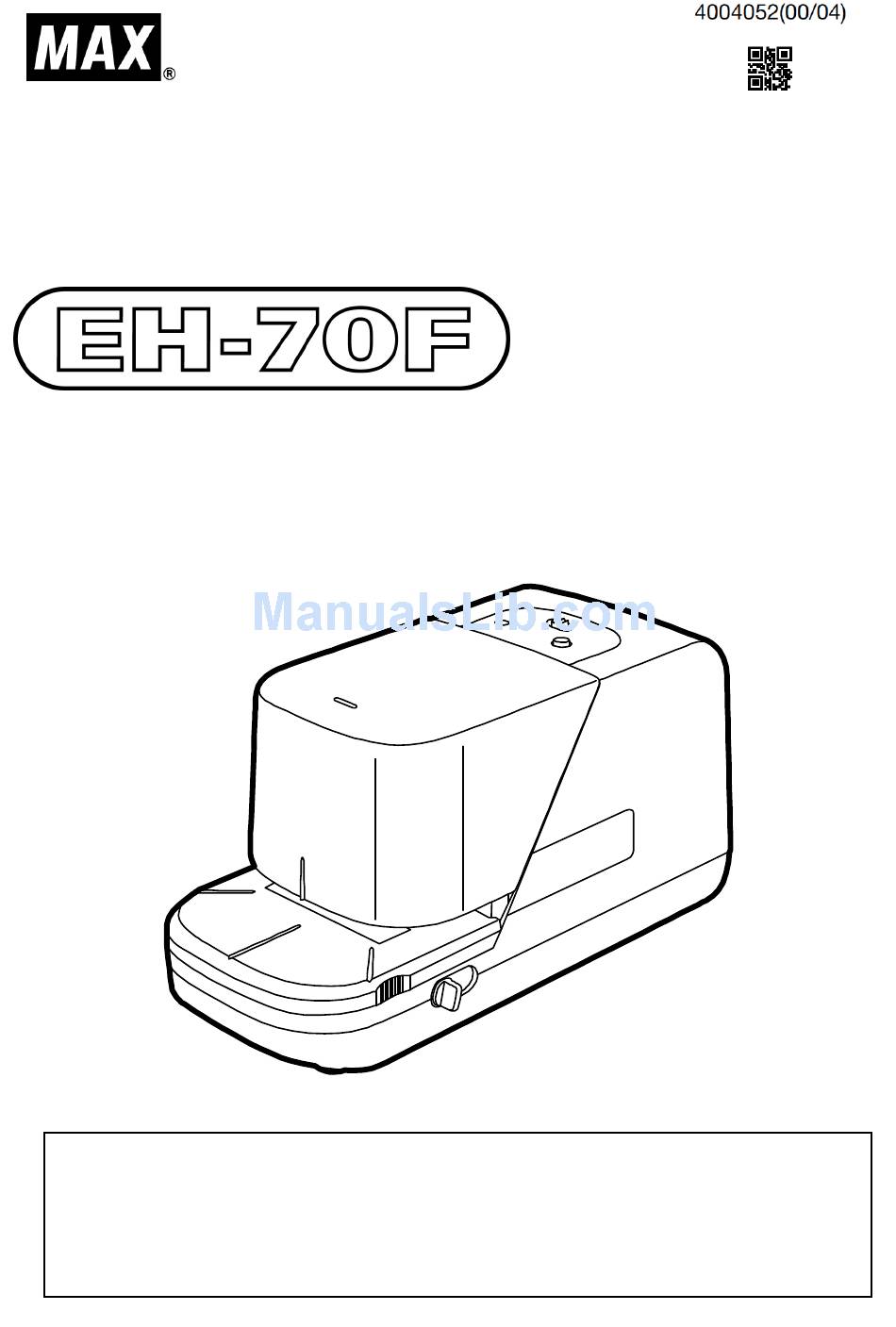

ELECTRONIC
STAPLER

INSTRUCTION MANUAL

● Prior to using, read this instruction manual.
● Keep this instruction manual.
● It is prohibited to reproduce the contents of this manual without permission.
● The information herein is subject to change without prior notice.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH-70F and is the answer not in the manual?

Questions and answers

Related Manuals for Max EH-70F

Summary of Contents for Max EH-70F

  • Page 1: Instruction Manual

    ELECTRONIC STAPLER INSTRUCTION MANUAL ● Prior to using, read this instruction manual. ● Keep this instruction manual. ● It is prohibited to reproduce the contents of this manual without permission. ● The information herein is subject to change without prior notice.

  • Page 2: Before Use

    BEFORE USE SAFETY INSTRUCTIONS ■INDICATIONS This instruction manual uses various indications to help you use this instrument safely and properly. The following describes those indications. WARNING: Negligence could lead to serious injury or death. Negligence could lead to an injury, damage of your property, or CAUTION: cause loss of created data.
  • Page 3 WARNING ● Do not insert foreign substances such as fingers, pens, or wire into this instrument. It could damage the instrument or cause a fire or an injury. ● Obtain power directly from a single plug socket. Avoid connecting many wires to one plug socket.
  • Page 4 4. Any place that the temperature goes below 0 /32 or over 40 /104 . ● Use only MAX No. 70FE Staple Cartridge. ● Use a dry cloth to clean dirt of the instrument. Do not use solvents (alcohol, benzene, thinner, etc.) or a damp cloth.

  • Page 5: Table Of Contents

    CONTENTS PACKAGE CONTENTS････････････････････････････････ 5 NAME OF EACH SECTION･････････････････････････････ 6 LOADNG THE STAPLE CARTRIDGE････････････････････ 7 STAPLING AUTOMATICALLY･･････････････････････････ STAPLING MANUALLY････････････････････････････････ 10 STAPLING ON THE CORNER･･････････････････････････ REPLACING THE STAPLE CARTRIDGE････････････････ CLEARING JAMMED STAPLES････････････････････････ SPECIFICATIONS･････････････････････････････････････ 15...

  • Page 6: Package Contents

    PACKAGE CONTENTS EH-70F(1pc) Instruction manual(1pc) AC adopter(1pc) No.70FE Staple cartridge(1pc) Power cord (1pc) ( This cord is for USA model. The plug is different depends on each model.)

  • Page 7: Name Of Each Section

    NAME OF EACH SECTION LED lamp Serial number label Selector switch Serial number is shown with bar code. Manual button Case cap Warning label Center position Caution label ol slider Depth contr Paper table Warning label, Caution label Selector switch LED lamp Green: Activate Manual button...

  • Page 8: Loadng The Staple Cartridge

    LOADNG THE STAPLE CARTRIDGE Prior to loading the staple cartridge into the machine, prepare and check it. (1) As shown in the figure, pull the stopper attached below the staple cartridge in the arrow direction to remove it. (2) If a staple sheet is come out of the cartridge, push it into the cartridge.
  • Page 9 Disconnect the power cord from a plug socket. (1) Open the case cap. (2) Load the staple cartridge in the arrow direction. (3) Close the case cap. (4) Connect the power cord to the plug socket.

  • Page 10: Stapling Automatically

    STAPLING AUTOMATICALLY WARNING Never touch the white-colored switch. It could cause an injury when the stapler is abruptly activated. (1) Slide the selector switch to the “Auto,” which is located on top of the main body. (2) Stapling depth is adjustable within a range of approx.

  • Page 11: Stapling Manually

    STAPLING MANUALLY When stapling the paper on the edge (stapling depth: 3 to 6 mm, 1/8” to 1/4”), use the Manual button. (1) Slide the selector switch to the “Manual,” which is located on top of the main body. (2) Pull out the paper table to the near side.

  • Page 12: Stapling On The Corner

    STAPLING ON THE CORNER (1) When stapling on the corner, insert the corner of the paper. (2) If the stapling depth is set to 6 mm (1/4”), the paper will be stapled at the position of about 12 mm (1/2”) from its edge.

  • Page 13: Replacing The Staple Cartridge

    REPLACING THE STAPLE CARTRIDGE (No. 70FE) If the staples run out in the cartridge, the LED lamp on top of the machine will be illuminated in red in order to inform of replacement of cartridge. In this case, the paper cannot be stapled, even if it is inserted. Replace the cartridge as instructed below.
  • Page 14 In this case, push the staple sheet into the cartridge. 1. Use MAX genuine staple cartridge “No.70FE.” 2. Do not set the broken and shortened staples into the cartridge or load them into the machine to reuse them. They could cause a trouble or staple jam.

  • Page 15: Clearing Jammed Staples

    CLEARING JAMMED STAPLES If the staples jam, eliminate them as follows: WARNING Disconnect the power cord when clearing jammed staples. It could cause an injury when the stapler is abruptly activated. (1) Disconnect the power cord from a plug socket. (2) Open the case cap.

  • Page 16: Specifications

    SPECIFICATIONS Model name MAX Electronic Stapler EH-70F Capacity 2 – 70 sheets (64gsm, 55kg / 16-lb.bond paper) Stapling speed 2 staples per second Stapling system Motor driven link mechanism with automatic feed Throat depth Auto stapling: Adjustable approx. 6 to 18 mm (1/4” to 3/4”) Manual stapling: Adjustable approx.
  • Page 17 The following statement is only effective for the USA market. FCC Notice (Class B: EH-70F) Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 18 This instruction manual is subject to change without notice due to functional enhancement 6-6, NIHONBASHI HAKOZAKI-CHO, CHUO-KU, TOKYO, JAPAN POST CODE: #103-8502 TELEPHONE: 81-3-3669-8131 FAX: 81-3-3669-7104 URL: http://www.max-ltd.co.jp/int/ (GLOBAL Site) http://www.maxusacorp.com (USA Site) N166G Vol.4...
