Savant® Universal Remote
Quick Reference Guide
IMPORTANT!
Before using the SUR-0500 for the first time, update the firmware
to the latest version. Perform the steps outlined in
Firmware which is part of the
Box Contents
(1) Savant Universal Remote (SUR-0500-01)
(1) Savant Universal Remote Charging Base, (SSB-0500-xx)
(1) Installation Kit:
(1) 5V DC 1 Amp Power Supply for Charging Base (025-0138-xx)
(1) USB Cable for Power Supply (064-0378-xx)
(1) Power Supply Clips for US and International (028-0597-xx)
(1) Quick Reference Guide (this document)
Specifications
Environmental Environmental
Opera&ng: 32° to 95° F (0° to 35° C)
Temperature
Storage: -32° to 113° F (0° to 45° C)
Humidity 5% to 95% RH (non-condensing)
Dimensions Dimensions
Height 8.49 in (21.56 cm)
Width 2.33 in (5.91 cm)
Depth 0.709 in (1.8 cm)
Weight (Shipping -
1.4 lb (0.64 kg)
Remote and Base)
Power Power
Battery Lithium-Ion
Battery Life Continuous: 4 hours | Standby: 3 days
Communication Communication
Wireless Wi-Fi® 802.11 b/g/n (2.4 GHz)
Operating Range Dependent on specific Wi-Fi network
Display and Backlights Display and Backlights
Resolution 128 x 160 pixels
1.2 x 1.5 inch full color display (128 x 160
Display Size
resolution)
Backlights White LED for all buttons
Compliance Compliance
Safety and
FCC Part 15 | CE Mark | C-Tick
Emissions
FCC ID: TX4RC44A | IC ID: 11438A-RC44A
RoHS Compliant
Minimum Supported Release Minimum Supported Release
Savant OS da Vinci 5.2.2
Charging Base (SSB-0500)
Charging Base (SSB-0500) Charging Base (SSB-0500)
Input Power 5V DC, 1 Amp power supply
Height 0.89 in (2.27 cm)
Width 3.52 in (8.95 cm)
Depth 3.53 in (8.97 cm)
SUR-0500-01 | 009-1024-08 | 150128 SUR-0500-01 | 009-1024-08 | 150128
Copyright © 2015 Savant Systems, LLC
Update
Initial Setup.

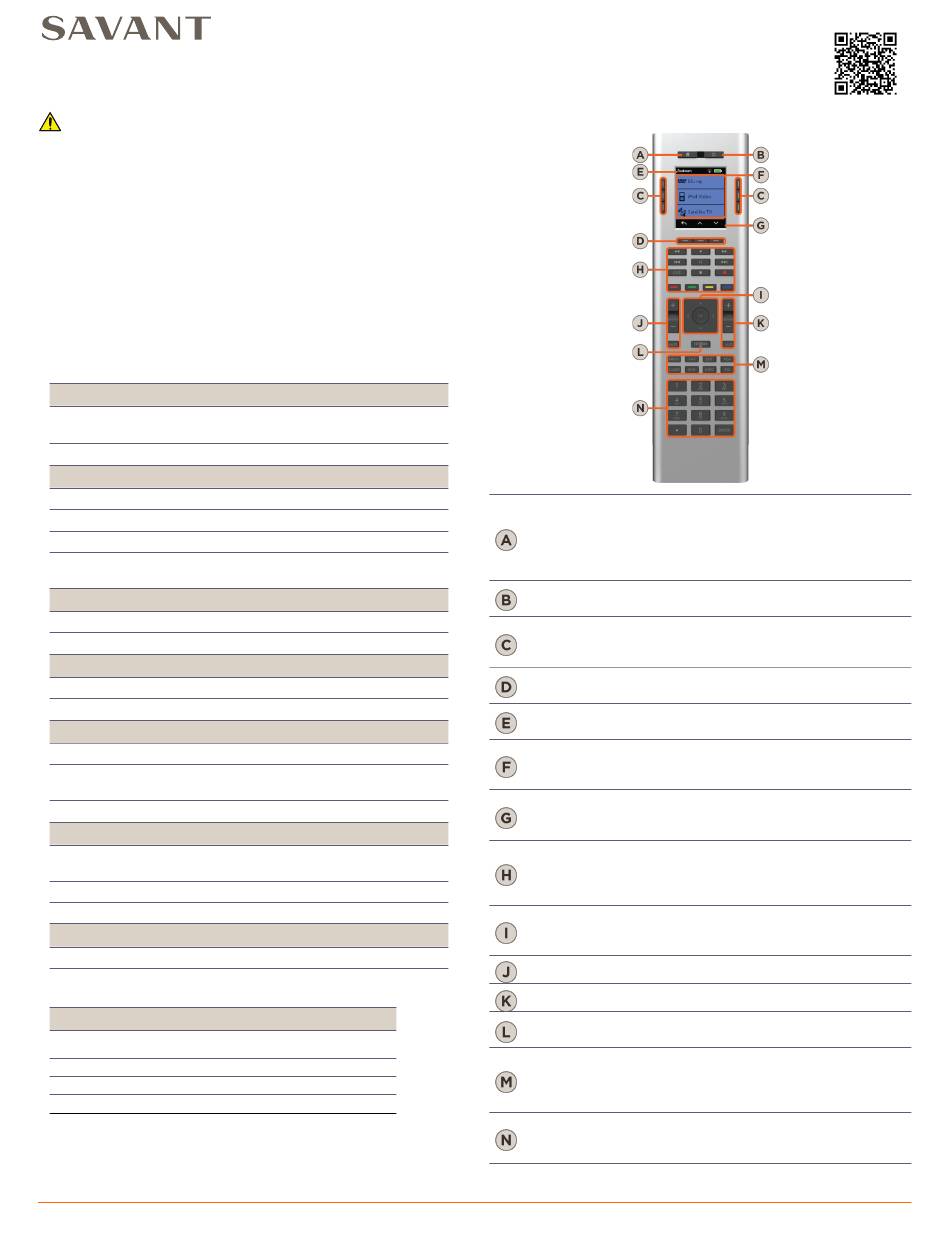

Button Functionality
Press: Returns to the Service List for the current
room.
Home Press and hold: Returns to the currently playing
service.
Press and hold with Power: Turns remote Off.
Press and hold: Powers remote On and Off.
Power
Press: Powers services Off.
Remote
Performs the operation of the associated
Function
function on the screen.
Selection
Bottom Row Performs the operation of the associated Bottom
Selection Row Function. See Item G.
Status Display Displays currently selected room, Wi-Fi signal,
Bar Battery Level, and Charging Indication.
Remote
Displays menus of remote functions and
Function Display
information for the currently selected service.
Area
Displays the function to perform for the
Bottom Row
associated Bottom Row Selection buttons.
Functions
See Item D.
Performs the function on the currently selected
service:
Service Control
Rewind, Play, Fast Forward, Previous, Pause,
Next, Live, Stop, Record
Performs the function on the currently selected
Service Menu
service:
Navigation
Left, Right, Up, Down, OK (Enter).
Volume Control Volume Up, Down, and Mute
Channel Control Channel Up, Down, and Last
TrueCommand Displays the Savant TrueCommand OSD.
OSD Exit is used to close the OSD.
Performs the function on the currently selected
Service service:
Navigation Menu, Component Favorites, Exit, PG+, Guide,
DVR, Info, PG-.
Performs the function on the currently selected
Service Numeric
service:
Entry
0 - 9, Decimal Point, Enter
1 of 3
