Using the ADS1178EVM-PDK/ADS1278EVM-PDK Plug-in ADCPro
The Master (All) Enable control allows for the selection of channels to convert. Manual Control allows
channel enable control via CH1 through CH8 selector switches. All Channels Enabled and All Channels
Disabled turn all the selector switches either ON or OFF.
4.3
Settings Tab
The Settings tab allows for the selection of the various clock frequencies, operating mode, data format,
and other settings.
8
ADS1x7xEVM-PDK

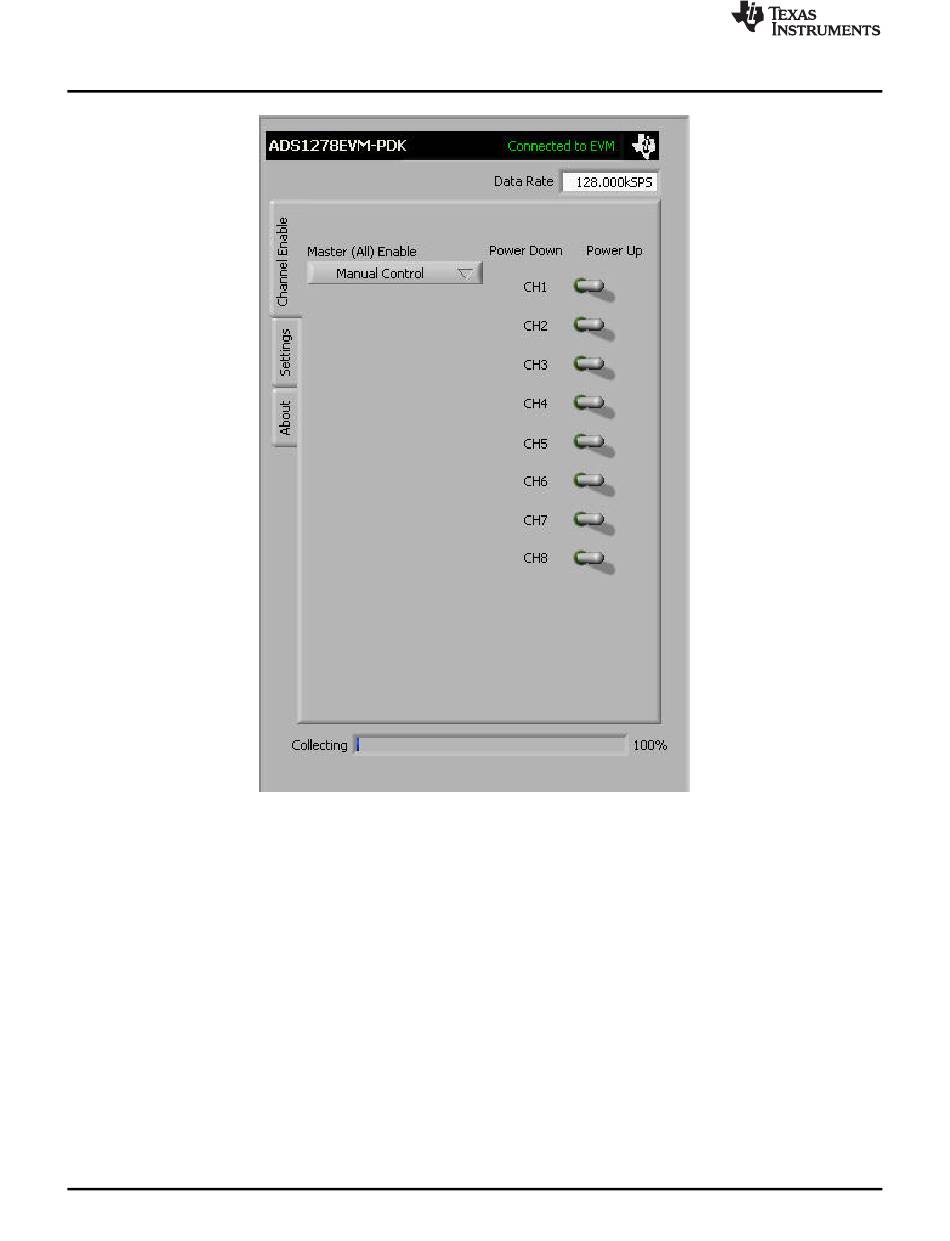

Figure 2. Channel Enable
