This section provides a QuickStart guide to quickly begin evaluating the ADS1x7xEVM with ADCPro.
2.1 Default Jumper/Switch Configuration
Figure 1 shows the jumpers found on the EVM and the respective factory default conditions for each.
Table 2 lists the jumpers and switches and the factory default conditions.
Switch
S1
S2
S3
S4
S5
S6
S7
S8
4
ADS1x7xEVM-PDK

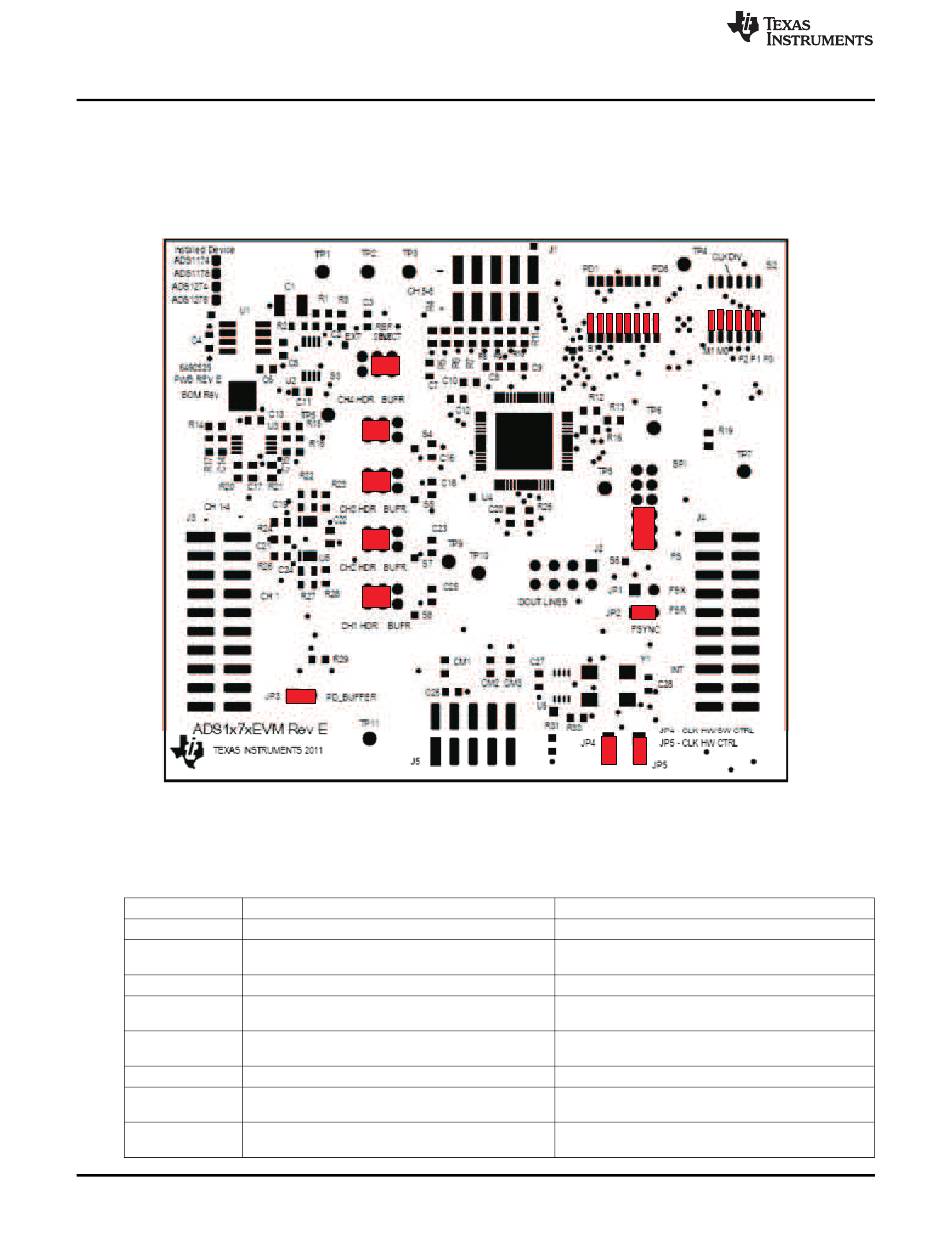

Figure 1. ADS1x7xEVM Default Jumper Locations
Table 2. Default Jumper/Switch Configuration
Default Position
All OFF (Down)
All OFF (Down)
INT (Right)
Header connected to converter (Left)
Header connected to converter (Left)
FS (Down)
Header connected to converter (Left)
Header connected to converter (Left)
Copyright © 2012, Texas Instruments Incorporated
Switch Description
Powerdown channel DIP switches (Hardware control)
Mode, Format, and CLKDIV DIP switches(Hardware
control)
On-board Voltage Reference Selected
Channel 4 header connected to converter (not
buffered)
Channel 3 header connected to converter (not
buffered)
FS serial interface format
Channel 2 header connected to converter (not
buffered)
Channel 1 header connected to converter (not
buffered)
