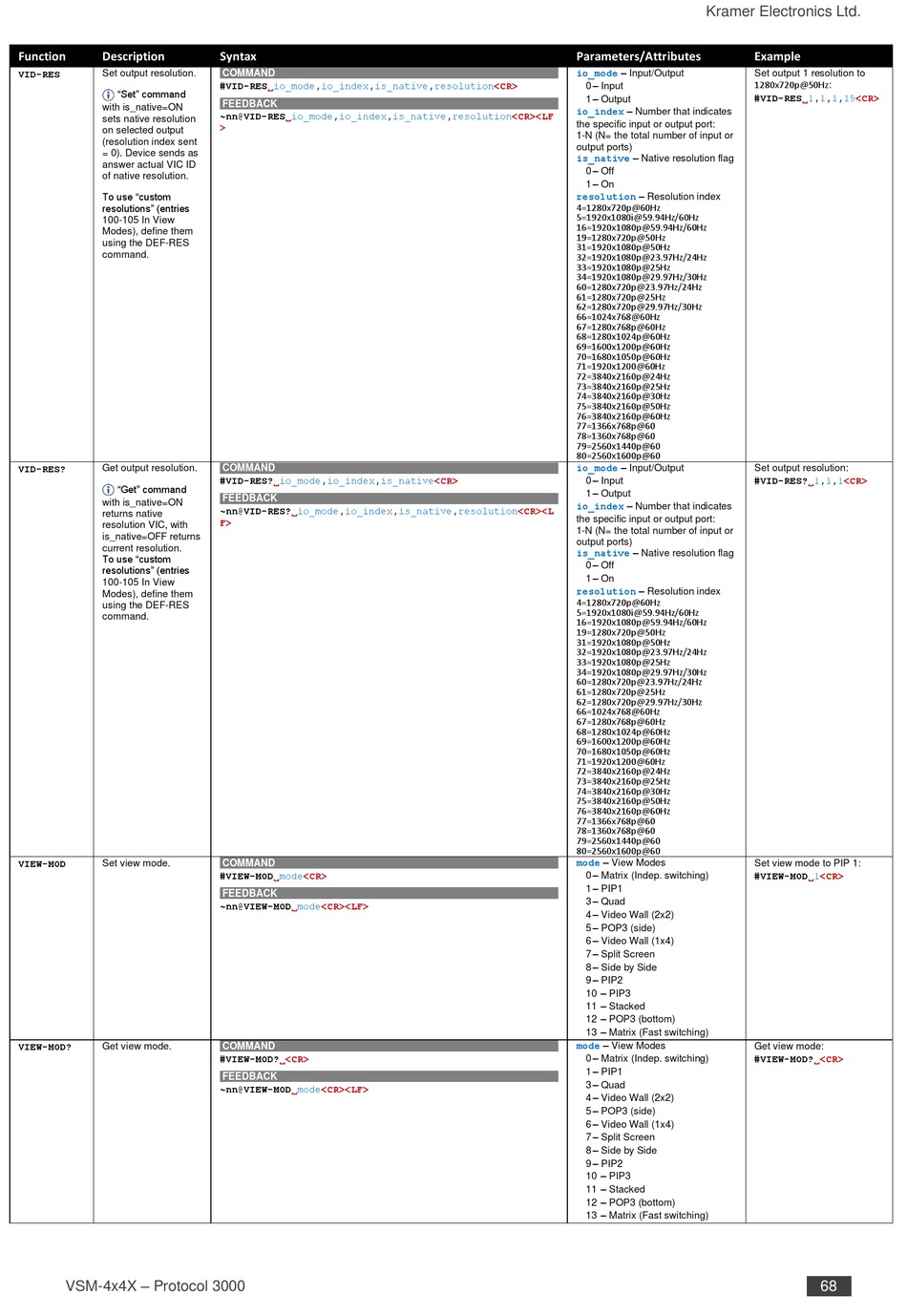

Function Description
VID-RES Set output resolution.
"Set" command
with is_native=ON
sets native resolution
on selected output
(resolution index sent
= 0). Device sends as
answer actual VIC ID
of native resolution.
To use "custom
resolutions" (entries
100-105 In View
Modes), define them
using the DEF-RES
command.
VID-RES? Get output resolution.
"Get" command
with is_native=ON
returns native
resolution VIC, with
is_native=OFF returns
current resolution.
To use "custom
resolutions" (entries
100-105 In View
Modes), define them
using the DEF-RES
command.
VIEW-MOD
Set view mode.
VIEW-MOD?
Get view mode.
VSM-4x4X – Protocol 3000
Syntax
COMMAND
#VID-RESio_mode,io_index,is_native,resolution<CR>
FEEDBACK
~nn@VID-RESio_mode,io_index,is_native,resolution<CR><LF
>
COMMAND
#VID-RES?io_mode,io_index,is_native<CR>
FEEDBACK
~nn@VID-RES?io_mode,io_index,is_native,resolution<CR><L
F>
COMMAND
#VIEW-MODmode<CR>
FEEDBACK
~nn@VIEW-MODmode<CR><LF>
COMMAND
#VIEW-MOD?<CR>
FEEDBACK
~nn@VIEW-MODmode<CR><LF>
Kramer Electronics Ltd.
Parameters/Attributes
– Input/Output
io_mode
0 – Input
1 – Output
– Number that indicates
io_index
the specific input or output port:
1-N (N= the total number of input or
output ports)
is_native – Native resolution flag
0 – Off
1 – On
resolution – Resolution index
4=1280x720p@60Hz
5=1920x1080i@59.94Hz/60Hz
16=1920x1080p@59.94Hz/60Hz
19=1280x720p@50Hz
31=1920x1080p@50Hz
32=1920x1080p@23.97Hz/24Hz
33=1920x1080p@25Hz
34=1920x1080p@29.97Hz/30Hz
60=1280x720p@23.97Hz/24Hz
61=1280x720p@25Hz
62=1280x720p@29.97Hz/30Hz
66=1024x768@60Hz
67=1280x768p@60Hz
68=1280x1024p@60Hz
69=1600x1200p@60Hz
70=1680x1050p@60Hz
71=1920x1200@60Hz
72=3840x2160p@24Hz
73=3840x2160p@25Hz
74=3840x2160p@30Hz
75=3840x2160p@50Hz
76=3840x2160p@60Hz
77=1366x768p@60
78=1360x768p@60
79=2560x1440p@60
80=2560x1600p@60
– Input/Output
io_mode
0 – Input
1 – Output
– Number that indicates
io_index
the specific input or output port:
1-N (N= the total number of input or
output ports)
– Native resolution flag
is_native
0 – Off
1 – On
– Resolution index
resolution
4=1280x720p@60Hz
5=1920x1080i@59.94Hz/60Hz
16=1920x1080p@59.94Hz/60Hz
19=1280x720p@50Hz
31=1920x1080p@50Hz
32=1920x1080p@23.97Hz/24Hz
33=1920x1080p@25Hz
34=1920x1080p@29.97Hz/30Hz
60=1280x720p@23.97Hz/24Hz
61=1280x720p@25Hz
62=1280x720p@29.97Hz/30Hz
66=1024x768@60Hz
67=1280x768p@60Hz
68=1280x1024p@60Hz
69=1600x1200p@60Hz
70=1680x1050p@60Hz
71=1920x1200@60Hz
72=3840x2160p@24Hz
73=3840x2160p@25Hz
74=3840x2160p@30Hz
75=3840x2160p@50Hz
76=3840x2160p@60Hz
77=1366x768p@60
78=1360x768p@60
79=2560x1440p@60
80=2560x1600p@60
mode – View Modes
0 – Matrix (Indep. switching)
1 – PIP1
3 – Quad
4 – Video Wall (2x2)
5 – POP3 (side)
6 – Video Wall (1x4)
7 – Split Screen
8 – Side by Side
9 – PIP2
10 – PIP3
11 – Stacked
12 – POP3 (bottom)
13 – Matrix (Fast switching)
mode – View Modes
0 – Matrix (Indep. switching)
1 – PIP1
3 – Quad
4 – Video Wall (2x2)
5 – POP3 (side)
6 – Video Wall (1x4)
7 – Split Screen
8 – Side by Side
9 – PIP2
10 – PIP3
11 – Stacked
12 – POP3 (bottom)
13 – Matrix (Fast switching)
Example
Set output 1 resolution to
1280x720p@50Hz:
#VID-RES1,1,1,19<CR>
Set output resolution:
#VID-RES?1,1,1<CR>
Set view mode to PIP 1:
#VIEW-MOD1<CR>
Get view mode:
#VIEW-MOD?<CR>
