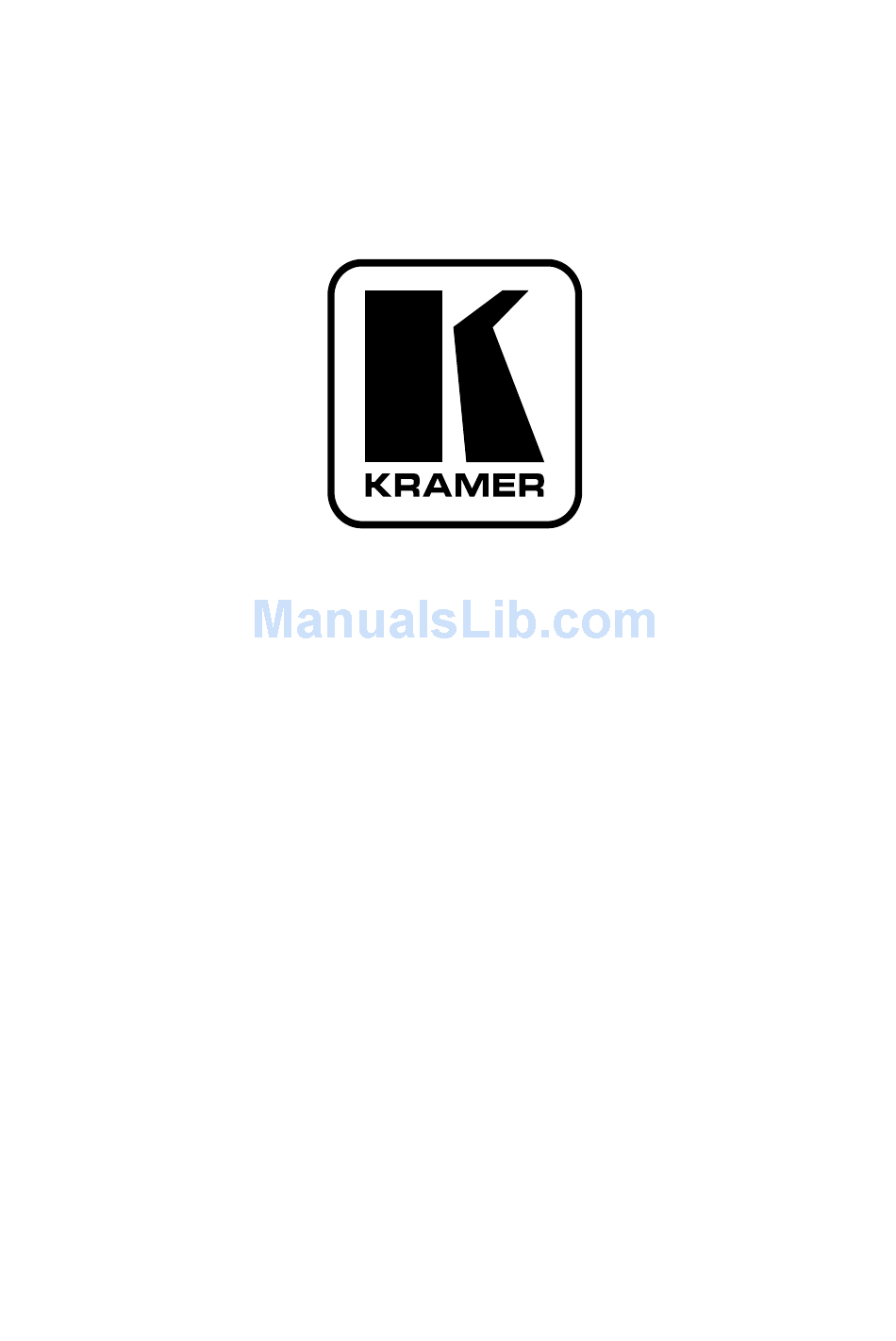

- Page 1 Kramer Electronics, Ltd. USER MANUAL Model: VS-808YC 8x8 s-Video / Audio Matrix Switcher...
-
Page 2: Table Of Contents
Contents Introduction Getting Started Quick Start Overview Your VS-808YC 8x8 s-Video / Audio Matrix Switcher Using the IR Transmitter Installing the VS-808YC on a Rack Connecting the VS-808YC Connecting the VS-808YC Rear Panel Controlling via RS-232 (for example, using a PC) - Page 3 Table 3: VS-808YC Underside Flash Program Button Table 4: DIP-switch Settings Table 5: Machine # DIP-switch Settings Table 6: Technical specifications of the VS-808YC 8x8 s-Video / Audio Matrix Switcher Table 7: VS-808YC Hex Codes for Switching via RS-232/RS-485 Table 8: Protocol Definitions...
-
Page 4: Introduction
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 Downloadable from our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from the Internet at http://www.kramerelectronics.com 4 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com... - Page 5 Getting Started KRAMER: SIMPLE CREATIVE TECHNOLOGY...
-
Page 6: Overview
Kramer VS-808YC away from moisture, excessive sunlight and dust Your VS-808YC 8x8 s-Video / Audio Matrix Switcher Figure 1, Table 1 and Table 2 define the VS-808YC 8x8 s-Video / Audio Matrix Switcher: 1 As it switches during the vertical interval... -
Page 8: Table 1: Front Panel Vs-808Yc 8X8 S-Video / Audio Matrix Switcher Features
Your VS-808YC 8x8 s-Video / Audio Matrix Switcher Table 1: Front Panel VS-808YC 8x8 s-Video / Audio Matrix Switcher Features Feature Function IR Receiver The LED is illuminated when receiving signals from the Infrared remote control transmitter Power Switch Illuminated switch for turning the unit ON or OFF OFF Button An OFF-OUT combination disconnects that output from the inputs;... -
Page 9: Figure 2: Vs-808Yc Underside Flash Program Button
Power Connector with Fuse AC connector enabling power supply to the unit Figure 2 and Table 3 define the Flash button on the underside of the VS-808YC: Figure 2: VS-808YC Underside Flash Program Button Table 3: VS-808YC Underside Flash Program Button... -
Page 10: Using The Ir Transmitter
IR receiver can be located 15 meters away from the machine. This distance can be extended to up to 60 meters when used with three extension cables Before using the external IR receiver, be sure to arrange for your Kramer dealer to insert the internal IR connection cable with the 3.5mm connector... -
Page 11: Installing The Vs-808Yc On A Rack
Installing the VS-808YC on a Rack Installing the VS-808YC on a Rack This section describes what to do before installing on a rack and how to rack mount. Before Installing in a Rack How to Rack Mount Before installing in a rack, be sure that the environment is... -
Page 12: Connecting The Vs-808Yc
3 See section 6.4 for a description of how to connect a balanced/unbalanced stereo audio input/output 4 When less than 8 outputs are required, connect only those outputs of the VS-808YC that are required, and leave the other outputs unconnected... -
Page 13: Figure 3: Connecting The Vs-808Yc 8X8 S-Video / Audio Matrix Switcher
Connecting the VS-808YC Figure 3: Connecting the VS-808YC 8x8 s-Video / Audio Matrix Switcher KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 14: Controlling Via Rs-232 (For Example, Using A Pc)
Null-modem adapter and connect the Null-modem adapter with a 9-wire flat cable to the RS-232 9-pin D-sub port on your PC To connect a PC to the VS-808YC unit, without using a Null-modem adapter: Connect the RS-232 9-pin D-sub port on your PC to the RS-232 9-pin... -
Page 15: Controlling Via Rs-485
Connect the “ A” (+) PIN on the RS-485 rear panel port of the RC-3000 to the “ A” (+) PIN on the RS-485 rear panel port of the VS-808YC unit Connect the “ B” (-) PIN on the RS-485 rear panel port of the RC-3000 to the “... -
Page 16: Connecting The Balanced/Unbalanced Stereo Audio Input/Output
Connecting the VS-808YC 6.4 Connecting the Balanced/Unbalanced Stereo Audio Input/Output Figure 6 illustrates how to wire a balanced input/output connection: Figure 6: Connecting the Balanced Stereo Audio Input/Output Figure 7 illustrates how to wire an unbalanced input: Figure 7: Connecting the Unbalanced Stereo Audio Input... -
Page 17: Setting The Dip-Switches
The MACHINE # determines the position of a VS-808YC unit, specifying which VS-808YC unit is being controlled when several VS-808YC units connect to a PC or serial controller. Set the MACHINE # on a VS-808YC unit via DIPS 1, 2, 3 and 4, according to Table 5. -
Page 18: Controlling Via Rs-232 And Rs-485
Controlling via RS-232 and RS-485 Controlling via RS-232 and RS-485 You can cascade up to 16 VS-808YC units with control from a PC or serial controller. To cascade up to 16 individual VS-808YC units, via RS-232 and RS-485, do the following: 1. -
Page 19: Figure 10: Cascading Individual Units In A Control Configuration Via Rs-232 And Rs-485
Controlling via RS-232 and RS-485 Enlarged View MACH. RS-485 TERM MACH. RS-485 TERM MACH. RS-485 TERM Figure 10: Cascading Individual Units in a Control Configuration via RS-232 and RS-485 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 20: Operating The Vs-808Yc
Operating the VS-808YC Operating the VS-808YC You can operate your VS-808YC via: The front panel buttons RS-232/RS-485 serial commands transmitted by a touch screen system, PC, or other serial controller Infrared remote control transmitter 8.1 Displaying Unit Characteristics the VS-808YC unit, momentarily displays the... -
Page 21: Choosing The Audio-Follow-Video Or Breakaway Option
Operating the VS-808YC 8.2 Choosing the Audio-Follow-Video or Breakaway Option You can switch stereo audio signals in one of two ways, either: Audio-follow-video (AFV), in which all operations and status indicators relate to both the video and the audio channels ;... -
Page 22: Confirming Settings
8.4 Confirming Settings Choose to work in the AT ONCE or the CONFIRM mode, as section 8.4.1 describes. When the VS-808YC operates in the AT ONCE mode, pressing an OUT-IN combination implements the switch immediately. In the CONFIRM mode, the TAKE button must be pressed to authorize the switch. -
Page 23: Storing/Recalling Input/Output Configurations
Operating the VS-808YC To confirm several actions (in CONFIRM mode), do the following: 1. Press each OUT-IN combination in sequence. The corresponding digits in the 7-segment Display blink. The TAKE button also blinks. 2. Press the blinking TAKE button to confirm all the actions. -
Page 24: Recalling An Input/Output Configuration
1 Storing a new configuration over a previous configuration (without deleting it first) replaces the previous configuration 2 Nevertheless, even though the front panel is locked you can still operate via RS-232 or RS-485, as well as via the Kramer... -
Page 25: Resetting The Vs-808Yc
8.7.1 Resetting to the Current Status You can reset the VS-808YC unit to the current status (reloads the current setup). To reset a VS-808YC unit to the current status, do the following: Press INPUT buttons 1, 2 and 3 simultaneously for 3 seconds The VS-808YC unit resets to the current status, momentarily displaying the unit characteristics, as section 8.1 describes... -
Page 26: Flash Memory Upgrade
Before installing the latest Kramer firmware version on a VS-808YC unit, do the following: 1. Connect the RS-232 9-pin D-sub rear panel port on the VS-808YC unit to the Null-modem adapter and connect the Null-modem adapter with a 9 wire flat cable to the RS-232 9-pin D-sub COM port on your PC (see section 6.2). -
Page 27: Upgrading Firmware
3. Press the keyboard shortcut key F2 (or select the “ Select” command from the Device menu, or press the integrated circuit icon in the upper right corner of the window). The “ Device Selection” window appears: KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 28: Figure 15: Device Selection Window
Upgrading Firmware Figure 15: Device Selection Window 4. Click the button next to the name of the device and select from the list: AT89C51RD2: AT89C51RD2 T89C51RD2 Figure 16: Device Selection Window 5. Click OK and select “ Load Hex” from the File menu. -
Page 29: Figure 17: Loading The Hex
Figure 17: Loading the Hex 6. The Open File window opens. Select the correct HEX file that contains the updated version of the firmware for VS-808YC and click Open. 7. Press the keyboard shortcut key F3 (or select the “ Communication / RS232”... -
Page 30: Figure 19: Atmel - Flip Window (Connected)
Upgrading Firmware VS808YC.hex Figure 19: Atmel – Flip Window (Connected) 9. Click Run. After each stage of the operation is completed, the check box for that stage becomes colored green1. When the operation is completed, all 4 check boxes will be colored green and the status bar message: Memory Verify Pass appears2: VS808YC.hex Figure 20: Atmel –... -
Page 31: Technical Specifications
Technical Specifications NOTE: Some VS-808YC devices are equipped with a different type of Atmel Flash memory. In such a case, the update procedure stops at the Blank Check stage and a “Blank Check Failed” message appears at the end of the window. -
Page 32: Table Of Hex Codes For Serial Communication
Table of Hex Codes for Serial Communication 12 Table of Hex Codes for Serial Communication Table 7 lists the Hex values for a single machine (MACHINE # 1): Table 7: VS-808YC Hex Codes for Switching via RS-232/RS-485 Switching Video Channels Switching Audio Channels... -
Page 33: Kramer Protocol 2000
Kramer Protocol 2000 13 Kramer Protocol 2000 The VS-808YC is compatible with Kramer’s Protocol 2000 (version 0.42) (below). This RS-232 / RS-485 communication protocol uses four bytes of information as defined below. For RS-232, a null-modem connection between the machine and controller is used. The default data rate is 9600 baud, with no parity, 8 data bits and 1 stop bit. -
Page 34: Table 9: Instruction Codes For Protocol 2000
Kramer Protocol 2000 For a single machine controlled via the serial port, always set M4…M0 = 1, and make sure that the machine itself is configured as MACHINE NUMBER = 1. Table 9: Instruction Codes for Protocol 2000 Note: All values in the table are decimal, unless otherwise stated. - Page 35 (The mode is automatically cancelled after implementation of the switch if the “ execute” command is used). For example, to connect input 4 to output 3 after a delay, send HEX codes (set for delayed switch) (switch code) KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 36 Kramer Protocol 2000 then, after the required delay, send HEX codes (execute delayed switch) to implement the switch. NOTE 18 – After this instruction is sent, the unit will respond to the ASCII command set. The ASCII command to operate with the HEX command set must be sent in order to return to working with HEX codes.
- Page 37 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 38 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
