SmartClass Fiber OLP-87 NG-PON2 Power Meter
Q UI CK CA RD
Measuring Power Levels at the ONT
This quick card describes how to connect to a fiber under test, configure FTTx settings,
and read power measurements with the VIAVI OLP-87 NG-PON2 selective power meter.
E Q U IP ME N T R E Q U I R E ME N T S
► SmartClass Fiber OLP-87 NG-PON2
Wavelength Selective Power Meter with
SW V20.20.06 or greater
► P5000i Fiber Microscope (recommended)
► Fiber optic cleaning tool
► Two (2) SC APC Patch Cords
F IB E R IN S P E C T IO N G U ID E L IN E S
► Clean both sides of every connection point (bulkhead connectors, patch cords, and
OLP-87 ports) prior to connections. If equipped, use the P5000i Fiber Microscope to
test the end-faces.
► Focus fiber on the screen. If dirty, clean the end-face.
► If it appears clean, run inspection test.
► If it fails, clean the fiber and re-run inspection test. Repeat until it passes.

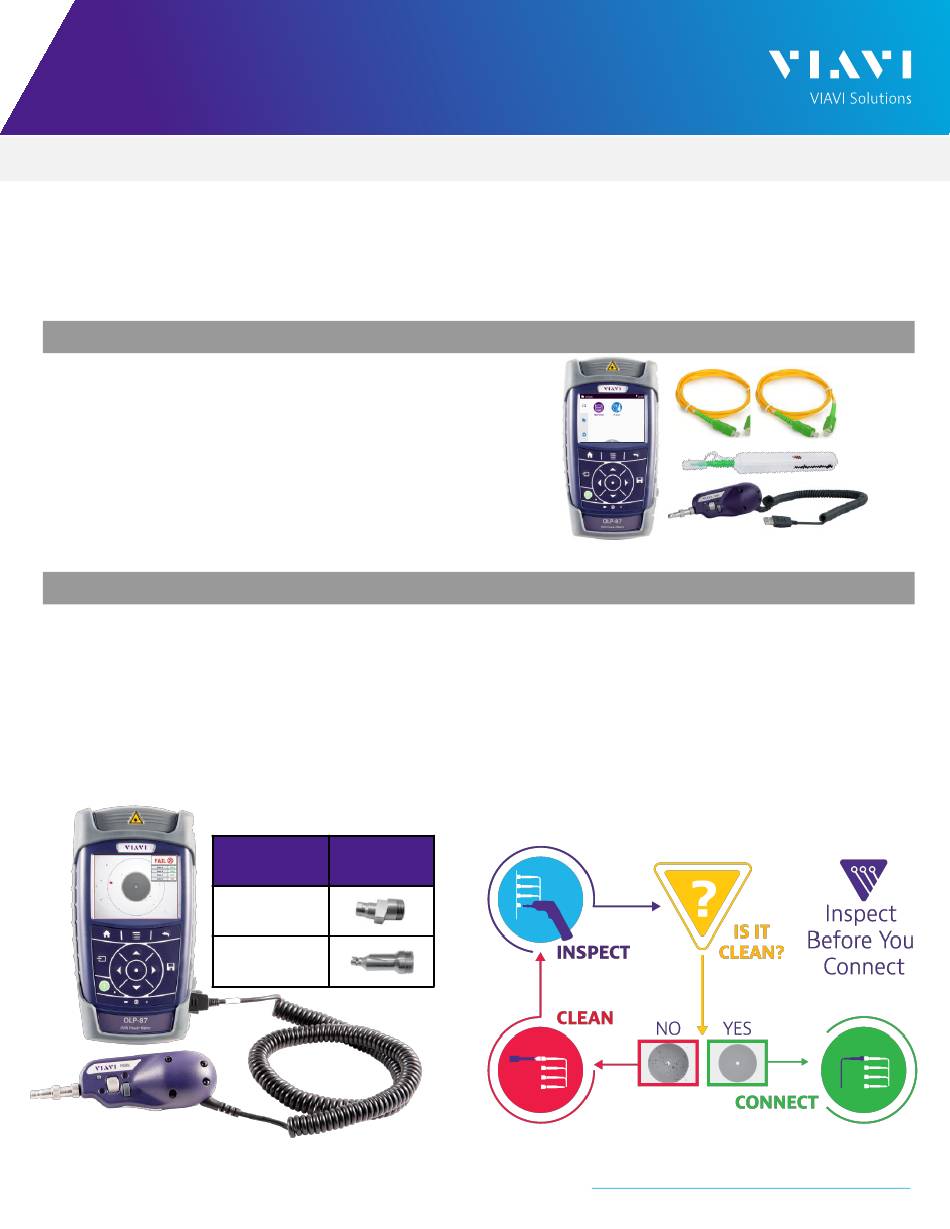

Figure 2: P5000i Fiber Inspection Microscope
SmartClass Fiber OLP-87 PON Power Meter
Connection
Inspection
Type
Tip
SC-APC
Bulkhead
SC-APC
Patch Cord

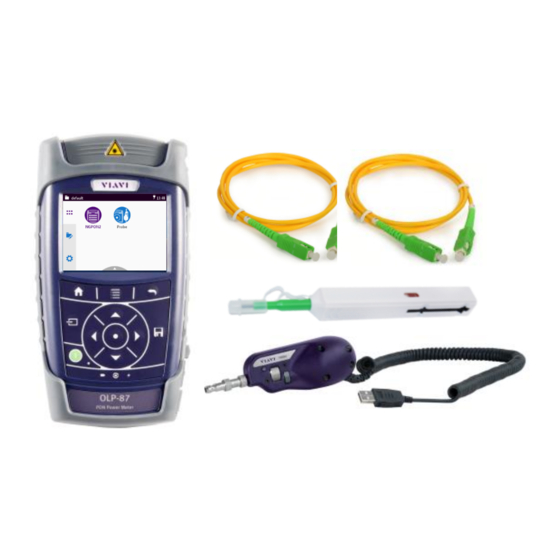

Figure 1: Equipment Requirements
Figure 3: Inspect Before You Connect
https://www.viavisolutions.com/en-us/products/pon-testing
VIAVI//Public
Advertisement
Table of Contents
Related Manuals for Viavi SmartClass Fiber OLP-87 NG-PON2
Summary of Contents for Viavi SmartClass Fiber OLP-87 NG-PON2
- Page 1 This quick card describes how to connect to a fiber under test, configure FTTx settings, and read power measurements with the VIAVI OLP-87 NG-PON2 selective power meter. E Q U IP ME N T R E Q U I R E ME N T S ►...
- Page 2 SmartClass Fiber OLP-87 NG-PON2 Power Meter Q UI CK CA RD C O N N E C T T O F IB E R U N D E R T E S T ( F U T ) The OLP-87 should be connected between the OLT and ONT at the ONT as follows: Connect an SC APC patch cord between the OLP-87 OLT connector and the OLT.
- Page 3 SmartClass Fiber OLP-87 NG-PON2 Power Meter Q UI CK CA RD Tap the Menu button Tap the Test Location soft key and and set Location: ▪ Select FDH if testing at the Fiber Distribution Hub. ▪ Select FDT if testing at the Fiber Distribution Terminal.
