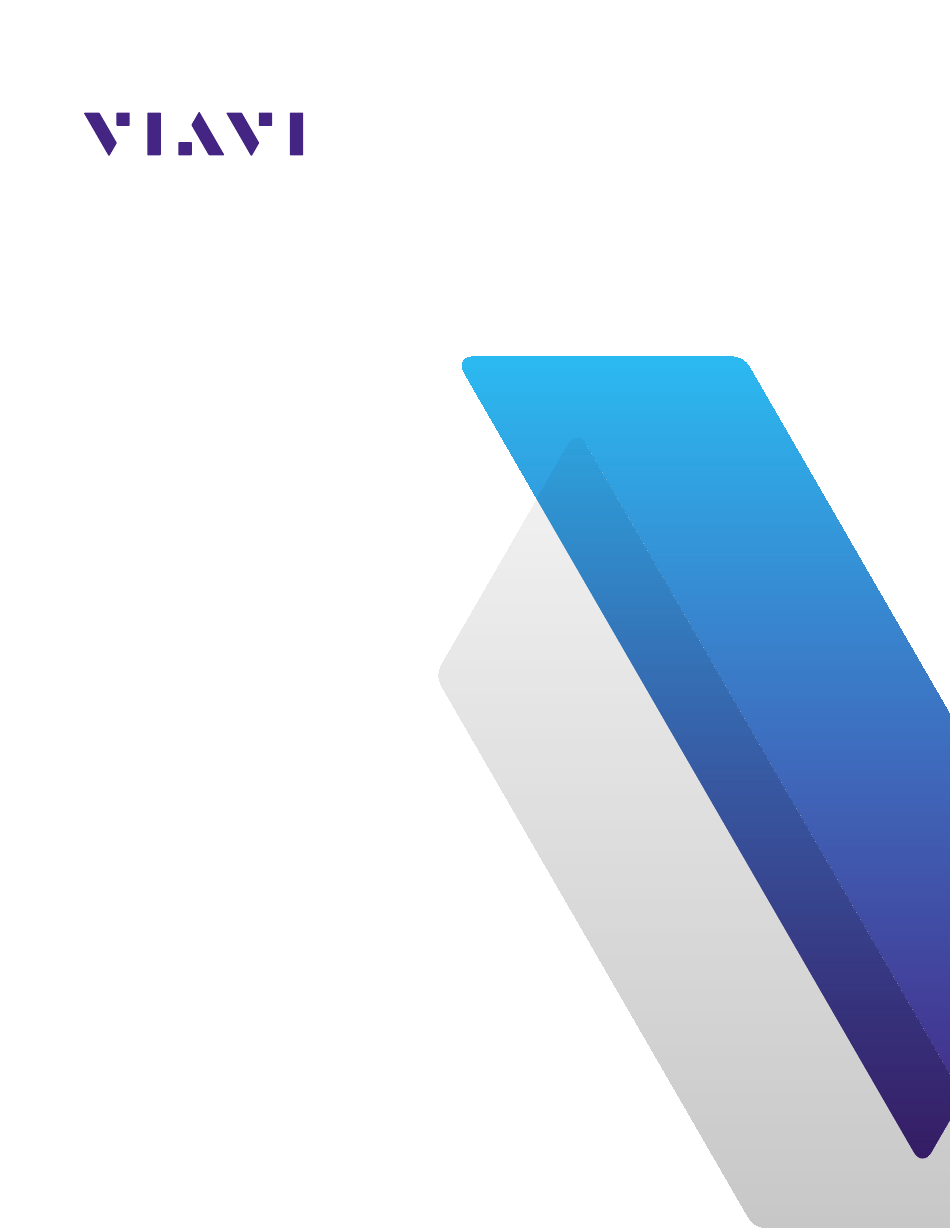

- Page 1 DSP TDR Quick Start Guide...
-
Page 2: Copyright Release
Copyright/Trademarks © Copyright 2019 VIAVI Solutions Inc. All rights reserved. No part of this guide may be reproduced or transmitted, electronically or otherwise, without written permission of the publisher. VIAVI Solutions and the VIAVI logo are trademarks of VIAVI Solutions Inc. (“Viavi”). All other trademarks and registered trademarks are the property of their respective owners. -
Page 3: California Proposition
California and the state’s drinking water and environment from excessive exposure to chemicals known to the state to cause cancer, birth defects or other reproductive harm. For the VIAVI position statement on the use of Proposition 65 chemicals in VIAVI products, see the Hazardous Substance Control section of the VIAVI Standards and Policies web page. -
Page 4: Typographical Conventions
Press Ctrl+s simultaneous keystrokes. A comma indicates consecutive key Press Alt+f,s strokes. A slanted bracket indicates On the menu bar, press Start > Program Files. choosing a submenu from menu. DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019... -
Page 5: Symbol Conventions
This symbol, located on the equipment, battery, or the packaging indicates that the equipment or battery must not be disposed of in a land-fill site or as municipal waste, and should be disposed of according to your national regulations. DSP TDR Quick Start Guide July 2019 22134505, Rev. 000... -
Page 6: Safety Definitions
Indicates that there is an action that must be ALERT performed in order to protect equipment and data or to avoid software damage and service interruption. DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019... - Page 7 WARNING: The antenna used for this instrument is installed at the VIAVI factory or by VIAVI-approved repair facilities. During operation of the device, a distance of 20 cm or more should be maintained between the antenna in this device and person.
- Page 8 ALERT: Never spray liquid directly on the display screen as it could run inside the unit and cause damage. DSP TDR Quick Start Guide viii 22134505, Rev. 000 July 2019...
-
Page 9: Before You Begin
Before You Begin Thank you for purchasing the DSP TDR. This guide provides setup and operating instructions to get you up and running as soon as possible. Technical Assistance If you require technical assistance, call 1-844-GO-VIAVI / 1.844.468.4284. Outside US: +1-855-275-5378 Email: Trilithic.support@viavisolutions.com... - Page 10 About the DSP TDR In the event of a cable break or fault, the DSP TDR enables cable service provider maintenance teams and contractors to quickly find the location to get service back online as soon as possible. Since a cable break likely means an outage, pin-pointing it quickly is very important.
-
Page 11: Front View

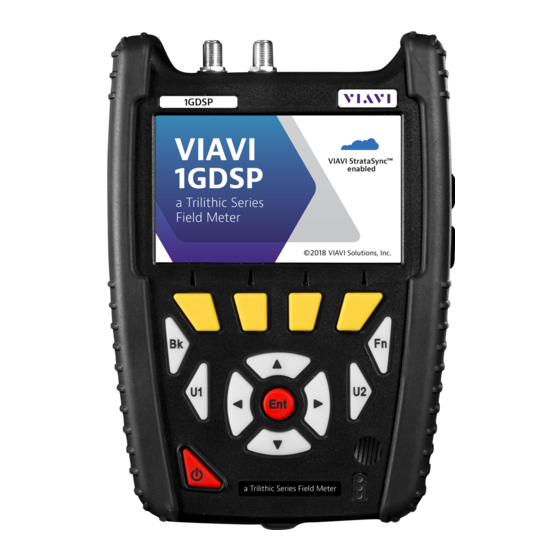

A Guided tour of the DSP TDR Front View TDR Connector Touchscreen LCD Softkeys Back Button User 1 Button Arrow Buttons Power Button Enter Button Water Resistant Speaker Battery Status Indicators User 2 Button Function Button DSP TDR Quick Start Guide July 2019 22134505, Rev. -
Page 12: Top View
Magnetic Closure NOTE: In the image above, the protective rubber door is in the open position for illustrative purposes. This door should remain closed when not using any of these ports. DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019... -
Page 13: Rear View
Rear view TDR Connector Internal Wi-Fi Antenna (2 dB Gain) DSP TDR DSP TDR Identification Label (S/N, FCC ID & Notice) DSP TDR Quick Start Guide July 2019 22134505, Rev. 000... -
Page 14: Battery Charging
A flashing Red indicator is displayed when the corresponding battery or charging circuit has a fault. In this case, the meter will need to be serviced by a Certified Repair Center. Before sending in the unit for repair, contact VIAVI for an RMA. •... - Page 15 Getting started with the DSP TDR 1. Power on the unit by pressing and releasing the Power button. 2. Select the Test softkey at the bottom of the screen. 3. Select the TDR icon on the screen. 4. Connect the cable to be tested to the F-81 port on the top of meter labeled TDR.
-
Page 16: Function Menu
Enabled causes auto range to zoom to first event from start Show Events List – Enables pop-up screen with events list showing events and distance Recall Trace – Recalls and displays a previously saved TDR trace DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019... -
Page 17: Viewing Results
If not, you will be prompted to give the capture a file name and select Done. 4. The stored file will save as .PNG and can be viewed, exported to USB, or uploaded to StrataSync. DSP TDR Quick Start Guide July 2019 22134505, Rev. 000... - Page 18 4. Navigate using the arrow buttons to either Ethernet or Wi-Fi, and select Enter. NOTE: For more information on syncing your meter to StrataSync, see the "StrataSync Setup for DSP Field Meters" guide or contact Trilithic.support@viavisolutions.com. DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019...
- Page 19 3. From the ethernet pop-up window, navigate to Login and select Enter. 4. The DSP TDR will activate the connection, configure the device, and assign an IP address. 5. Once the ethernet icon is visible in the blue bar at the bottom right side of screen and the IP address is displayed, press the Test softkey.
- Page 20 To change comments, highlight the job and select the Function button. Navigate to Change Comment and select Enter. A virtual keyboard will display on screen. Enter the new comments, and select Done when finished. DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019...
-
Page 21: Utility Menu
Browser – Used to verify internet connectivity. Does not support Flash or ActiveX Wi-Fi – Used to conduct Wi-Fi survey USB OPM – Interface for the VIAVI MP60/80 optical power meter Fiber scope – Interface for the VIAVI P5000i fiber scope... -
Page 22: Limited Warranty
Lists saved files and allows for viewing and exporting saved data. Cal Touch Used to calibrate touch screen. Update FW Used to update firmware via web or USB. Limited Warranty For the latest warranty information, visit https://www.viavisolutions.com/literature/viavi-solutions-inc-general-terms-en.pdf https://www.viavisolutions.com/en-us/literature/viavi-manufacturer-warranty-nse- products-en.pdf DSP TDR Quick Start Guide 22134505, Rev. 000 July 2019... -
Page 23: Specifications
Power Adapter Input: 100 to 240 VAC ~ 50 to 60 Hz, 1.2A Max Output: 15 VDC, 3.34A Environmental Storage and Operating Temperature -18° to +50° C (0° to 122° F) DSP TDR Quick Start Guide July 2019 22134505, Rev. 000... - Page 24 22134505 Rev. 000, July 2019 English VIAVI Solutions North America: 1.844.GO VIAVI / 1.844.468.4284 Latin America +52 55 5543 6644 EMEA +49 7121 862273 APAC +1 512 201 6534 All Other Regions: viavisolutions.com/contacts email Trilithic.support@viavisolutions.com...
