Viavi SmartOTDR Getting Started Manual

SmartOTDR GETTING STARTED MANUAL

Laser safety

The provisions contained in two standards define the safety procedures to be observed both by users and
by manufacturers when utilizing laser products:
- EN 60825-1: 2001 - Safety of laser products – Part 1: Classification of products, requirements and user
guidelines.
- FDA 21 CFR § 1040.10 - Performance standards for light-emitting products - Laser products.
Due to the range of possible wavelengths, power values and injection characteristics of a laser beam, the
risks inherent in its usage vary. The laser classes form groups representing different safety thresholds.
- VFL option: Laser Class 2.
Due to the reduced dimensions of the optical modules, it is not possible to attach the required warning la-
bels to them. In line with the provisions of Article 5.1 of the EN 60825-1 standard, the laser class identifica-
tion labels are shown below:
Ref. standard
Class 2
The user must take the necessary precautions concerning the optical outputs of the instrument and
follow the manufacturer's instructions.

AC/DC power supply safety

Always use the proper adaptable plug to connect the power supply to an electrical outlet. Viavi is
!
not responsible for direct or indirect damage including damage to persons or property if the power
supply is not use correctly. For assistance using one of the Viavi supplied adapters (your specific
regional adapter may not be available) please refer to the user manual.
Before connecting a fiber into a test module, inspect and clean the module bulkhead and the fiber jumper
connectors.
Use a video inspection scope (such as P5000i) to verify the connector quality. Follow this simple
1
"INSPECT BEFORE YOU CONNECT" process
Use appropriate cleaning material (e.g. IBC™ cleaner, cotton swab, dust air sprays, etc...) and
2
re-inspect to confirm.
Carefully align the connector and test port prior to mating both
3
Never force the connector ferrule or insert it with an angle into the test port adapter. Mechanical stress
may permanently damage the ceramic sleeve of the adapter or the end face of the connector.
Connect the Microscope to the SmartOTDR USB
1
port.
On the Home page, select the Microscope icon.
2
A summary of test results is displayed.
7
Zones: A - Core / B - Cladding / C - Epoxy /
D - Ferrule
1
2 3 4 5
8 9 10
5'' HVT Capacitive Screen
1
2
Charge indicator
3 On indicator
4 File menu
5
Setup menu
6
Start/Stop
7
Testing indicator

confIgurIng and performIng a test In smart test mode

On the Home page, select Smart TEST icon
1
From the Results page, press
2
Allows to load an existing configura-
tion file (Smart Config.)
Trace: select the active trace (multi-traces analysis)
A
Summary: display a summary of results for each
wavelengths
SmartLink (optional): Icon based map view
Zoom and shift on trace
B
Allows to modify some acquisition parameters and
C
load Smart Config.
Save in a sor file and create a txt or pdf report of
D
the results
Toggle between Table of results <-> Fault Locator
E
View
safety InformatIon
EN 60825-1, Edition 1.2, 2001-08
LASER RADIATION
DO NOT STARE INTO BEAM
CLASS 2 LASER PRODUCT

Inspect before you connect

usIng a mIcroscope wIth the smartotdr

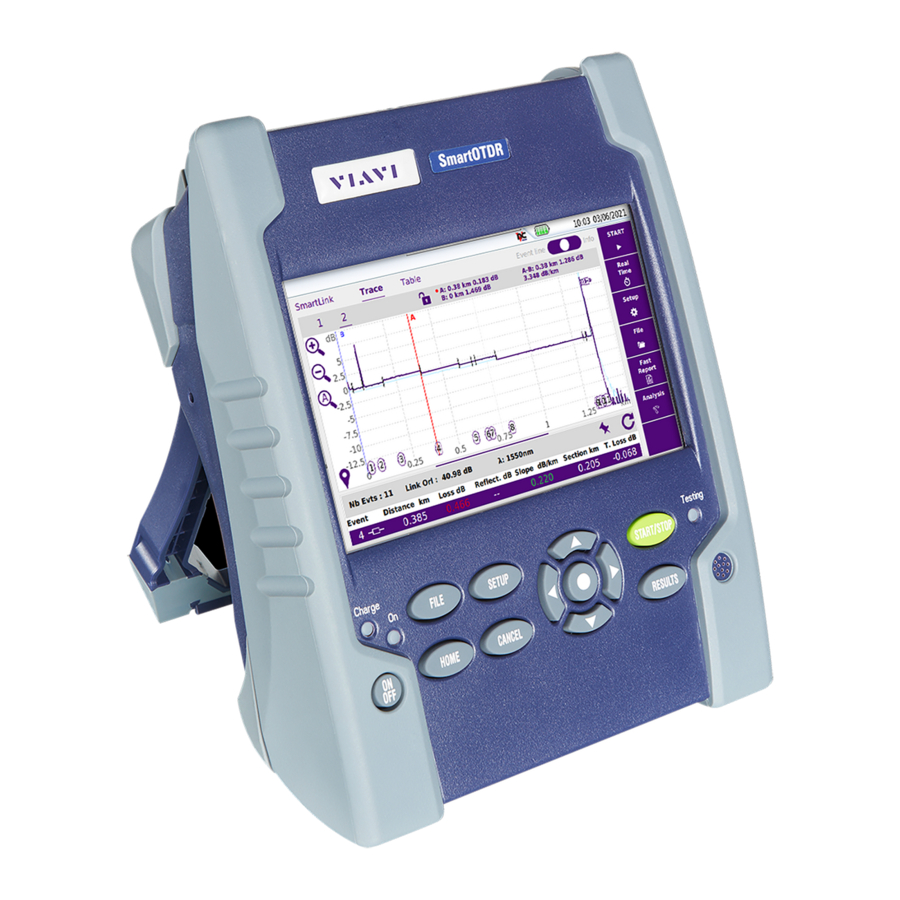

smartotdr overvIew

6 7
11 12 13
8 On/Off
9
Home page
10 Cancel (switch off functions)
11 Direction & validation keys
12 Results page
13
Buzzer
14
AC/DC Input
S
ETUP
Use Focus control button on Microscope to
3
adjust focus.
Configure the test of the connector.
4
6
Press
5
14
15
.
.
3
S /S
TaRT ToP
At the end of test, the results trace displays.
4
E
FDA21CFR§1040.10
CAUTION
LASER RAD IATION - DO NOT
STARE INTO BEAM
CLASS II LASER PRODUCT
SETUP
Display information
on scope & current
test result displayed
Configure the file storage
to return to Results page
RESULTS
16 17
20
15 Slave Mini USB port
16
VFL connector
17 USB ports (2)
OTDR port / continuous light
18
source / power meter
19
OTDR live port (in-service test)
20 WIFI or Bluetooth options
Step1: connector check
Step2: acquisition in progress
18 19
A
B
C
D
